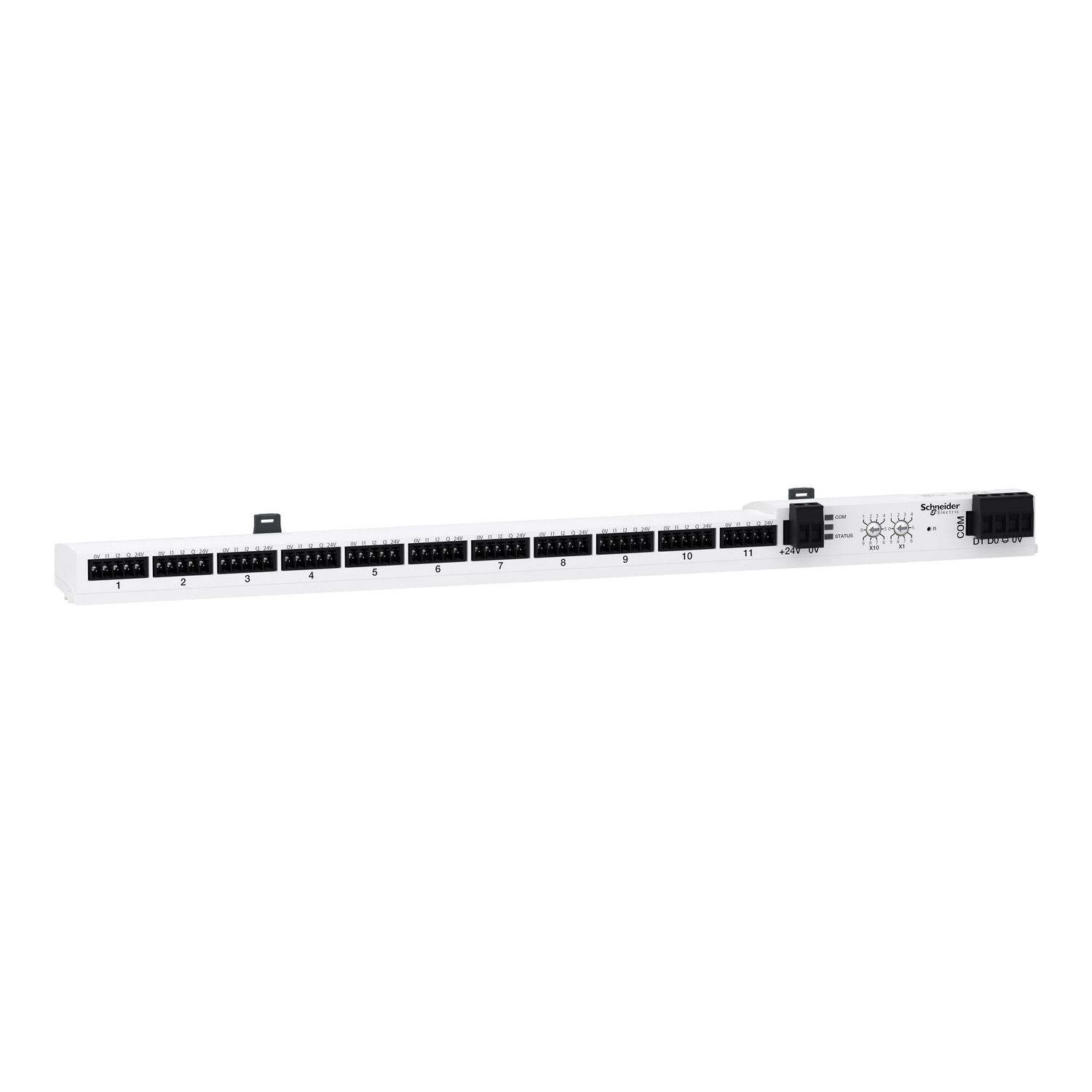

Communication Module, EcoStruxure I/O Smart Link, Modbus, RS485

$267.79
Product Selector
Communication Module, EcoStruxure I/O Smart Link, Modbus, RS485
  • Transmission of data collected by Acti9 switchgear assemblies
  • Load monitoring
  • Alarm management on level thresholds sent by e-mail
  • reduce footprint and less wiring thanks to wireless communication devices
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
Instruction sheet
User guide
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti 9 SmartLink Modbus Slave is a smart communication module with 11 channels. It communicates with the auxiliaries iACT24 for iCT contactors, iATL24 for iTL impulse relays, iOF+SD24 for iC60, iID, ARA, RCA & iSW-NA. It needs to be associated to a Master SmartLink SI B thanks to the Modbus RS485 connector. It is used to transfer data from Acti 9 devices to a PLC or network monitoring system thanks to the Ethernet connector. It communicates also with OF+SD24 for C60, C120, DPN, ID & C60H-DC, Ti24 for RCA iC60 & Reflex iC60. It is supplied with 1 power supply connector 24VDC, 2 bolts for mounting on Linergy FM80. The link is Modbus, RTU, RS485 serial connection. The transfer rate is self-adaptable from 9600 to 19200 baud. The Modbus addresing range is 1 to 99. It is a 4-pin connector type of bus. It is a plug-in connection. The maximum length of the bus is 1000m. The maximum cable length is 500m. The voltage power supply is 24VDC +/- 10%. The Maximum input current is 1,5A. The Maximum inrush current is 3A. The degree of protection is IP20. The pollution degree is 3. It complies with RoHS directive. The duration of saving memory is 10 years. The dimensions are (W) 359mm x (H) 23mm x (D) 42mm. The weigth is 195g. The operating temperature is -25°C to + 60°C and only +50°C if vertical mouting. The storage temperature is -40°C to + 80°C. This product complies with IEC/EN 61131-2 standard.

Products specifications

Attribute nameAttribute value
Main
Web serverBMS controller compatible
Device short nameI/O Smart Link
Device applicationbasic energy metering E, breaker status monitoring, load control
Web servicesweb page
Maximum supply current1.5 A
Connectivity to devicespulse output meter, digital input and output
RangeEcoStruxure
Range of productActi9
Group of channels1 group of 11 digital channels
Connected auxiliariesup to 11 wired devices
Communication serviceModbus server for RS485
Product nameEcoStruxure I/O Smart Link
Product or component typesmart communication module
[Us] rated supply voltage24 V DC +/- 20 %
Complementary
Input/output type2 inputs + 1 output per digital channel
Type of settingreset for plug in, plug out the auxiliary supply, reset for address encoders, Modbus address 01...99 for address encoders
Inrush current7 A for power supply, 0.5 A for digital output
Colourwhite (RAL 9003)
Compatibility codeActi 9 Smartlink
Application specific I/Opulse converter, pulse totalising counter
Local signallingstatus: 1 LED (green, orange and red), communication: 1 LED (yellow)
Commissioning interfaceweb page, EcoStruxure Power Commission
Maximum voltage drop<1 V at state 1 digital output
Wire stripping lengthcommunication bus: 7 mm, supply circuit: 7 mm, control: 10 mm
Output typelogic current source: 24 V - DC - 100 mA
Protection typeovervoltage at 33 V DC for digital output, against reverse polarity for input, against reverse polarity for auxiliary supply
Maximum permanent current5 mA for digital input
Immunity to microbreaks10 ms
Connections - terminalsplug-in connector qty: 1 for communication bus, plug-in connector qty: 1 for supply circuit, spring-loaded terminal Ti24 qty: 11 for digital input/output, ordered separately
Height22.5 mm
Input typecurrent sink for digital input, 24 V DC +/- 20 % at 2.5 mA
9 mm pitches0 useful
Depth42 mm
Market segmentsmall commercial, buildings
Width359 mm
Communication network typeRS485 Modbus RTU client/server SUB-D 9 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Location of connectionfront
Mounting positionhorizontal and vertical on DIN rail
Net weight188 g
Clamping connection capacity2 x 0.2...2 x 1.5 mm², rigid without cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², rigid with cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², flexible without cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², flexible with cable end for supply circuit, 1 x 0.2...1 x 1.5 mm², rigid without cable end for control, 1 x 0.2...1 x 1.5 mm², rigid with cable end for control, 1 x 0.2...1 x 1.5 mm², flexible without cable end for control, 1 x 0.2...1 x 1.5 mm², flexible with cable end for control, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid without cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid with cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible without cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible with cable end for communication bus
Range compatibilityActi 9 Acti9 Reflex iC60 Ti24 connector, Acti 9 Acti9 iDPN, Acti 9 Acti9 ITG40, Acti 9 Acti9 I-NA, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Multi9 Multi9 C60, Acti 9 Acti9 C40, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iC60, Acti 9 Acti9 iCT auxiliary, Acti 9 RCA iC60, PowerLogic pulse output meter, Acti 9 iATL24, Acti 9 iACT24, Acti 9 iOF+SD 24, Linergy Linergy FM, Acti 9 iTL auxiliary
Provided equipmentset of 2 locking clips, set of 1 power supply connector, set of 1 bus connector
Electronic filtering time2 ms for digital input from state 0 to state 1
Resetby plug in, plug out the power supply, by address encoder, by booted push-button, factory reset on front face
Environment
Fire resistanceon connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2-10, other parts: 650 °C ( 30 s ) conforming to IEC 60695-2-10
Relative humidity0-93 % at 40-40 °C
Ambient air temperature for storage-40-85 °C
Pollution degree3
Electromagnetic compatibilitycommunication bus: surges (CM coupling 2 Ohm), class B, 1 kV, conforming to IEC 61000-4-5, power supply: surges (CM coupling 42 Ohm), class B, 2 kV, conforming to IEC 61000-4-5, power supply: surges (DM coupling 42 Ohm), class B, 1 kV, conforming to IEC 61000-4-5, radiated emission (30...6000 MHz), class B, conforming to CISPR 11, radiated emission (30...6000 MHz), class B, conforming to IEC 61326-1, conducted emission (0.15...30 MHz), class B, conforming to CISPR 11, conducted emission (0.15...30 MHz), class B, conforming to IEC 61326-1, conducted EMC (0.15...80 MHz), class A, 3 V, conforming to IEC 61000-4-6, communication bus: resistance to fast transient (0.15...80 MHz), class B, 1 kV, conforming to IEC 61000-4-4, input/output: resistance to fast transient, class B, 1 kV, conforming to IEC 61000-4-4, power supply: resistance to fast transient (5...100 kHz), class B, 2 kV, conforming to IEC 61000-4-4, power supply: resistance to radiated electromagnetic fields (1.4…6 GHz), class A, 3 V/m, conforming to IEC 61000-4-3, resistance to radiated electromagnetic fields (80 MHz...3 GHz), class A, 10 V/m, conforming to IEC 61000-4-3, resistance to electrostatic discharge (contact discharge), class B, 4 kV, conforming to IEC 61000-4-2, resistance to electrostatic discharge (air discharge), class B, 8 kV, conforming to IEC 61000-4-2
IP degree of protectionIP20
StandardsIEC 61010-1, IEC 61010-2-201
Tropicalisation2
Ambient air temperature for operation-25-60 °C
IK degree of protectionIK06 conforming to IEC 62262
Operating altitude0...2000 m
Environmental characteristicsalt mist 2 conforming to IEC 60068-2-52, corrosive 3C2 conforming to IEC 60721-3-3
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to EN/IEC 60068-2-6
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.4 cm
Package 1 Width6.4 cm
Package 1 Length36.4 cm
Package 1 Weight271.0 g
Unit Type of Package 22
Number of Units in Package 232
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.063 kg
