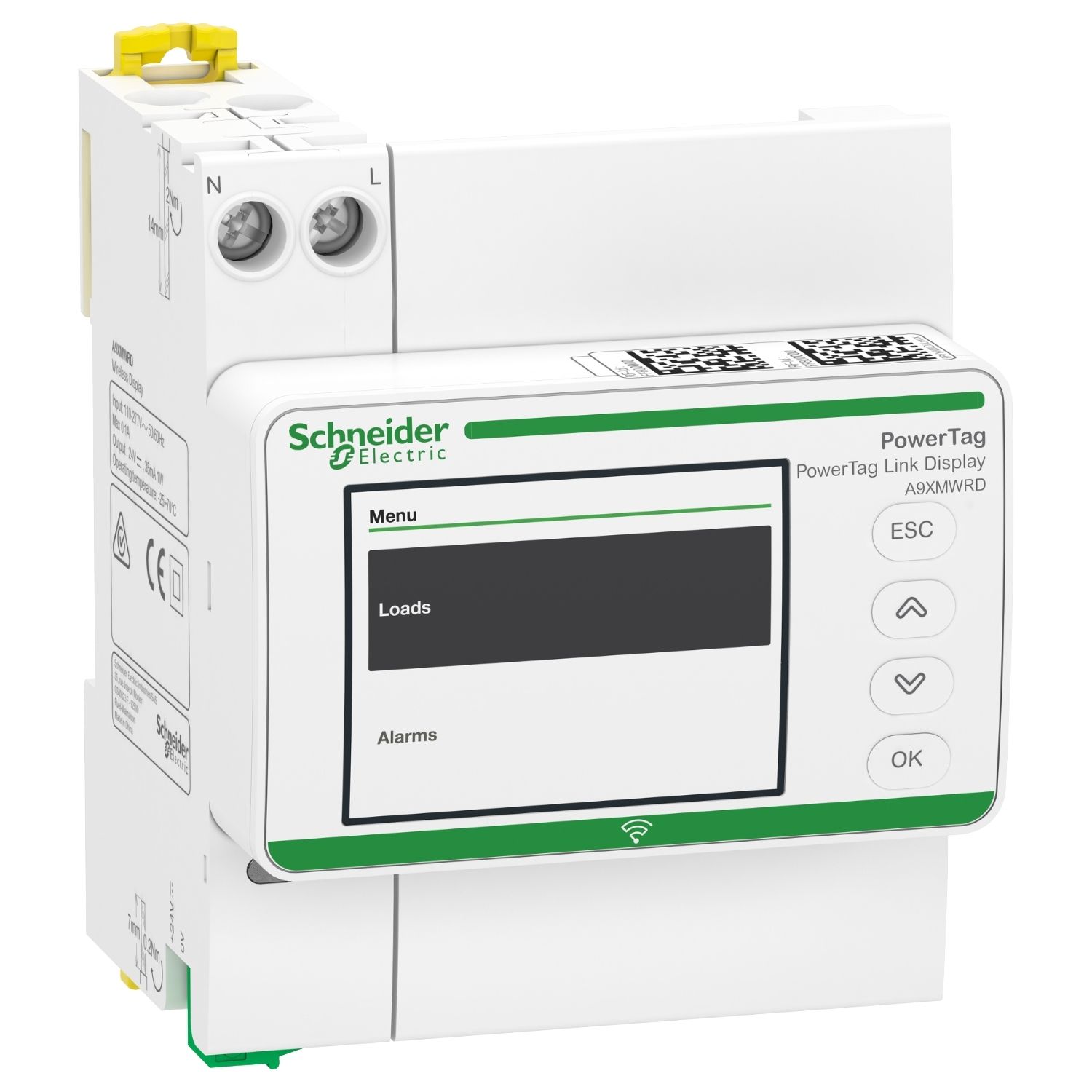

Picture of Acti9 PowerTag Link Display, color display, DIN rail
SKU:

A9XMWRD

Acti9 PowerTag Link Display, color display, DIN rail

Please Contact Sales to buy this Product. click here
Acti9 PowerTag Link Display, color display, DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
The PowerTag Link Display is the wireless local HMI of the PowerTag System. Thanks to this device combined with the PowerTag Link gateway, you can monitor your energy locally into any electrical distribution system. Indeed, it will display on the front door of your electrical panel the values collected by wireless energy sensors. Such as measured current, voltage, power factor, power and energy. The display can be installed on a DIN rail, clipped-on by its power supply, or as said flush mounted on the front door. To go further, the PowerTag Link Display gives alarms locally. Therefore, it helps to improve your operational efficiency, and to reduce the impact of downtime. The power supply can be supplied with a 110 to 277 VAC, and will distribute 24 VDC to the display. The dimensions are 72 mm in width, 95 mm in height, 68 mm in depth for a total weight of 137 g. Device is complient with Electromagnetic and Radio Spectrum Matters standards EN 300 328, EN 301489-1 and EN 301489-17.

Products specifications

Attribute nameAttribute value
Main
Device applicationhuman-machine dialogue application
Display typeLCD
RangeActi9
Product or component typedisplay
Range compatibilityActi9 Acti9 PowerTag Link smart communication module
Complementary
Projecting depth18.5 mm
Width72 mm
Display colourcolor
Display size2 inch
Mounting supportframework, DIN rail
Mounting modeflush-mounted, rail
[Us] rated supply voltage24 V DC, 110...277 V AC
Control type4 x push-button
Connector typeterminal block
Provided equipmentpower supply
Net weight137 g
Display resolution320 x 240 pixels QVGA
Power consumption in W2.7 W
Embedding depth49.5 mm
Height95 mm
Information displayedalarms, energy consumption, power factor, active power, voltage, current
Environment
Operating altitude0...2000 m
IP degree of protectionIP41 conforming to IEC 60529 (on flush mounting)
Relative humidity5-95 % at 45-45 °C
Ambient air temperature for storage-40-85 °C
StandardsEN 301-489-17, EN 301-489-1, EN 300-328, EN 61326
Ambient air temperature for operation-25-60 °C
Product certificationsCE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.000 cm
Package 1 Width8.000 cm
Package 1 Length11.000 cm
Package 1 Weight224.000 g
Unit Type of Package 22
Number of Units in Package 227
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight6.445 kg
Unit Type of Package 33
Number of Units in Package 3216
Package 3 Height75.000 cm
Package 3 Width80.000 cm
Package 3 Length60.000 cm
Package 3 Weight59.560 kg
