Picture of comb busbar, Acti9, 1L+N, 9 mm pitch, 24 modules, 80 A
SKU:

A9XPC624

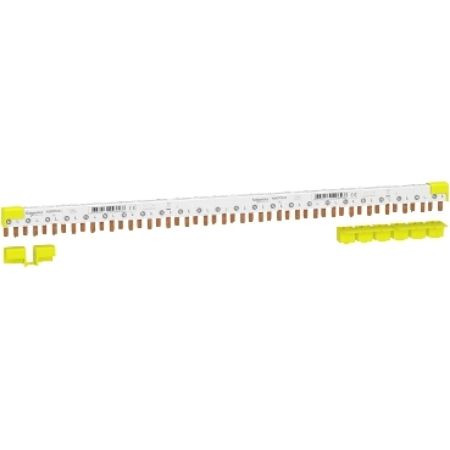

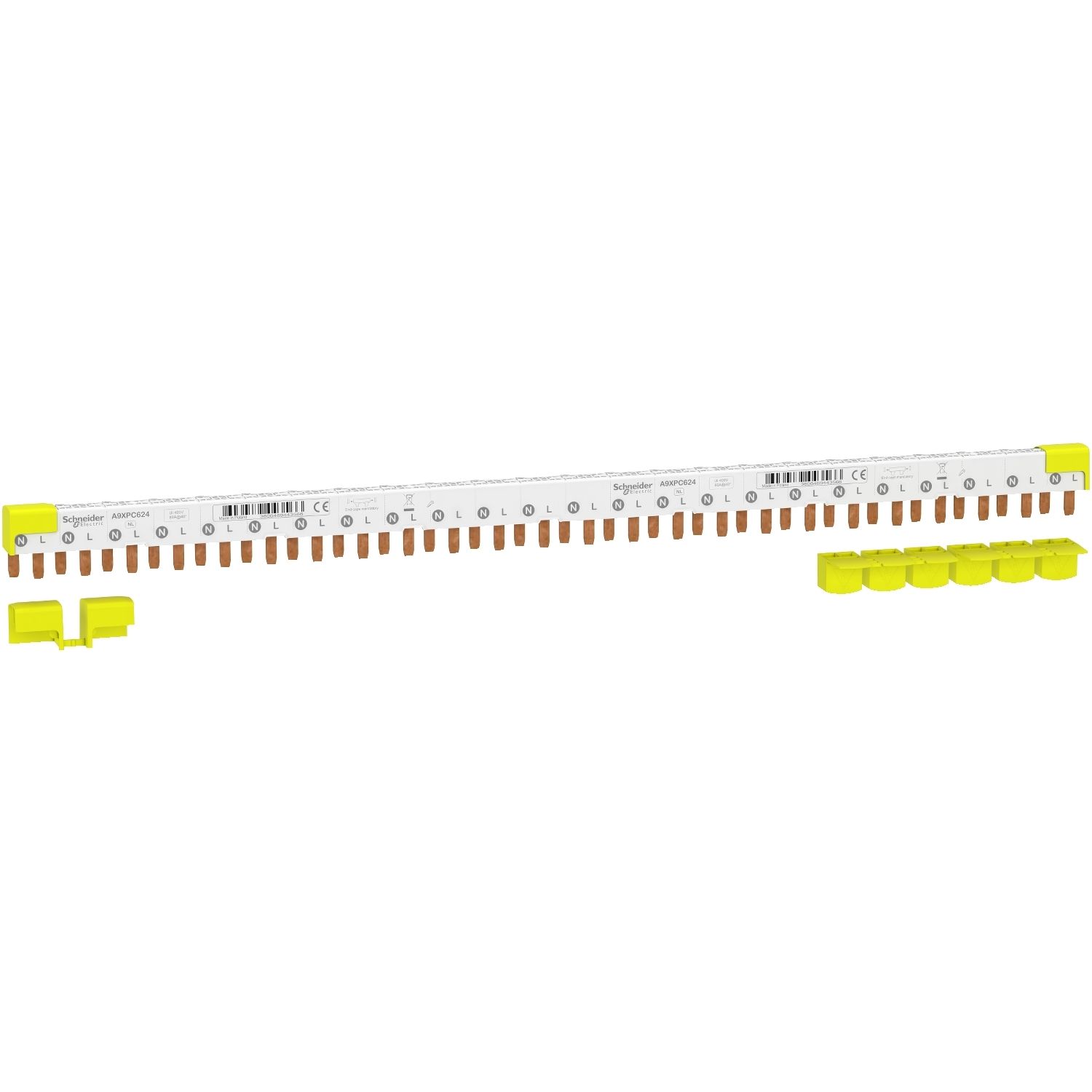

comb busbar, Acti9, 1L+N, 9 mm pitch, 24 modules, 80 A

Old price: $87.34 INC GST
$51.61 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
comb busbar, Acti9, 1L+N, 9 mm pitch, 24 modules, 80 A
  • Allows the power supply of a group of circuit breakers
  • Compatible with the breaking capacity of Schneider Electric circuit breakers
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is a set of 1 product. It is suitable for 24 devices with 1P+N pole and without associated auxiliaries. The length is 434mm. The total number of modules of 18mm is 24. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.

Products specifications

Attribute name Attribute value
Main
Lines description 1L + N
Mounting mode horizontal
Range Acti9
Product or component type comb busbar
Accessory / separate part category connection accessory
Total number of 18 mm modules 24
Complementary
Poles configuration for 1 way 1 x 1P + N
Depth 27 mm
Mounting location top on tunnel type terminals
Width 434 mm
Colour white (RAL 9003)
[Uimp] rated impulse withstand voltage 4 kV
Connection pitch 9 mm between phase and neutral
[Ue] rated operational voltage 230 V AC Ph/N
Insulation insulated
[Ie] rated operational current 80 A at 40 °C
[Ui] rated insulation voltage 400 V AC conforming to IEC 61439-1
Device presentation cuttable
Connector type tooth
Net weight 180 g
Marking N L
Distance between way 18 mm
9 mm pitches 48
Number of ways 24 ways N + 1 L
Range compatibility Acti9 Acti9 iID40, Acti9 Vigi iCG40, Acti9 Acti9 iCV40, Acti9 Acti9 iC40, Multi9 Multi9 N40 Vigi, Multi9 Multi9 N40, Acti 9 Acti9 IDc, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iDPN, Acti 9 Acti9 C40 Vigi, Acti 9 Acti9 C40
Provided equipment tooth covers,  end-pieces
Height 32 mm
Environment
Fire resistance 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree 3 conforming to EN/IEC 60439-1
Standards EN/IEC 60439-1
IP degree of protection IP20 with end-pieces and tooth covers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 2.700 cm
Package 1 Length 48.700 cm
Package 1 Weight 180.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 5.500 cm
Package 2 Width 52.000 cm
Package 2 Length 11.000 cm
Package 2 Weight 1.500 kg
Unit Type of Package 3 3
Number of Units in Package 3 520
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 110.000 kg
