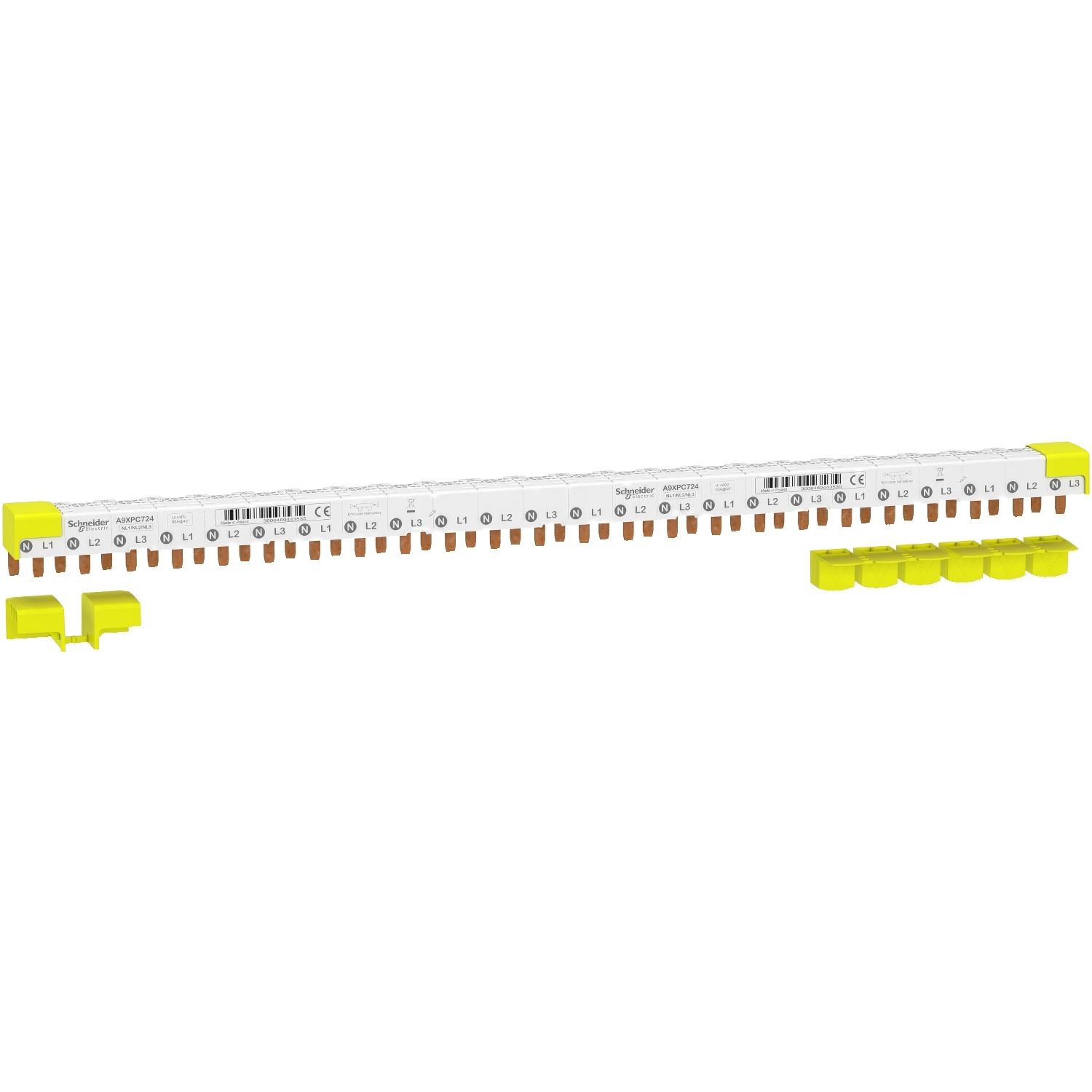

Picture of comb busbar, Acti9, 3P+N balanced, 9 mm pitch, 24 modules, 80 A
SKU:

A9XPC724

comb busbar, Acti9, 3P+N balanced, 9 mm pitch, 24 modules, 80 A

Old price: $122.32 INC GST
$72.28 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
comb busbar, Acti9, 3P+N balanced, 9 mm pitch, 24 modules, 80 A
  • Allows the power supply of a group of circuit breakers
  • Compatible with the breaking capacity of Schneider Electric circuit breakers
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is a set of 1 product. It is suitable for 8 devices with 3P+N pole and without associated auxiliaries. The length is 434mm. The total number of modules of 18mm is 24. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC (phase/neutral) and 400V (phase/phase). The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.

Products specifications

Attribute name Attribute value
Main
Lines description 3L + N
Mounting mode horizontal
Range Acti9
Product or component type comb busbar
Accessory / separate part category connection accessory
Total number of 18 mm modules 24
Complementary
Poles configuration for 1 way 3 x 1P + N, 1 x 3P, 1 x 3P + N
Depth 28 mm
Mounting location top on tunnel type terminals
Width 434 mm
Colour white (RAL 9003)
[Uimp] rated impulse withstand voltage 4 kV
Connection pitch 18 mm between phases, 9 mm between phase and neutral
[Ue] rated operational voltage 400 V AC Ph/Ph, 230 V AC Ph/N
Insulation insulated
[Ie] rated operational current 80 A at 40 °C
[Ui] rated insulation voltage 440 V AC conforming to IEC 61439-1
Device presentation cuttable
Connector type tooth
Net weight 301 g
Marking N L1 N L2 N L3
Distance between way 54 mm
9 mm pitches 48
Number of ways 8 ways N + 3 L (balanced)
Range compatibility Acti9 Acti9 iID40, Acti9 Vigi iCG40, Acti9 Acti9 iCV40, Acti9 Acti9 iC40, Multi9 Multi9 N40 Vigi, Multi9 Multi9 N40, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iDPN, Acti 9 Acti9 C40 Vigi, Acti 9 Acti9 C40
Provided equipment tooth covers,  end-pieces
Height 32 mm
Environment
Fire resistance 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree 3 conforming to EN/IEC 60439-1
Standards EN/IEC 60439-1
IP degree of protection IP20 with end-pieces and tooth covers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 3.200 cm
Package 1 Length 49.100 cm
Package 1 Weight 299.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 7.000 cm
Package 2 Width 11.000 cm
Package 2 Length 52.000 cm
Package 2 Weight 2.484 kg
Unit Type of Package 3 3
Number of Units in Package 3 392
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 135.000 kg
