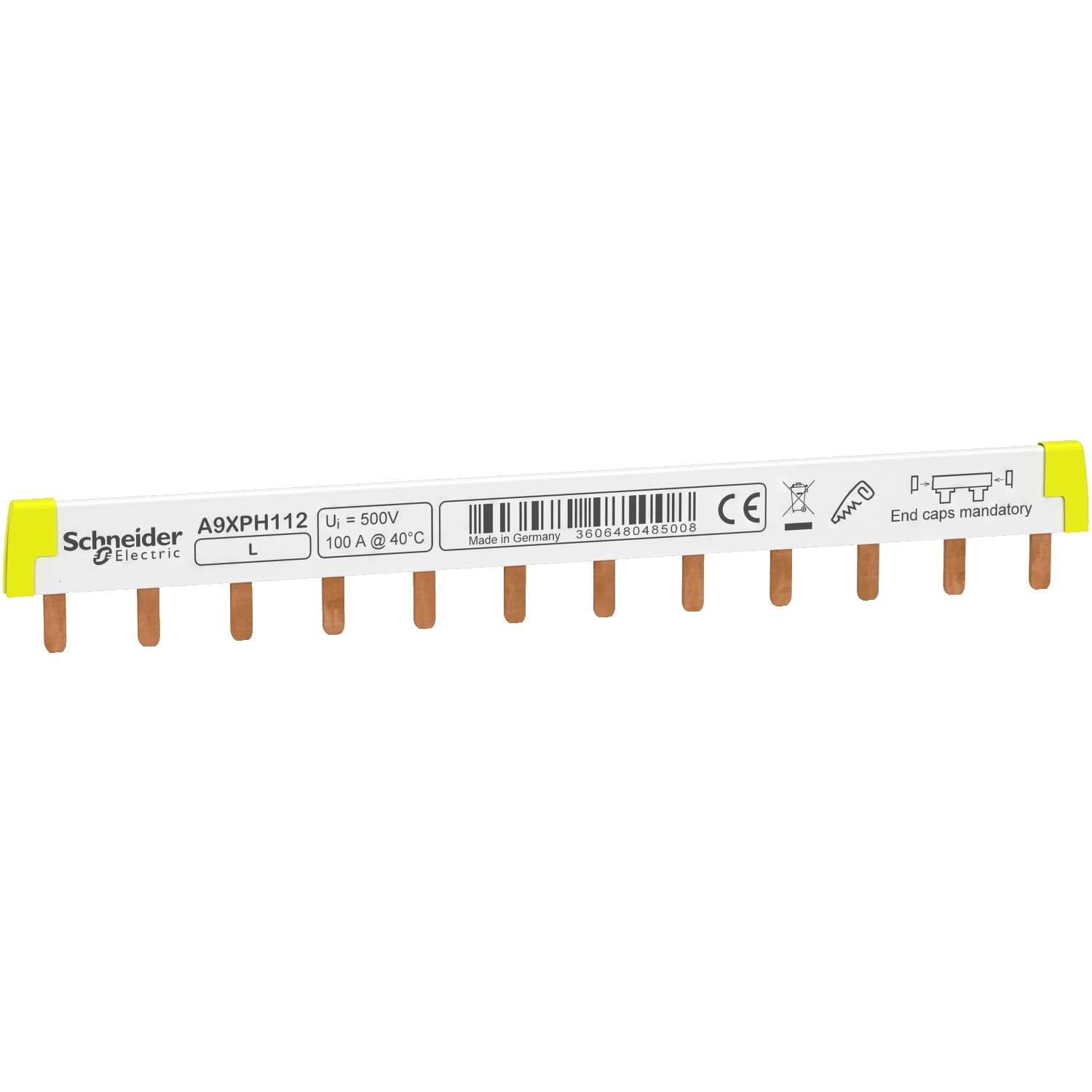

Picture of Acti9, comb busbar - 1L - 18 mm pitch - 12 modules - 100A
SKU:

A9XPH112

Acti9, comb busbar - 1L - 18 mm pitch - 12 modules - 100A

$24.43
Product Selector
Acti9, comb busbar - 1L - 18 mm pitch - 12 modules - 100A
  • Allows the power supply of a group of circuit breakers
  • Compatible with the breaking capacity of Schneider Electric circuit breakers
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Brochure
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Products specifications

Attribute nameAttribute value
Main
Lines description1L
Mounting modehorizontal
RangeActi9
Product or component typecomb busbar
Accessory / separate part categoryconnection accessory
Total number of 18 mm modules12
Complementary
Poles configuration for 1 way1 x 1P
Mounting locationtop or bottom on double terminal, top or bottom on tunnel type terminals
Width220 mm
Colourwhite (RAL 9003)
Connection pitch18 mm
[Ue] rated operational voltage415 V AC
Insulationinsulated
[Ie] rated operational current100 A at 40 °C
[Ui] rated insulation voltage500 V AC conforming to IEC 61439-2
Device presentationcuttable
Connector typetooth
MarkingL
Distance between way18 mm
9 mm pitches24
Number of ways12 ways 1 L
Range compatibilityMulti9 Multi9 C60, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iSW, Acti 9 Acti9 iID K, Acti 9 Acti9 iID, Acti 9 Acti9 iK60, Acti 9 Acti9 iC60
Environment
Fire resistance960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree3 conforming to IEC 60947-7-1
StandardsIEC 61439-2, IEC 60947-7-1
IP degree of protectionIP20 with end-pieces and tooth covers
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.000 cm
Package 1 Width8.700 cm
Package 1 Length24.800 cm
Package 1 Weight49.000 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height6.000 cm
Package 2 Width8.700 cm
Package 2 Length24.800 cm
Package 2 Weight554.000 g
Unit Type of Package 33
Number of Units in Package 3160
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight9.380 kg
