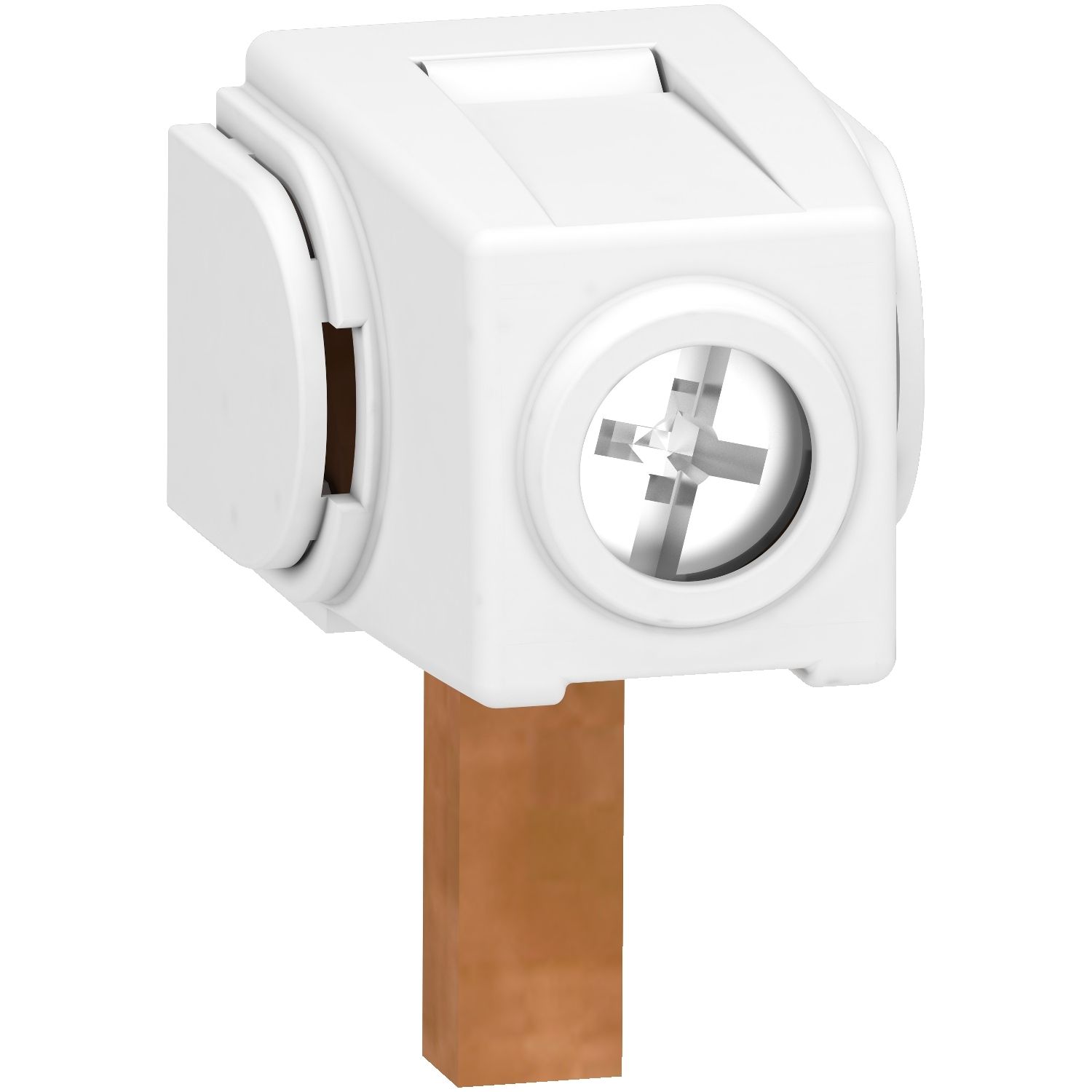

Picture of Set of 4 connectors 100A double terminal
SKU:

A9XPCD04

Set of 4 connectors 100A double terminal

$39.23
Available for Shipping : 24-Nov-2024
Set of 4 connectors 100A double terminal
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Acti9 Linergy FH product is a set of 4 cable connectors. It facilitates the comb busbar power supply. it is compatible with iC60 and iK60 devices. The cross section of the cable connector is 35mm². The tightening torque is 4N.m. The In rated current is 100A. The color of the device is white (RAL 9003).

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Range Acti9
Product name Linergy FH
Product or component type connector
Accessory / separate part category connection accessory
Range of product Acti9
Comb busbar and distribution block compatibility double terminal
Complementary
Product compatibility iSW-NA, iID, STI, iK60, iID K, iC60, iSW switch disconnector
Tightening torque 4-4 N.m
Market segment small commercial
Colour white (RAL 9003)
Range compatibility Acti 9 Acti9 STI comb busbar, Acti 9 Acti9 iSW-NA comb busbar, Acti 9 Acti9 iSW comb busbar, Acti 9 Acti9 iID K comb busbar, Acti 9 Acti9 iID comb busbar, Acti 9 Acti9 iK60 comb busbar, Acti 9 Acti9 iC60 comb busbar
Connections - terminals screw clamp terminals top connector35-35 mm²
[In] rated current 100 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 5.900 cm
Package 1 Length 9.900 cm
Package 1 Weight 48.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.200 kg
