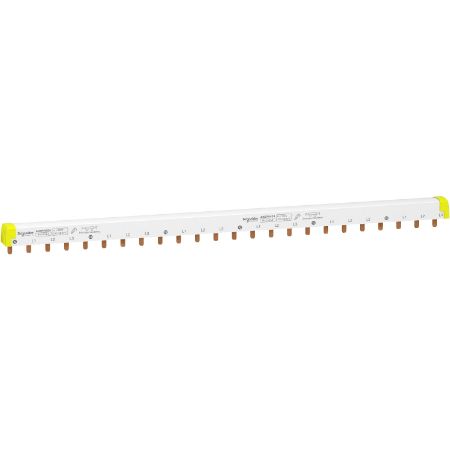

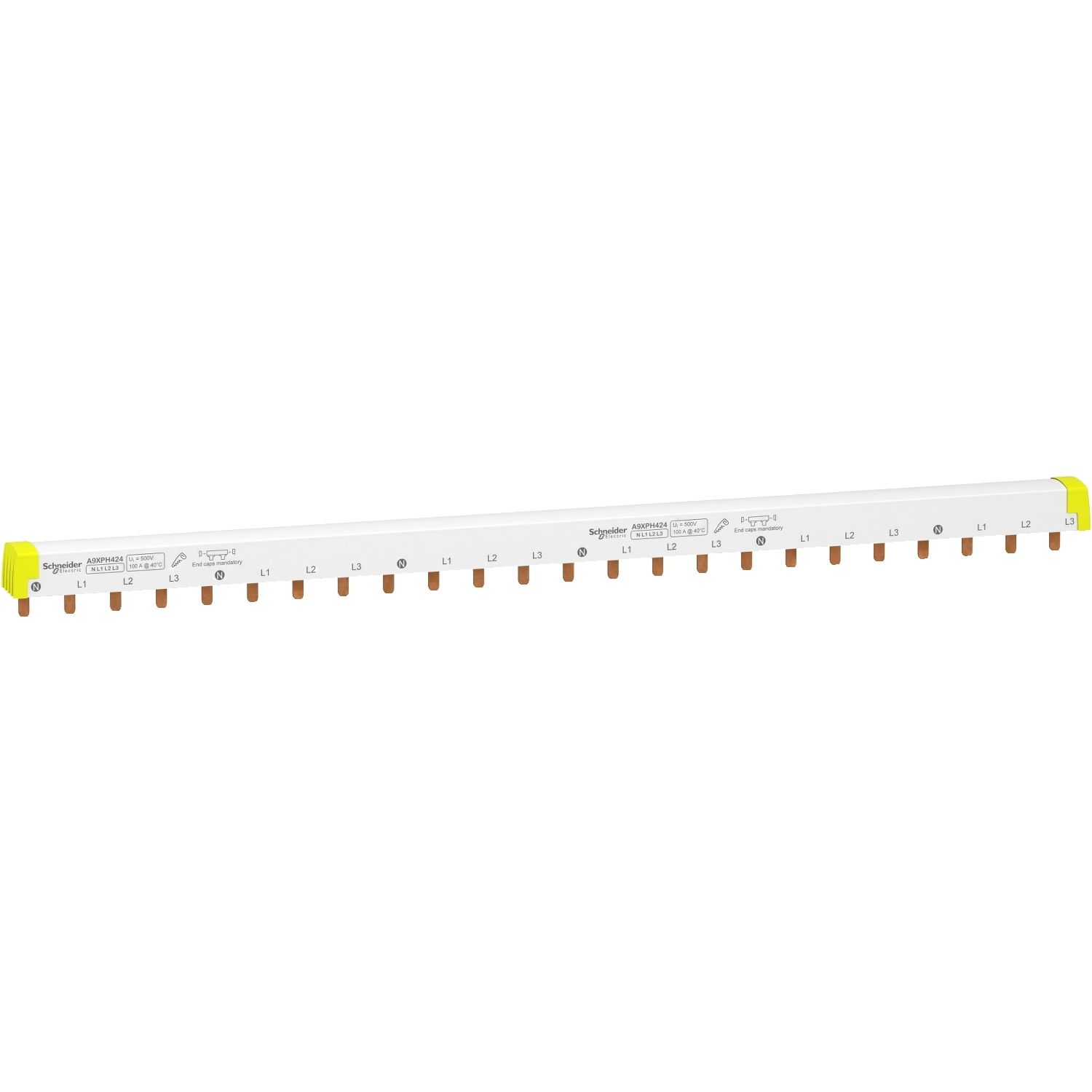

Picture of Acti9, comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A
SKU:

A9XPH424

Acti9, comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A

$195.47
Available for Shipping : 14-Nov-2024
Product Selector
Acti9, comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 6 devices (3P+N). The length is 430mm.The total number of modules of 18mm is 24. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Products specifications

Attribute name Attribute value
Main
Lines description 3L + N
Mounting mode horizontal
Range Acti9
Product or component type comb busbar
Accessory / separate part category connection accessory
Total number of 18 mm modules 24
Complementary
Poles configuration for 1 way 1 x 4P, 1 x 3P + N
Mounting location top or bottom on double terminal, top or bottom on tunnel type terminals
Width 430 mm
Colour white (RAL 9003)
Connection pitch 18 mm
[Ue] rated operational voltage 415 V AC
Insulation insulated
[Ie] rated operational current 100 A at 40 °C
[Ui] rated insulation voltage 500 V AC conforming to IEC 61439-2
Device presentation cuttable
Connector type tooth
Marking N L1 L2 L3
Distance between way 72 mm
9 mm pitches 48
Number of ways 6 ways N + 3 L
Range compatibility Multi9 Multi9 C60, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iSW, Acti 9 Acti9 iID K, Acti 9 Acti9 iID, Acti 9 Acti9 iK60, Acti 9 Acti9 iC60
Environment
Fire resistance 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree 3 conforming to IEC 60947-7-1
Standards IEC 61439-2, IEC 60947-7-1
IP degree of protection IP20 with end-pieces and tooth covers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 8.400 cm
Package 1 Length 46.600 cm
Package 1 Weight 289.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.600 cm
Package 2 Width 8.400 cm
Package 2 Length 46.600 cm
Package 2 Weight 1.546 kg
Unit Type of Package 3 3
Number of Units in Package 3 35
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 11.790 kg
Unit Type of Package 4 4
Number of Units in Package 4 140
Package 4 Height 45.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 107.000 kg
