SKU:

A9XST114

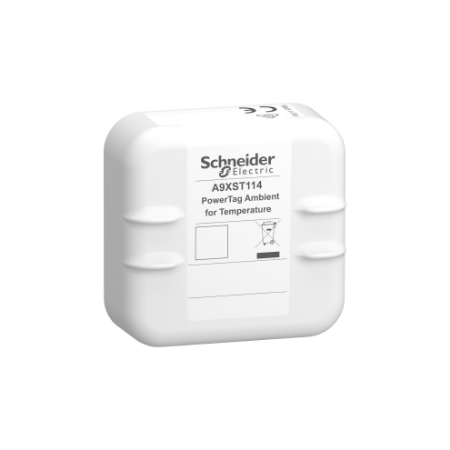

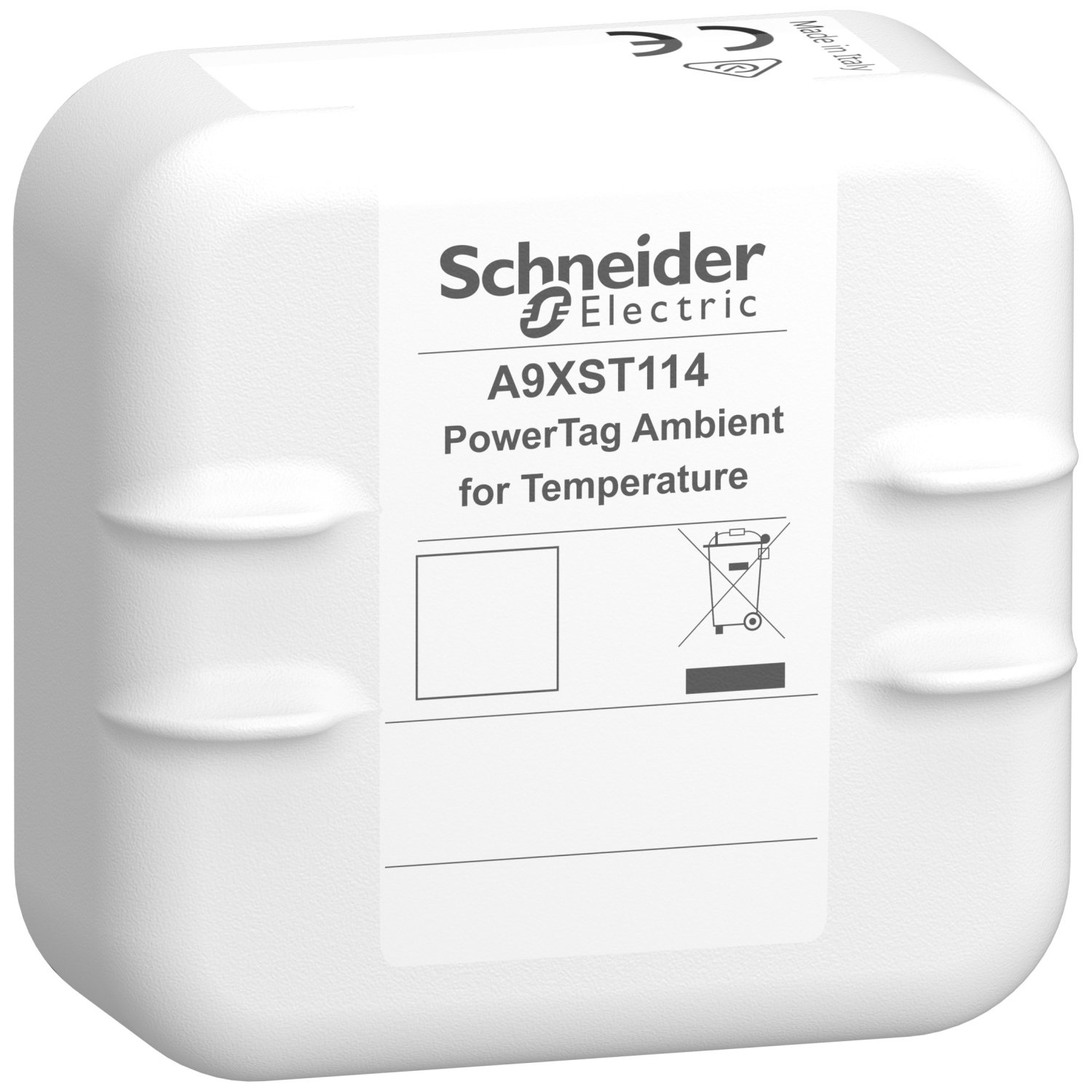

Acti9 Set of 4 fridge temperature sensors

$401.44
Available for Shipping : 25-Nov-2024
Acti9 Set of 4 fridge temperature sensors
Manufacturer: Schneider Electric
This Acti9 product is a set of 4 temperature sensors. It is based on Zigbee communication port protocol on a transmission frequency of 2.405GHz according to IEEE802.15.4 standard. It is intended for fridge.

Products specifications

Attribute name Attribute value
Main
Concentrator compatibility wireless access point
Range Acti9
Product or component type temperature sensor
Product destination fridge
Complementary
Depth 40 mm
Width 40 mm
Colour white
Display type 1 LED (green) for communication status
Quantity per set set of 4
Maximum radio power 4 dBm
Maximum sensing distance 100 m in free field
Net weight 15 g
Supply internal battery
Communication port protocol Zigbee green power at 2.405 GHz conforming to IEEE 802.15.4
Fixing mode by clamp, by 2 screws, adhesive tape
Standards ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1, EN 62311:2007, EN 61326-1, EN 61000-6-3, EN 61000-6-1, IEC 60950
Range compatibility Harmony XB5R ZBRA wireless and batteryless range
Accuracy +/- 1 °C
Height 15 mm
Cycle duration 2 min for measuring and transmission
Environment
Relative humidity 0-95 %
IP degree of protection IP65
Product certifications IC, FCC
Ambient air temperature for operation -30-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 12.7 cm
Package 1 Length 13.5 cm
Package 1 Weight 107.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.472 kg
