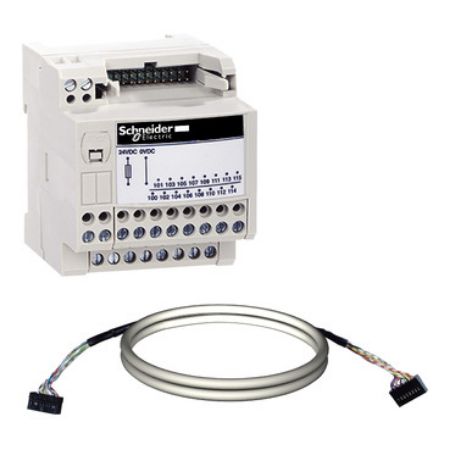

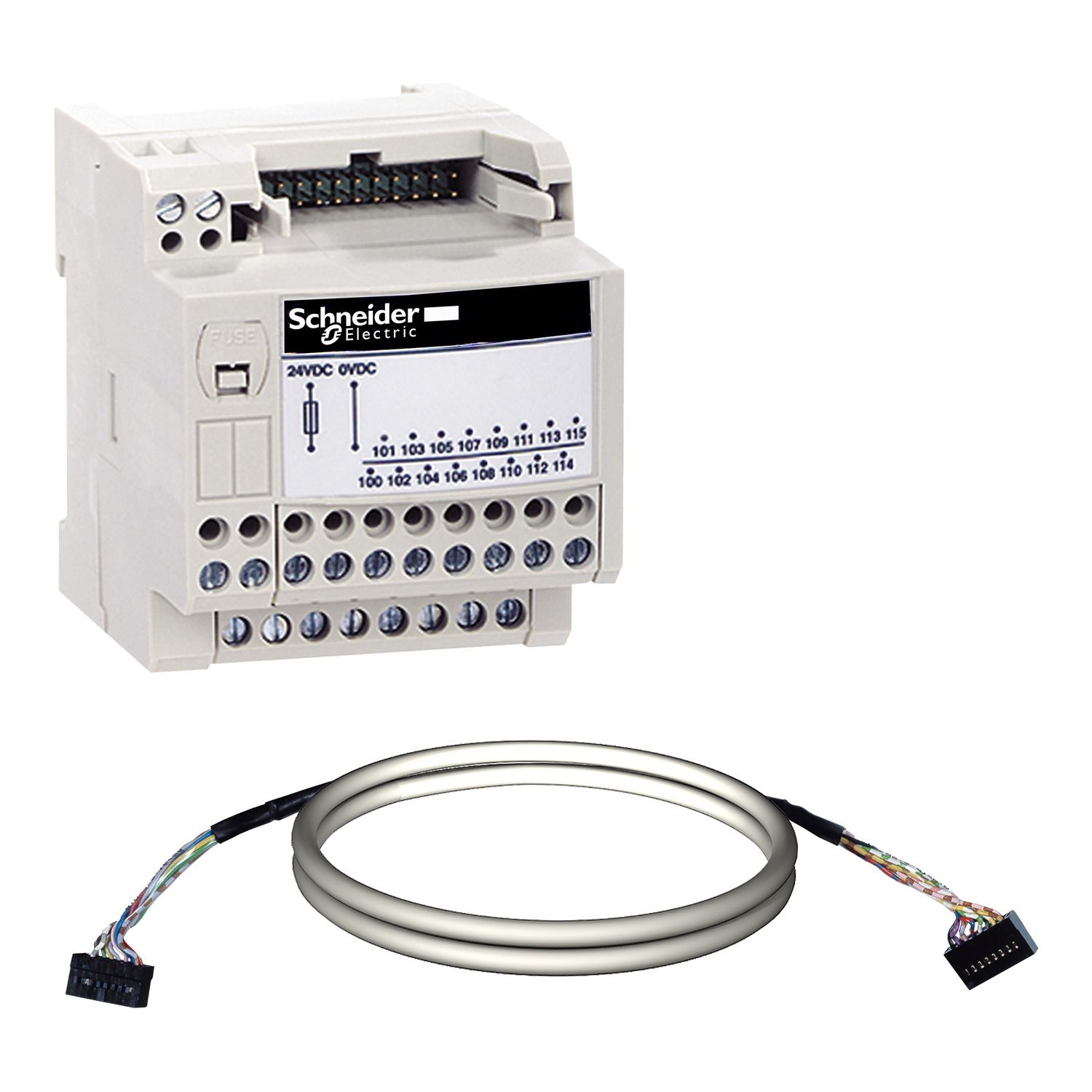

Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m
SKU:

ABE7H20E100

passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m

$150.56
Available for Shipping : 10-Dec-2024
passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Sub-base type low cost sub-base
Number of channels 16
Range of product Modicon ABE7
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 1
Product or component type passive discrete I/O sub-base
Complementary
Product compatibility Modicon Premium PLC, Modicon TSX Micro PLC
Voltage drop on power supply fuse 0.3 V
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (amber) APP1, 1 LED (green) power ON
Current per channel 0.5 A
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Supply circuit type DC
Net weight 0.33 kg
Number of horizontal rows 2
Short-circuit protection 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, CSA, UL, DNV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.600 cm
Package 1 Width 20.600 cm
Package 1 Length 29.000 cm
Package 1 Weight 317.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 3.935 kg
