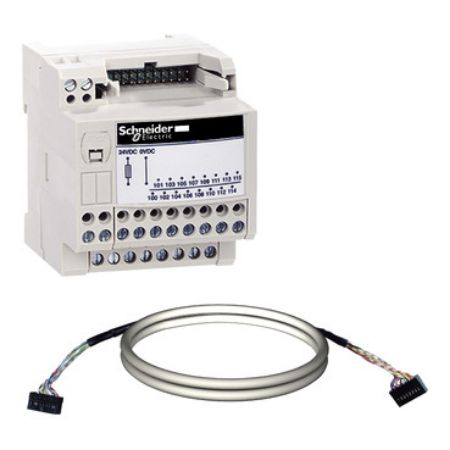

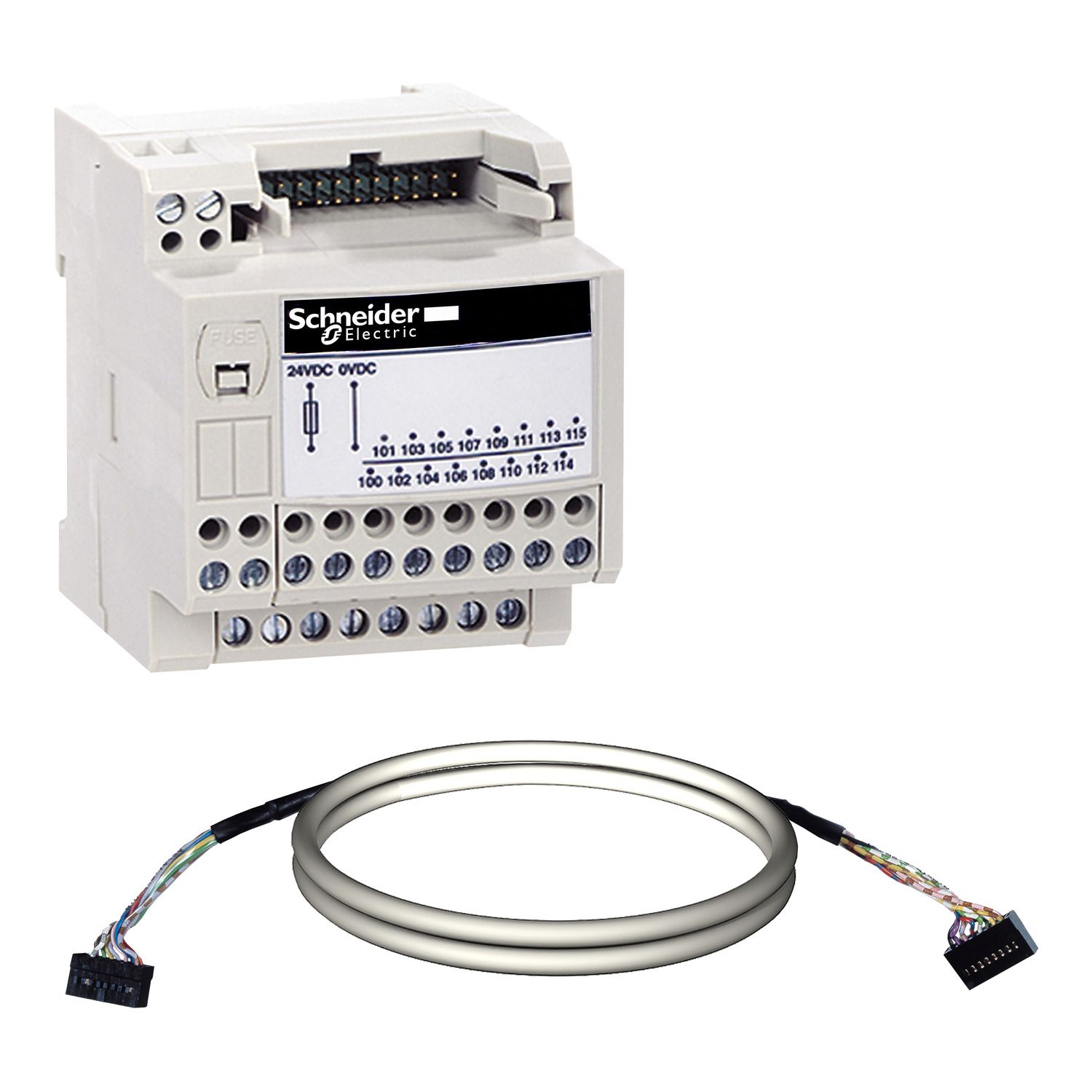

Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m
SKU:

ABE7H20E200

passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m

$168.50
Available for Shipping : 28-Nov-2024
passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a kit containing one passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel, and one cordset to connect to the plc. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a economy sub-base with IP20 degree of protection. The cordset measures 2m long. The kit weighs 0.410kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by EAC. It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules. Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type low cost sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 1
Product or component type passive discrete I/O sub-base
Range of product Modicon ABE7
Complementary
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Product compatibility Modicon TSX Micro PLC, Modicon Premium PLC
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.41 kg
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
Current per channel 0.5 A
Number of horizontal rows 2
Short-circuit protection 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, DNV, GL, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.7 cm
Package 1 Width 20.7 cm
Package 1 Length 29.0 cm
Package 1 Weight 385.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 4.642 kg
