SKU:

ABE9C1280C23

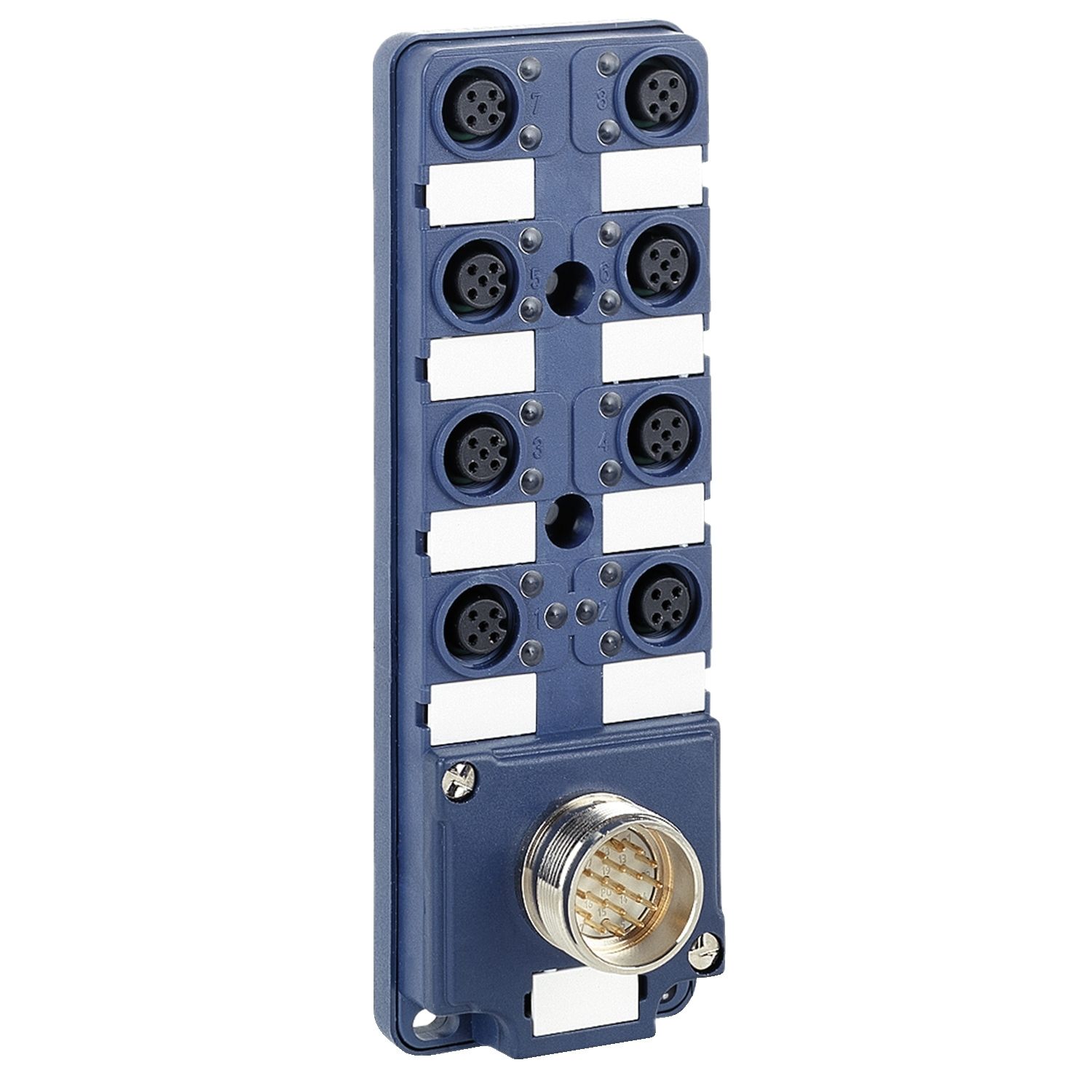

IP67 passive splitter box - M23 connector - with 8 channels M12 connector

$219.60

Qty:

Available for Shipping : 10-Dec-2024

IP67 passive splitter box - M23 connector - with 8 channels M12 connector

Manufacturer: Telemecanique

Catalogue

Instruction sheet

End of life manual

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Electrical connection	8 female connectors M12 5 pins, 1 male connector M23 19 pins
Number of channels	8
Product or component type	IP67 passive splitter box
Status LED	without
Range of product	Advantys ABE9
Complementary
Contact resistance	5000 µOhm
Operating position	any position
Number of ways	16 ways
Insulation group	category 3 conforming to VDE 0110
Separation of commons	without
Net weight	0.14 kg
Fixing mode	M4 screw fixing
[Ue] rated operational voltage	24 V DC
Current per channel	4 A
Current of common	12 A 0.75-0.75 mm², 16 A 1-1 mm²
Environment
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP67 conforming to IEC 529
Vibration resistance	0.2 gn (f= 57-150 Hz) conforming to IEC 68-2-6, FC tests
Shock resistance	30 gn for 11 ms conforming to EN 68-2-2
Ambient air temperature for operation	-20-80 °C
Product certifications	cULus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.6 cm
Package 1 Width	5.7 cm
Package 1 Length	15.5 cm
Package 1 Weight	168.0 g
Unit Type of Package 2	2
Number of Units in Package 2	60
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	10.632 kg
