SKU:

ABE9C1281C23

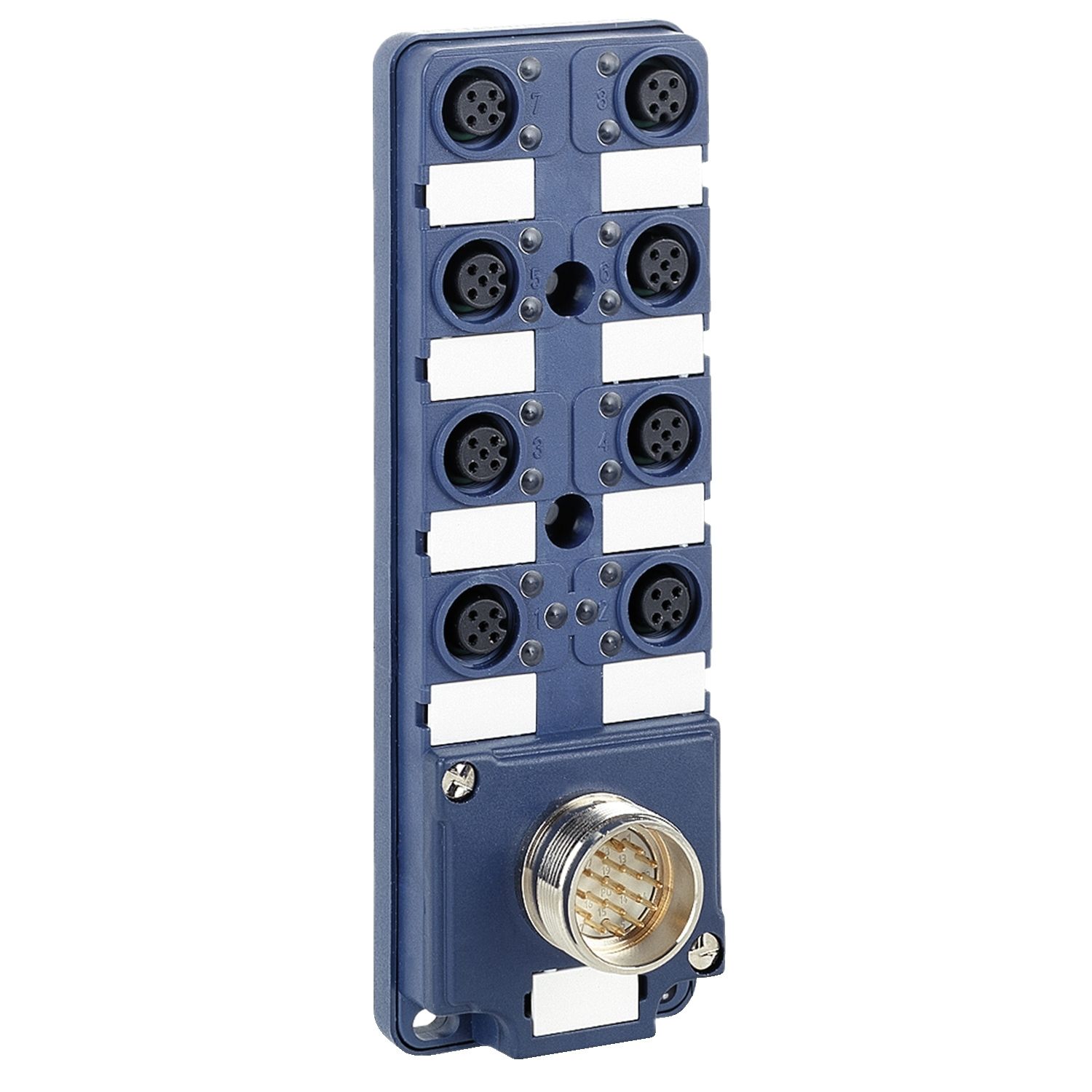

IP67 passive splitter box - M23 connector - with 8 channels M12 connector - Led

$267.97

Qty:

Available for Shipping : 07-Jan-2025

IP67 passive splitter box - M23 connector - with 8 channels M12 connector - Led

Manufacturer: Telemecanique

Catalogue

Instruction sheet

End of life manual

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Electrical connection	8 female connectors M12 5 pins, 1 male connector M23 19 pins
Number of channels	8
Product or component type	IP67 passive splitter box
Status LED	1 LED per channel (yellow) channel status, 1 LED (green) power ON
Range of product	Advantys ABE9
Complementary
Contact resistance	5000 µOhm
Operating position	any position
Number of ways	16 ways
Insulation group	category 3 conforming to VDE 0110
Separation of commons	without
Net weight	0.14 kg
Fixing mode	M4 screw fixing
[Ue] rated operational voltage	24 V DC
Current per channel	4 A
Current of common	12 A 0.75-0.75 mm², 16 A 1-1 mm²
Environment
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP67 conforming to IEC 529
Vibration resistance	0.2 gn (f= 57-150 Hz) conforming to IEC 68-2-6, FC tests
Shock resistance	30 gn for 11 ms conforming to EN 68-2-2
Ambient air temperature for operation	-20-80 °C
Product certifications	cULus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.5 cm
Package 1 Width	5.7 cm
Package 1 Length	15.5 cm
Package 1 Weight	168.0 g
Unit Type of Package 2	2
Number of Units in Package 2	60
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	11.108 kg
