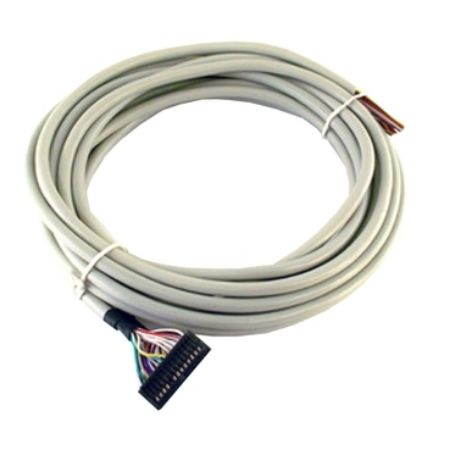

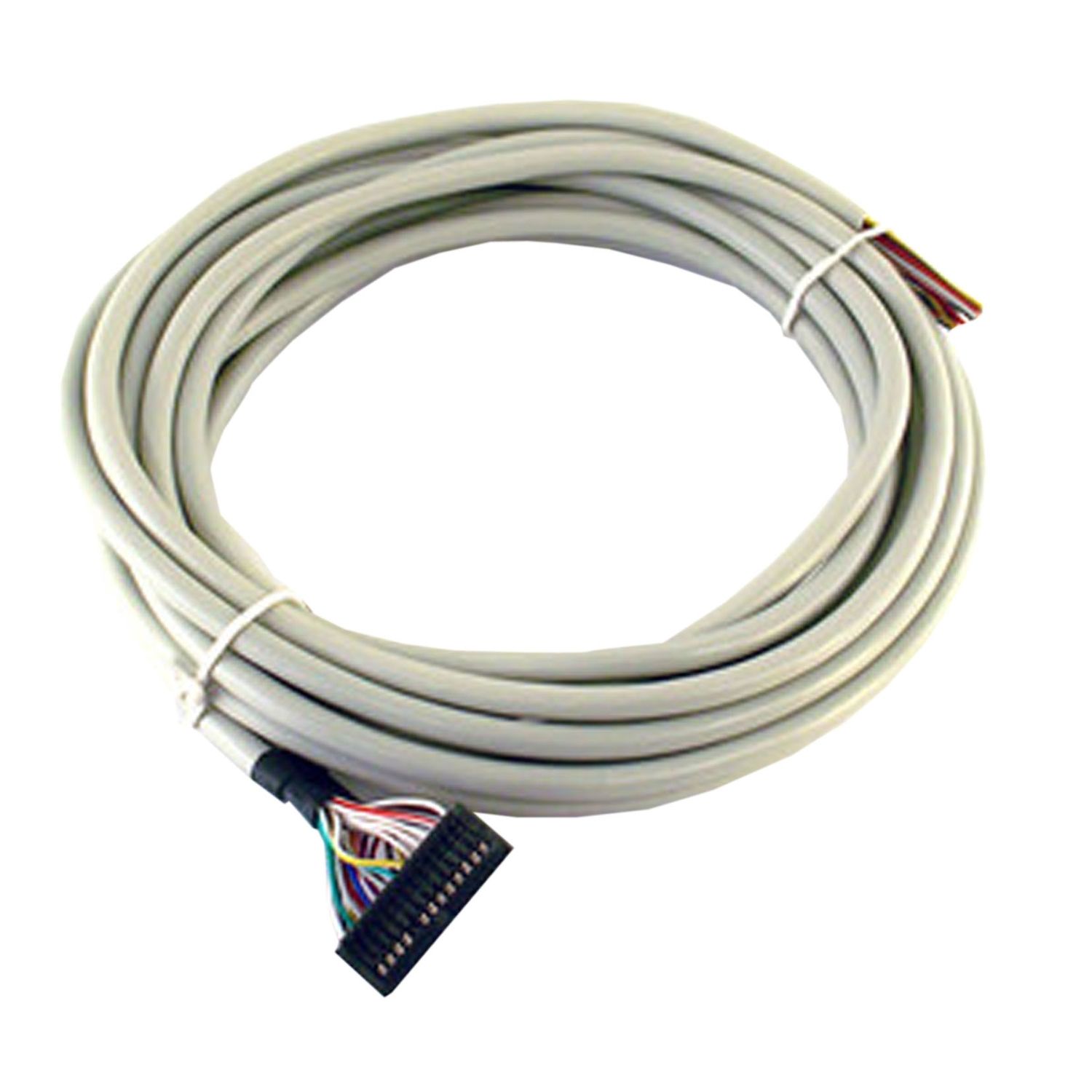

Picture of connection cable - Twido discrete output to Telefast - 2 x HE10 - 3 m
SKU:

ABFTE20SP300

connection cable - Twido discrete output to Telefast - 2 x HE10 - 3 m

$95.25 INC GST
Available for Shipping : 03-Apr-2025
connection cable - Twido discrete output to Telefast - 2 x HE10 - 3 m
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a connection cable between plc and passive and relay sub-bases with 16 channels. It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side. It is used to connect the digital outputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules It measures 3m. It weighs 0.210kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with TWDDDO16TK, TWDDDO32TK, TM221M32TK, TM221ME32TK, TM3DQ16TK, TM3DQ32TK. It is delivered in 1 package (PCE type). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination discrete output
Accessory / separate part type connecting cable
Product specific application for application other than use of Advantys Telefast ABE7 sub-base
Accessory / separate part category connection accessories
Accessory / separate part designation discrete output pre-formed cable
Range of product Twido
Complementary
Product compatibility TWDDDO32TK, TWDDDO16TK
Electrical connection 1 connector HE10 20 pin(s) Twido side, 1 connector HE10 20 pin(s) preactuator side
Cable cross section 0.08-0.08 mm²
AWG gauge AWG 28
Net weight 0.21 kg
Cable length 3 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.9 cm
Package 1 Width 18.4 cm
Package 1 Length 20 cm
Package 1 Weight 193 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.28 kg
