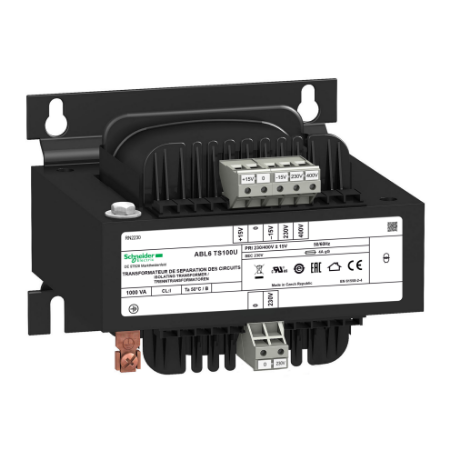

Picture of voltage transformer - 230..400 V - 1 x 230 V - 1000 VA
SKU:

ABL6TS100U

voltage transformer - 230..400 V - 1 x 230 V - 1000 VA

$590.46
Availability: Please contact our sales team on 1300 724 622.
Product Selector
voltage transformer - 230..400 V - 1 x 230 V - 1000 VA
Be the first to review this product
Manufacturer: Telemecanique
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 1kVA / 1000VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.

Products specifications

Attribute name Attribute value
Main
Input voltage 400 V AC phase to phase, terminal(s): L1-L2, 230 V AC single phase, terminal(s): N-L1
Output voltage 230 V AC
Range of product Modicon Transformer Optimized
Ambient air temperature for operation -20-50 °C
Protective cover without
Secondary winding single
Rated power in VA 1000 VA
Product or component type safety and isolation transformer
Complementary
Maximum voltage drop at rated load 5 %
Input voltage tolerance +/- 15 V
Compatibility code ABL6T
Power dissipation in W 63.8 W
Electrical insulation class class B
Input voltage limits 360...440 V, 207...253 V
Marking CE
Network frequency limits 47-63 Hz
Fixing mode by 4 screws diameter: 7 mm on horizontal panel with derating to 90 %, by 4 screws diameter: 7 mm on vertical panel, operating position: vertical, by 4 screws diameter: 7 mm on vertical panel, operating position: horizontal
Height 138.0 mm
Operating altitude 3000 m
Depth 163.0 mm
Width 174.0 mm
No load losses 26.5 W
Short-circuit voltage 324
Output protection type against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection
Connections - terminals for output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11, for input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11, for input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11
Net weight 14.48 kg
Efficiency 94 %
Output sustained overvoltage 3 % (no load, hot state)
Environment
IP degree of protection IP20
Protective treatment TC
Ambient air temperature for storage -40-80 °C
Dielectric strength 4000 V between primary and secondary, 2000 V between winding and ground
Overvoltage category class I conforming to VDE 0106-1
Environmental characteristic safety conforming to EN 61558-2-4, safety conforming to EN 61558-1, EMC conforming to EN 62041
Standards UL 506
Product certifications DNV-GL, UR, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.000 cm
Package 1 Width 28.000 cm
Package 1 Length 30.000 cm
Package 1 Weight 15.750 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 71.500 kg

Related products

Picture of Marker holder, Linergy TR cable ends, 20x10mm, for fixing to any type of support, set of 50

Marker holder, Linergy TR cable ends, 20x10mm, for fixing to any type of support, set of 50

AR1SB3
$2.63
View Detail
