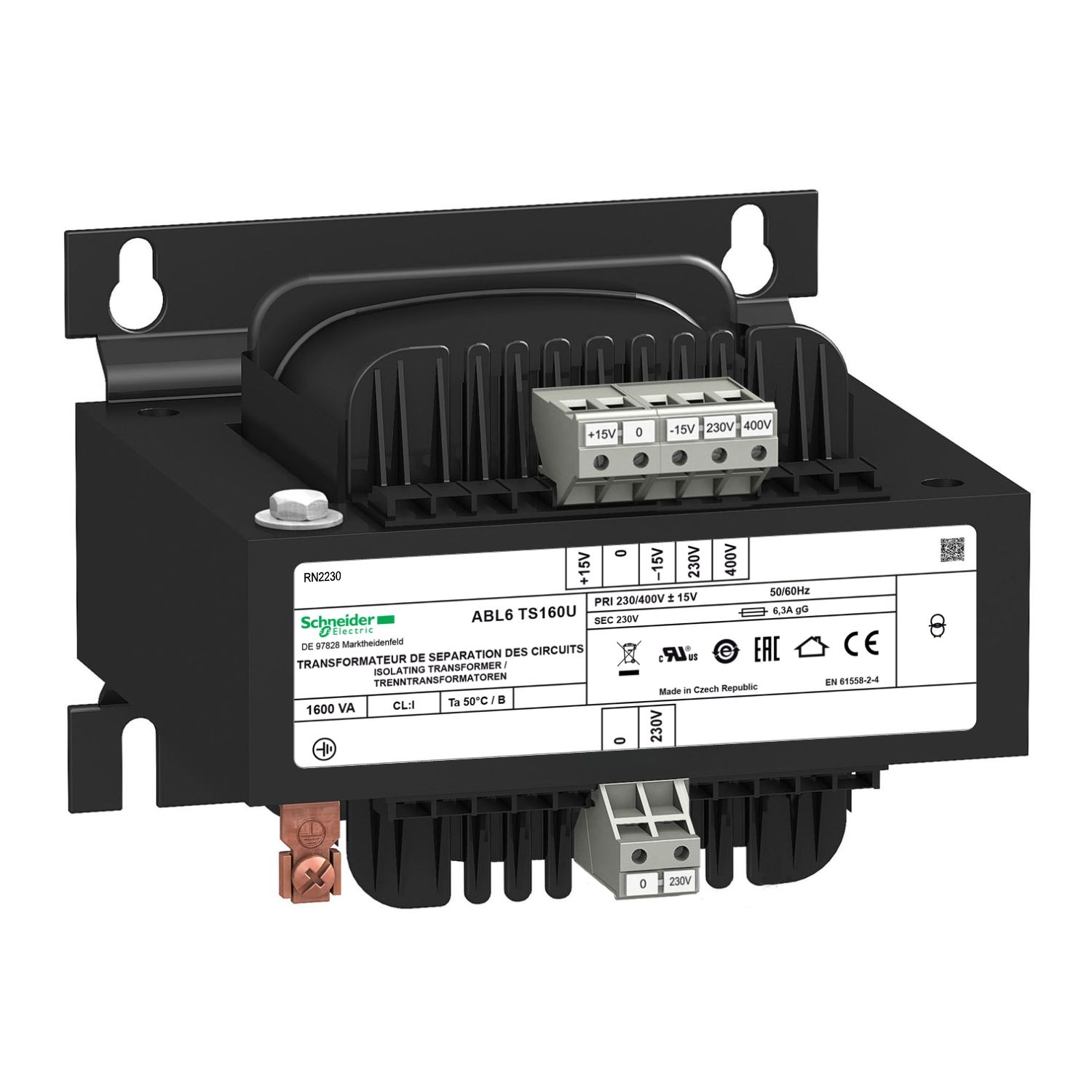

Picture of voltage transformer - 230..400 V - 1 x 230 V - 1600 VA
SKU:

ABL6TS160U

voltage transformer - 230..400 V - 1 x 230 V - 1600 VA

$975.52
Available for Shipping : 24-Nov-2024
Product Selector
voltage transformer - 230..400 V - 1 x 230 V - 1600 VA
Be the first to review this product
Manufacturer: Telemecanique
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 1.6kVA / 1600VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.

Products specifications

Attribute name Attribute value
Main
Protective cover without
Secondary winding single
Input voltage 400 V AC phase to phase, terminal(s): L1-L2, 230 V AC single phase, terminal(s): N-L1
Rated power in VA 1600 VA
Product or component type safety and isolation transformer
Output voltage 230 V AC
Range of product Modicon Transformer Optimized
Ambient air temperature for operation -20-50 °C
Complementary
Operating altitude 3000 m
Maximum voltage drop at rated load 0 %
Depth 163.0 mm
Width 174.0 mm
Input voltage tolerance +/- 15 V
No load losses 23.7 W
Compatibility code ABL6T
Power dissipation in W 66.7 W
Short-circuit voltage 265
Output protection type against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection
Electrical insulation class class B
Connections - terminals for output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11, for input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11, for input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11
Net weight 19.96 kg
Input voltage limits 207...253 V, 360...440 V
Marking CE
Network frequency limits 47-63 Hz
Efficiency 96 %
Output sustained overvoltage 3 % (no load, hot state)
Fixing mode by 4 screws diameter: 7 mm on horizontal panel with derating to 90 %, by 4 screws diameter: 7 mm on vertical panel, operating position: vertical, by 4 screws diameter: 7 mm on vertical panel, operating position: horizontal
Height 169.0 mm
Environment
Dielectric strength 4000 V between primary and secondary, 2000 V between winding and ground
IP degree of protection IP20
Protective treatment TC
Overvoltage category class I conforming to VDE 0106-1
Ambient air temperature for storage -40-80 °C
Environmental characteristic safety conforming to EN 61558-2-4, safety conforming to EN 61558-1, EMC conforming to EN 62041
Standards UL 506
Product certifications DNV-GL, EAC, UR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 31.000 cm
Package 1 Width 40.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 21.408 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 91.700 kg

Related products

Picture of Marker holder, Linergy TR cable ends, 20x10mm, for fixing to any type of support, set of 50

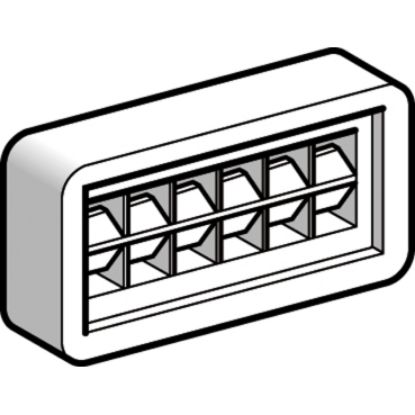

Marker holder, Linergy TR cable ends, 20x10mm, for fixing to any type of support, set of 50
