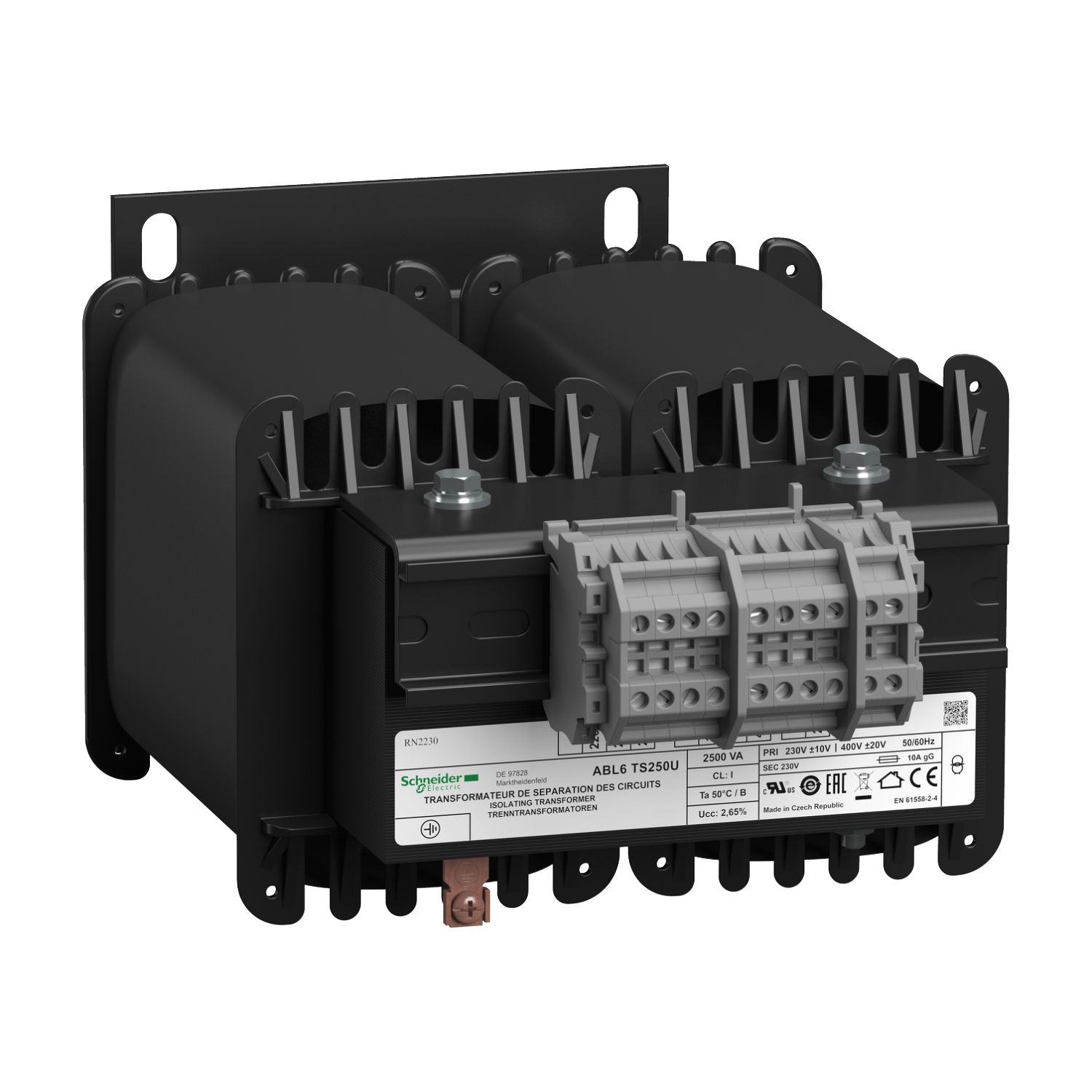

Picture of voltage transformer - 230..400 V - 1 x 230 V - 2500 VA
SKU:

ABL6TS250U

voltage transformer - 230..400 V - 1 x 230 V - 2500 VA

Please Contact Sales to buy this Product. click here
Product Selector
voltage transformer - 230..400 V - 1 x 230 V - 2500 VA
Be the first to review this product
Manufacturer: Telemecanique
Estimated Delivery Date: 20-Oct-2024
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 2.5kVA / 2500VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.

Products specifications

Attribute nameAttribute value
Main
Protective coverwithout
Secondary windingsingle
Input voltage400 V AC phase to phase, terminal(s): L1-L2, 230 V AC single phase, terminal(s): N-L1
Rated power in VA2500 VA
Product or component typesafety and isolation transformer
Output voltage230 V AC
Range of productModicon Transformer Optimized
Ambient air temperature for operation-20-50 °C
Complementary
Operating altitude3000 m
Maximum voltage drop at rated load0 %
Depth322.0 mm
Width196.0 mm
Input voltage tolerance+/- 15 V
No load losses23.4 W
Compatibility codeABL6T
Power dissipation in W104.2 W
Short-circuit voltage873
Output protection typeagainst short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection
Electrical insulation classclass B
Connections - terminalsfor input connection: screw type terminals, connection capacity: 8 x 4 mm² AWG 11, for output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11, for input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11
Net weight25.67 kg
Input voltage limits360...440 V, 207...253 V
MarkingCE
Network frequency limits47-63 Hz
Efficiency96 %
Output sustained overvoltage3 % (no load, hot state)
Fixing modeby 4 screws diameter: 10 mm on horizontal panel with derating to 90 %, by 4 screws diameter: 10 mm on vertical panel, operating position: vertical, by 4 screws diameter: 10 mm on vertical panel, operating position: horizontal
Height147.0 mm
Environment
Dielectric strength4000 V between primary and secondary, 2000 V between winding and ground
IP degree of protectionIP20
Protective treatmentTC
Overvoltage categoryclass I conforming to VDE 0106-1
Ambient air temperature for storage-40-80 °C
Environmental characteristicsafety conforming to EN 61558-2-4, safety conforming to EN 61558-1, EMC conforming to EN 62041
StandardsUL 506
Product certificationsDNV-GL, EAC, UR
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height40.000 cm
Package 1 Width59.000 cm
Package 1 Length39.500 cm
Package 1 Weight34.600 kg
