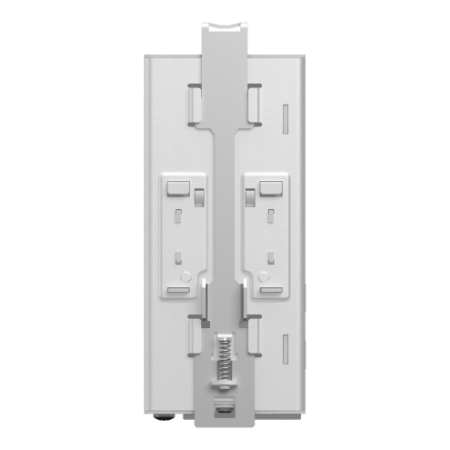

Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
SKU:

ABL8BBU24200

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

$960.50
Available for Shipping : 17-Nov-2024
Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
CAD
Catalogue
Brochure
Declaration of conformity
User guide
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 20A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0.500kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name Attribute value
Main
Maximum output current 20 A
Input voltage 24...28.8 V DC
Range of product Phaseo
Product or component type battery control module
Output voltage (Uin-0.25) V in nominal mode DC, (Ubattery-0.5) V in battery mode DC
Complementary
Number of output channels 1
Compatibility code ABL8B
Name of test conducted/radiated emissions conforming to EN 55022 class B, 20 %, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2
Maximum power dissipation in W 7 W
Input voltage limits 22...30 V
Marking CE
Holding solution use of battery modules
Fixing mode by clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal
Height 125 mm
Operating altitude 2000 m
Depth 160 mm
Width 60 mm
Activation threshold adjustable 22...36 V
Local signalling LCD screen for module status, 1 C/O relay for power supply status, 1 C/O relay for battery status, 1 C/O relay for alarm status
Output protection type against short-circuits, protection technology: power-supplied mode, against short-circuits, protection technology: battery-backed mode, automatic reset, against overload, protection technology: 1.5 x In
Connections - terminals for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²
Holding time 6 mn, 30 mn, 50 mn, 9 mn, 8 mn, 1 h, 10 mn, 15 mn, 2 mn, 1 s, 0.5 s, 2 h, 40 mn, 4 mn, 3 mn, 10 s, 5 s, 30 s, 7 mn, 1 mn, 5 mn, 3 h, 5 h, 2 s, 20 mn
Net weight 0.5 kg
Holding current 8 A, 6 A, 2 A, 10 A, 3 A, 20 A, 1 A, 7 A, 5 A, 4 A, 15 A
Current consumption <= 40.6 A, 0.1 mA no load, 0.6 A on load
Environment
Relative humidity 0-95 % during storage, 0-90 % during operation
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
MTBF reliability 718708 H at 24 V DC with UTE C80-810 calculation method
Ambient air temperature for operation -25-60 °C
Dielectric strength 500 V between output and ground, 500 V between input and ground
Overvoltage category class II conforming to VDE 0106-1
Vibration resistance 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristic safety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3
Standards CSA C22.2 No 60950-1, UL 508
Product certifications EAC, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9 cm
Package 1 Width 19.5 cm
Package 1 Length 19.5 cm
Package 1 Weight 1.468 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 11.929 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 118.7 kg
