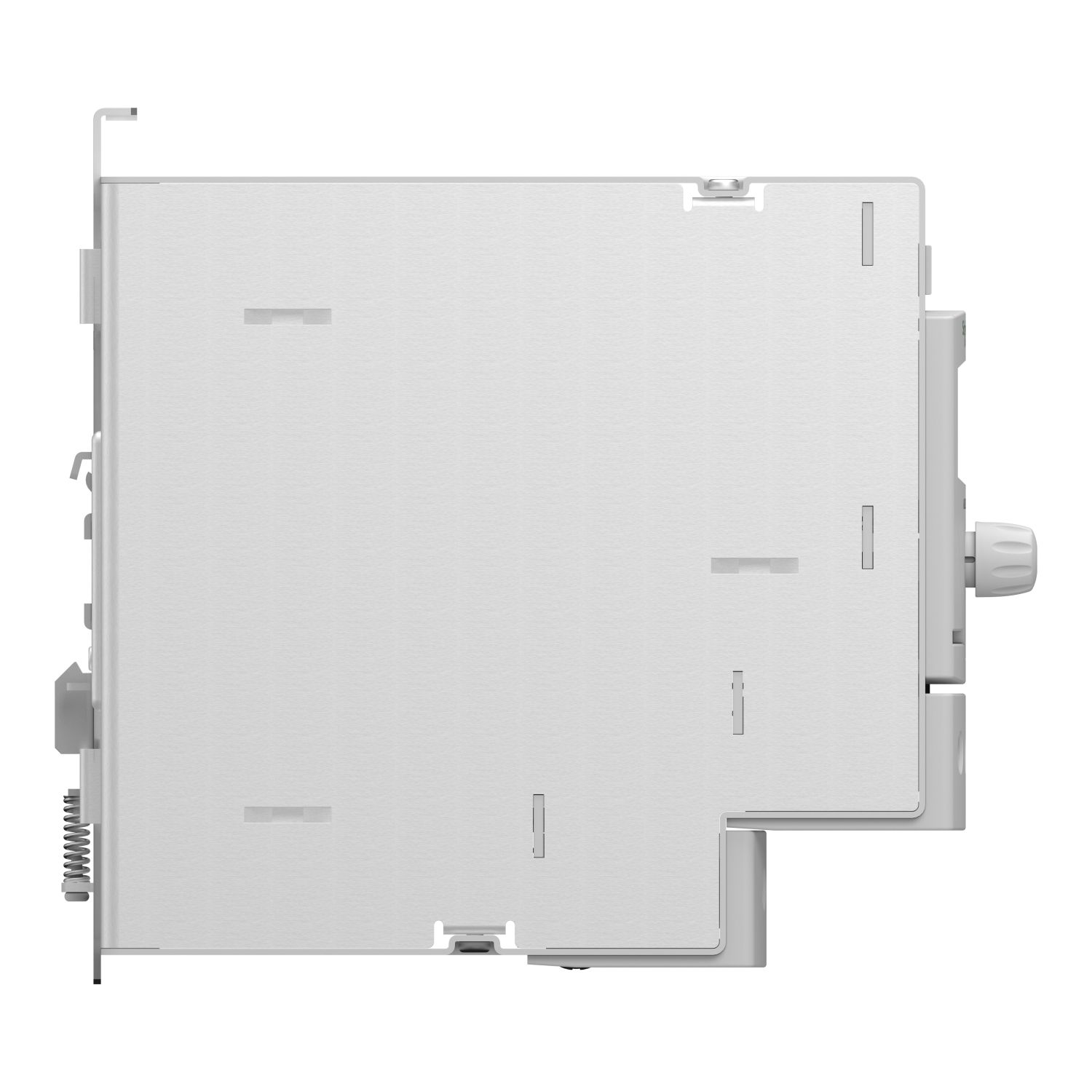

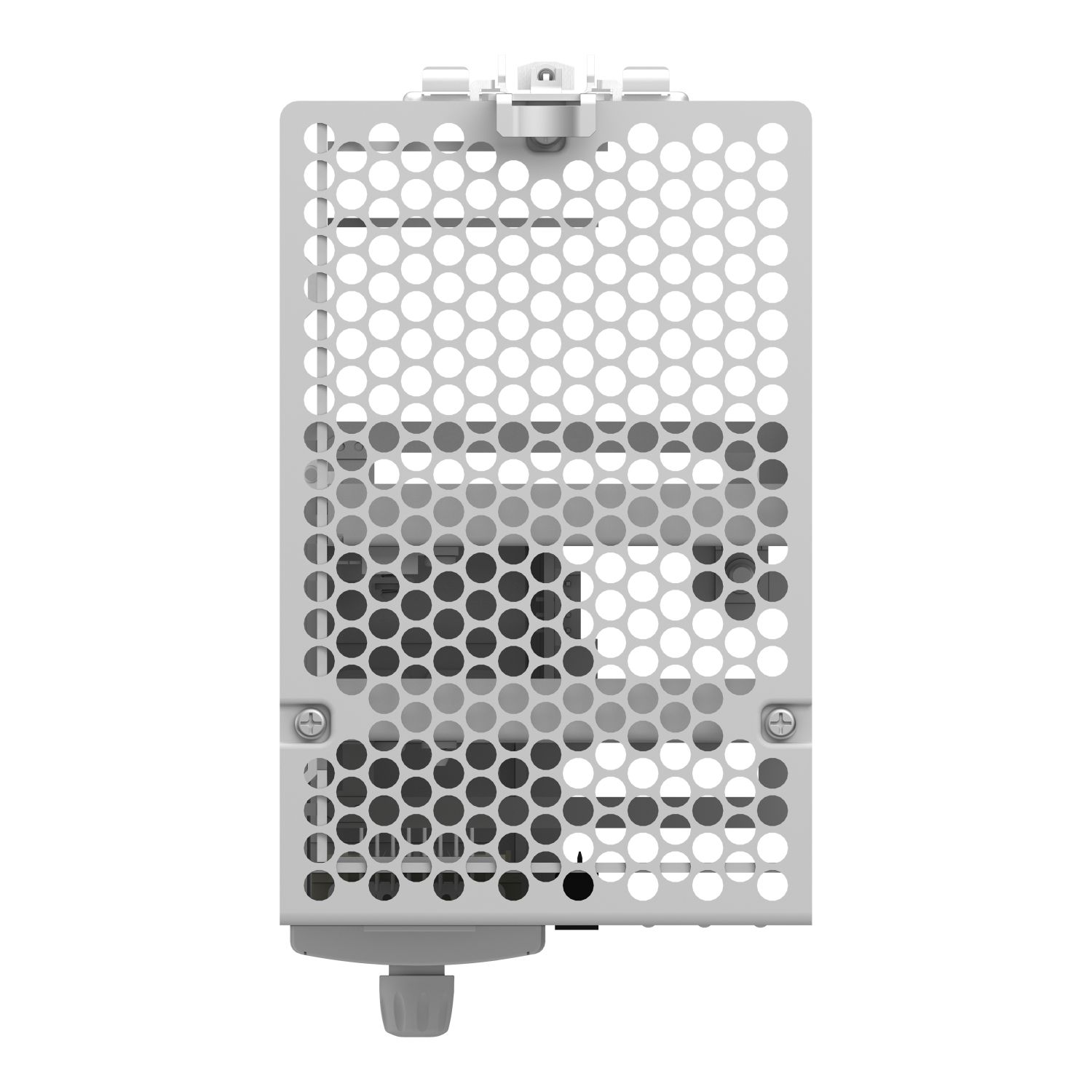

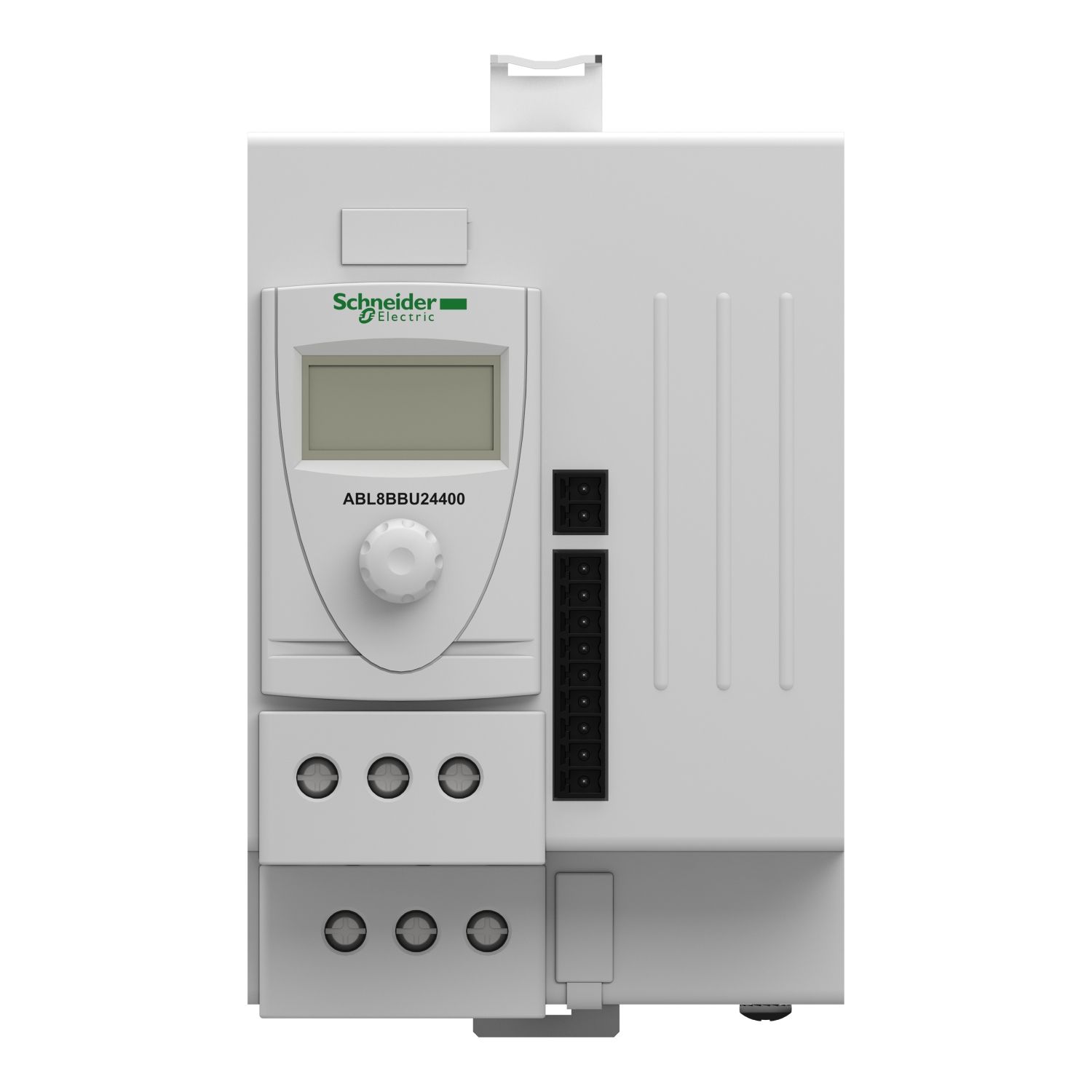

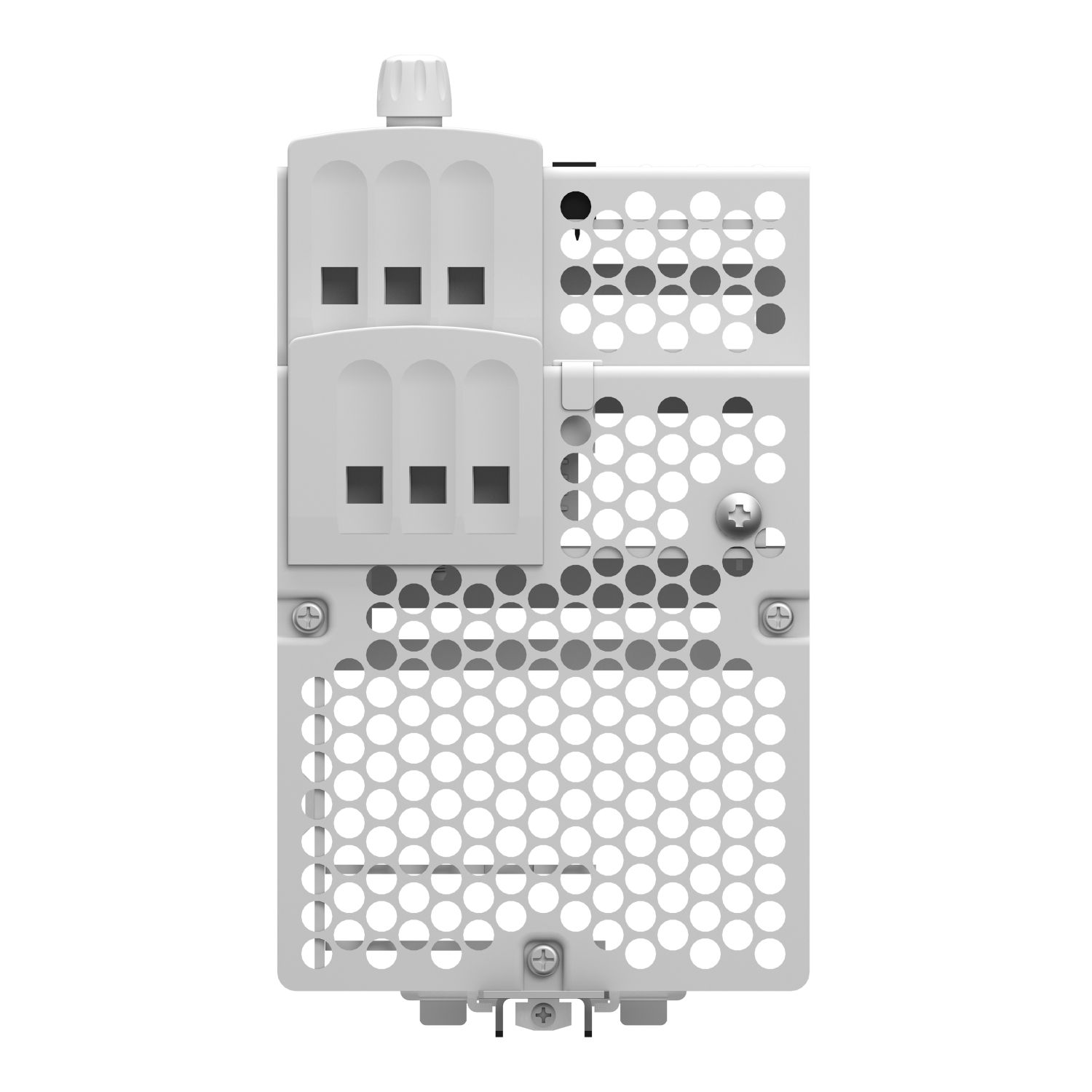

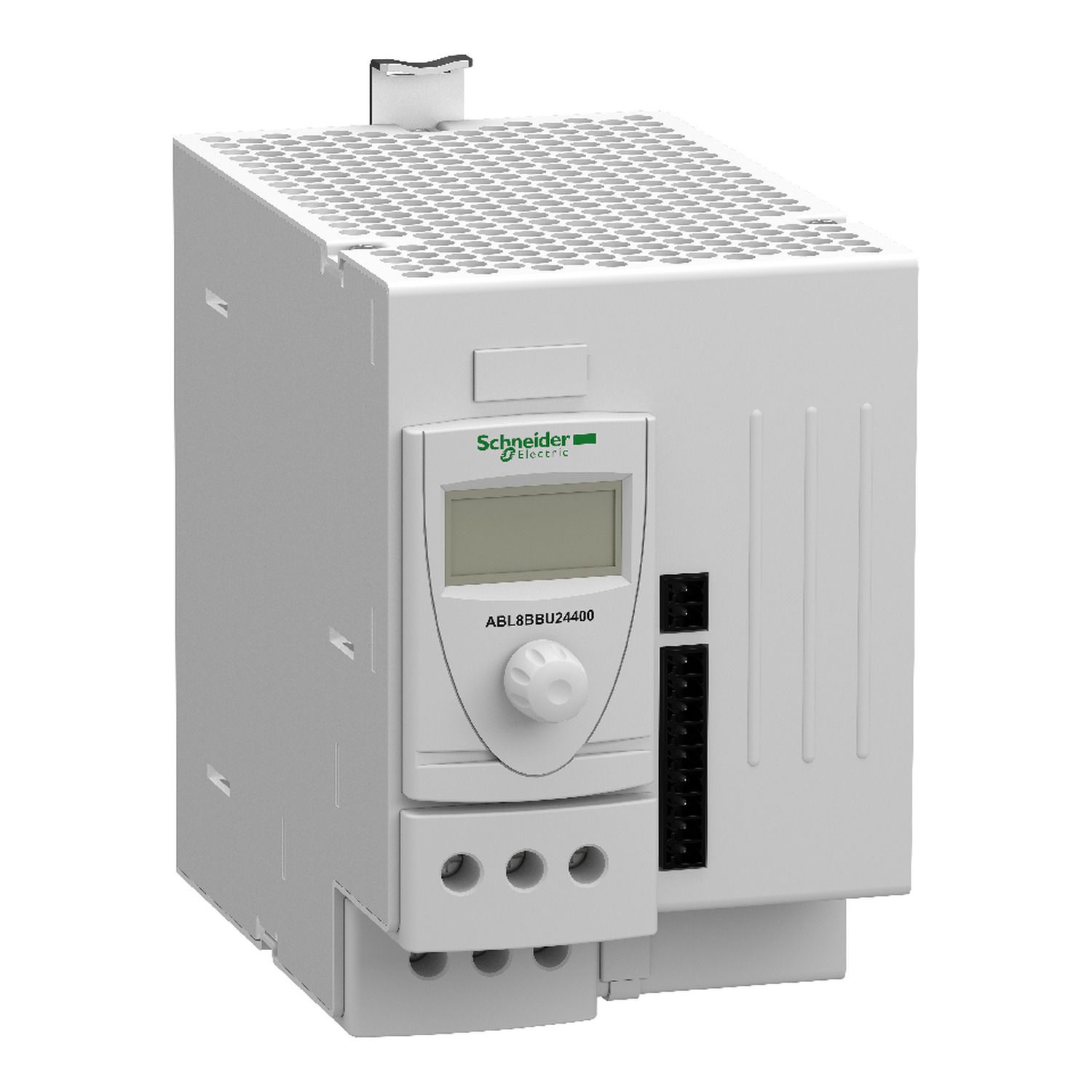

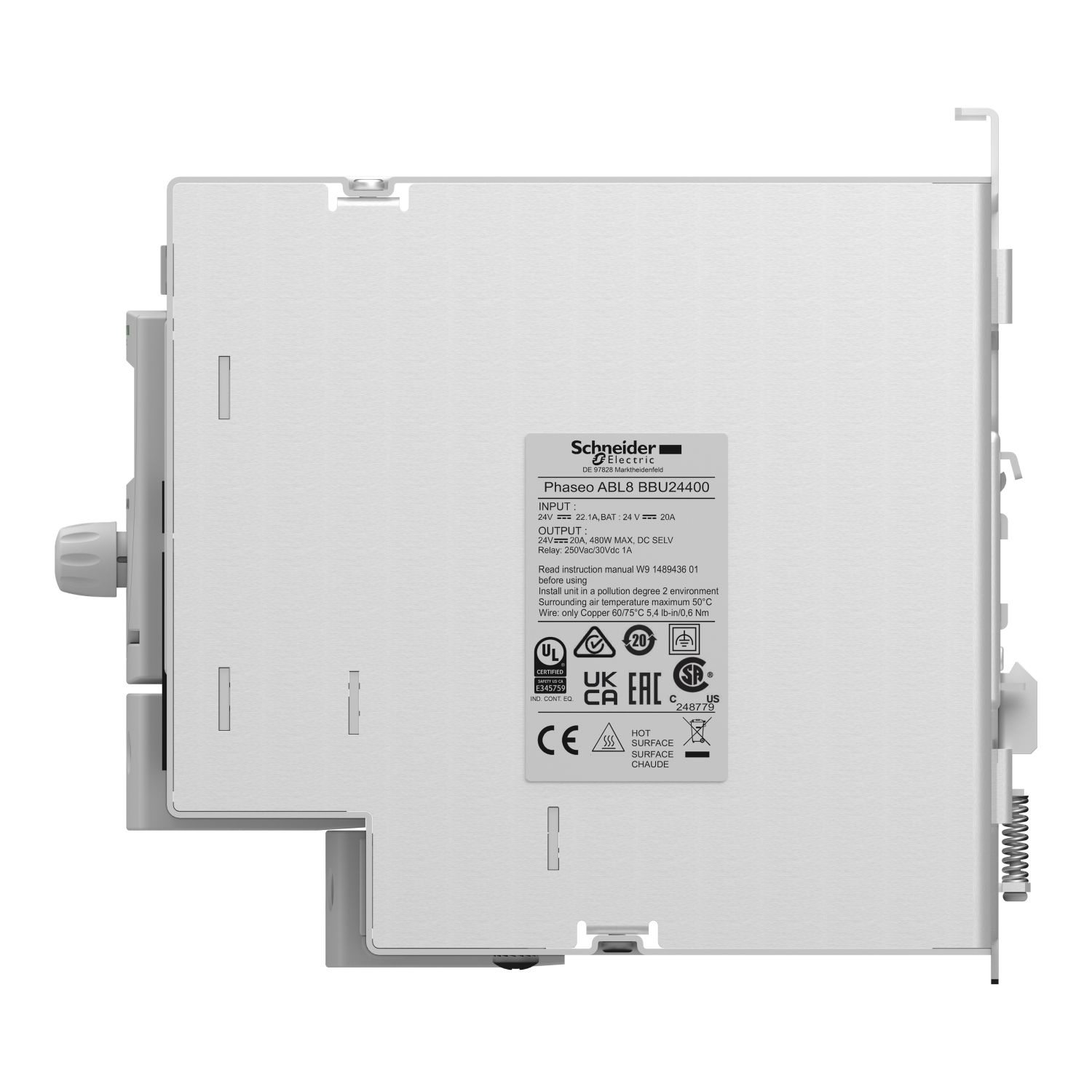

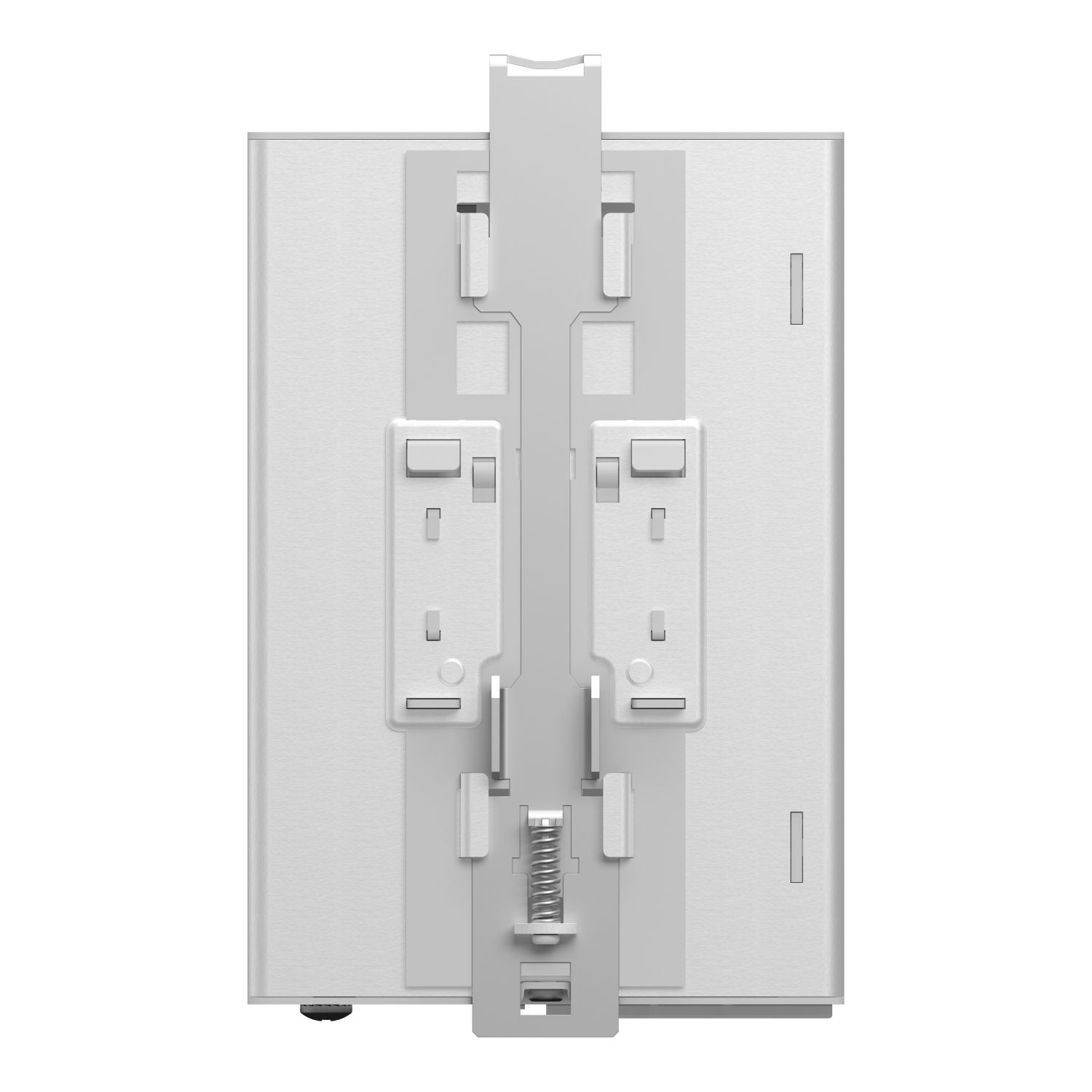

Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
SKU:

ABL8BBU24400

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS

$1,371.35
Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 40A, for regulated SMPS
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Instruction sheet
Image of product
Image of product
Catalogue
Brochure
CAD
Image of product
Image of product
Declaration of conformity
User guide
End of life manual
Image of product
Image of product
Product environmental
Product Page Link
Product Data Sheet
This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0,700kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute nameAttribute value
Main
Maximum output current40 A
Input voltage24...28.8 V DC
Range of productPhaseo
Product or component typebattery control module
Output voltage(Uin-0.25) V in nominal mode DC, (Ubattery-0.5) V in battery mode DC
Complementary
Number of output channels1
Compatibility codeABL8B
Name of testconducted/radiated emissions conforming to EN 55022 class B, 20 %, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2
Maximum power dissipation in W12 W
Input voltage limits22...30 V
MarkingCE
Holding solutionuse of battery modules
Fixing modeby clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal
Activation thresholdadjustable 22...36 V
Local signallingLCD screen for module status, 1 C/O relay for power supply status, 1 C/O relay for battery status, 1 C/O relay for alarm status
Output protection typeagainst short-circuits, protection technology: power-supplied mode, against short-circuits, protection technology: battery-backed mode, automatic reset, against overload, protection technology: 1.5 x In
Connections - terminalsfor output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²
Holding time20 mn, 2 s, 10 mn, 8 mn, 0.2 s, 3 mn, 1 mn, 30 s, 6 mn, 5 s, 1 s, 5 mn, 9 mn, 4 mn, 0.5 s, 2 mn, 15 mn, 10 s, 7 mn
Net weight0.7 kg
Holding current30 A, 25 A, 40 A, 35 A
Current consumption<= 40.6 A, 0.1 mA no load, 0.6 A on load
Environment
Relative humidity0-95 % during storage, 0-90 % during operation
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP20 conforming to IEC 60529
MTBF reliability707945 H at 24 V DC with UTE C80-810 calculation method
Ambient air temperature for operation-25-60 °C
Dielectric strength500 V between output and ground, 500 V between input and ground
Overvoltage categoryclass II conforming to VDE 0106-1
Vibration resistance3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristicsafety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3
StandardsCSA C22.2 No 60950-1, UL 508
Product certificationsEAC, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.2 cm
Package 1 Width18 cm
Package 1 Length18.5 cm
Package 1 Weight1.349 kg
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30 cm
Package 2 Width40 cm
Package 2 Length60 cm
Package 2 Weight12.11 kg
