SKU:

ABL8BUF24400

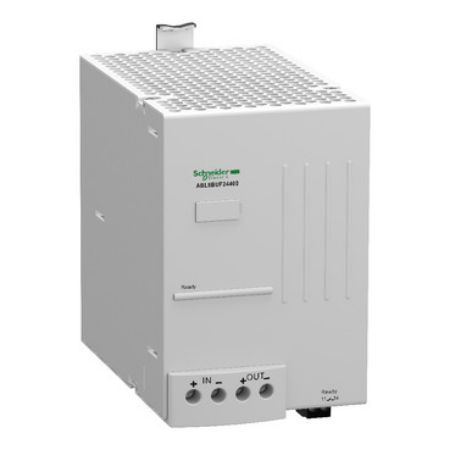

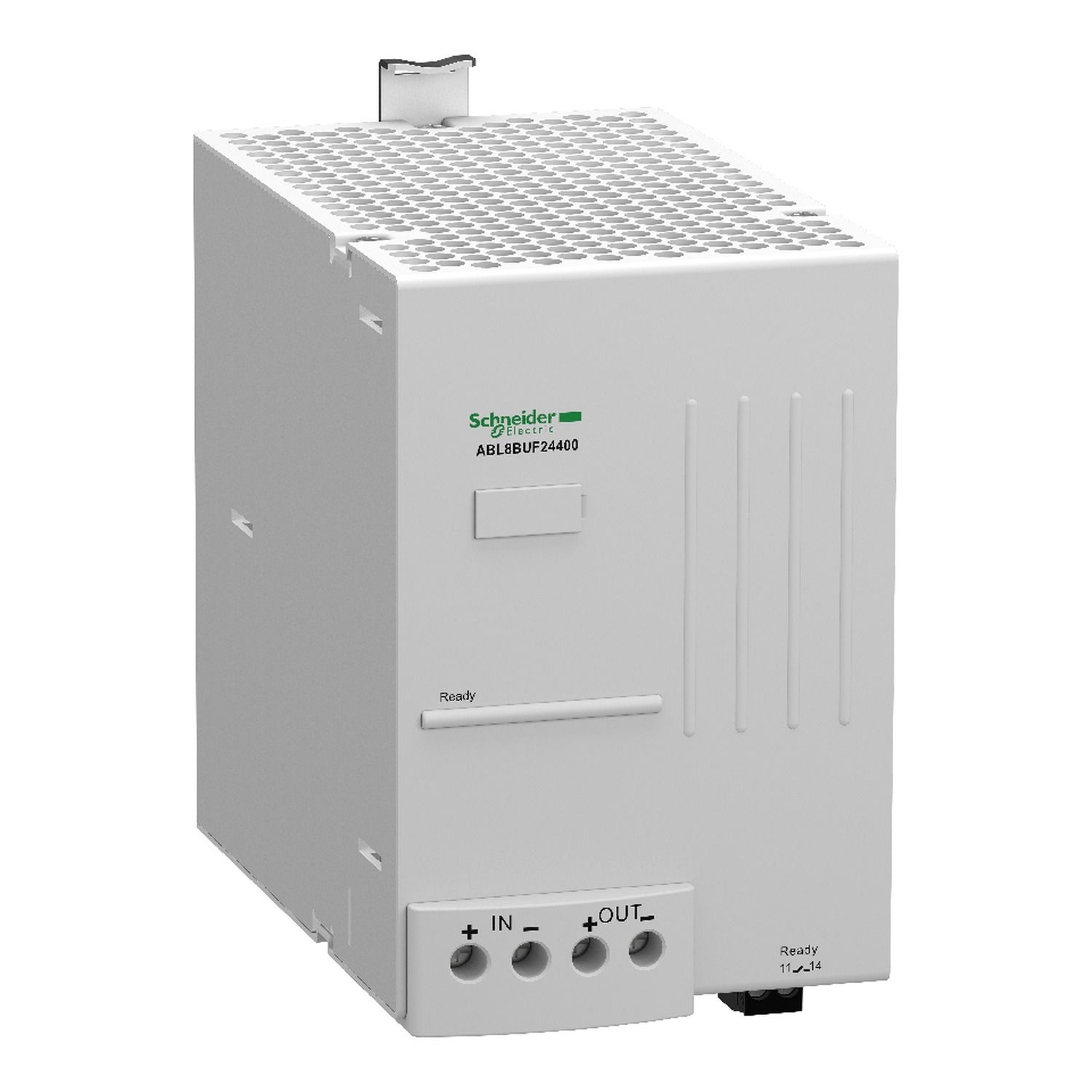

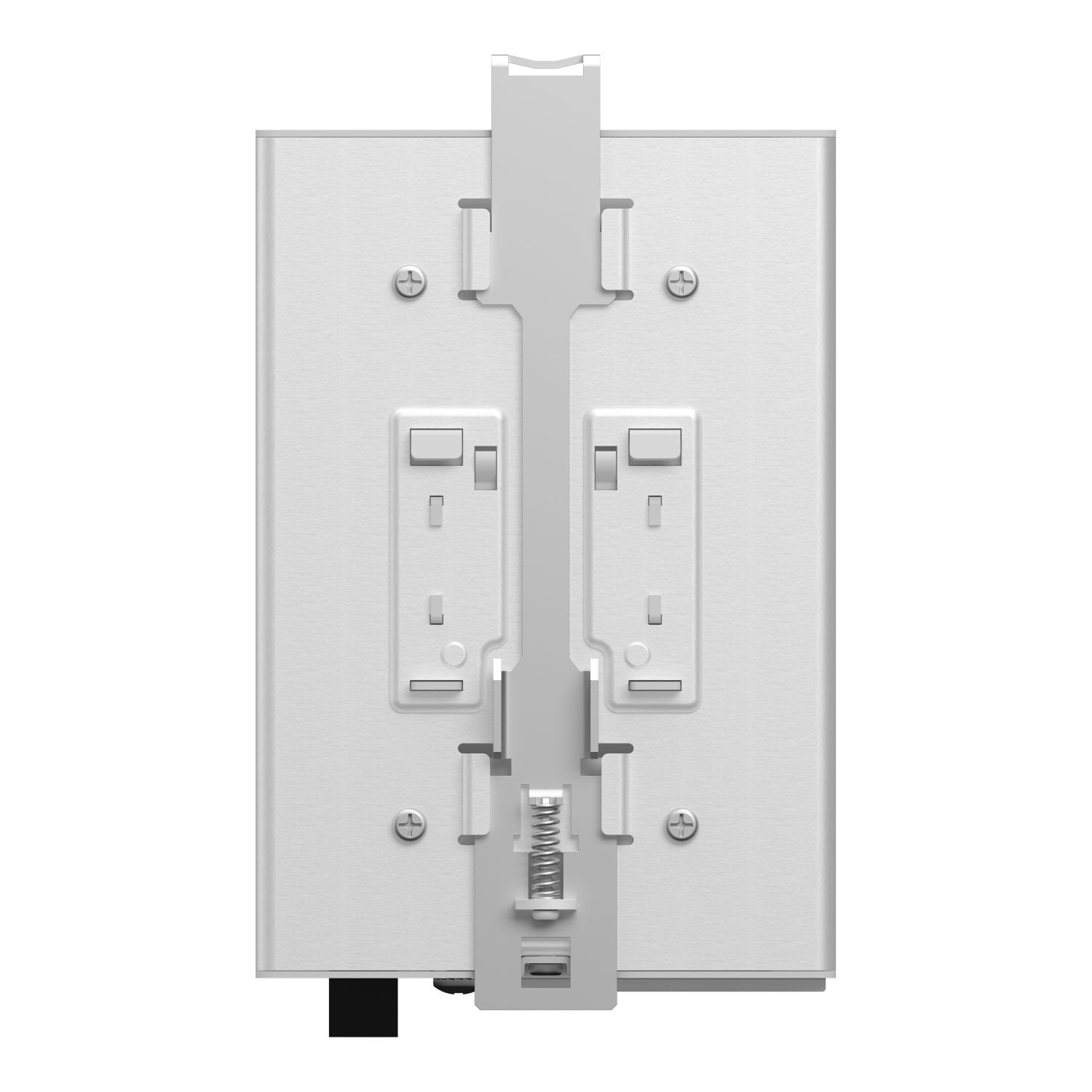

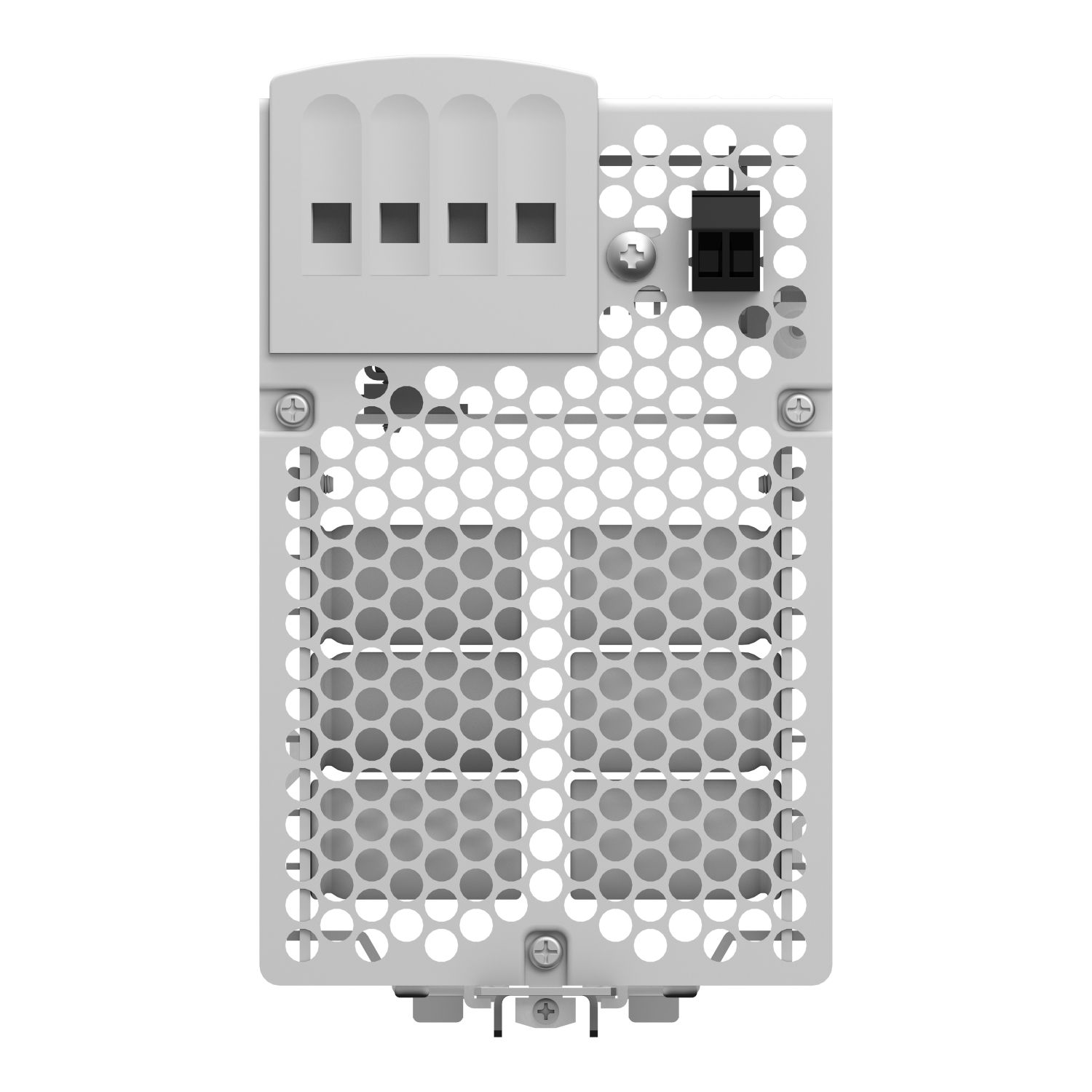

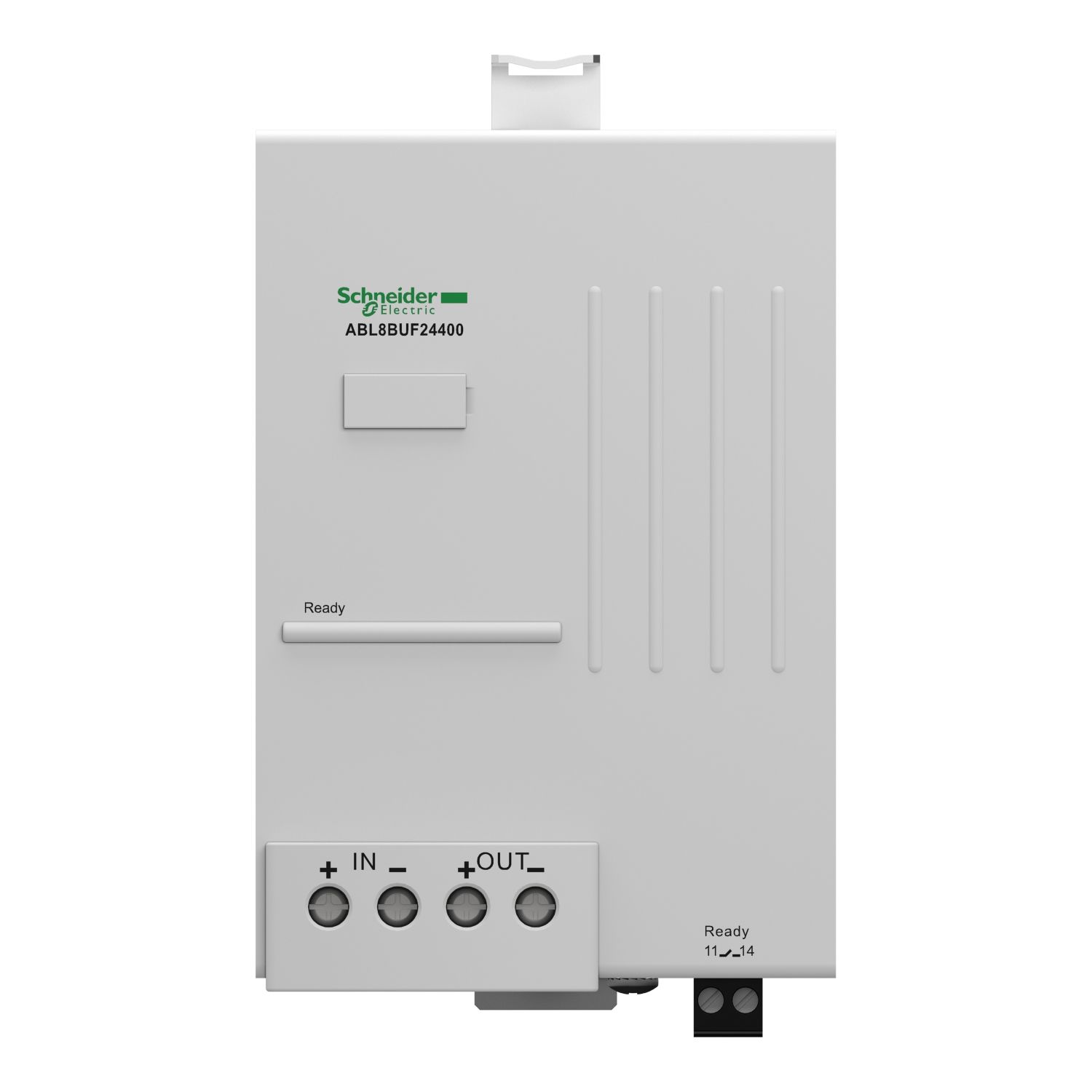

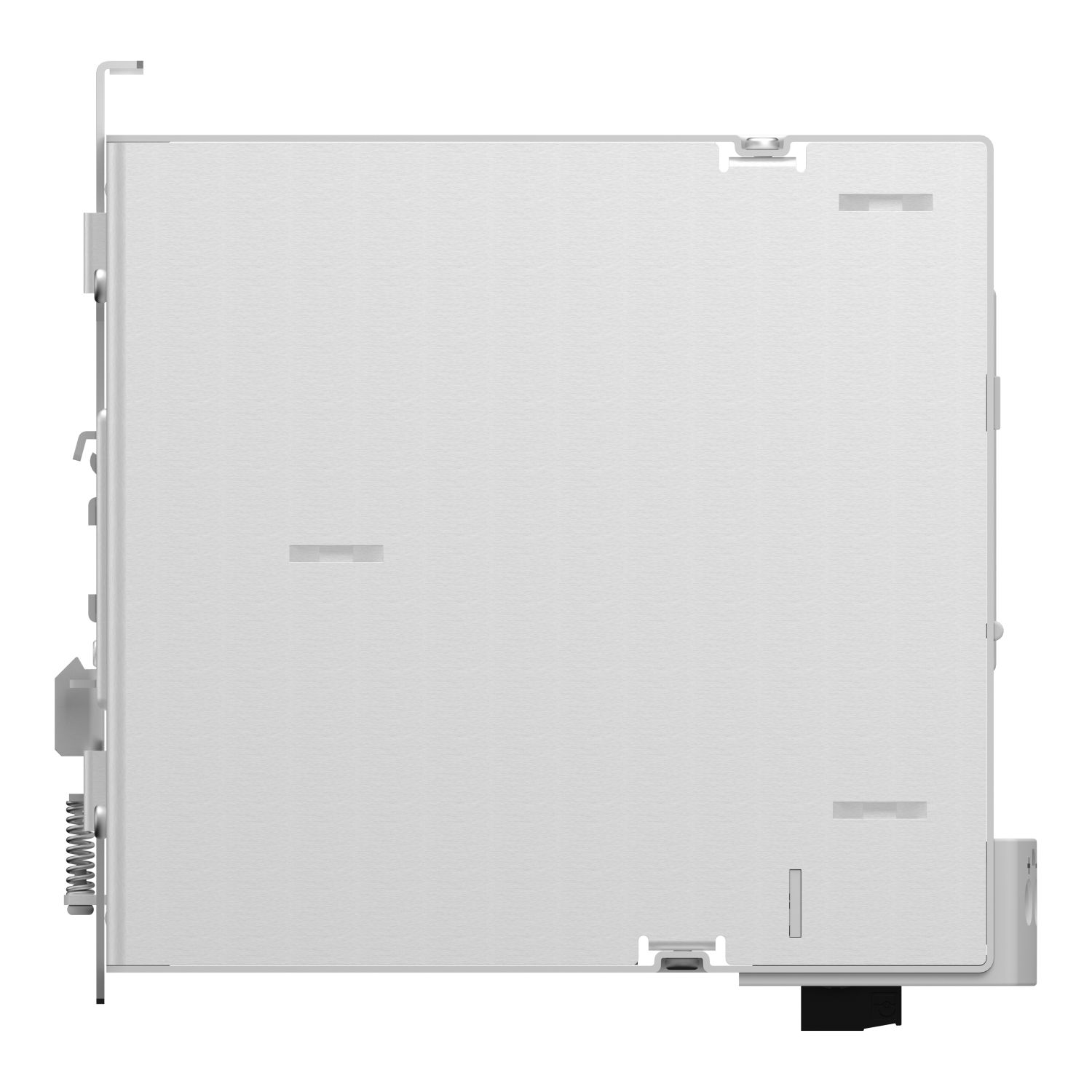

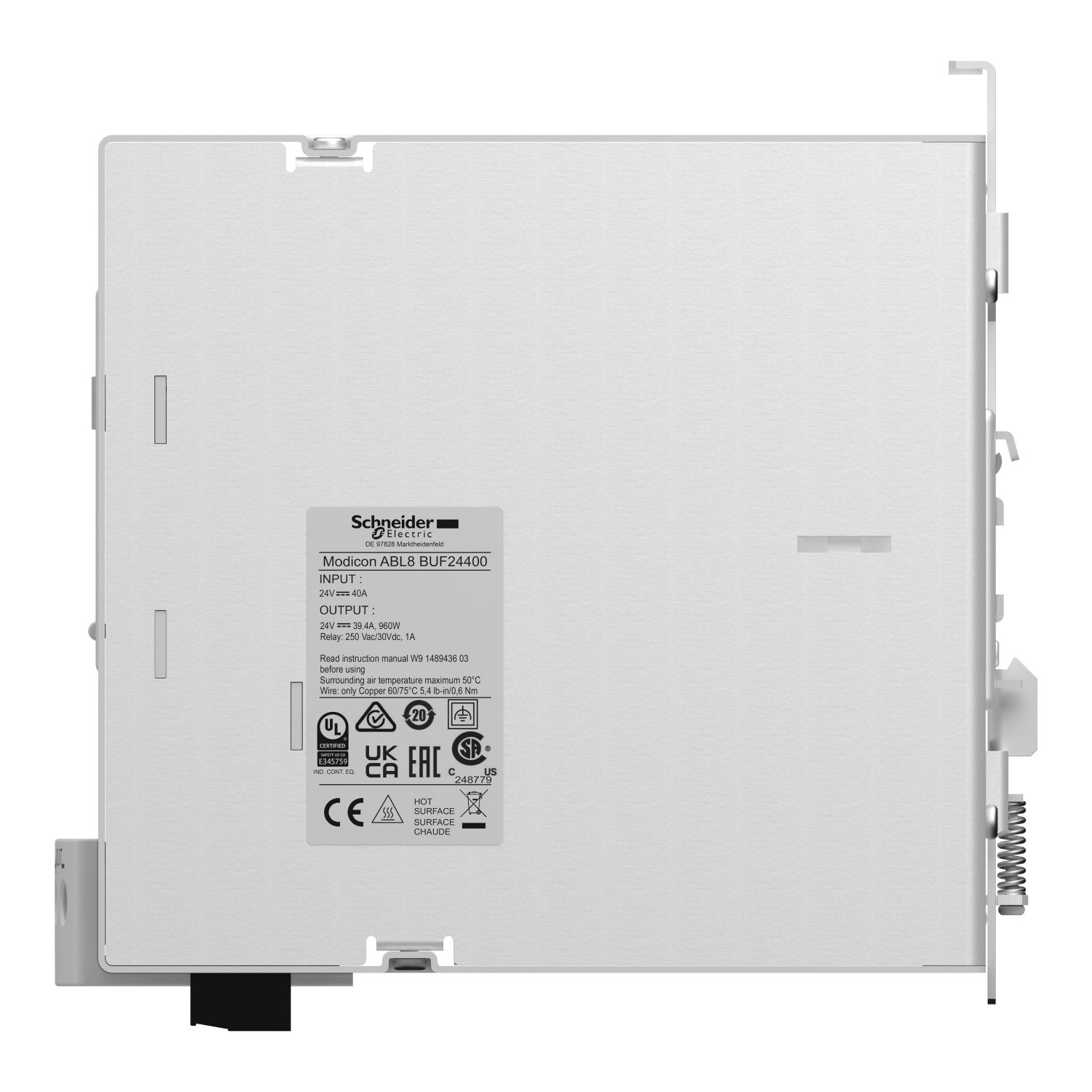

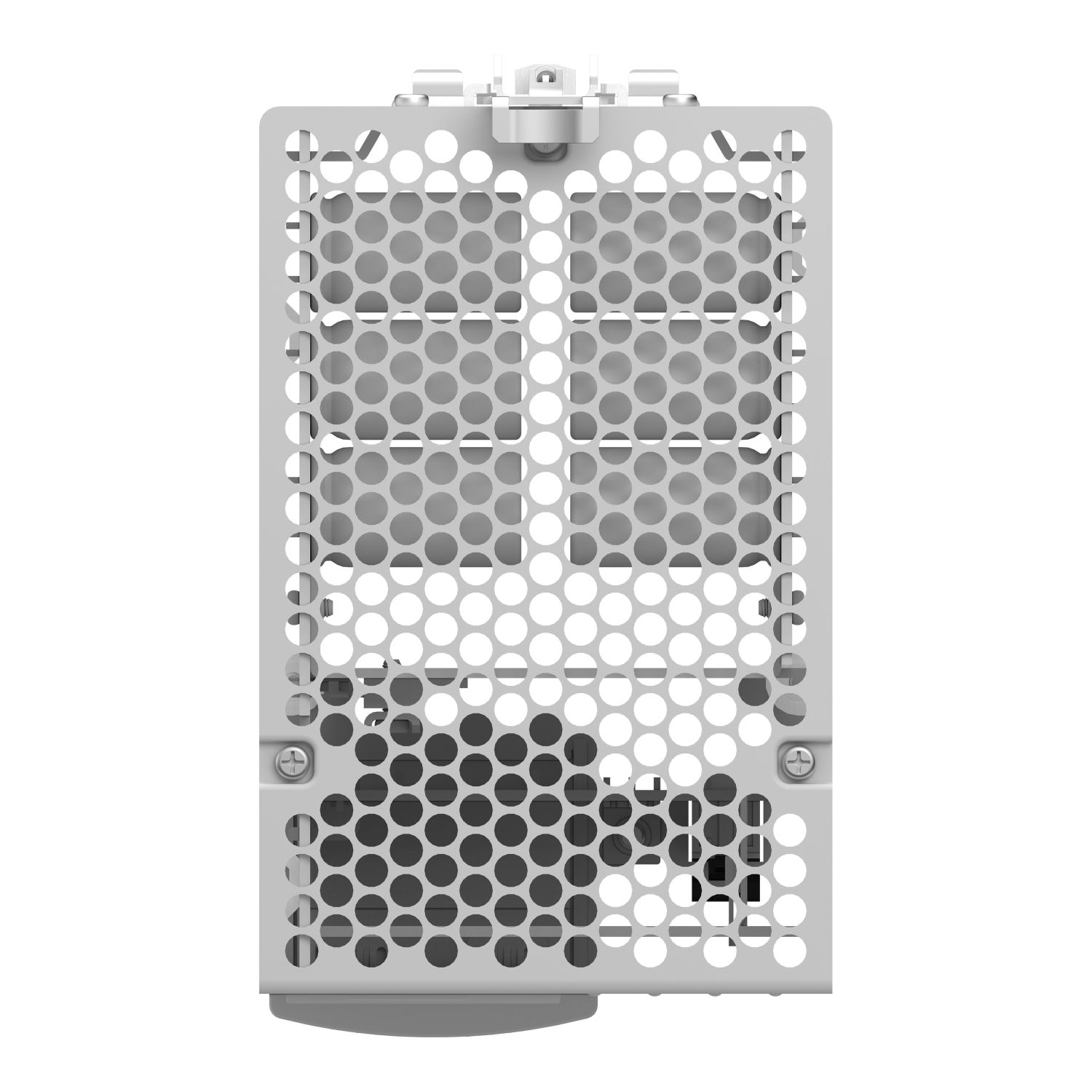

Phaseo ABL7 ABL8, Buffer module, 24..28.8 V DC, 40 A, for power supply

$602.20
Phaseo ABL7 ABL8, Buffer module, 24..28.8 V DC, 40 A, for power supply
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Image of product
Image of product
Image of product
Instruction sheet
Catalogue
End of life manual
Image of product
Image of product
Brochure
CAD
Image of product
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This ABL8 buffer module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This buffer module is designed to provide power during consumption surges or during short network power losses. It provides temporary backup power in case of deep voltage sags and breaks, without the use of batteries. It weighs 1,200kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute nameAttribute value
Main
Maximum output current40 A
Input voltage24...28.8 V DC
Product or component typebuffer module
Holding time6 s at 0.5 A, 0.1 s at 40 A
Range of productPhaseo
Output voltage(Uin-1) V in buffer mode DC, (Uin-0.25) V in nominal mode DC
Complementary
Operating altitude2000 m
Number of output channels1
Activation threshold(Uin-1) V and 22 V min
Compatibility codeABL8B
Local signalling1 relay for buffer ready, 1 LED (green) for buffer ready
Name of testconducted/radiated emissions conforming to EN 55022 class B, 20 %, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2
Maximum power dissipation in W15 W
Output protection typeagainst undervoltage, protection technology: tripping if U < 19 V, against short-circuits, protection technology: power-supplied mode, automatic reset, against overload, protection technology: > 45 A
Connections - terminalsfor diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14, for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
Holding time1 s, 0.6 s, 0.1 s, 2 s, 6 s, 0.5 s, 0.2 s, 0.3 s, 1.5 s, 0.4 s, 4 s, 3 s
Charging time25 s
Net weight1.2 kg
Input voltage limits22...30 V
MarkingCE
Holding solutionuse of buffer modules
Fixing modeby clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal
Holding current25 A, 1 A, 8 A, 40 A, 35 A, 30 A, 2 A, 10 A, 3 A, 6 A, 7 A, 5 A, 4 A, 15 A, 20 A
Output couplingparallel
Current consumption<= 40.6 A, 0.1 mA no load, 0.6 A on load
Environment
Dielectric strength500 V between output and ground, 500 V between input and ground
Relative humidity0-95 % during storage, 0-90 % during operation
Overvoltage categoryclass II conforming to VDE 0106-1
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP20 conforming to IEC 60529
MTBF reliability1119603 H at 24 V DC with UTE C80-810 calculation method
Vibration resistance3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristicsafety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3
StandardsCSA C22.2 No 60950-1, UL 508
Ambient air temperature for operation-25-60 °C
Product certificationsEAC, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.5 cm
Package 1 Width17.0 cm
Package 1 Length18.2 cm
Package 1 Weight1.401 kg
Unit Type of Package 22
Number of Units in Package 260
Package 2 Height80.0 cm
Package 2 Width80.0 cm
Package 2 Length60.0 cm
Package 2 Weight97.06 kg
