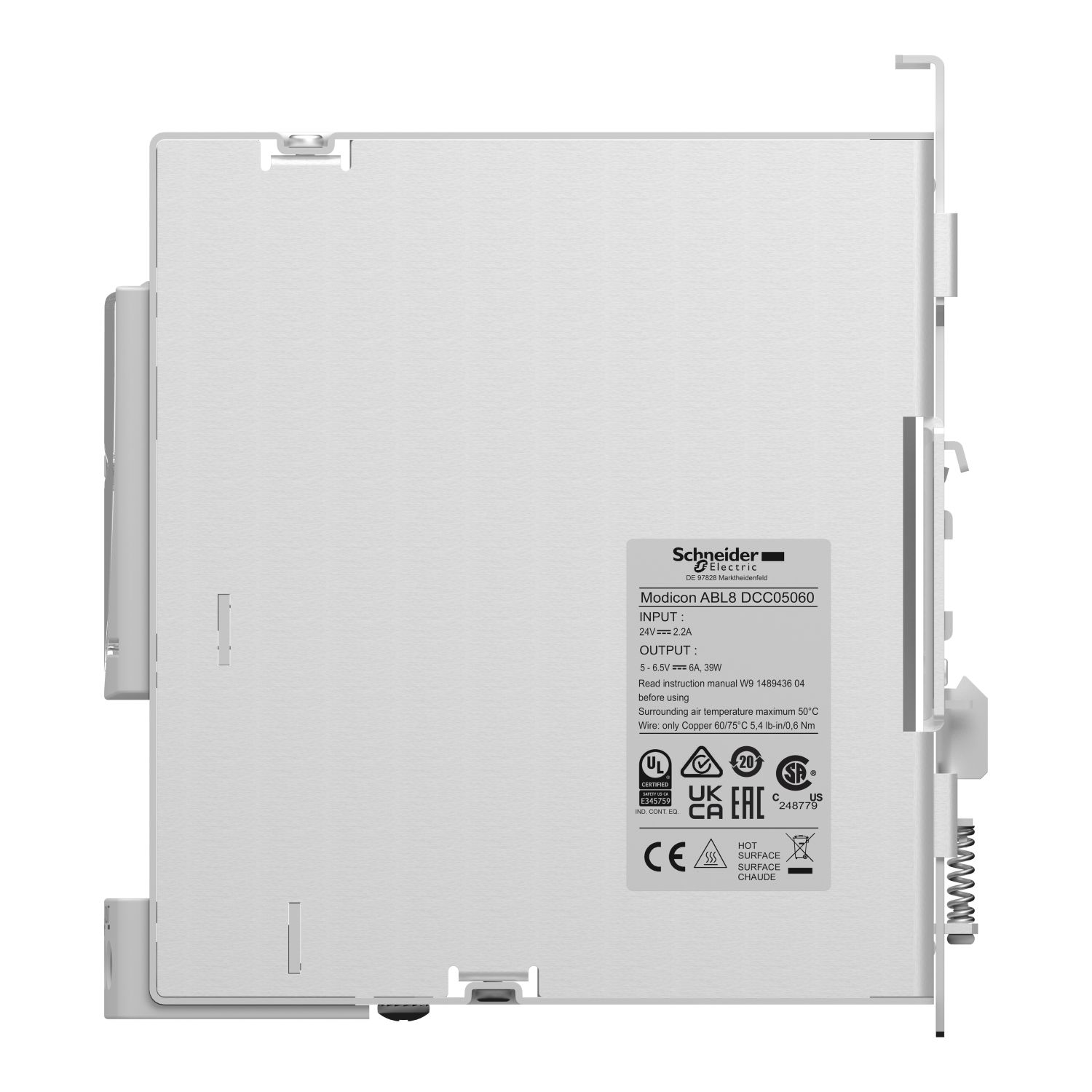

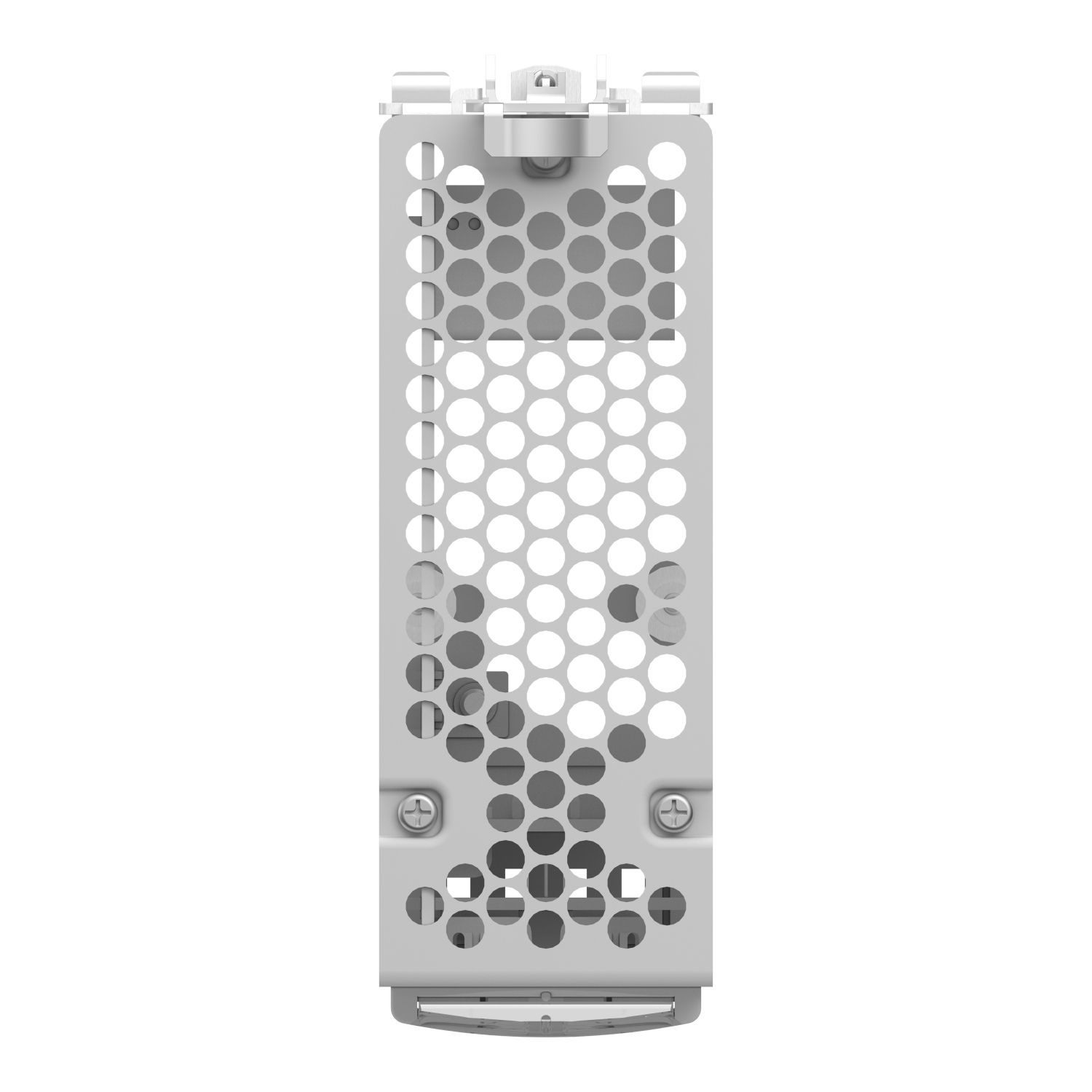

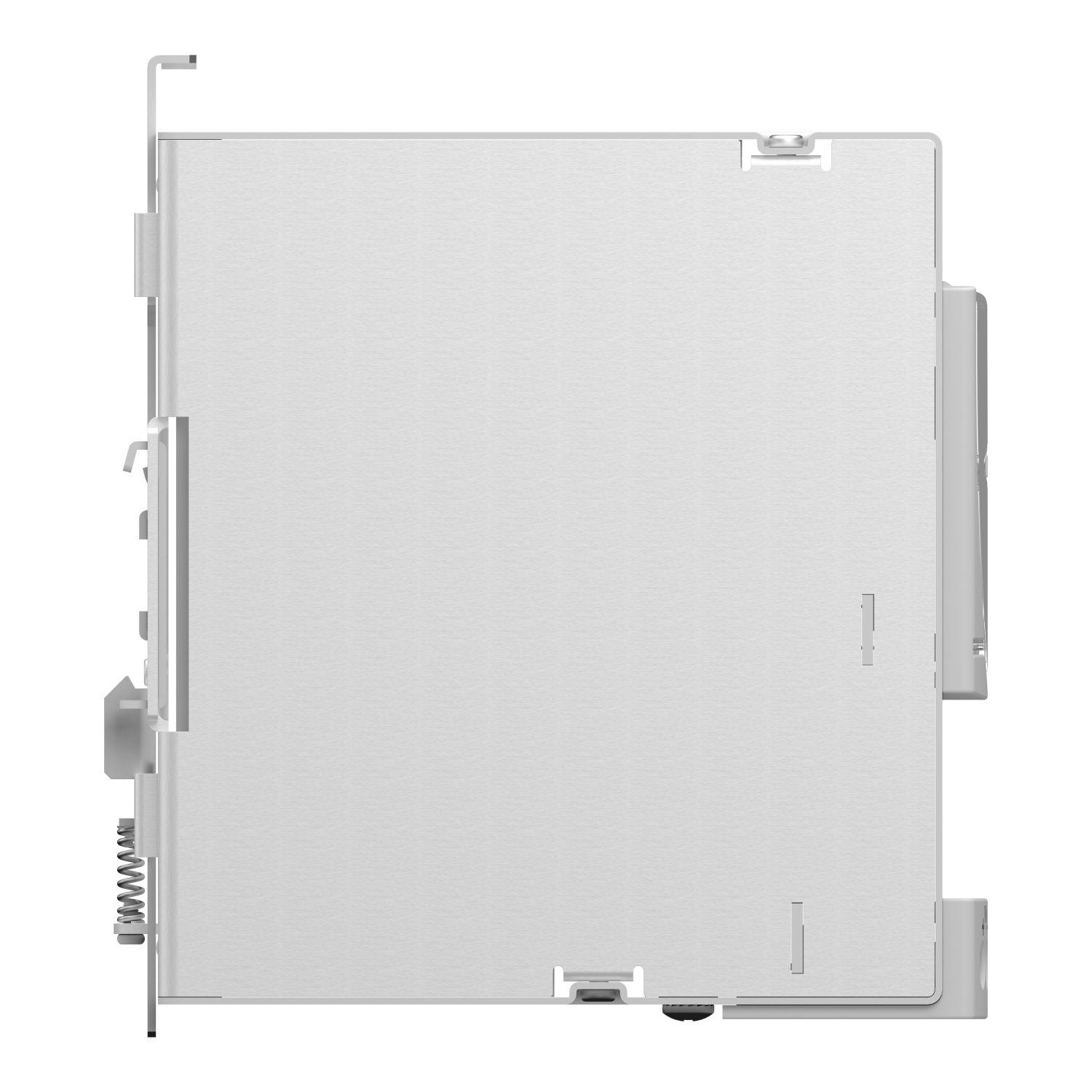

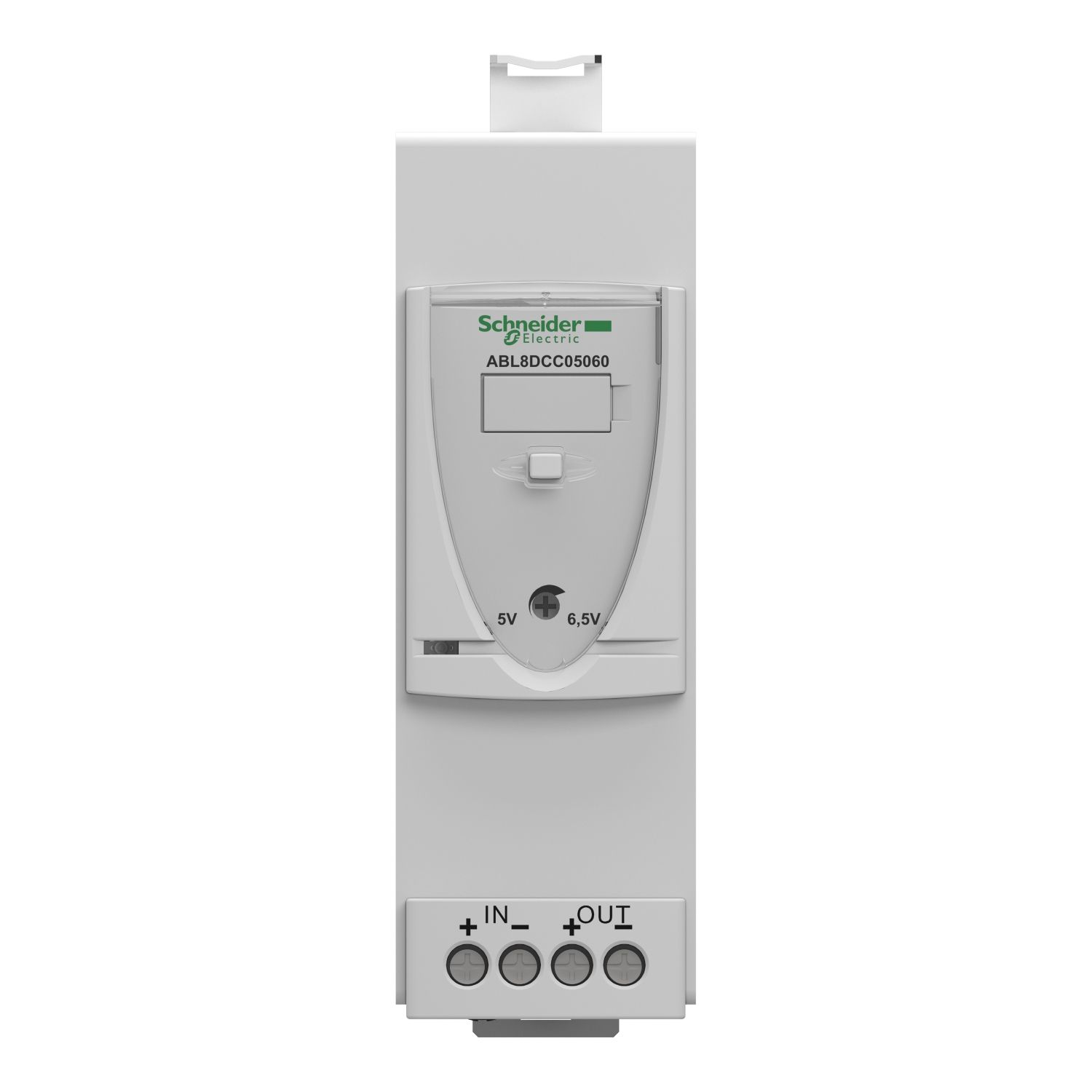

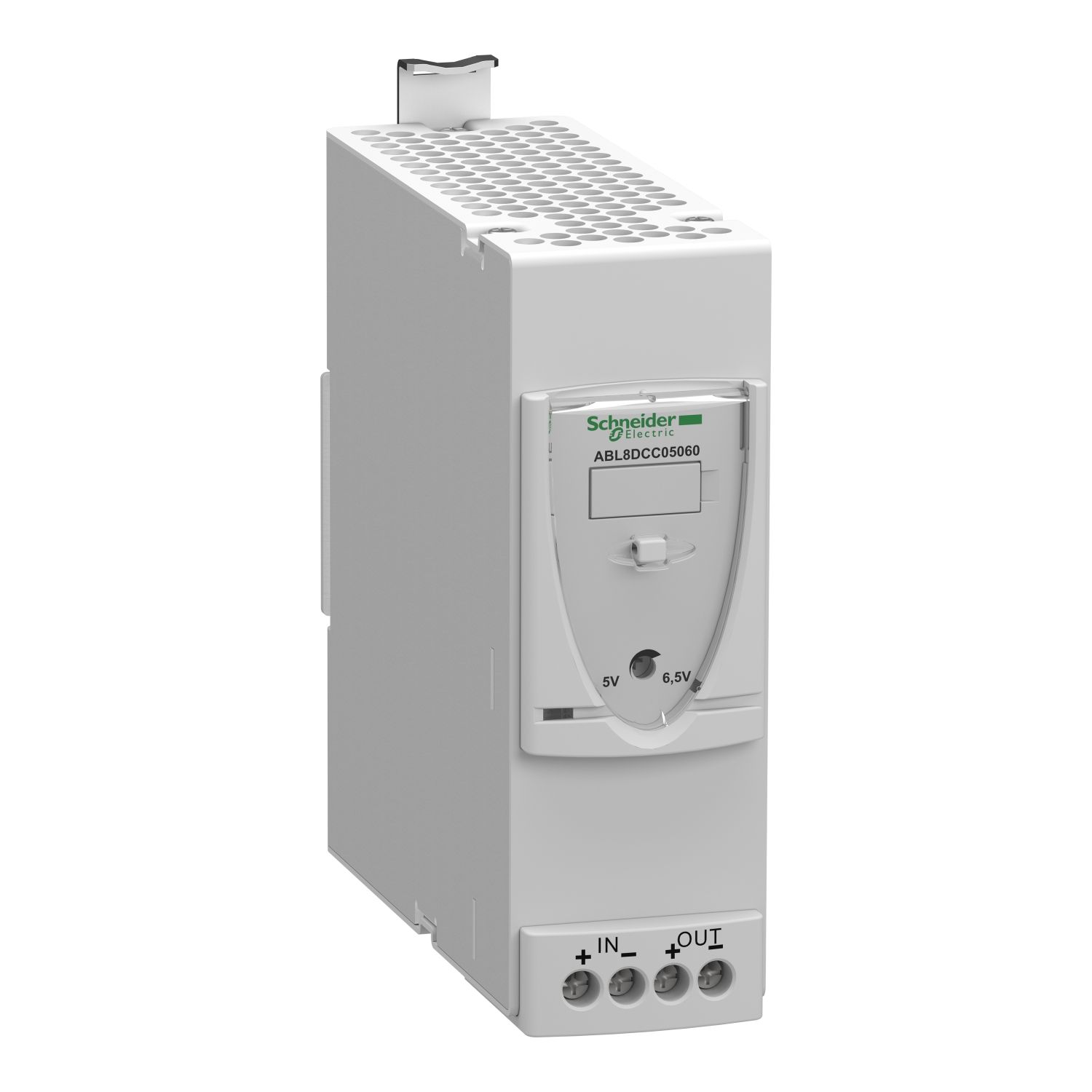

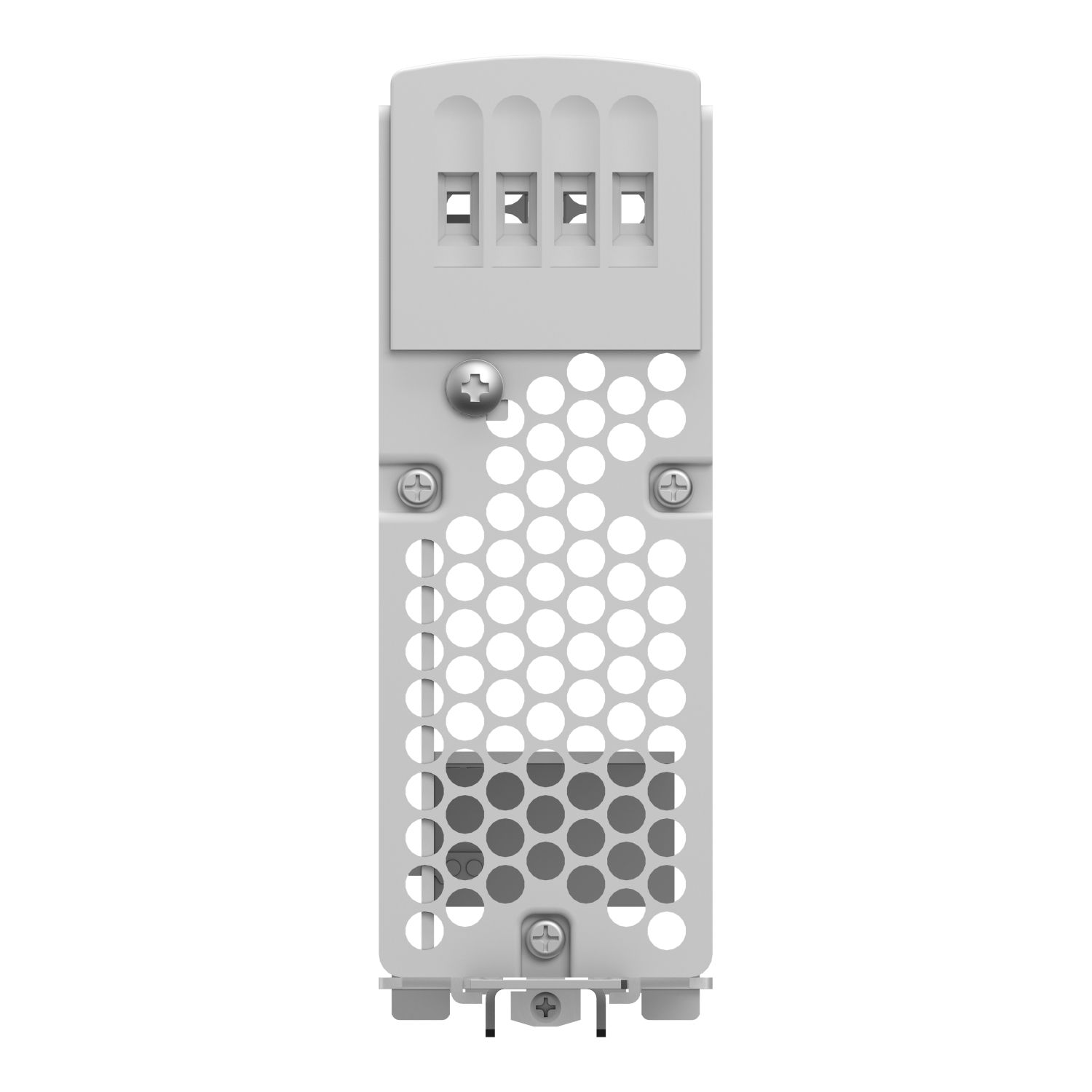

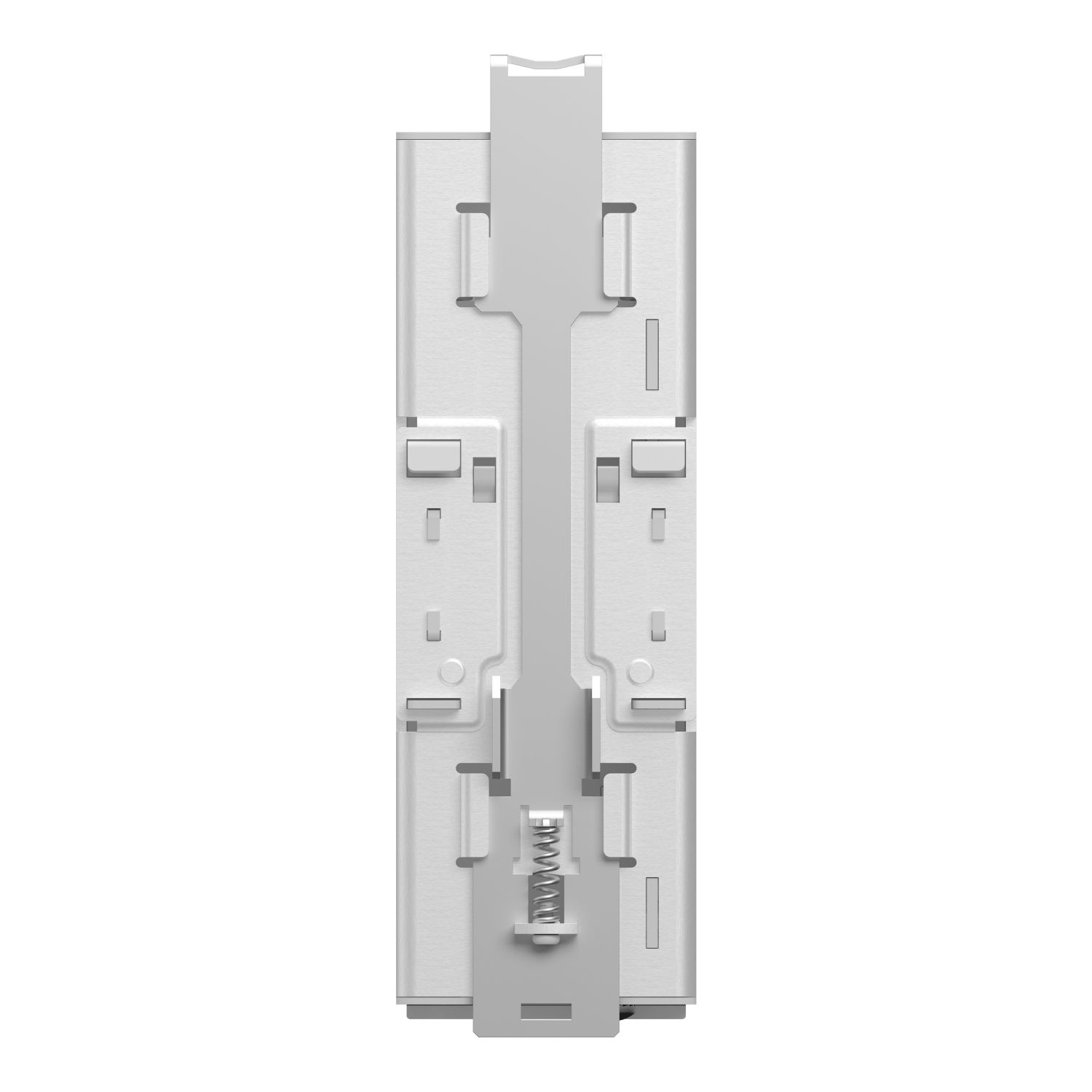

Phaseo ABL7 ABL8, Converter module 30 W, 24..28.8 V DC, 5 V DC, 6 A, for regulated SMPS

$385.99
Phaseo ABL7 ABL8, Converter module 30 W, 24..28.8 V DC, 5 V DC, 6 A, for regulated SMPS
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Image of product
End of life manual
Catalogue
Brochure
Instruction sheet
CAD
Image of product
Declaration of conformity
Image of product
Image of product
Image of product
Image of product
Product environmental
Product Page Link
Product Data Sheet
This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 0.25A at 5V DC and a rated power output of 30W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute nameAttribute value
Main
Input voltage24...28.8 V DC
Rated power in W30 W
Output voltage5 V DC
Range of productPhaseo Universal
Power supply output current6 A
Product or component typeconverter module
Complementary
Input protection typeagainst reverse polarity
Compatibility codeABL8D
Name of testemission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2, conducted/radiated emissions conforming to EN 55022 class B, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3
Power dissipation in W7 W
Line and load regulation1...3 %
Fixing modeby clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal with derating to 40 %
Input voltage limits22...30 V
Residual ripple<= 100 mV
Operating altitude2000 m
Local signalling1 LED (green) for output voltage (> 4 V)
Output voltage limits5...6.5 V
Output protection typeagainst short-circuits, protection technology: automatic reset, against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset, against overload, protection technology: automatic reset
Connections - terminalsfor output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
Net weight0.3 kg
Efficiency80 %
Environment
Relative humidity0-95 % during storage, 0-90 % during operation
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP20 conforming to IEC 60529
MTBF reliability1511725 H at 24 V DC with UTE C80-810 calculation method
Ambient air temperature for operation-25-60 °C
Dielectric strength500 V between output and ground, 500 V between input and output, 500 V between input and ground
Overvoltage categoryclass 3
Vibration resistance3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristicsafety conforming to IEC 61204, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3, EMC conforming to EN 50081-1
Product certificationsUL, RCM, cCSAus, EAC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.5 cm
Package 1 Width14.5 cm
Package 1 Length16.5 cm
Package 1 Weight610.0 g
Unit Type of Package 22
Number of Units in Package 211
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.225 kg
Unit Type of Package 33
Number of Units in Package 388
Package 3 Height75.0 cm
Package 3 Width40.0 cm
Package 3 Length80.0 cm
Package 3 Weight78.68 kg
