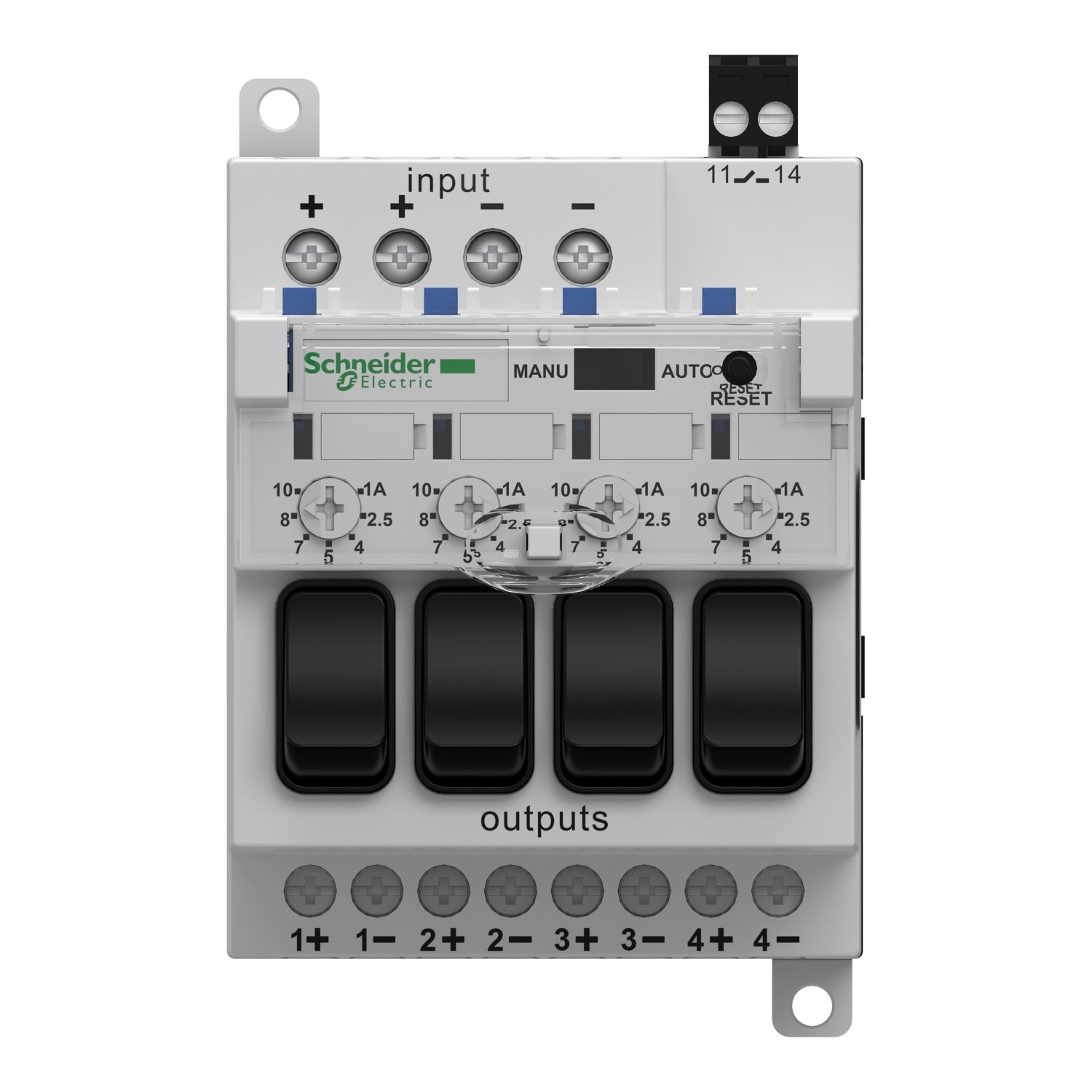

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

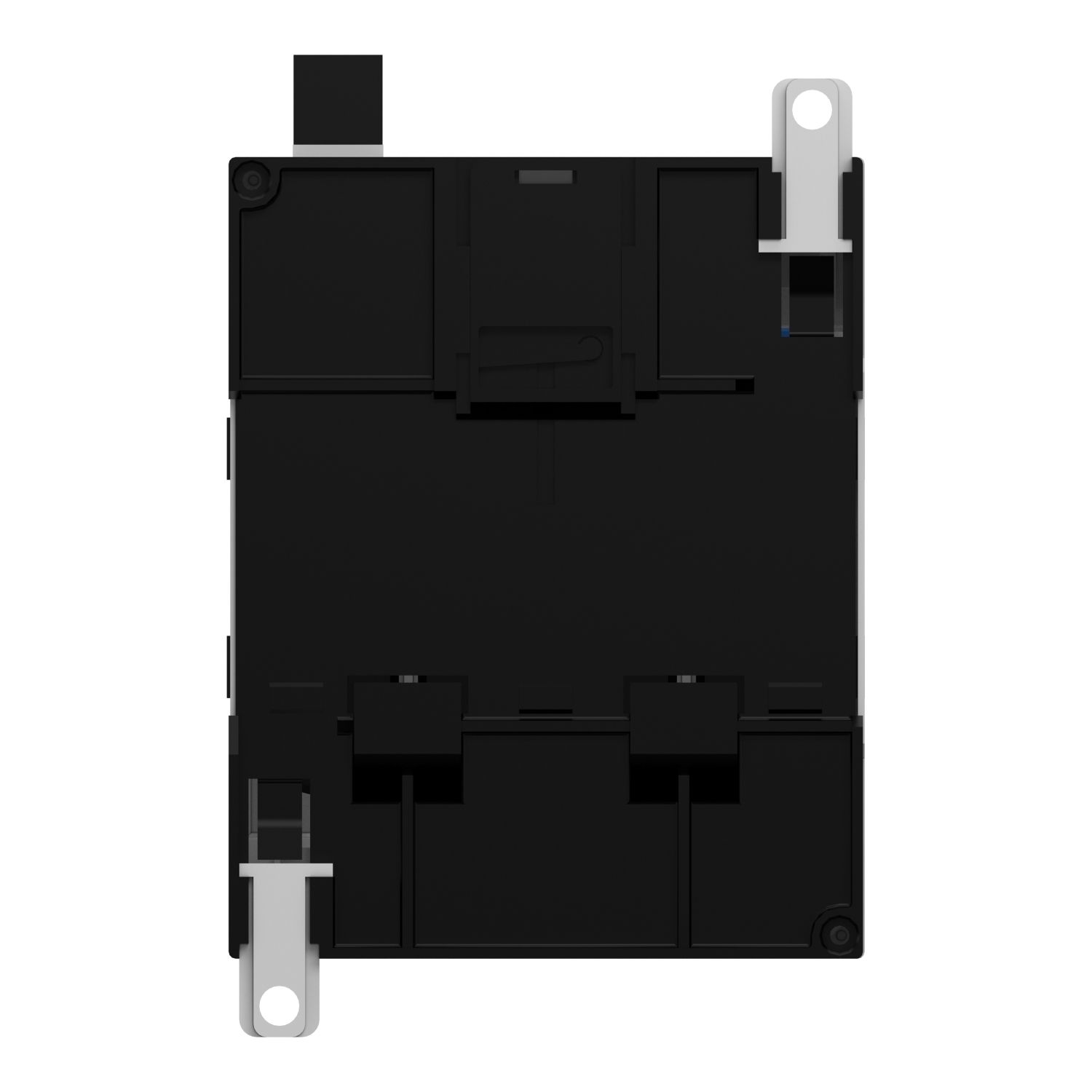

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

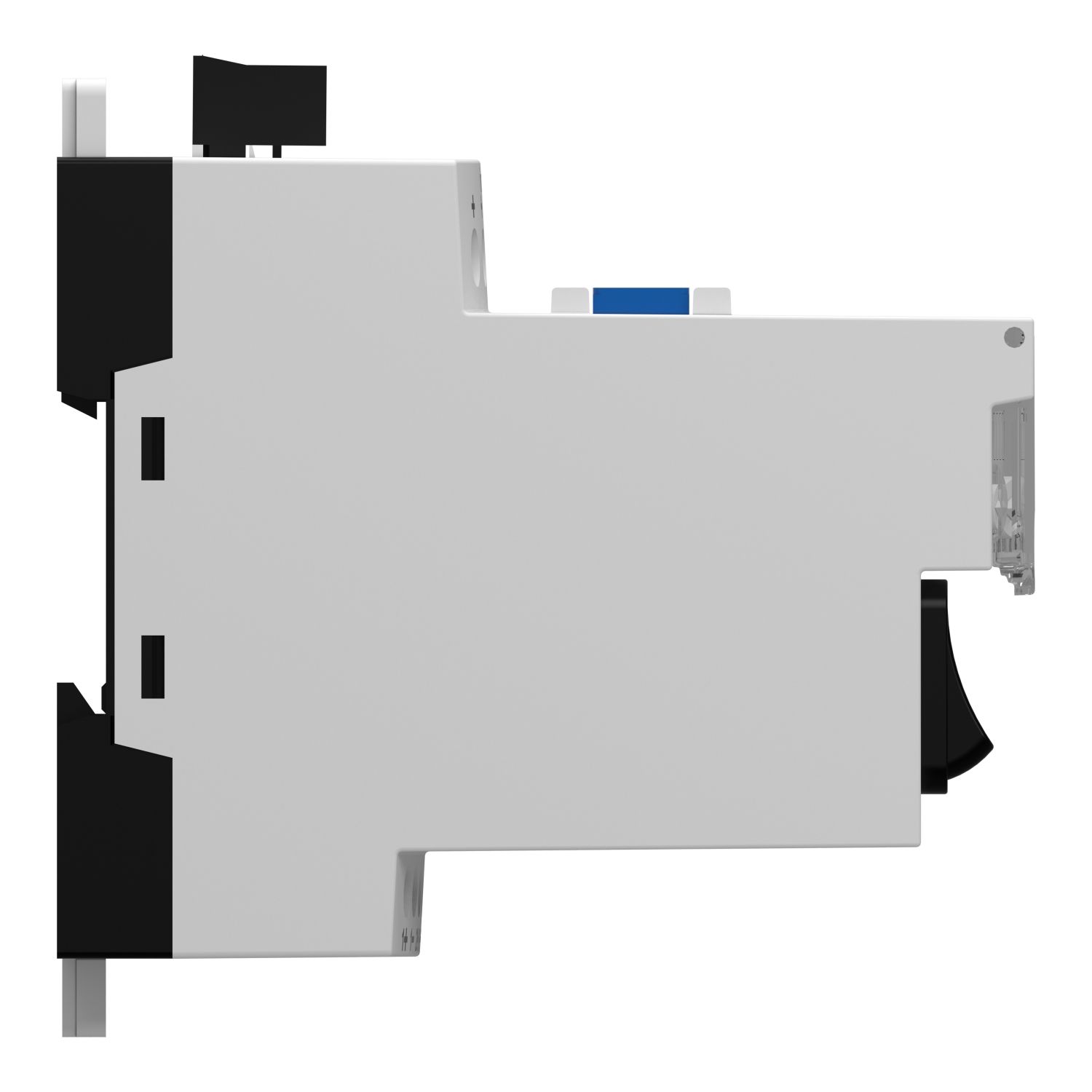

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

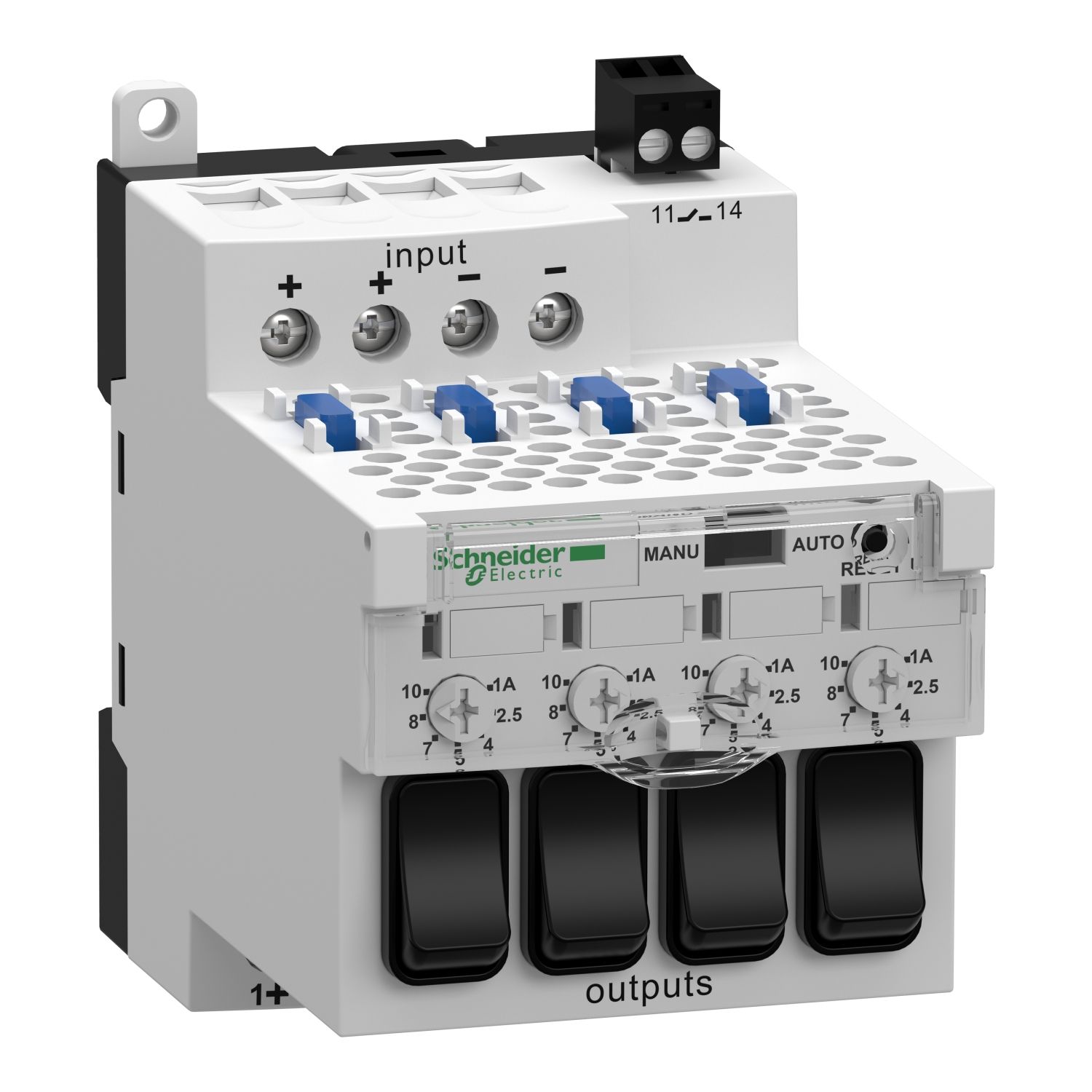

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

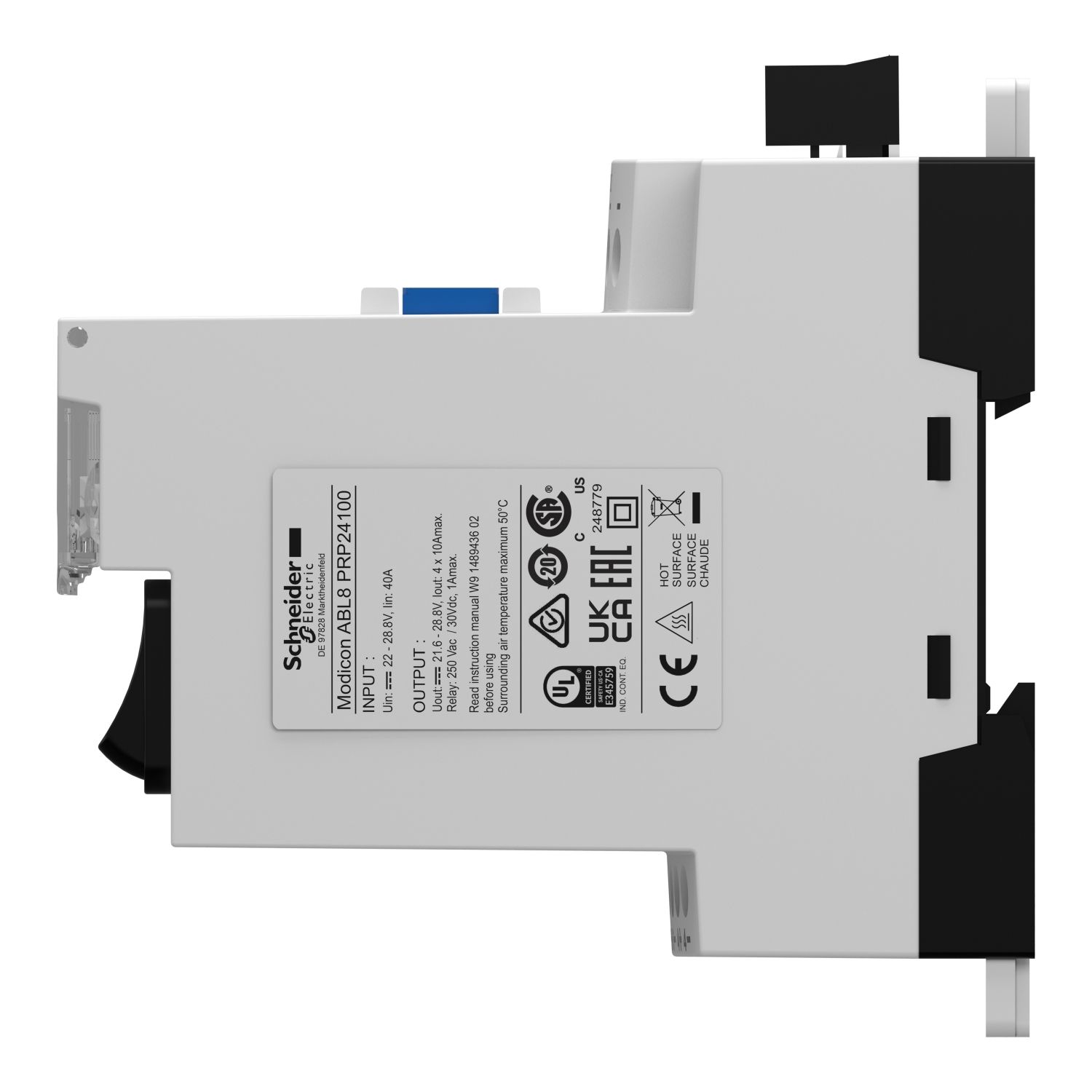

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

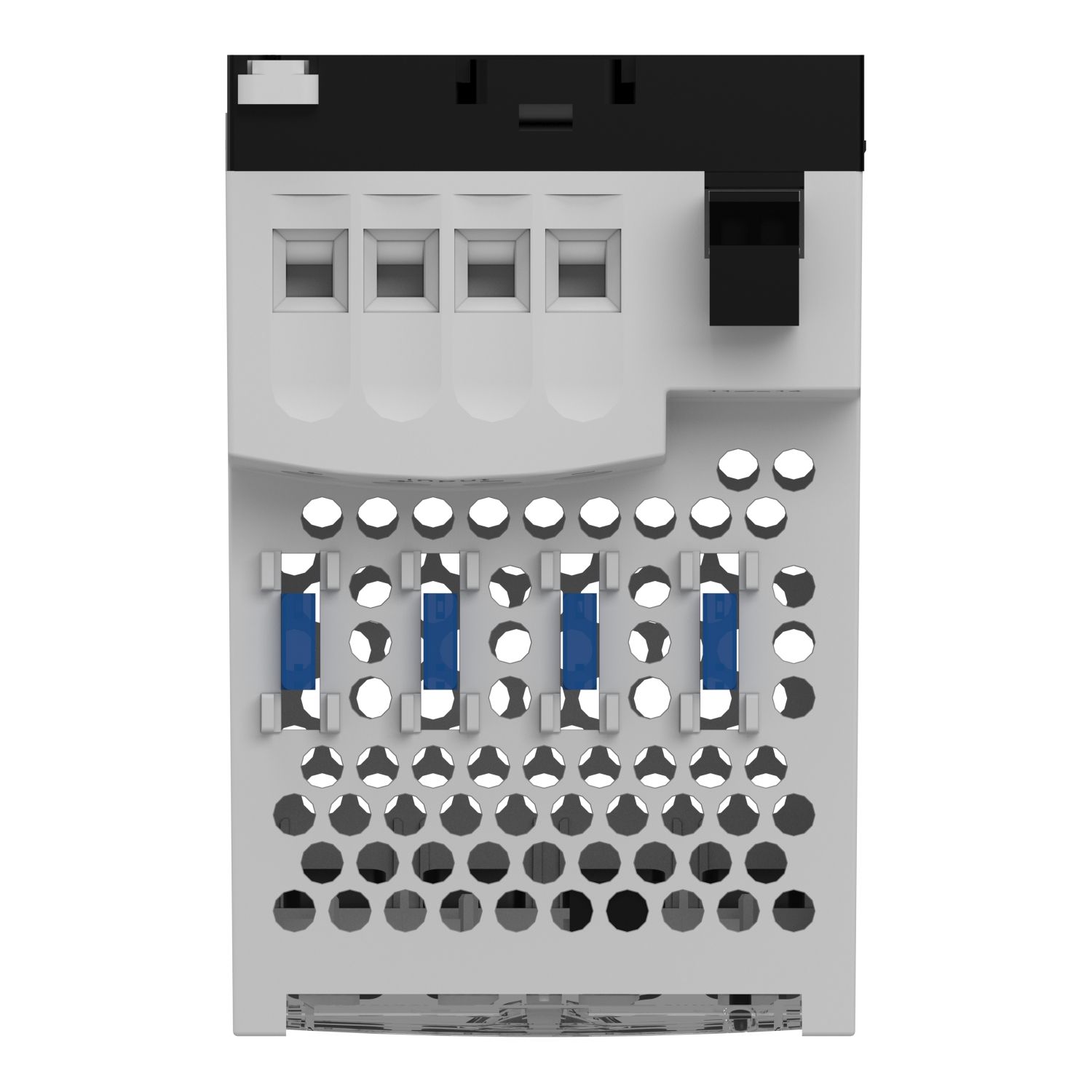

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

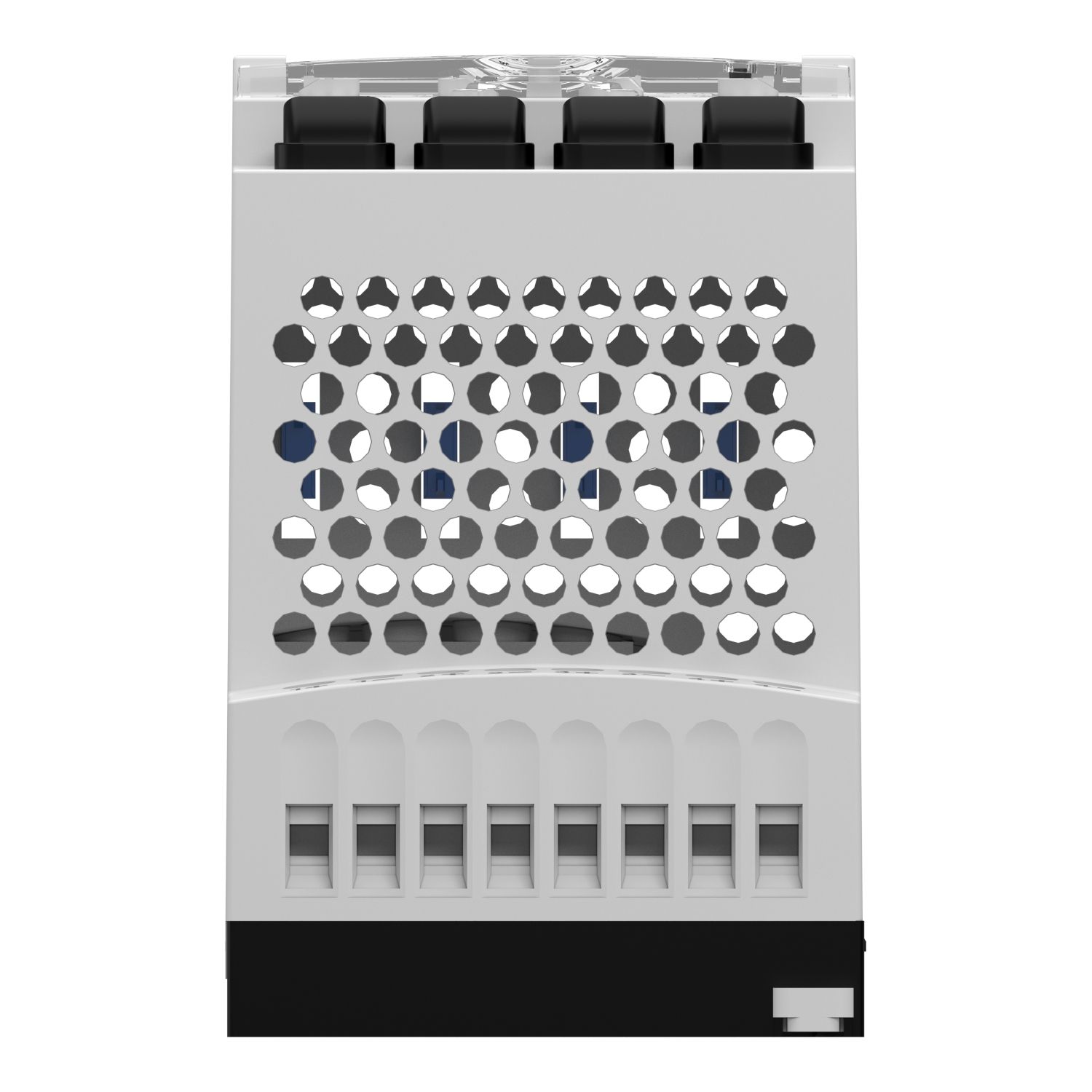

Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel
Picture of electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel
SKU:

ABL8PRP24100

electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel

$635.96
electronic protection module, phaseo ABL7 ABL8, 28 to 28.8V DC, 10A, for regulated SMPS, 2 pole breaking by channel
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Image of product
Declaration of conformity
Image of product
Catalogue
Instruction sheet
Brochure
Product environmental
Image of product
Image of product
End of life manual
Image of product
Image of product
Product Page Link
Product Data Sheet
This ABL8 electronic protection module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 10A. This electronic protection module is ideal to protect up to 4 circuits against overloads and short-circuits with a total rated current of 10 amperes. It controls and protects up to 4 independent auxiliary circuits with a single power supply unit. Its complementary function is a 1-pole breaking by channel. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,470kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute nameAttribute value
Main
Maximum output current10 A per channel, rating: 1/2.5/4/5/7/8/10
Input voltage24...28.8 V DC
Range of productPhaseo
Product or component typeelectronic protection module
Output voltage(Uin-0.3) V DC
Complementary
Number of output channels4
Compatibility codeABL8P
Name of testemission conforming to EN 50081-1, conducted/radiated emissions conforming to EN 55022 class B, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2
Input voltage limits19...32 V
MarkingCE
Fixing modeon panel, by clips on 35 mm symmetrical DIN rail, operating position: vertical
Operating altitude2000 m
Breaking capacity1000 A at 32 V DC by fuse
Local signalling1 relay for channel status, 1 LED per channel (green/red) for channel status
Output protection typeline protection, protection technology: 1 x 15 A integrated fuse per channel, against short-circuits, protection technology: automatic reset, against overload, protection technology: 1.3 x In
Connections - terminalsfor output connection: screw type terminals, connection capacity: 8 x 0.5...8 x 4 mm² AWG 20...AWG 10, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14, for input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8
Input current40 A
Net weight0.47 kg
Complementary function2-pole breaking by channel
Environment
Relative humidity0-95 % during storage, 0-90 % during operation
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-25-60 °C
Dielectric strength500 V between output and ground, 500 V between input and ground
Overvoltage categoryclass II conforming to VDE 0106-1
Vibration resistance3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristicsafety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3
StandardsCSA C22.2 No 60950-1, UL 508
Product certificationsEAC, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.8 cm
Package 1 Width10.0 cm
Package 1 Length13.5 cm
Package 1 Weight582.0 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight8.937 kg
Unit Type of Package 33
Number of Units in Package 3128
Package 3 Height75.0 cm
Package 3 Width40.0 cm
Package 3 Length80.0 cm
Package 3 Weight99.496 kg
