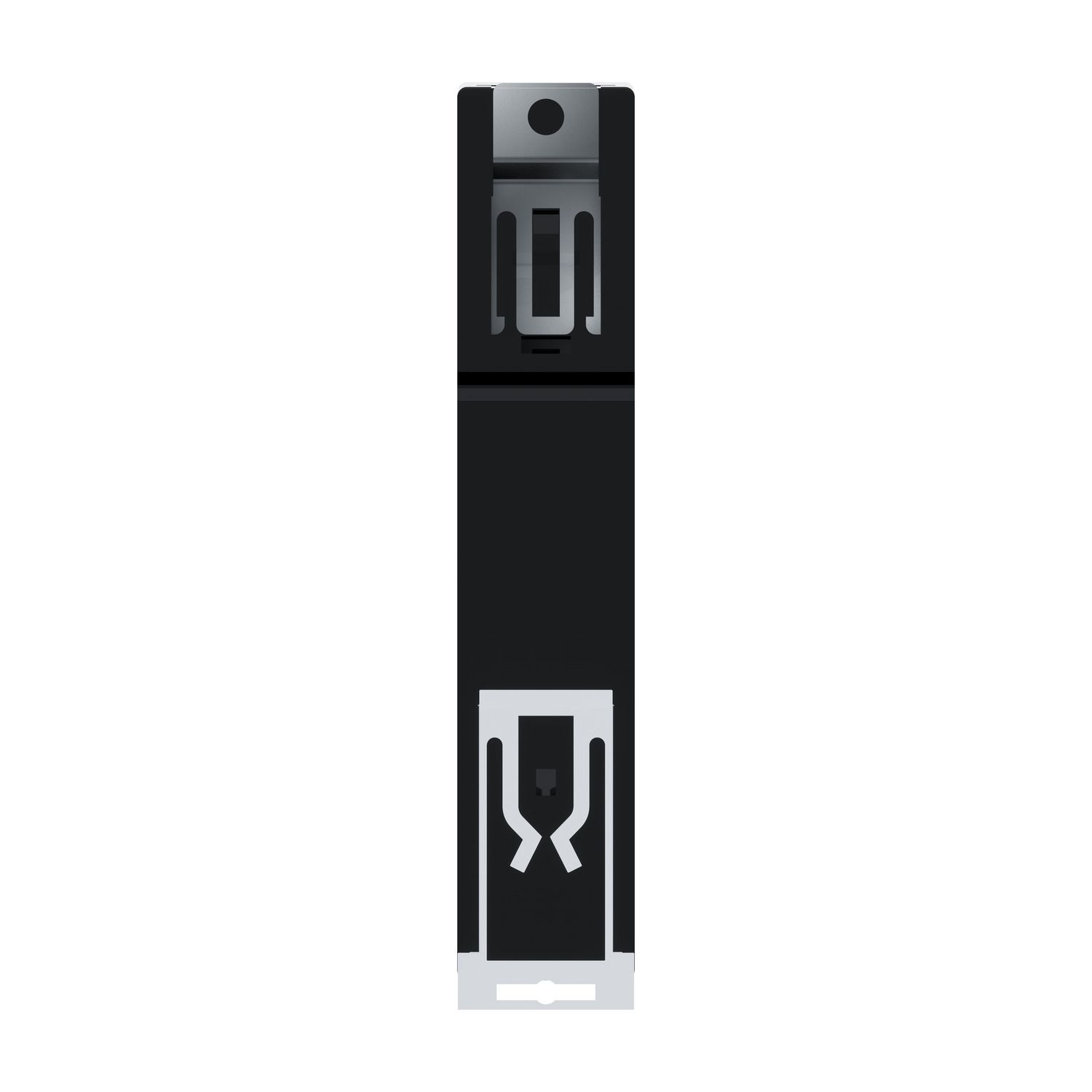

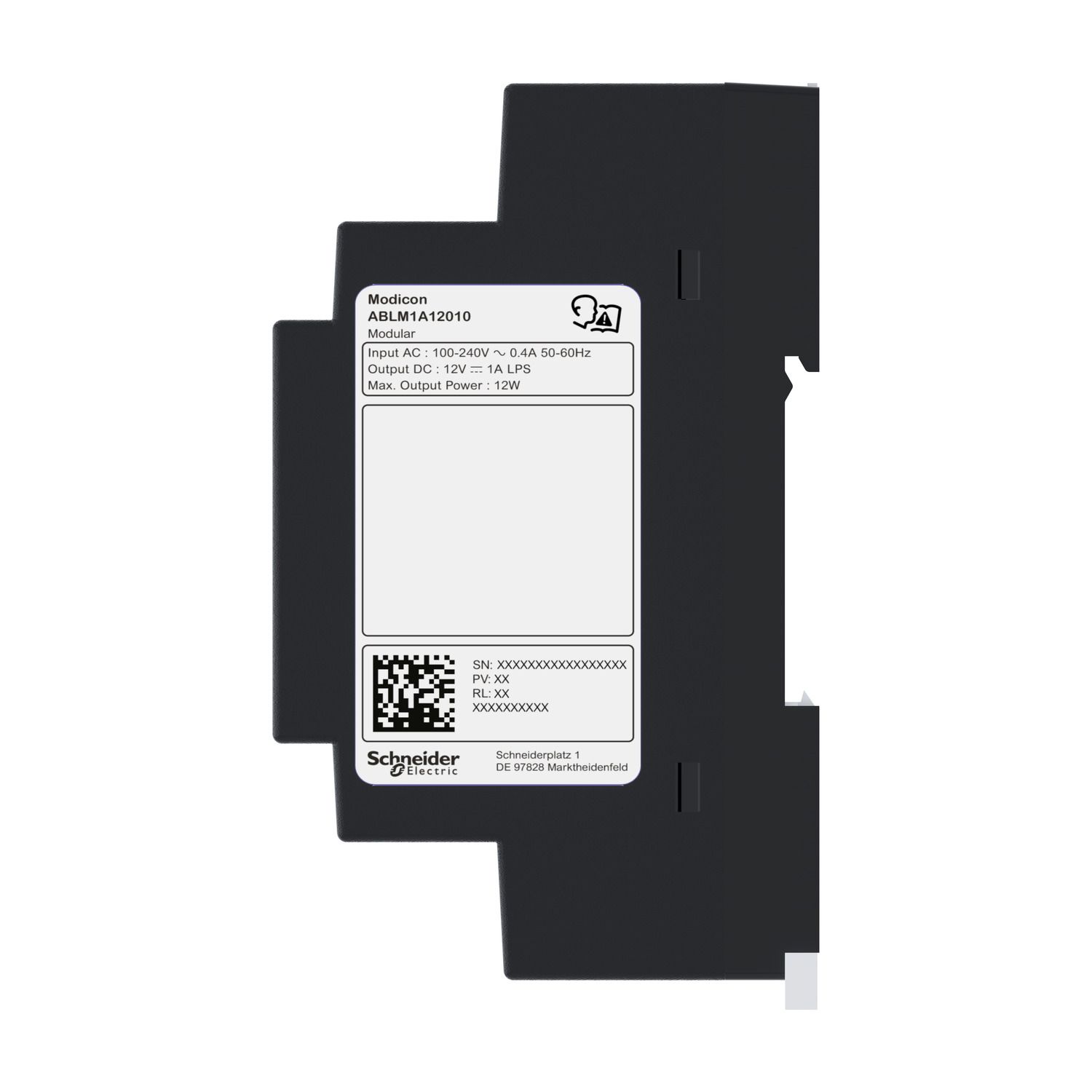

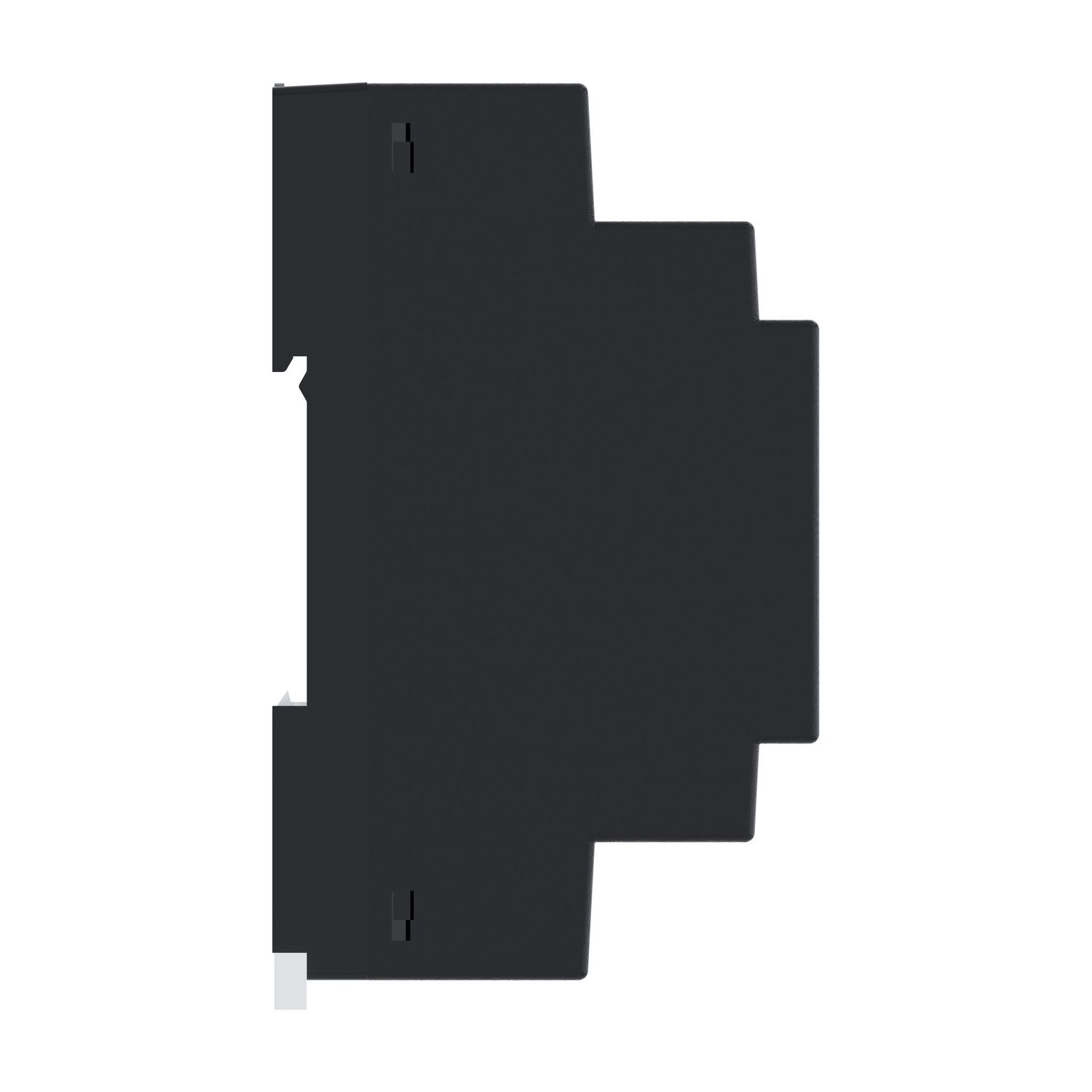

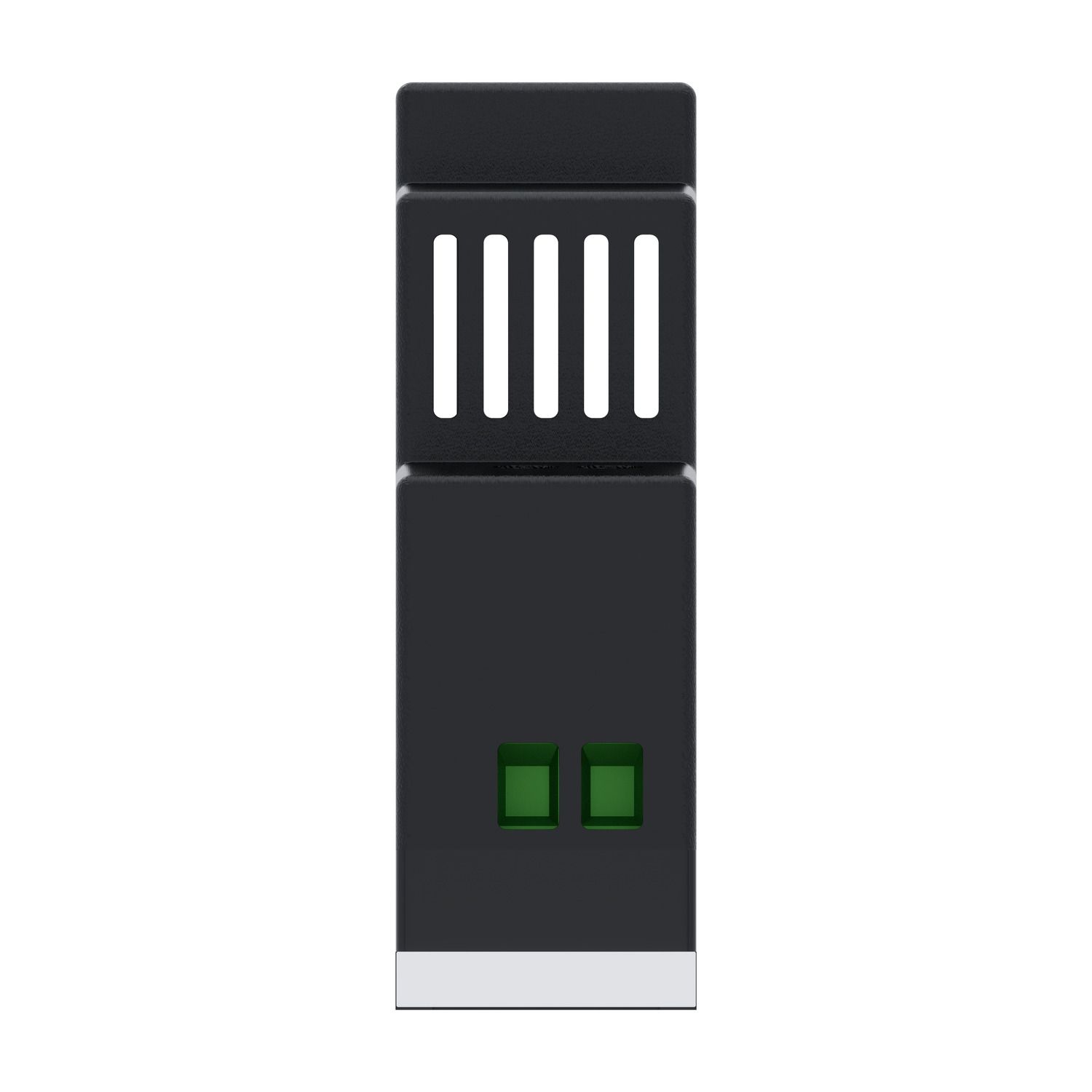

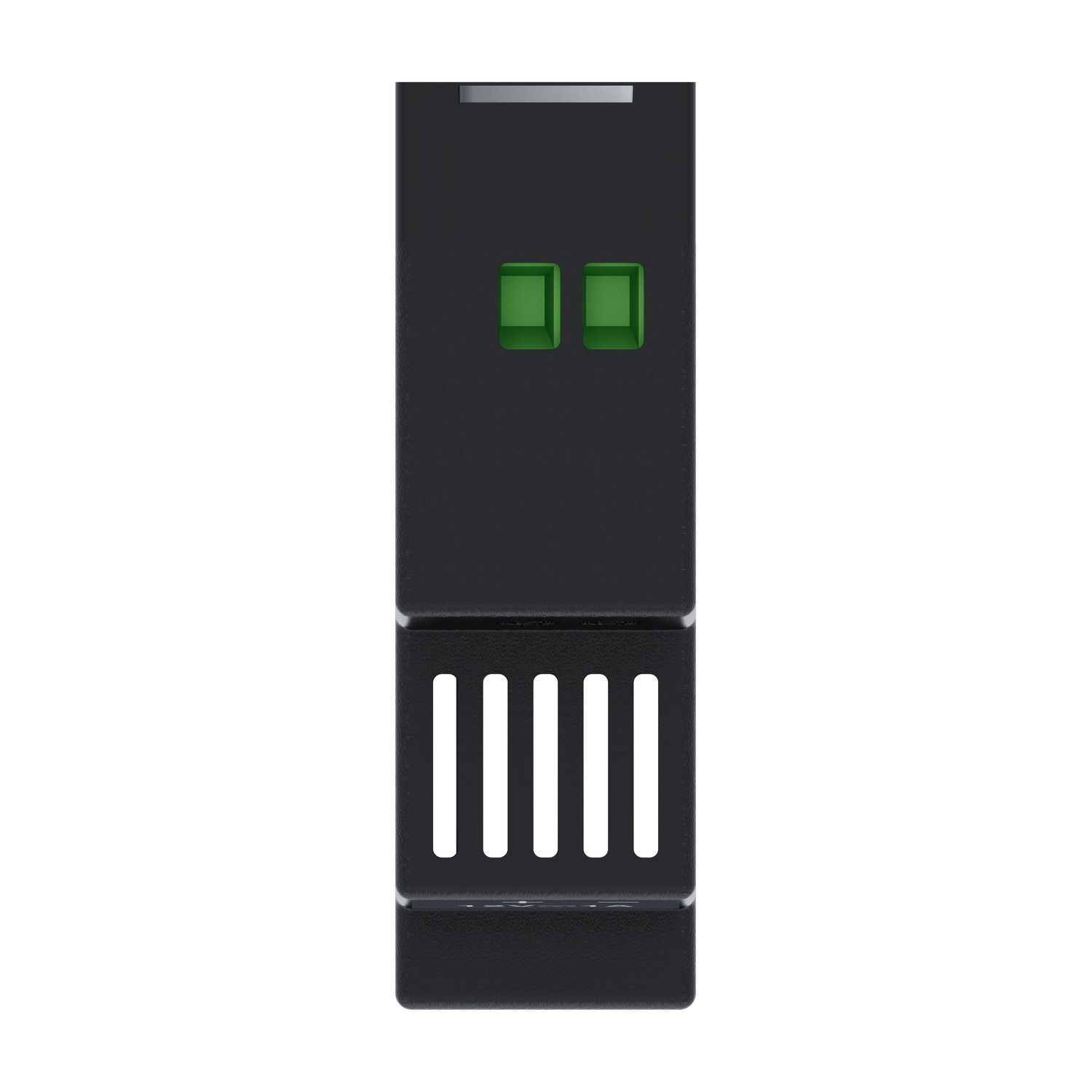

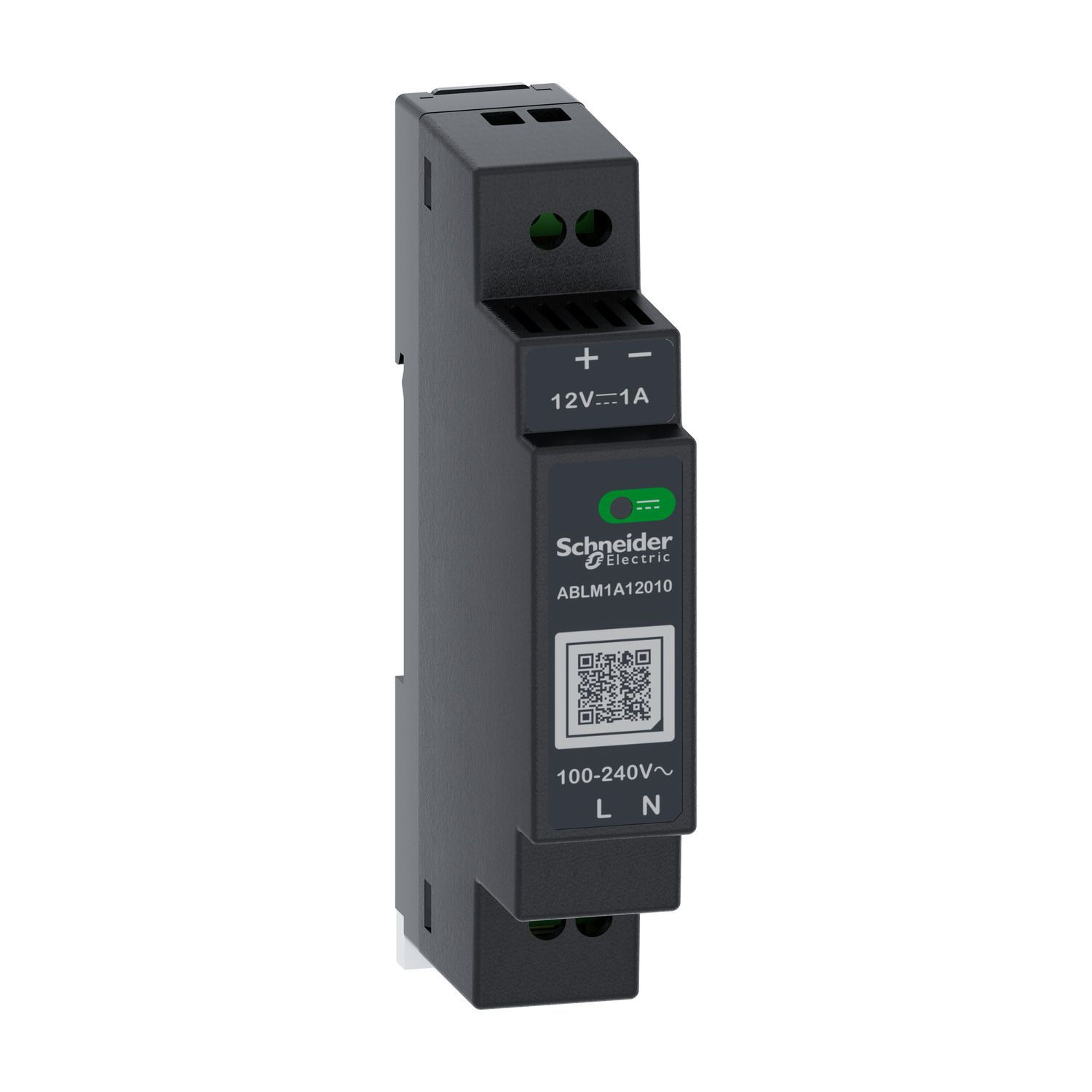

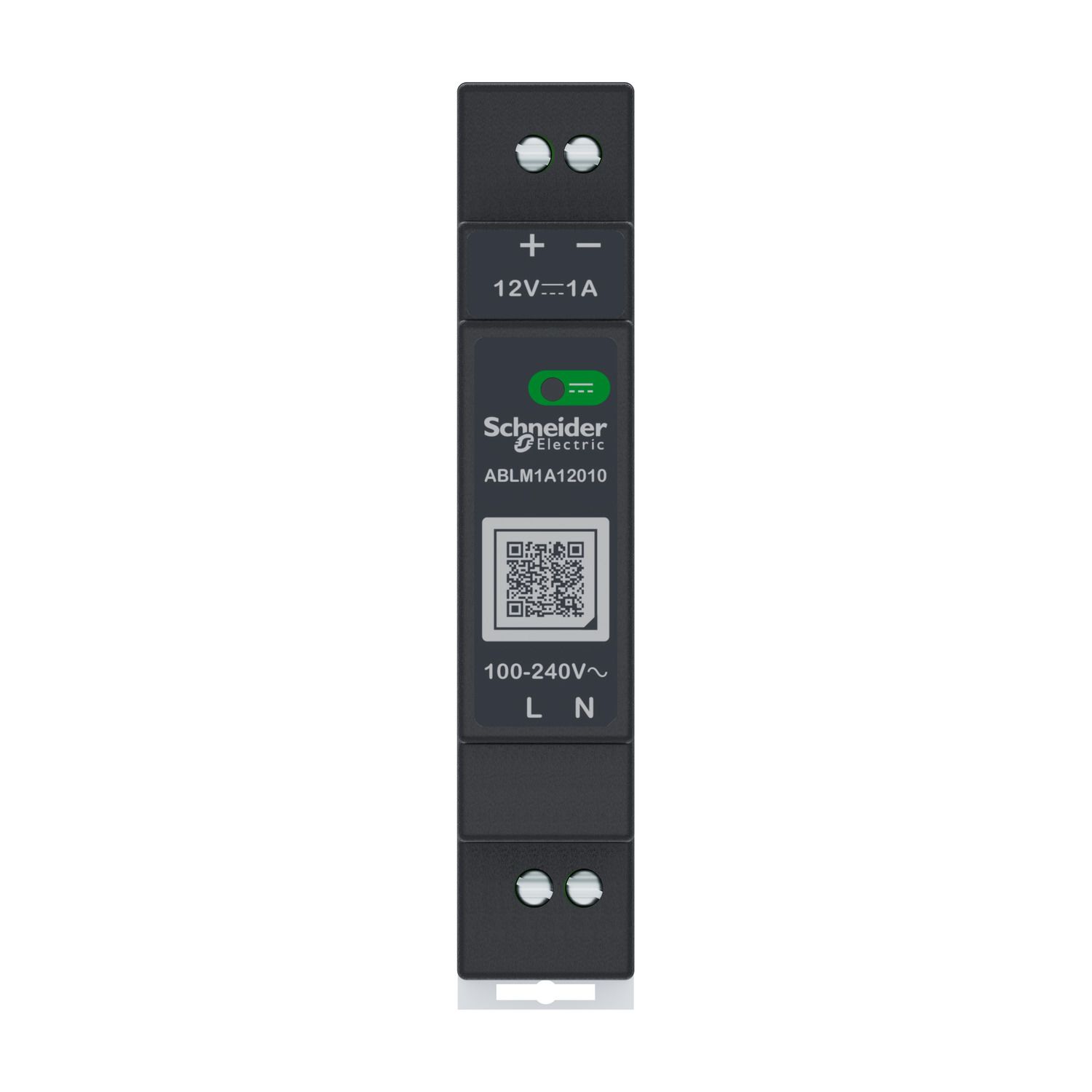

Picture of Regulated Power Supply, 100 to 240V AC, 12V, 1A, single phase, Modular
SKU:

ABLM1A12010

Regulated Power Supply, 100 to 240V AC, 12V, 1A, single phase, Modular

$129.25
Available for Shipping : 16-Jan-2025
Product Selector
Regulated Power Supply, 100 to 240V AC, 12V, 1A, single phase, Modular
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Product environmental
Declaration of conformity
Catalogue
Brochure
Product Page Link
Product Data Sheet
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1A at 12V DC and a rated power output of 12W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 18mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.101 kg It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 2A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name Attribute value
Main
Rated power in W 12 W
Input voltage 100...240 V AC phase to phase, 100...240 V AC single phase
Output voltage 12 V DC
Range of product Modicon Power Supply
Enclosure material plastic
Power supply output current 1 A
Power supply type regulated switch mode
Product or component type power supply
Complementary
Power factor 0.40 at 230 V AC, 0.51 at 115 V AC
Inrush current 30 A at 230 V, 15 A at 115 V
Efficiency 80 % at 230 V AC, 80 % at 115 V AC
Load capacitance 3000 µF
Power dissipation in W 3 W
Meantime between failure [MTBF] 1000000 h at 55 °C, 80 % load, 3000000 h at 25 °C, full load
Input protection type external protection (recommended) 2 A Curve C, external protection (recommended) 2 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 20 A Curve B, integrated fuse (not interchangeable) 3.15 A
Network frequency limits 50-60 Hz
Connections - terminals screw connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output, screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/output
Earthing system IT, TT, TN
Input voltage limits 90...264 V AC
Status LED 1 LED (green) output voltage
Residual ripple < 100 mV
Height 91 mm
Depth 55.6 mm
Overvoltage category II
Width 18 mm
Line and load regulation < 1 % at 0 to 100 % load, < 0.5 % at in line
Response time < 2 s
Mounting support panel mounting, double-profile DIN rail, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Service life 10 year(s)
Output protection type against overvoltage, protection technology: manual reset, against over temperature, protection technology: manual reset, against overload and short-circuits, protection technology: automatic reset
Maximum leakage current 0.25 mA 240 V AC
Net weight 0.101 kg
Supply SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Current consumption < 0.25 A 230 V AC, < 0.4 A 115 V AC
Dielectric strength 3000 V AC input/output
Holding time > 60 ms 230 V AC, > 10 ms 115 V AC
Output coupling serial
Environment
IP degree of protection IP20
Electromagnetic compatibility conforming to EN 55016-2-1,  conforming to EN 55016-1-2, limits for harmonic current emissions conforming to IEC 61000-3-2, disturbing field emission conforming to EN 55016-2-3, immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11, immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11, immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
Pollution degree 2
Product certifications NEC: class 2, KC, EAC, CB Scheme, RCM, cUL recognized, cUL listed, CE
Ambient air temperature for operation 55-70 °C with current derating of 2.67 % per °C mounting position A < 2000 m, -25-55 °C without current derating mounting position A < 2000 m
Electromagnetic emission radiated emissions conforming to IEC 61000-6-4, conducted emissions conforming to IEC 61000-6-3
Electrical shock protection class class II without PE connection
Operating altitude 2000 m...5000 m overvoltage category II, < 2000 m overvoltage category III
Vibration resistance 10 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3, 3 mm (f= 2-9 Hz) conforming to IEC 60721-3-3
Shock resistance 150 m/s² for 11 ms
Standards EN/IEC 62368-1, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, CSA C22.2 No 62368-1, UL 61010-2-201, UL 61010-1, UL 62368-1, EN 61000-3-3, IEC 61000-3-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2, IEC 61000-6-1, EN/IEC 61204-3, EN 61010-2-201, EN/IEC 61010-1, IEC 62368-1
Variant option modular
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 9.500 cm
Package 1 Length 13.700 cm
Package 1 Weight 114.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.652 kg
