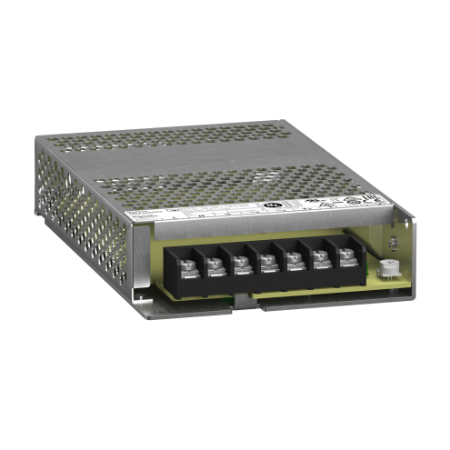

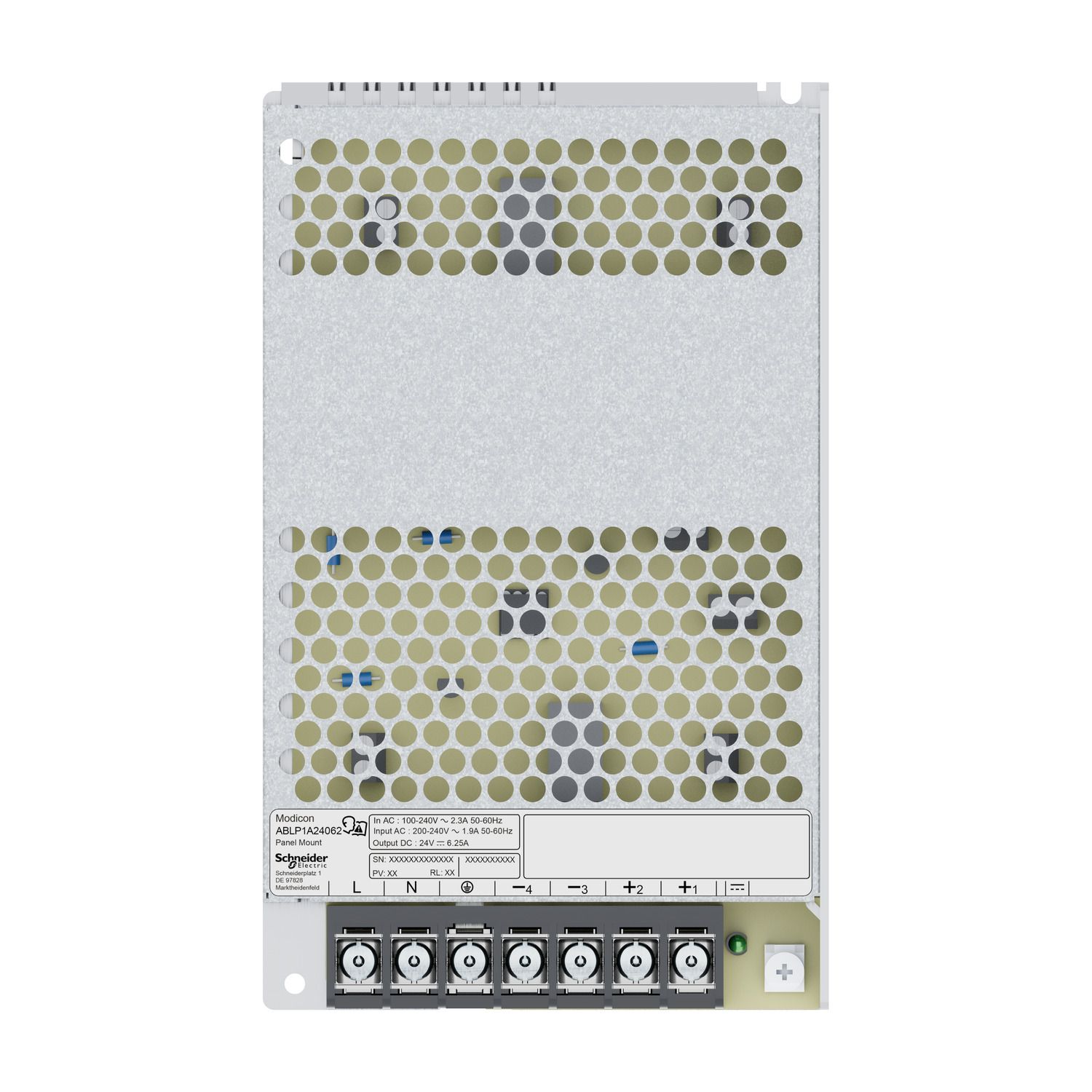

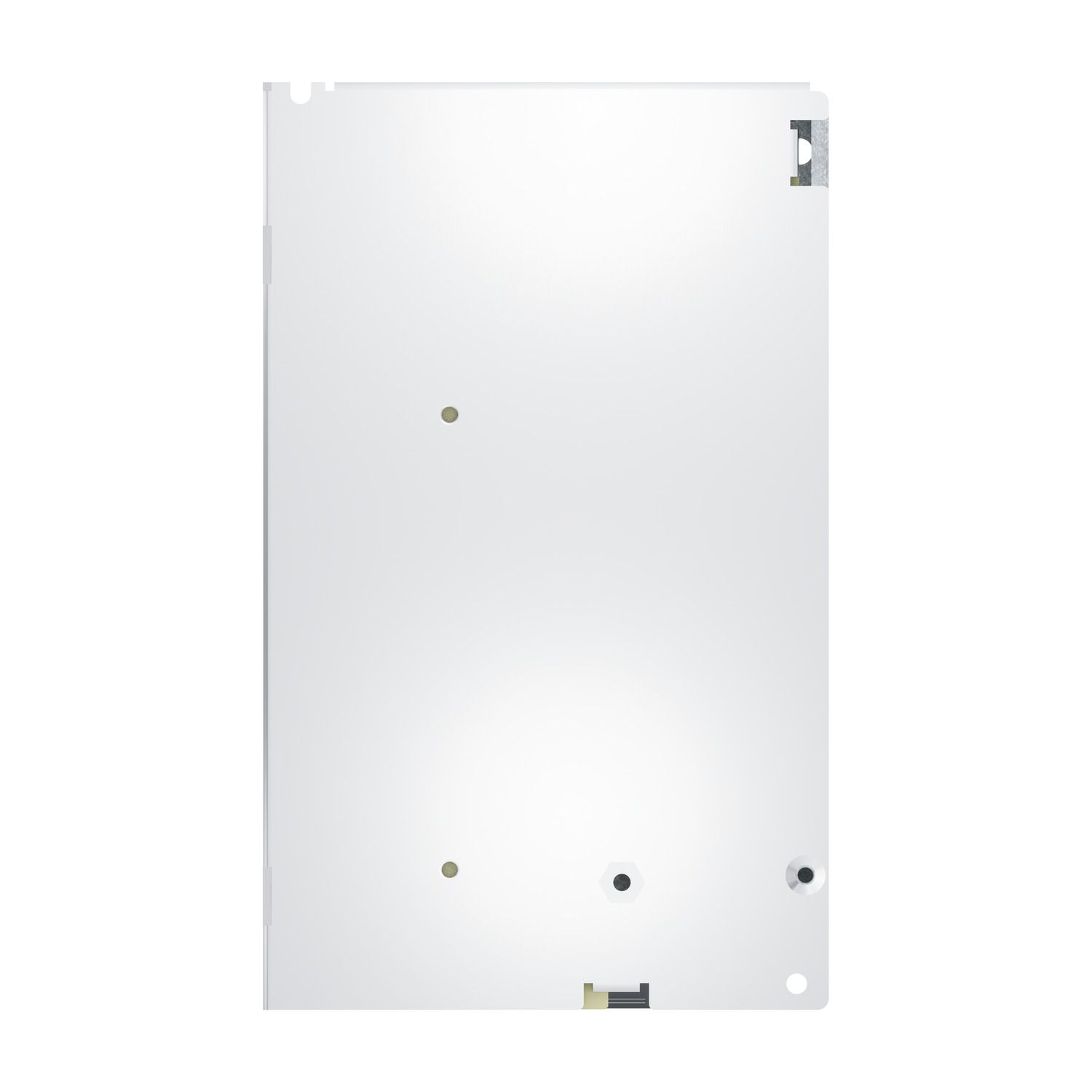

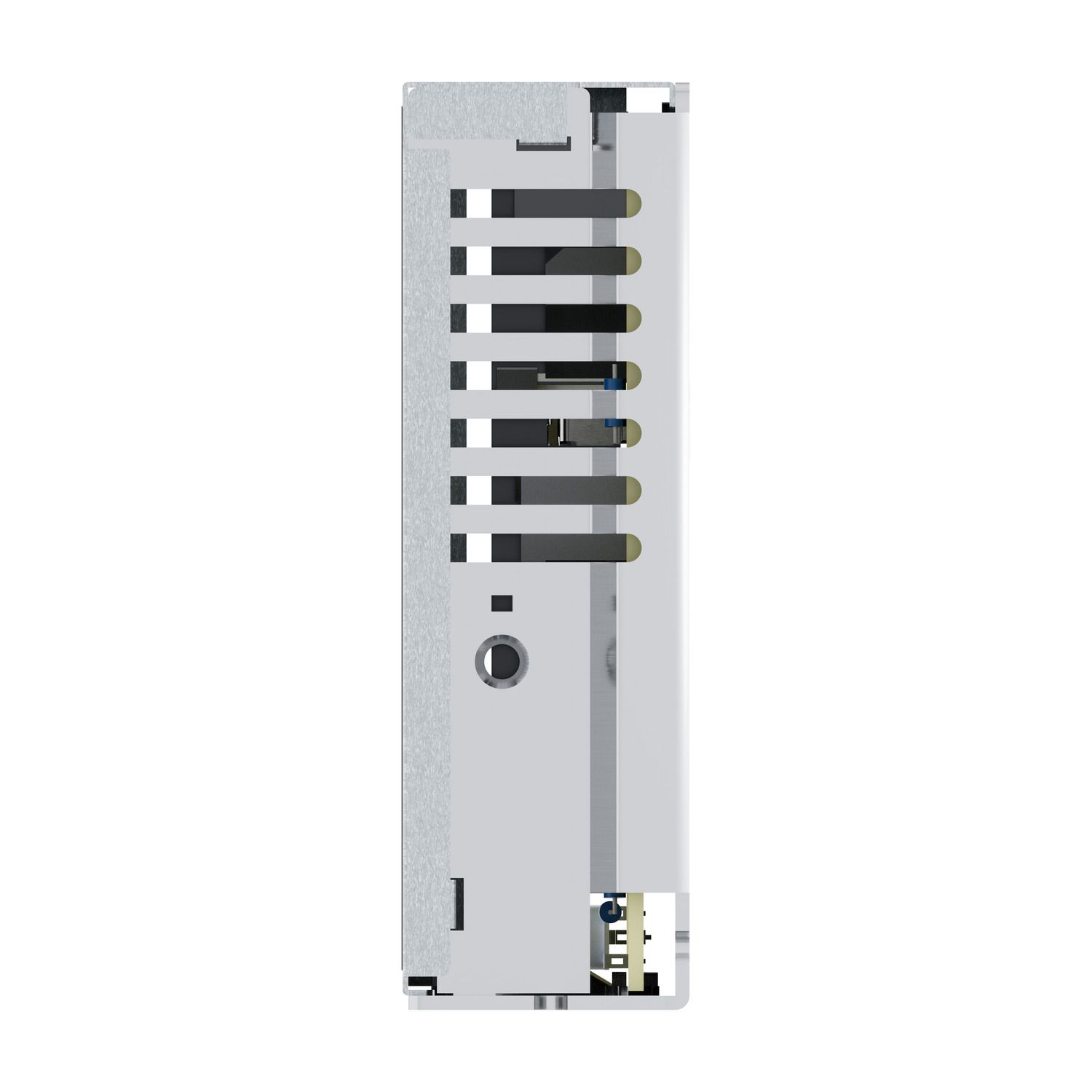

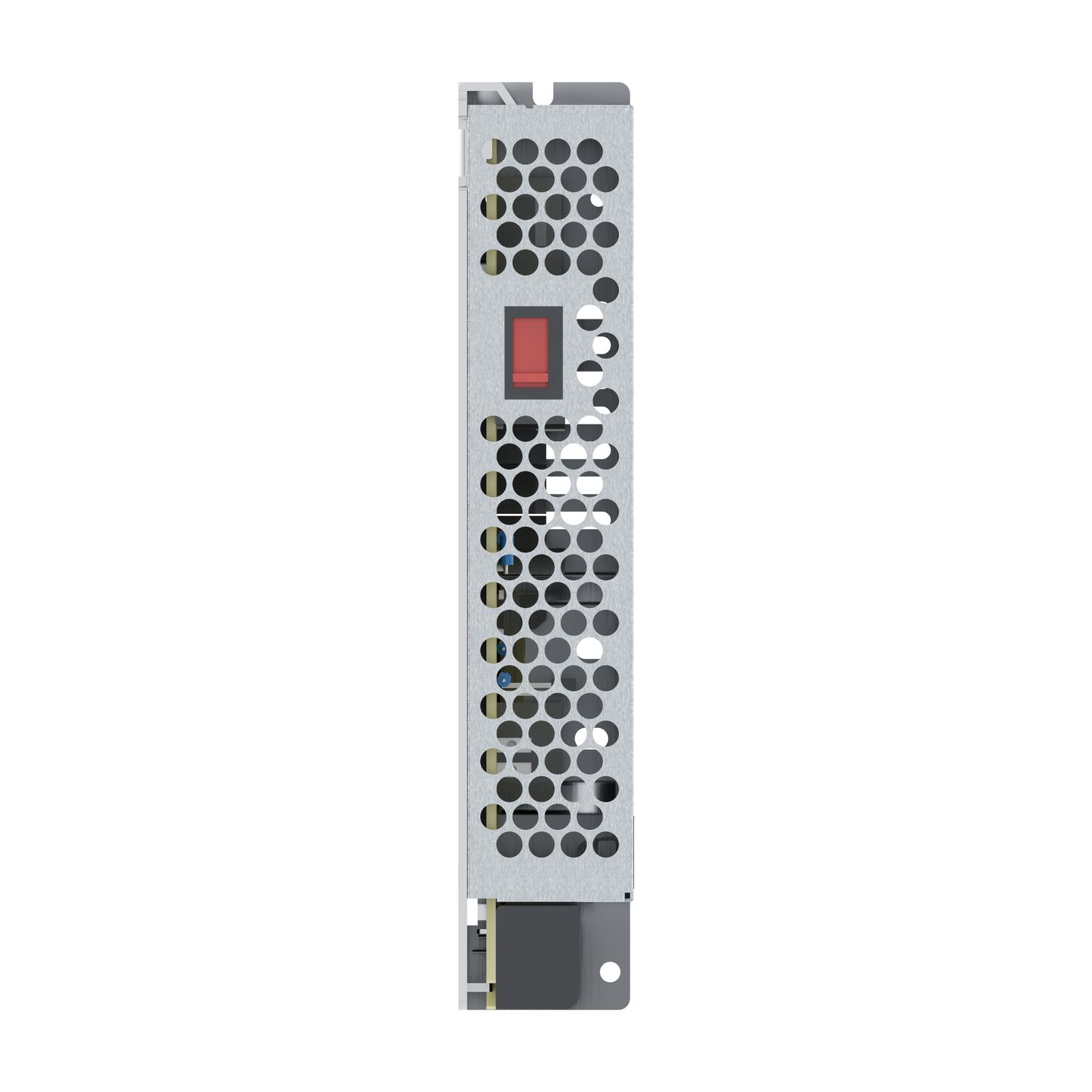

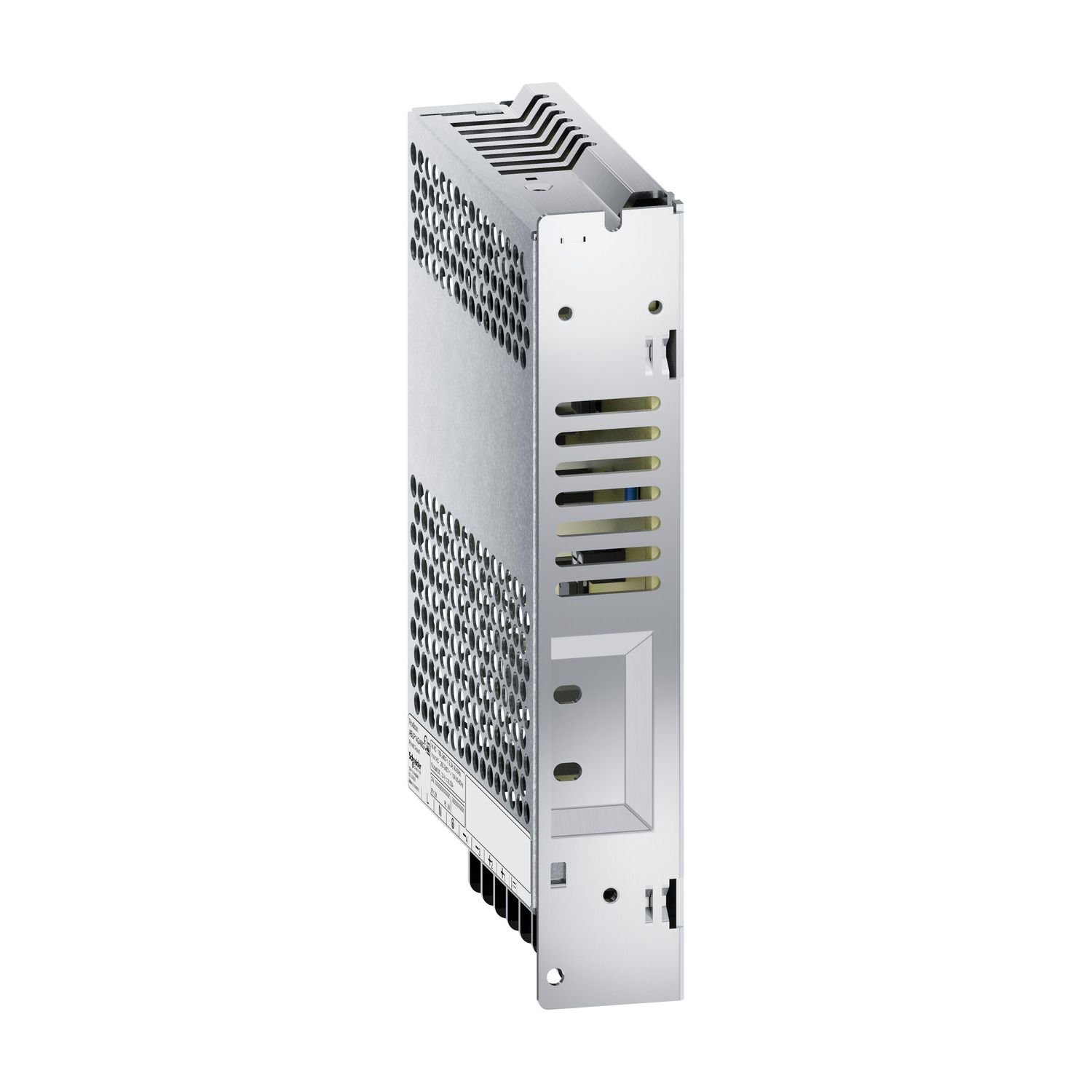

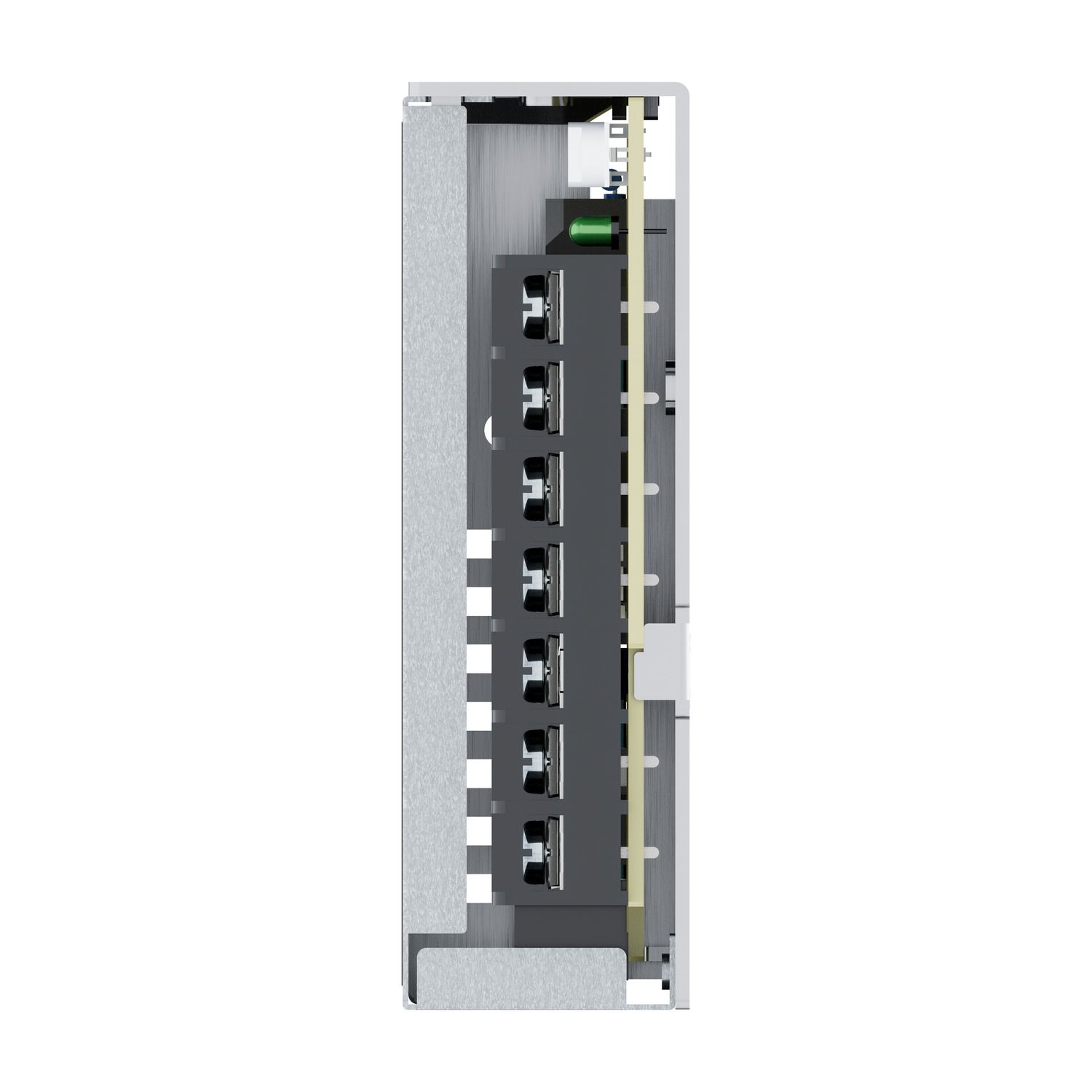

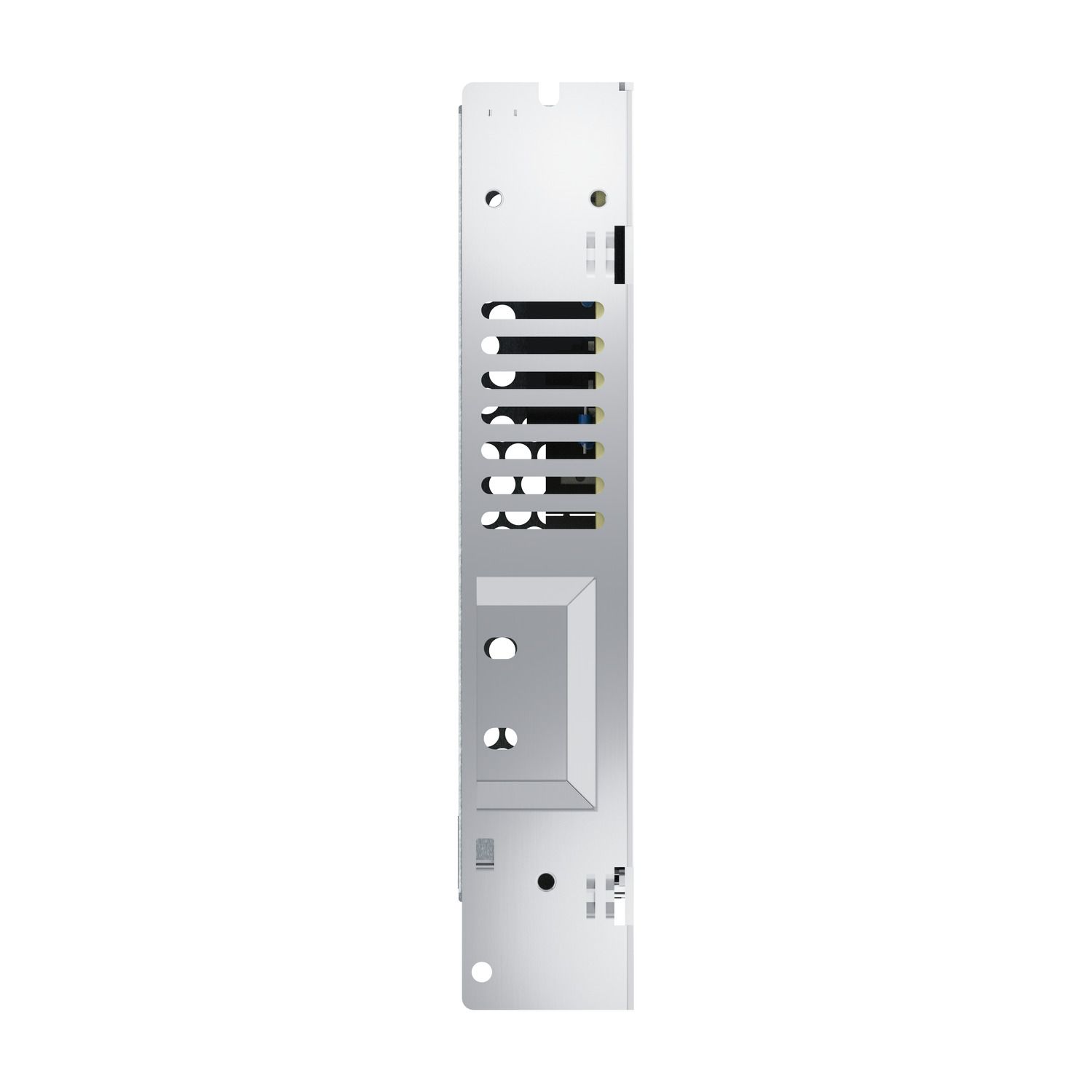

Picture of Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 6.2A, single phase, Panel Mount
SKU:

ABLP1A24062

Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 6.2A, single phase, Panel Mount

$283.27
Product Selector
Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 6.2A, single phase, Panel Mount
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Instruction sheet
End of life manual
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 120V AC or 200 to 240V AC, a rated output current of 6.2A at 24V DC and a rated power of 150W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 159mm, its height is 30mm, its depth is 97mm. It weighs 0.360kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.

Products specifications

Attribute nameAttribute value
Main
Rated power in W150 W
Input voltage200...240 V AC single phase, 100...120 V AC single phase
Output voltage24 V DC
Range of productModicon Power Supply
Enclosure materialaluminium
Power supply output current6.25 A
Power supply typeregulated switch mode
Product or component typepower supply
Complementary
Power factor0.45 at 230 V AC, 0.55 at 115 V AC
Inrush current70 A at 230 V, 35 A at 115 V
Efficiency88.8 % at 230 V AC
Load capacitance7000 µF
Power dissipation in W29 W
Meantime between failure [MTBF]700000 h at 25 °C, full load conforming to SR 332
Input protection typeintegrated fuse (not interchangeable) 4 A
Network frequency limits50-60 Hz
Connections - terminalsscrew connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule, screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferrule
Earthing systemIT, TT, TN
Input voltage limits170...264 V AC, 90...132 V AC
Status LED1 LED (green) output voltage
Residual ripple< 170 mV
Height30 mm
Depth159 mm
Overvoltage categoryII
Width97 mm
Line and load regulation< 1 % at full voltage range in line at 25 °C, < 0.5 % at 0 to 100 % load at 25 °C
Response time< 500 ms
Mounting supportpanel mounting, double-profile DIN rail, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Output voltage limits21.6...26.4 V
Service life10 year(s)
Output protection typeagainst overvoltage, protection technology: manual reset, against over temperature, protection technology: manual reset, against overload and short-circuits, protection technology: automatic reset
Maximum leakage current1 mA 240 V AC
Net weight0.36 kg
SupplySELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Current consumption< 1.9 A 230 V AC, < 3.2 A 115 V AC
Dielectric strength3750 V AC with input to output
Holding time> 40 ms 230 V AC, > 20 ms 115 V AC
Output couplingserial, parallel
Environment
IP degree of protectionIP10
Electromagnetic compatibilityconforming to EN 55016-2-1,  conforming to EN 55016-1-2, limits for harmonic current emissions conforming to IEC 61000-3-2, disturbing field emission conforming to EN 55016-2-3, immunity to voltage dips conforming to IEC 61000-4-11, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
Pollution degree2
Product certificationsKC, CB Scheme, RCM, EAC, cULus, CE
Ambient air temperature for operation50-70 °C with current derating of 2 % per °C mounting position B, G < 2000 m, -25-50 °C without derating mounting position B, G < 2000 m, -30--25 °C with current derating of 4 % per °C mounting position B, G < 2000 m
Electromagnetic emissionradiated emissions conforming to IEC 61000-6-4, conducted emissions conforming to IEC 61000-6-3
Electrical shock protection classclass I
Operating altitude5000 m
Vibration resistance10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6, 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6
Shock resistance150 m/s² for 11 ms
StandardsEN/IEC 62368-1, IEC 60335-1, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, CSA C22.2 No 62368-1, UL 61010-2-201, UL 61010-1, UL 62368-1, EN 61000-3-3, IEC 61000-3-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2, IEC 61000-6-1, EN/IEC 61204-3, EN 61010-2-201, EN/IEC 61010-1, IEC 62368-1
Variant optionpanel mount
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.000 cm
Package 1 Width14.600 cm
Package 1 Length21.500 cm
Package 1 Weight490.000 g
Unit Type of Package 22
Number of Units in Package 217
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight8.890 kg
