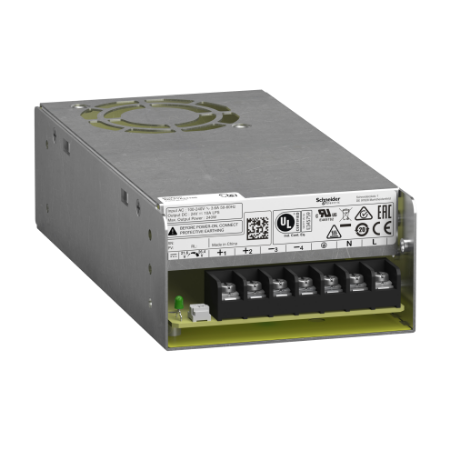

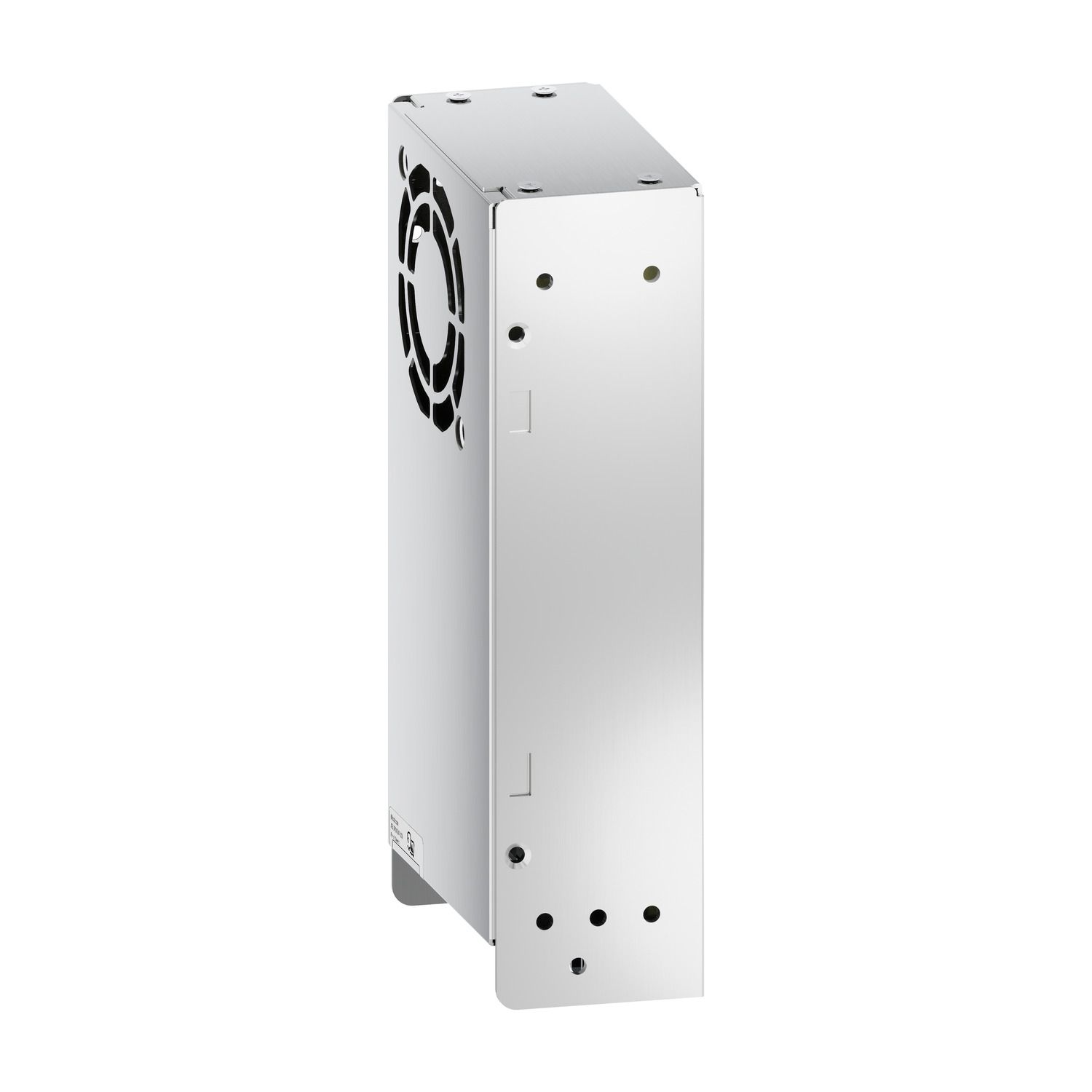

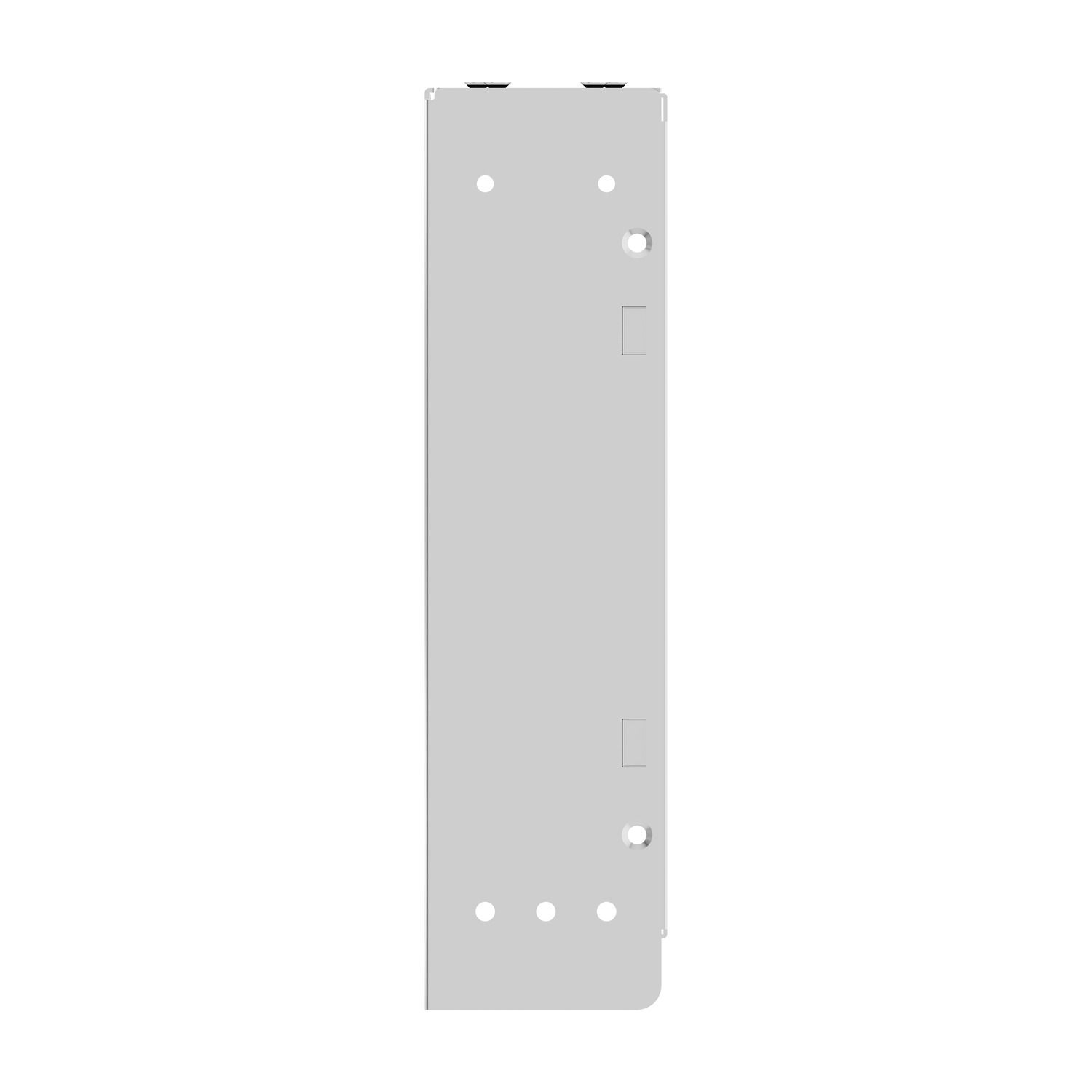

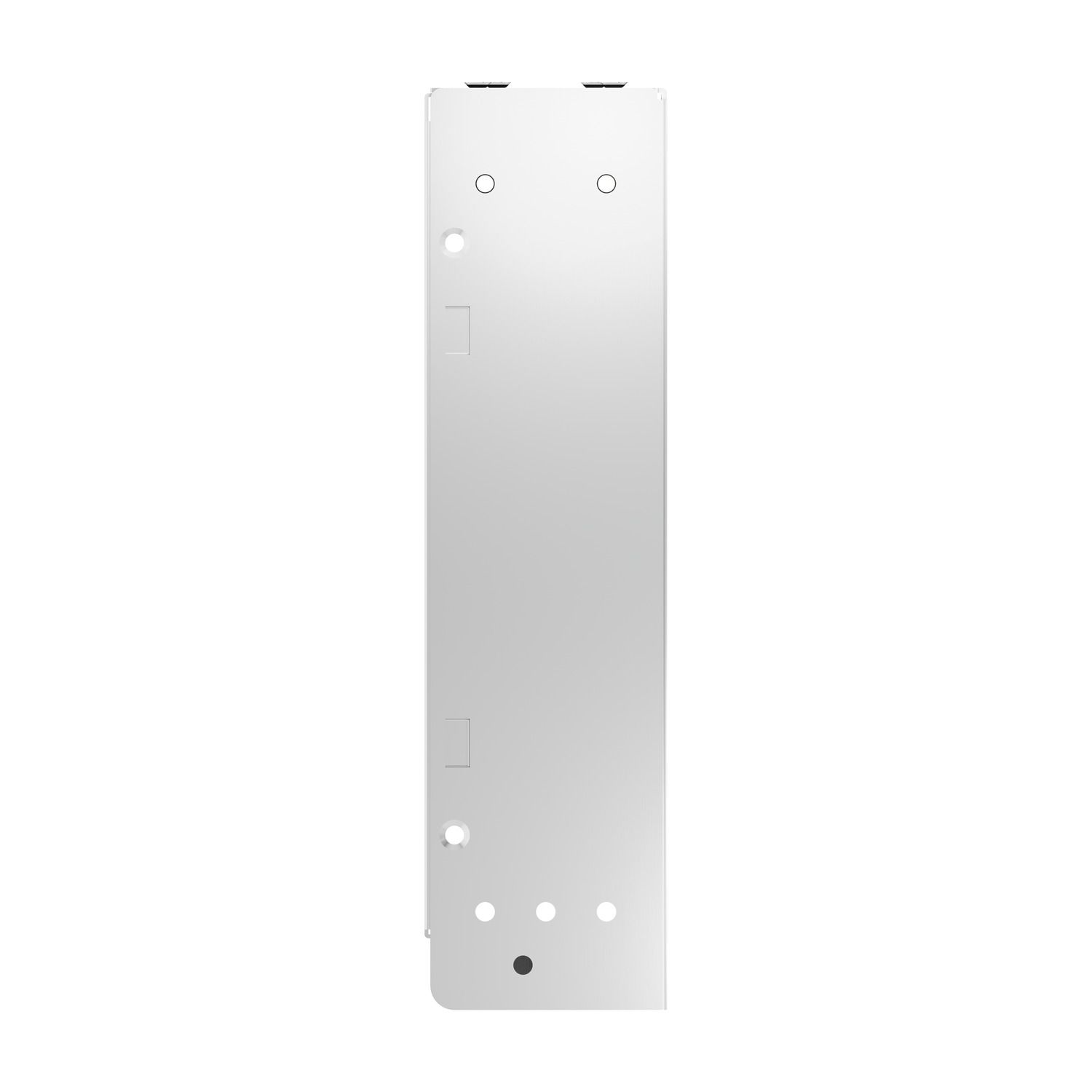

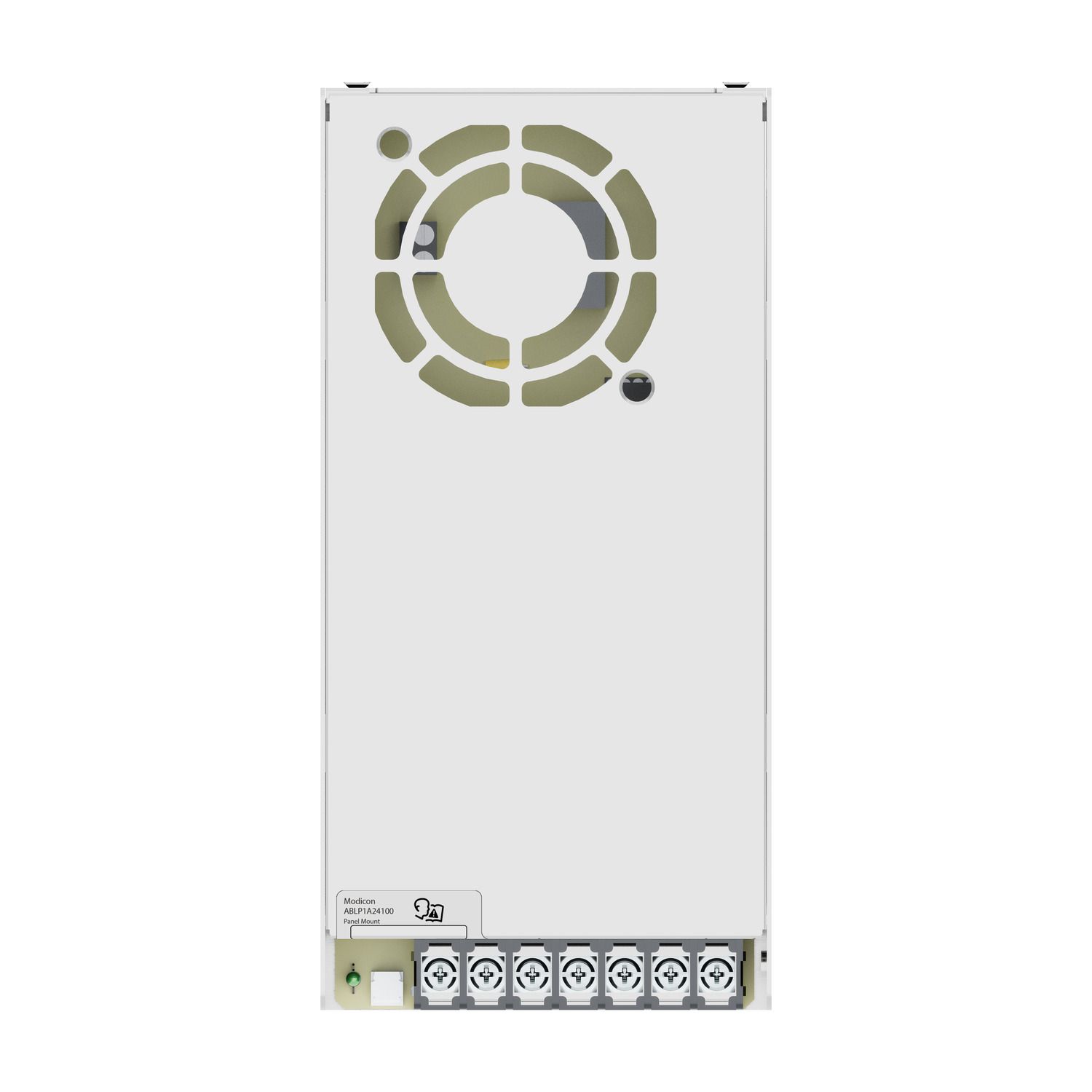

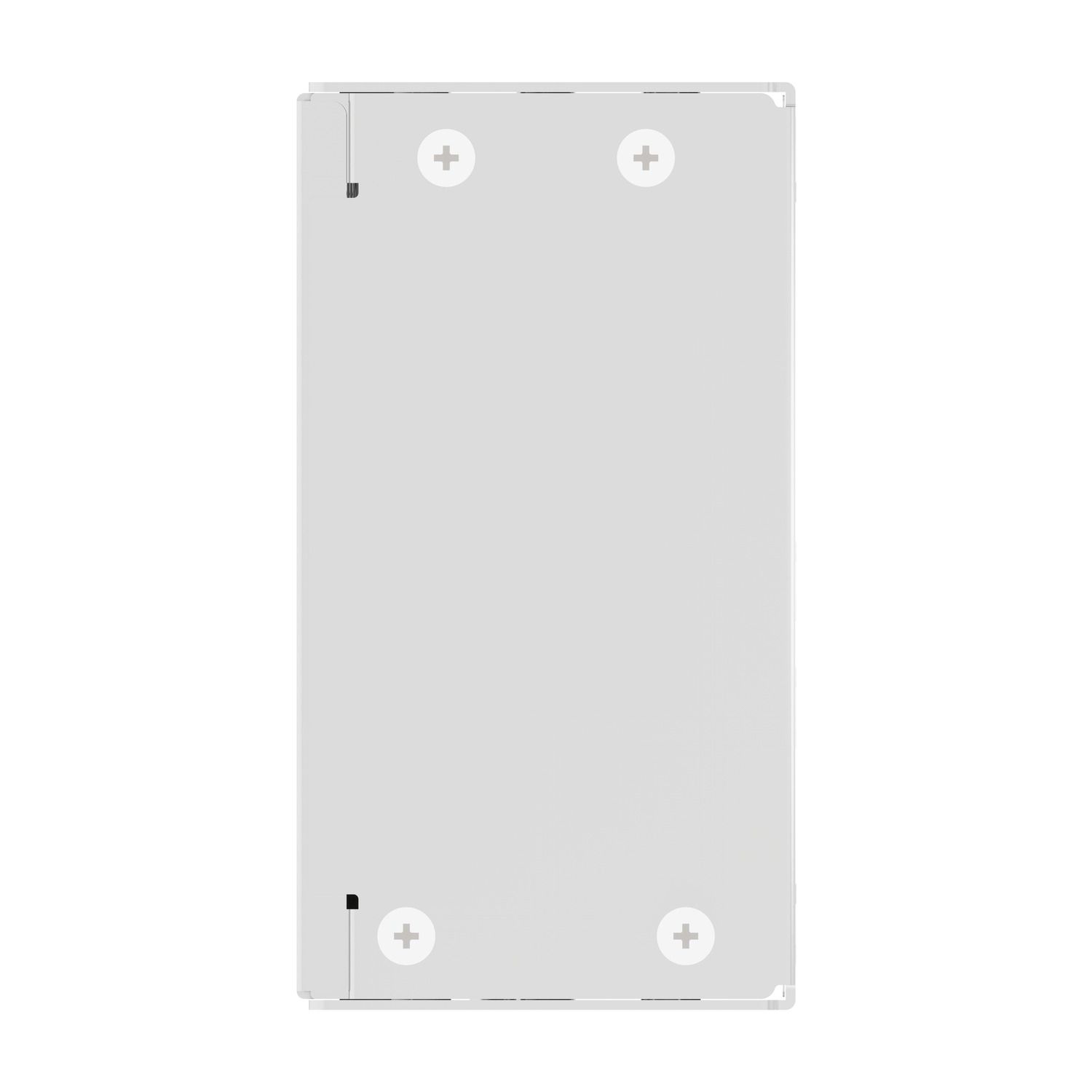

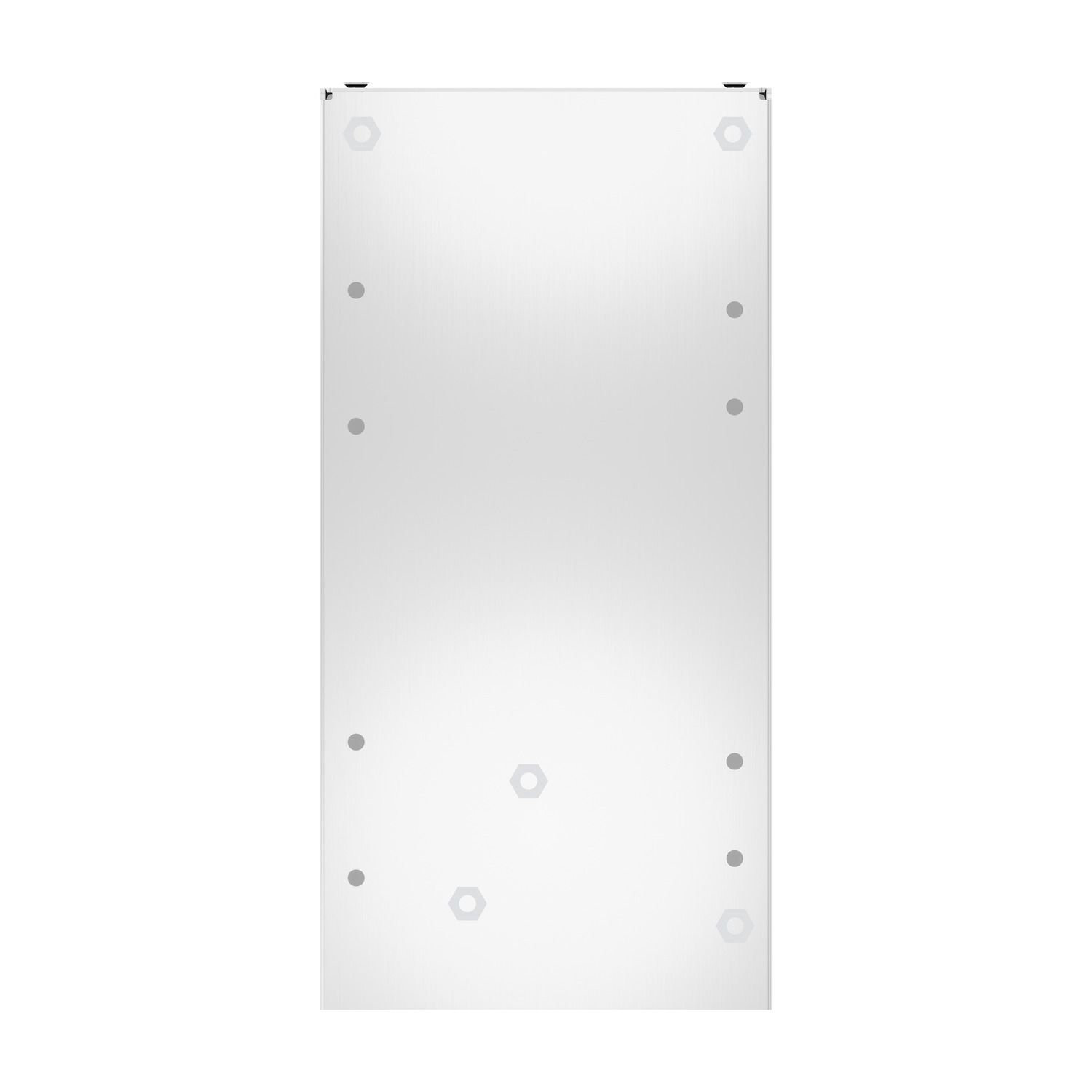

Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 10A, single phase, Panel Mount

$383.64
Available for Shipping : 05-Dec-2024
Product Selector
Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 10A, single phase, Panel Mount
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

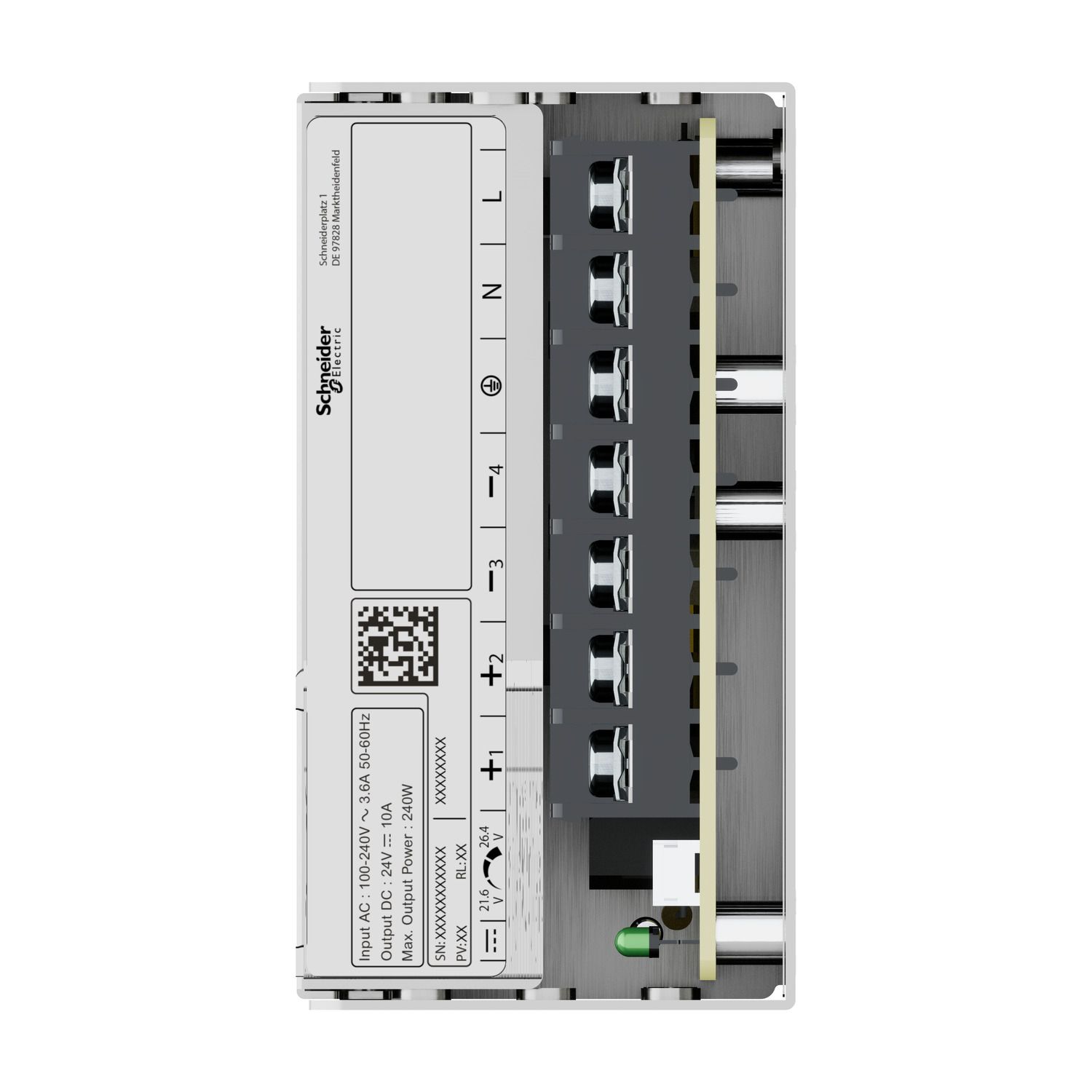

This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 10A at 24V DC and a rated power of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 190mm, its height is 50mm, its depth is 93mm. It weighs 0.850kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA02 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.

Products specifications

Attribute name Attribute value
Main
Rated power in W 240 W
Input voltage 100...240 V AC single phase
Output voltage 24 V DC
Range of product Modicon Power Supply
Enclosure material aluminium
Power supply output current 10 A
Power supply type regulated switch mode
Product or component type power supply
Complementary
Power factor 0.91 at 230 V AC, 0.95 at 115 V AC
Inrush current 60 A at 230 V, 35 A at 115 V
Efficiency 87 % at 230 V AC
Load capacitance 8000 µF
Power dissipation in W 36 W
Meantime between failure [MTBF] 700000 h at 25 °C, full load conforming to SR 332
Input protection type integrated fuse (not interchangeable) 6.3 A
Network frequency limits 50-60 Hz
Connections - terminals screw connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule, screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferrule
Earthing system IT, TT, TN
Input voltage limits 85...264 V AC
Status LED 1 LED (green) output voltage
Residual ripple < 150 mV
Height 50 mm
Depth 190 mm
Overvoltage category II
Width 93 mm
Line and load regulation < 1 % at full voltage range in line at 25 °C, < 0.5 % at 0 to 100 % load at 25 °C
Response time < 1.2 s
Mounting support panel mounting, double-profile DIN rail, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Output voltage limits 21.6...26.4 V
Service life 10 year(s)
Output protection type against overvoltage, protection technology: manual reset, against over temperature, protection technology: manual reset, against overload and short-circuits, protection technology: automatic reset
Maximum leakage current 1 mA 240 V AC
Net weight 0.85 kg
Supply SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Current consumption < 1.8 A 230 V AC, < 3.6 A 115 V AC
Dielectric strength 3000 V AC with input to output
Holding time > 40 ms 230 V AC, > 20 ms 115 V AC
Output coupling serial, parallel
Environment
IP degree of protection IP10
Electromagnetic compatibility conforming to EN 55016-2-1,  conforming to EN 55016-1-2, limits for harmonic current emissions conforming to IEC 61000-3-2, disturbing field emission conforming to EN 55016-2-3, immunity to voltage dips conforming to IEC 61000-4-11, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
Pollution degree 2
Product certifications KC, CB Scheme, RCM, EAC, cULus, CE
Ambient air temperature for operation 50-70 °C with current derating of 2.5 % per °C < 2000 m, 50-70 °C with current derating of 2.5 % per °C mounting position A, B, C, D, F, G < 2000 m, -10-50 °C without derating mounting position A, B, C, D, F, G < 2000 m
Electromagnetic emission radiated emissions conforming to IEC 61000-6-4, conducted emissions conforming to IEC 61000-6-3
Electrical shock protection class class I
Operating altitude 5000 m
Vibration resistance 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6, 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6
Shock resistance 150 m/s² for 11 ms
Standards EN/IEC 62368-1, IEC 60335-1, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, CSA C22.2 No 62368-1, UL 61010-2-201, UL 61010-1, UL 62368-1, EN 61000-3-3, IEC 61000-3-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2, IEC 61000-6-1, EN/IEC 61204-3, EN 61010-2-201, EN/IEC 61010-1, IEC 62368-1
Variant option panel mount
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 14.000 cm
Package 1 Length 24.500 cm
Package 1 Weight 984.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.269 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 82.152 kg

Related products

Picture of Mounting kit for Power Supply, 240W

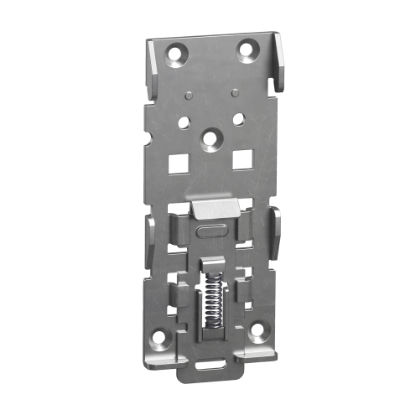

Mounting kit for Power Supply, 240W
