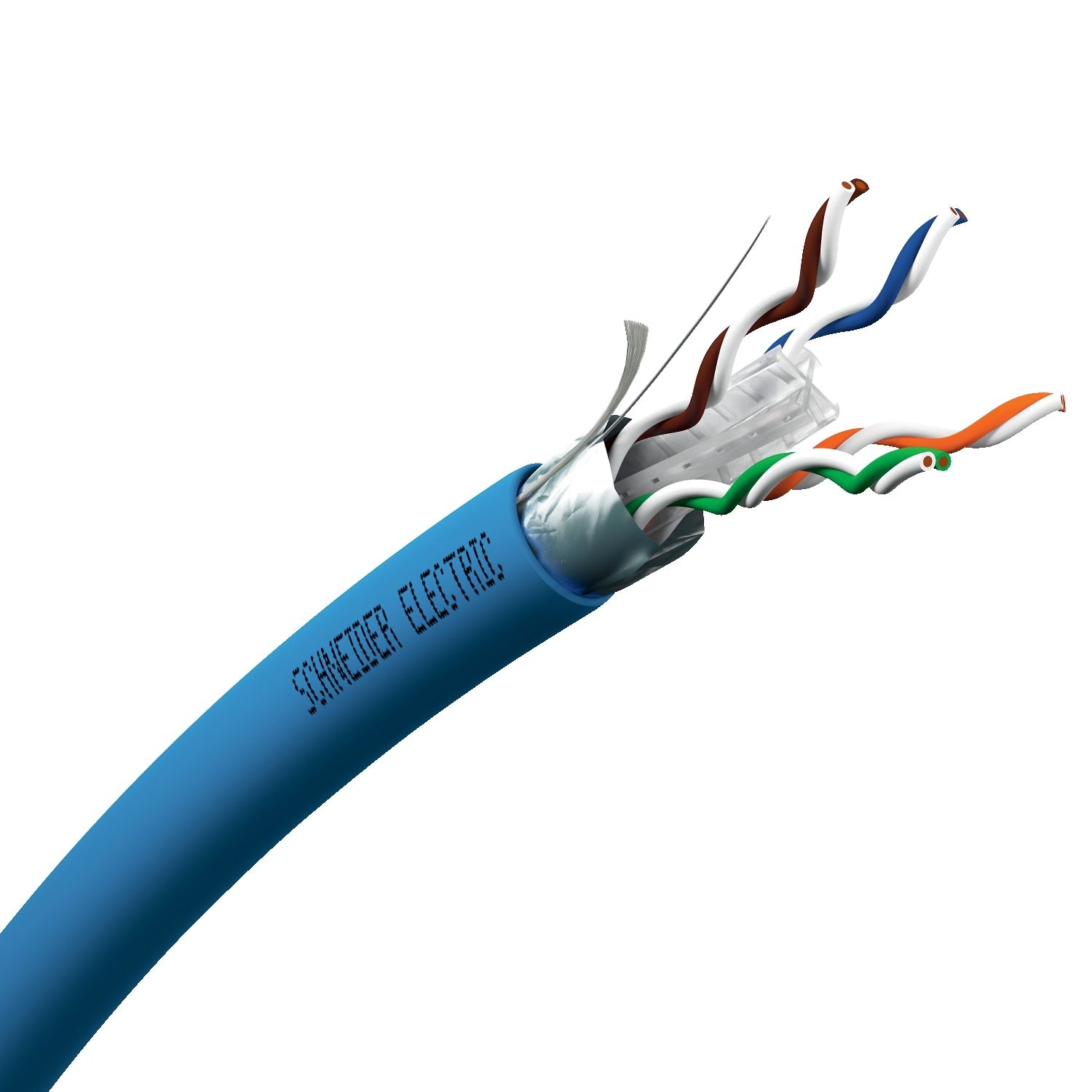

Picture of Actassi - cable - category 6A - FTP - 10G - 305m - blue - CM
SKU:

ACTTG4P6ASCM3RBU

Actassi - cable - category 6A - FTP - 10G - 305m - blue - CM

$403.37
Available for Shipping : 24-Nov-2024
Actassi - cable - category 6A - FTP - 10G - 305m - blue - CM
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Brochure
Catalogue
Product Page Link
Product Data Sheet
This cable Actassi Cat 6A 4-pair cable is a high quality product delivering excellent network performance when using in conjunction with other Actassi Cat 6A products. The Cat 6A cable consists of 4 pairs of solid insulated copper 23 AWG. The cable provides a significant margin above the Category 6A Alien Crosstalk (ANEXT).

Products specifications

Attribute name Attribute value
Main
Range Actassi
Cable shielding type F/UTP
Product or component type copper cable
Colour tint blue
Complementary
Minimum return loss Guaranteed: 15.2 dB at 500 kHz, Guaranteed: 15.9 dB at 400 kHz, Guaranteed: 16.8 dB at 300 kHz, Guaranteed: 17.3 dB at 250 kHz, Guaranteed: 18 dB at 200 kHz, Guaranteed: 20.1 dB at 100 kHz, Guaranteed: 21.5 dB at 62.5 kHz, Guaranteed: 23.6 dB at 31.25 kHz, Guaranteed: 24.3 dB at 25 kHz, Guaranteed: 25 dB at 20 kHz, Guaranteed: 25 dB at 16 kHz, Guaranteed: 25 dB at 10 kHz, Guaranteed: 24.5 dB at 8 kHz, Guaranteed: 23 dB at 4 kHz, Guaranteed: 20 dB at 1 kHz
Communication network category 6<sub>A</sub>
Wire insulation material PE
Capacitance unbalance 330 pF / 100 m
AWG gauge AWG 23
Cable weight 17 kg
Maximum loop resistance 72 Ohm
Input impedance 100 Ohm (+/- 22 %) at 100-250 MHz, 100 Ohm (+/- 15 %) at 1-100 MHz
Type of cable 4 pair cables
Power sum attenuation to alien crosstalk ratio far-end [PSAACRF] 24.2 dB at 500 MHz, 26.2 dB at 400 MHz, 28.7 dB at 300 MHz, 30.2 dB at 250 MHz, 32.2 dB at 200 MHz, 38.2 dB at 100 MHz, 42.3 dB at 62.5 MHz, 48.3 dB at 31.25 MHz, 50.2 dB at 25 MHz, 52.2 dB at 20 MHz, 54.1 dB at 16 MHz, 58.2 dB at 10 MHz, 60.1 dB at 8 MHz, 66.2 dB at 4 MHz
Cable outer diameter 7.3 mm
Cable length 305 m
Attenuation Guaranteed: 45.3 dB @ 500 MHz per 100 m cable, Guaranteed: 40.1 dB @ 400 MHz per 100 m cable, Guaranteed: 34.3 dB @ 300 MHz per 100 m cable, Guaranteed: 31.1 dB @ 250 MHz per 100 m cable, Guaranteed: 27.6 dB @ 200 MHz per 100 m cable, Guaranteed: 9.1 dB @ 100 MHz per 100 m cable, Guaranteed: 15 dB @ 62.5 MHz per 100 m cable, Guaranteed: 10.5 dB @ 31.25 MHz per 100 m cable, Guaranteed: 9.4 dB @ 25 MHz per 100 m cable, Guaranteed: 8.4 dB @ 20 MHz per 100 m cable, Guaranteed: 7.5 dB @ 16 MHz per 100 m cable, Guaranteed: 5.9 dB @ 10 MHz per 100 m cable, Guaranteed: 5.3 dB @ 8 MHz per 100 m cable, Guaranteed: 3.8 dB @ 4 MHz per 100 m cable, Guaranteed: 2.1 dB @ 1 MHz per 100 m cable
Near end crosstalk [NEXT] Guaranteed: 33.8 dB at 500 MHz , Guaranteed: 35.3 dB at 400 MHz , Guaranteed: 37.1 dB at 300 MHz , Guaranteed: 38.3 dB at 250 MHz , Guaranteed: 39.8 dB at 200 MHz , Guaranteed: 44.3 dB at 100 MHz , Guaranteed: 47.4 dB at 62.5 MHz , Guaranteed: 51.9 dB at 31.25 MHz , Guaranteed: 53.3 dB at 25 MHz , Guaranteed: 54.8 dB at 20 MHz , Guaranteed: 56.2 dB at 16 MHz , Guaranteed: 59.3 dB at 10 MHz , Guaranteed: 60.8 dB at 8 MHz , Guaranteed: 65.3 dB at 4 MHz , Guaranteed: 74.3 dB at 1 MHz
Power sum alien near-end crosstalk [PSANEXT] 52 dB at 500 MHz, 53.5 dB at 400 MHz, 55.3 dB at 300 MHz, 56.5 dB at 250 MHz, 58 dB at 200 MHz, 65.6 dB at 100 MHz, 65.6 dB at 62.5 MHz, 67 dB at 31.25 MHz, 67 dB at 25 MHz, 67 dB at 20 MHz, 67 dB at 16 MHz, 67 dB at 10 MHz, 67 dB at 8 MHz, 67 dB at 4 MHz, 67 dB at 1 MHz
Conductor material solid bare copper
Environment
Flame retardance CM
Standards ANSI/TIA-568-C.2, ISO/IEC 11801 Ea
Ambient air temperature for operation 75-75 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.0 cm
Package 1 Width 43.0 cm
Package 1 Length 43.5 cm
Package 1 Weight 19.4 kg
