Picture of Act (AG13A020): Elec, 2Pos, SR, 24 VAC, App, Rotary, N1, Erie PopTop
SKU:

AG13A020

Act (AG13A020): Elec, 2Pos, SR, 24 VAC, App, Rotary, N1, Erie PopTop

$179.38 INC GST
Available for Shipping : 09-Mar-2026
Act (AG13A020): Elec, 2Pos, SR, 24 VAC, App, Rotary, N1, Erie PopTop
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Mar-2026
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
Act (AG13A020): Elec, 2Pos, SR, 24 VAC, App, Rotary, N1, Erie PopTop

Products specifications

Attribute name Attribute value
Main
Product destination zone valves
Control type automatic reset
Product or component type actuator
Power consumption in VA 7.5 VA AC
Targeted region North America.
Switch function No
Stroke running time 51 s
IP degree of protection IP10
Relative humidity 5-95 % non-condensing
Motor type AC synchronous servo motor
Ambient air temperature for storage -40-71 °C
NEMA degree of protection NEMA 1
Actuator rotary
[Us] rated supply voltage 24 V AC
Ambient air temperature for operation 0-93.3 °C
Power loss return spring return
Leads and connections appliance
Actuator type electric
Actuator product range Erie PopTop
Control signal 2-position (on/off)
Actuator product series AG
Lead length 18 in
Position indicator housing scale
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.97 cm
Package 1 Width 7.62 cm
Package 1 Length 7.62 cm
Package 1 Weight 471.736 g

Related products

Picture of VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, Erie PopTop, No Steam

VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, Erie PopTop, No Steam

VT2222
$118.15 INC GST
View Detail

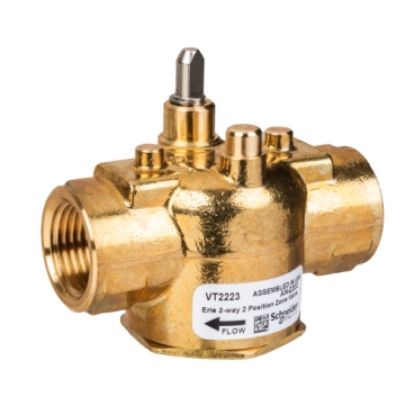

Picture of VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

VT2223
$118.15 INC GST
View Detail
Picture of VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, Erie PopTop, No Steam

VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, Erie PopTop, No Steam

VT2325
$104.36 INC GST
View Detail

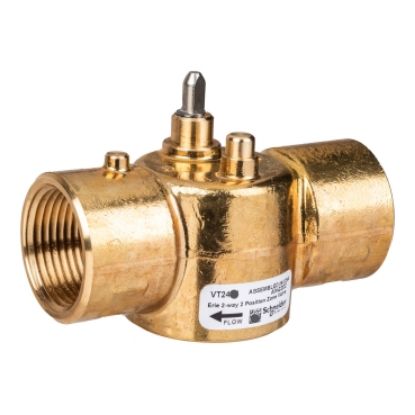

Erie Zone Valve, 2-Way, PN16, DN25 (1"), Rp Thread, Kvs 6.9 m³/h (Cv 8.0), Pop-Top Actuator Connection, Brass Body.
