Picture of Act (AH13U020): Elec, 2Pos, SR, 110-240 VAC, App, Rotary, N1, Erie PopTop
SKU:

AH13U020

Act (AH13U020): Elec, 2Pos, SR, 110-240 VAC, App, Rotary, N1, Erie PopTop

$166.73 INC GST
Available for Shipping : 27-Jan-2026
Act (AH13U020): Elec, 2Pos, SR, 110-240 VAC, App, Rotary, N1, Erie PopTop
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
Act (AH13U020): Elec, 2Pos, SR, 110-240 VAC, App, Rotary, N1, Erie PopTop

Products specifications

Attribute name Attribute value
Main
Product destination zone valves
Control type automatic reset
Product or component type actuator
Power consumption in VA 7.5 VA AC
Targeted region North America.
Switch function No
IP degree of protection IP10
Relative humidity 5-95 % non-condensing
Motor type AC synchronous servo motor
Ambient air temperature for storage -40-71 °C
Actuator rotary
[Us] rated supply voltage 110...240 V AC
Ambient air temperature for operation 0-93.3 °C
Power loss return spring return
Leads and connections appliance
Actuator type electric
Actuator product range Erie PopTop
Control signal 2-position (on/off)
Actuator product series AH
Lead length 18 in
Position indicator housing scale
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.620 cm
Package 1 Width 7.620 cm
Package 1 Length 14.224 cm
Package 1 Weight 503.487 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.494 cm
Package 2 Width 24.638 cm
Package 2 Length 38.608 cm
Package 2 Weight 7.711 kg

Related products

Picture of VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, Erie PopTop, No Steam

VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, Erie PopTop, No Steam

VT2222
$118.15 INC GST
View Detail

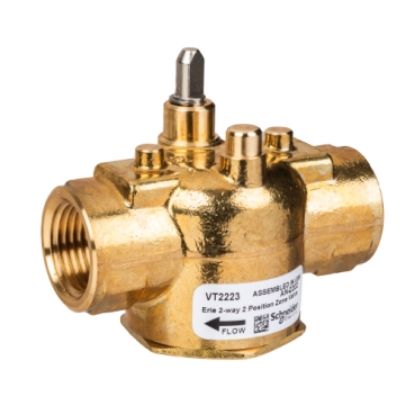

Picture of VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

VT2223
$118.15 INC GST
View Detail

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.

VT2232
$118.15 INC GST
View Detail

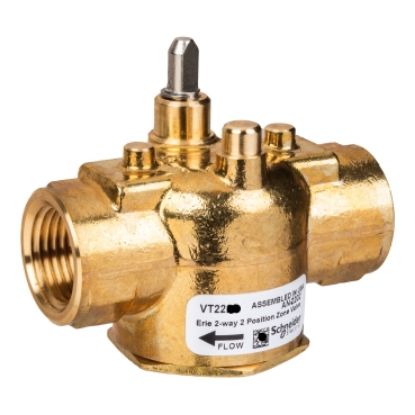

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

VT2233
$79.19 INC GST
View Detail
Picture of VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, Erie PopTop, No Steam

VB: 3/4 in, 2W, Zone, NPT, BR, 5 cv, Erie PopTop, No Steam

VT2325
$104.36 INC GST
View Detail
Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.

VT2333
$100.82 INC GST
View Detail
Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 4.3 m³/h (Cv 5.0), Pop-Top Actuator Connection, Brass Body.

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 4.3 m³/h (Cv 5.0), Pop-Top Actuator Connection, Brass Body.

VT2335
$104.36 INC GST
View Detail

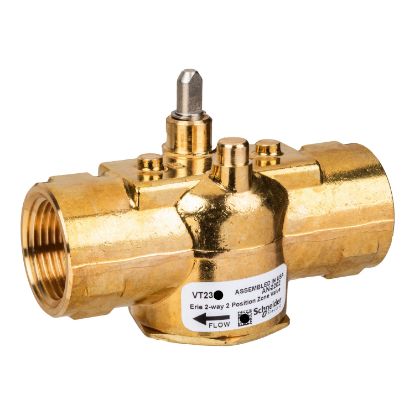

Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 6.5 m³/h (Cv 7.5), Pop-Top Actuator Connection, Brass Body.
