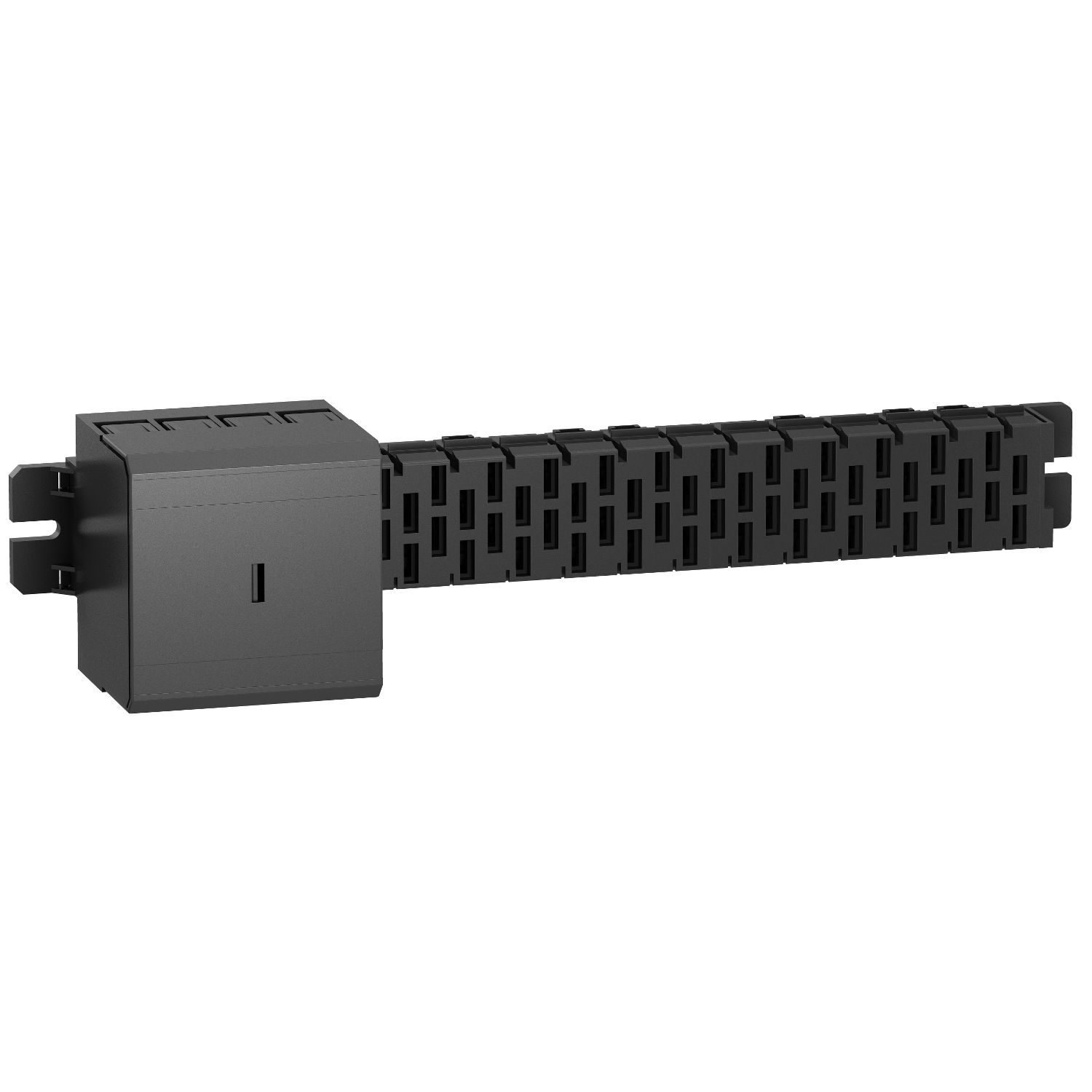

Busbar, Linergy HK, 160A, 4 conductors, L344mm, for mounting in enclosure W600mm

$436.84
Available for Shipping : 10-Dec-2024
Busbar, Linergy HK, 160A, 4 conductors, L344mm, for mounting in enclosure W600mm
  • Applies to distribution 18 Tap-offs and 4 conductor
  • The busbars can be screw-mounted onto any type of support
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Linergy busbar for AC network. It applies to distribution, 18 Tap-offs and 4 conductors. The rated operational current is 160 A at 35 °C. Mounting by horizontal and vertical which using side stop AK5BT01 on mounting plates AK5PA. It provides protection for AM fuses, GF fuses and NS160H circuit breaker. IPxx B conforming to IEC 60529 and 850 °C fire resistance conforming to IEC 60695. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It conforms to RoHS.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Number of conductors 4
Number of tap-offs 12
[Ie] rated operational current 160 A at 35 °C
Enclosure/cubicle width 600 mm
Range Linergy
Product name HK
Bar length 344 mm
Product or component type busbar
Network type AC
[Ue] rated operational voltage 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1, 600 V (plugging-in and unplugging, with supply switched off) conforming to UL, 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA, 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1
Range of product AK5
Complementary
Peak current 25 kA
I²t on activation 10000000 A².s
Depth 82 mm
Width 81 mm
Tightening torque 10 N.m
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Flame retardance V0 conforming to UL 94
Mounting position horizontal mounting, vertical mounting using side stop AK5BT01 on mounting plates AK5PA
Net weight 0.7 kg
Connections - terminals connector 2.5-70 mm² rigid, connector 2.5-70 mm² flexible with cable end
Protection type NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A, aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A
Network frequency 50/60 Hz
Bar width 45 mm
Environment
Fire resistance 850 °C conforming to IEC 60695
IP degree of protection IPxx B conforming to IEC 60529
Standards IEC 60439
Product certifications DNV, LROS (Lloyds register of shipping), UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 11.000 cm
Package 1 Length 52.500 cm
Package 1 Weight 977.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 42.310 kg
