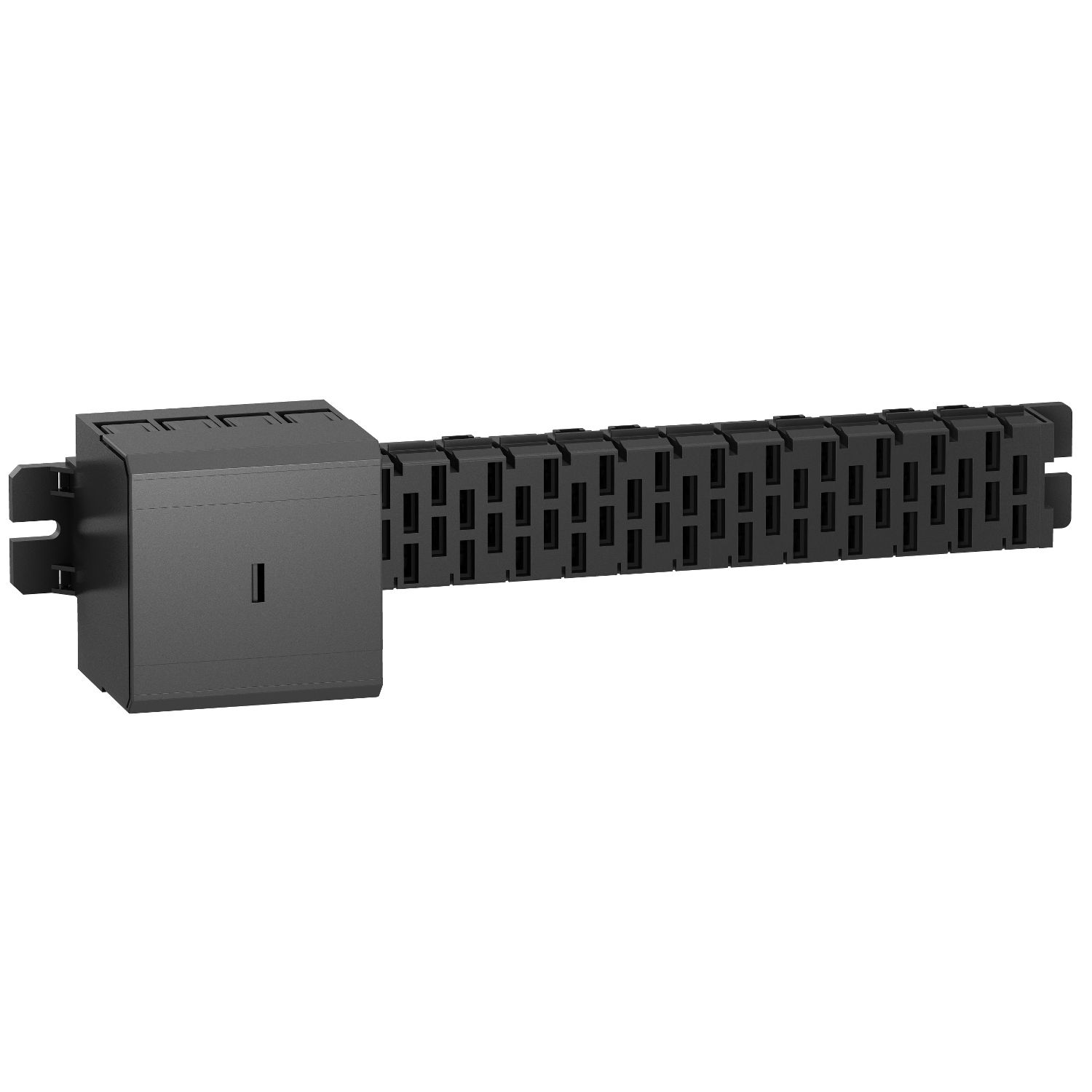

Busbar, Linergy HK, 160A, 4 conductors, L452mm, for mounting in enclosure W800mm

$408.83
Busbar, Linergy HK, 160A, 4 conductors, L452mm, for mounting in enclosure W800mm
  • Applies to distribution 18 Tap-offs and 4 conductor
  • The busbars can be screw-mounted onto any type of support
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Linergy busbar for AC network. It applies to distribution, 12 Tap-offs and 4 conductors. The rated operational current is 160 A at 35 °C. Mounting by horizontal and vertical which using side stop AK5BT01 on mounting plates AK5PA. It provides protection for AM fuses, GF fuses and NS160H circuit breaker. IPxx B conforming to IEC 60529 and 850 °C fire resistance conforming to IEC 60695. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It conforms to RoHS.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Number of conductors4
Number of tap-offs18
[Ie] rated operational current160 A at 35 °C
Enclosure/cubicle width800 mm
RangeLinergy
Product nameHK
Bar length452 mm
Product or component typebusbar
Network typeAC
[Ue] rated operational voltage690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1, 600 V (plugging-in and unplugging, with supply switched off) conforming to UL, 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA, 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1
Range of productAK5
Complementary
Peak current25 kA
I²t on activation10000000 A².s
Depth82 mm
Width81 mm
Tightening torque10 N.m
[Ui] rated insulation voltage690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Flame retardanceV0 conforming to UL 94
Mounting positionhorizontal mounting, vertical mounting using side stop AK5BT01 on mounting plates AK5PA
Net weight0.9 kg
Connections - terminalsconnector 2.5-70 mm² rigid, connector 2.5-70 mm² flexible with cable end
Protection typeNS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A, aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A
Network frequency50/60 Hz
Bar width45 mm
Environment
Fire resistance850 °C conforming to IEC 60695
IP degree of protectionIPxx B conforming to IEC 60529
StandardsIEC 60439
Product certificationsLROS (Lloyds register of shipping), DNV, CSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.000 cm
Package 1 Width11.000 cm
Package 1 Length52.500 cm
Package 1 Weight1.143 kg
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight47.290 kg
