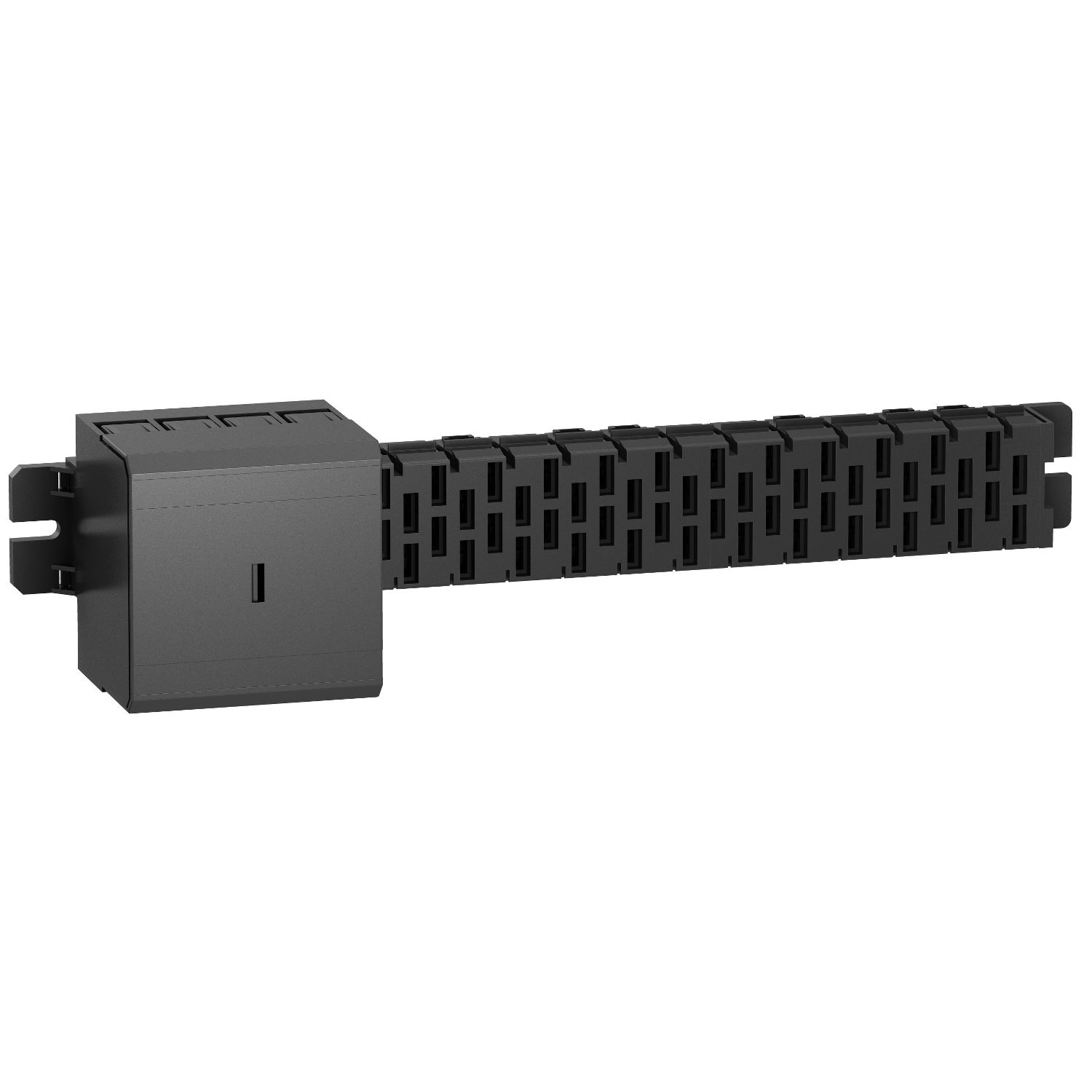

Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm

$973.61
Available for Shipping : 10-Dec-2024
Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm
  • Applies to distribution 18 Tap-offs and 4 conductor
  • The busbars can be screw-mounted onto any type of support
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Simple and quick products to mount and wire up automated control and distribution panels. It is made of 4 conductors with 48 tap-off units at 18 mm intervals. It is suitable for mounting in 1200 mm enclosure width.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Number of conductors 4
Number of tap-offs 48
[Ie] rated operational current 160 A at 35 °C
Enclosure/cubicle width 1200 mm
Range Linergy
Product name HK
Bar length 992 mm
Product or component type busbar
Network type AC
[Ue] rated operational voltage 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1, 600 V (plugging-in and unplugging, with supply switched off) conforming to UL, 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA, 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1
Range of product AK5
Complementary
Peak current 25 kA
I²t on activation 10000000 A².s
Depth 82 mm
Width 81 mm
Tightening torque 10 N.m
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Flame retardance V0 conforming to UL 94
Mounting position horizontal mounting, vertical mounting using side stop AK5BT01 on mounting plates AK5PA
Net weight 1.9 kg
Connections - terminals connector 2.5-70 mm² rigid, connector 2.5-70 mm² flexible with cable end
Protection type NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A, aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A
Network frequency 50/60 Hz
Bar width 45 mm
Environment
Fire resistance 850 °C conforming to IEC 60695
IP degree of protection IPxx B conforming to IEC 60529
Standards IEC 60439
Product certifications UL, LROS (Lloyds register of shipping), CSA, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.800 cm
Package 1 Width 117.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 2.371 kg
Unit Type of Package 2 2
Number of Units in Package 2 35
Package 2 Height 75.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 94.000 kg
