SKU:

AK5PA532

Mounting plate, Linergy HK, 3P, 50A, 4.4mm², 190x54x61mm

$438.55

Qty:

Available for Shipping : 10-Dec-2024

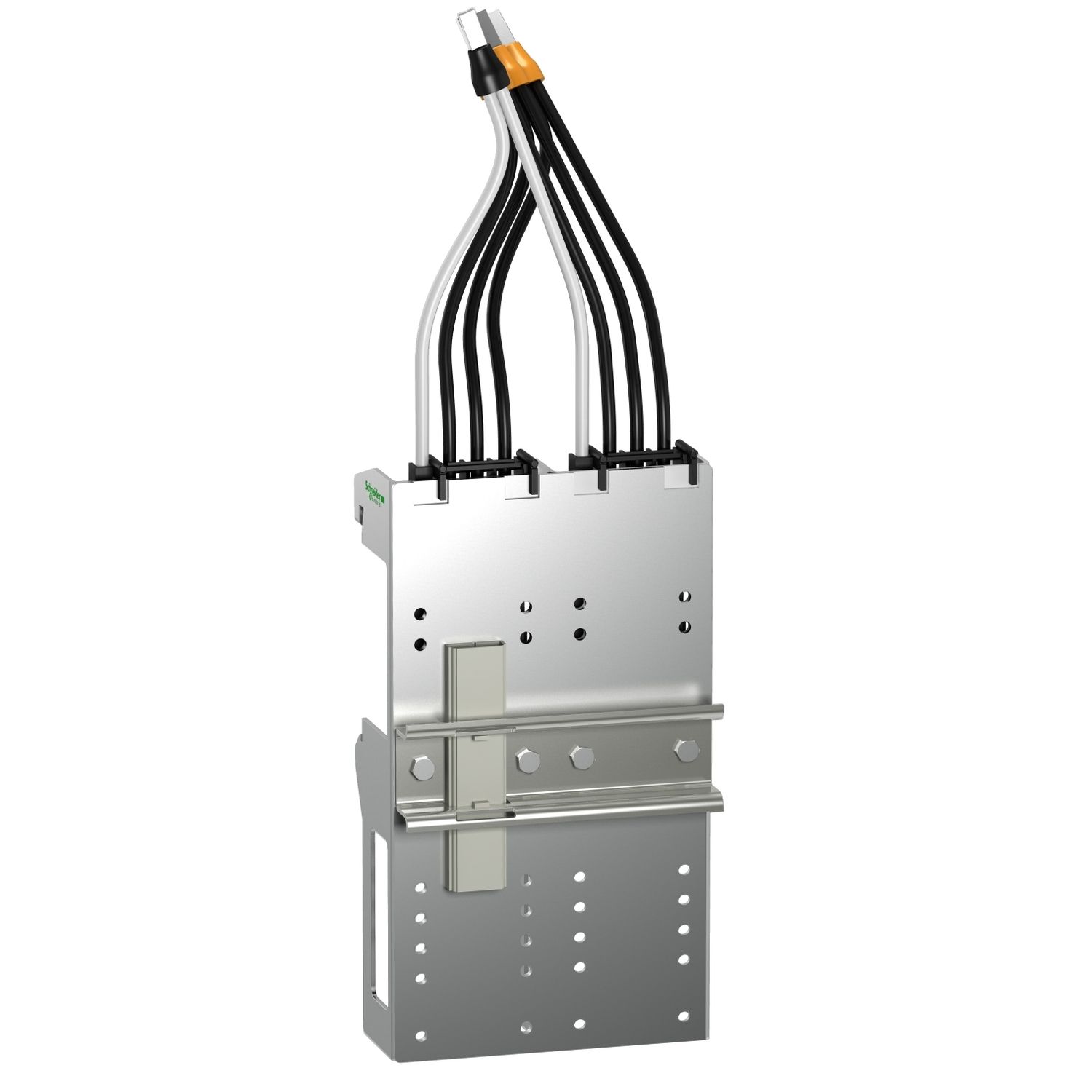

Mounting plate, Linergy HK, 3P, 50A, 4.4mm², 190x54x61mm

Manufacturer: Schneider Electric

Product environmental

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
I²t on activation	200000 A².s
Depth	63 mm
Width	106 mm
Poles description	3P
Number of cables	3 cable(s) 4-4 mm², 3 cable(s) 4-4 mm² at 105 °C
Range	Linergy
Product name	HK
Product or component type	mounting plate
Range of product	AK5
[Ith] conventional free air thermal current	25 A
Height	190 mm
Complementary
[Ui] rated insulation voltage	690 V conforming to IEC 60439-1
Net weight	0.71 kg
9 mm pitches	12
Environment
Standards	IEC 60439
Product certifications	LROS (Lloyds register of shipping), CSA, DNV, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.200 cm
Package 1 Width	11.500 cm
Package 1 Length	23.700 cm
Package 1 Weight	792.000 g
Unit Type of Package 2	2
Number of Units in Package 2	9
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	7.576 kg
