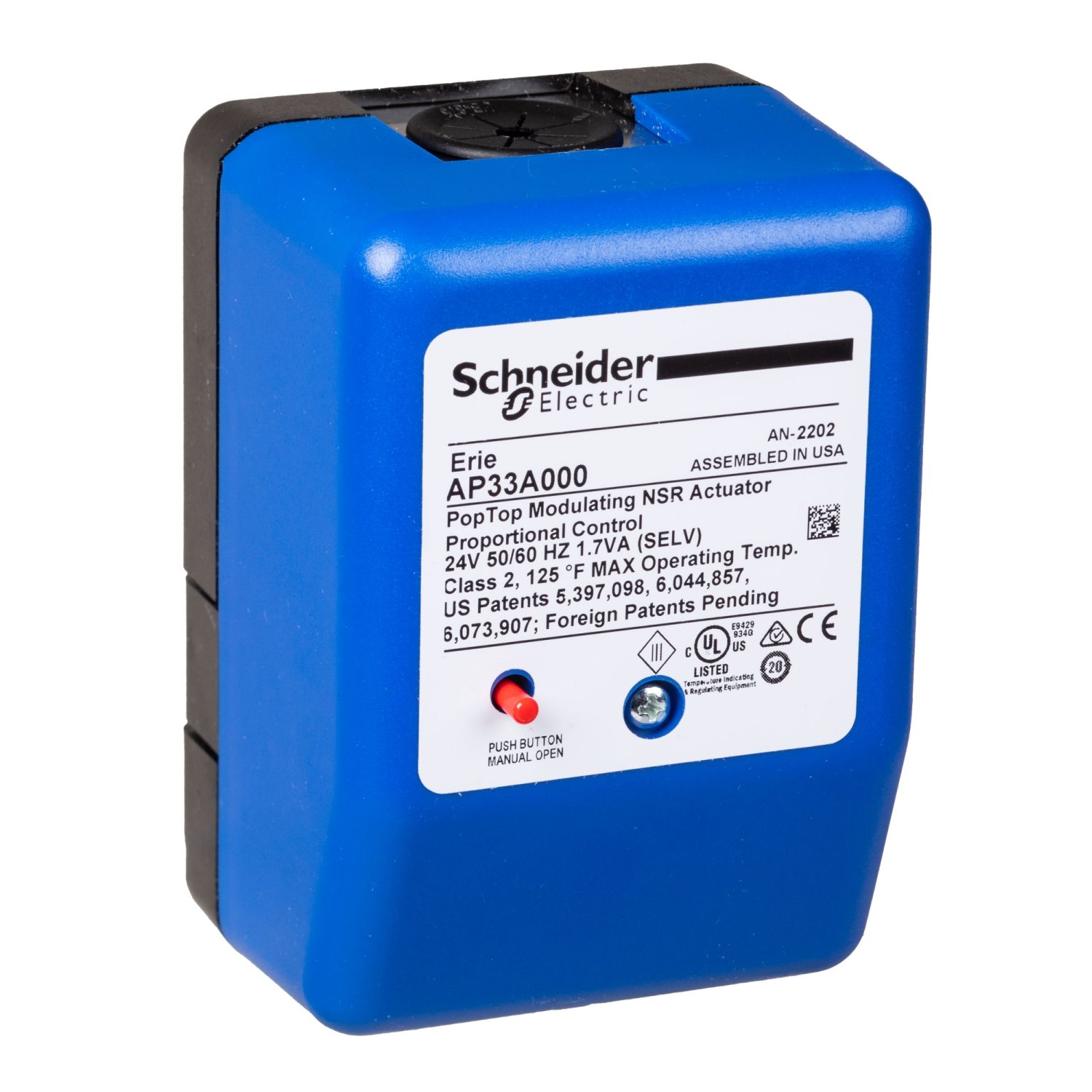

Picture of Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, Rotary, N1, Erie PopTop
SKU:

AP33A000

Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, Rotary, N1, Erie PopTop

$303.47 INC GST
Available for Shipping : 27-Jan-2026
Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, Rotary, N1, Erie PopTop
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, Rotary, N1, Erie PopTop

Products specifications

Attribute name Attribute value
Main
Product destination zone valves
Control type automatic reset
Product or component type actuator
Power consumption in VA 1.7 VA AC
Targeted region North America.
Switch function No
Material polymer: housing
IP degree of protection IP10
Relative humidity 5-95 % non-condensing
Analogue input range 4...20 mA DC, 0...10 V DC
Motor type AC synchronous servo motor
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 1
Actuator rotary
[Us] rated supply voltage 24 V AC
Ambient air temperature for operation 1.6-51.6 °C
Power loss return non-spring return
Leads and connections no leads
Actuator type electric
Actuator product range Erie PopTop
Control signal proportional/modulating
Actuator product series AP
Position indicator housing scale
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 11.4 cm
Package 1 Length 13.4 cm
Package 1 Weight 454 g
