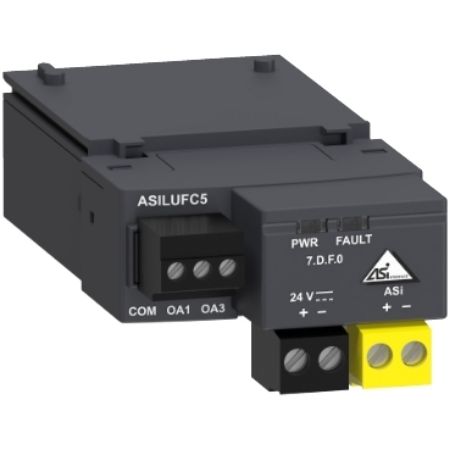

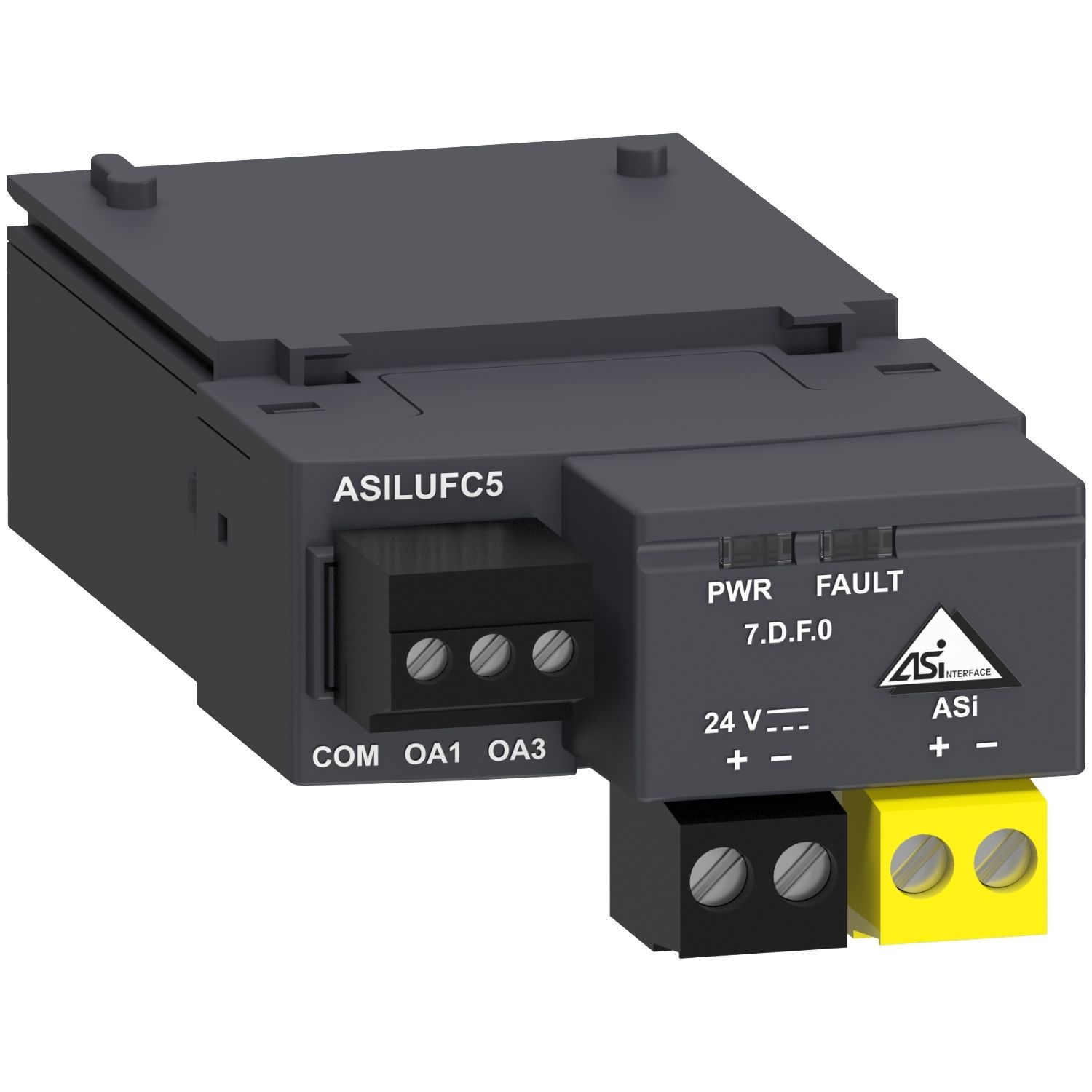

Picture of Communication module, AS-Interface, 24VDC, Front side, Modbus
SKU:

ASILUFC5

Communication module, AS-Interface, 24VDC, Front side, Modbus

Please Contact Sales to buy this Product. click here
Communication module, AS-Interface, 24VDC, Front side, Modbus
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Instruction sheet
Catalogue
User guide
Product Page Link
Product Data Sheet
TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 31 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameASILUF
Device applicationcommunication
Product compatibilityLUCB, LUCC, LUCM, LUCD, LUCL, LUCA
RangeTeSys
Range of productTeSys Ultra
Product or component typecommunication module
Range compatibilityTeSys TeSys Ultra LU2B reversing power base, TeSys TeSys Ultra LUB non reversing power base
Complementary
Tightening torqueoutput: 0.2-0.25 N.m2.5 mm, input: 0.5-0.6 N.m3.5 mm
Connection pitch5.08 mm input, 3.81 mm output
Bus typeAS-Interface
Mounting modeplug-in
Function availableAS-Interface communication module
Connections - terminalsoutput: screw clamp terminals 2 cable(s) 0.5-0.5 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.25-0.34 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.14-0.75 mm²flexible without cable end, output: screw clamp terminals 2 cable(s) 0.14-0.5 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.25-1 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.25-0.5 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²flexible without cable end, input: screw clamp terminals 2 cable(s) 0.5-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.25-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²rigid without cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²flexible without cable end, input: screw clamp terminals 1 cable(s) 0.25-1.5 mm²flexible with cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²rigid without cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²flexible without cable end
Addressing31 slaves
Local signalling2 LEDs front panel
Switching current capacity500 mA at 24 V against short-circuits solid state
Communication port protocolProfibus DP
Mounting locationfront side
Current consumption30 mA fault operation, 25 mA normal operation, 200 mA at 24 V output
Environment
IP degree of protectionIP20 conforming to IEC 60529
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.4 cm
Package 1 Width4.9 cm
Package 1 Length9.4 cm
Package 1 Weight61.0 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.415 kg
