SKU:

ASISA01

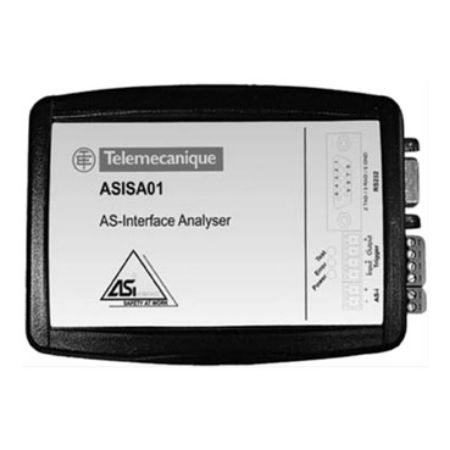

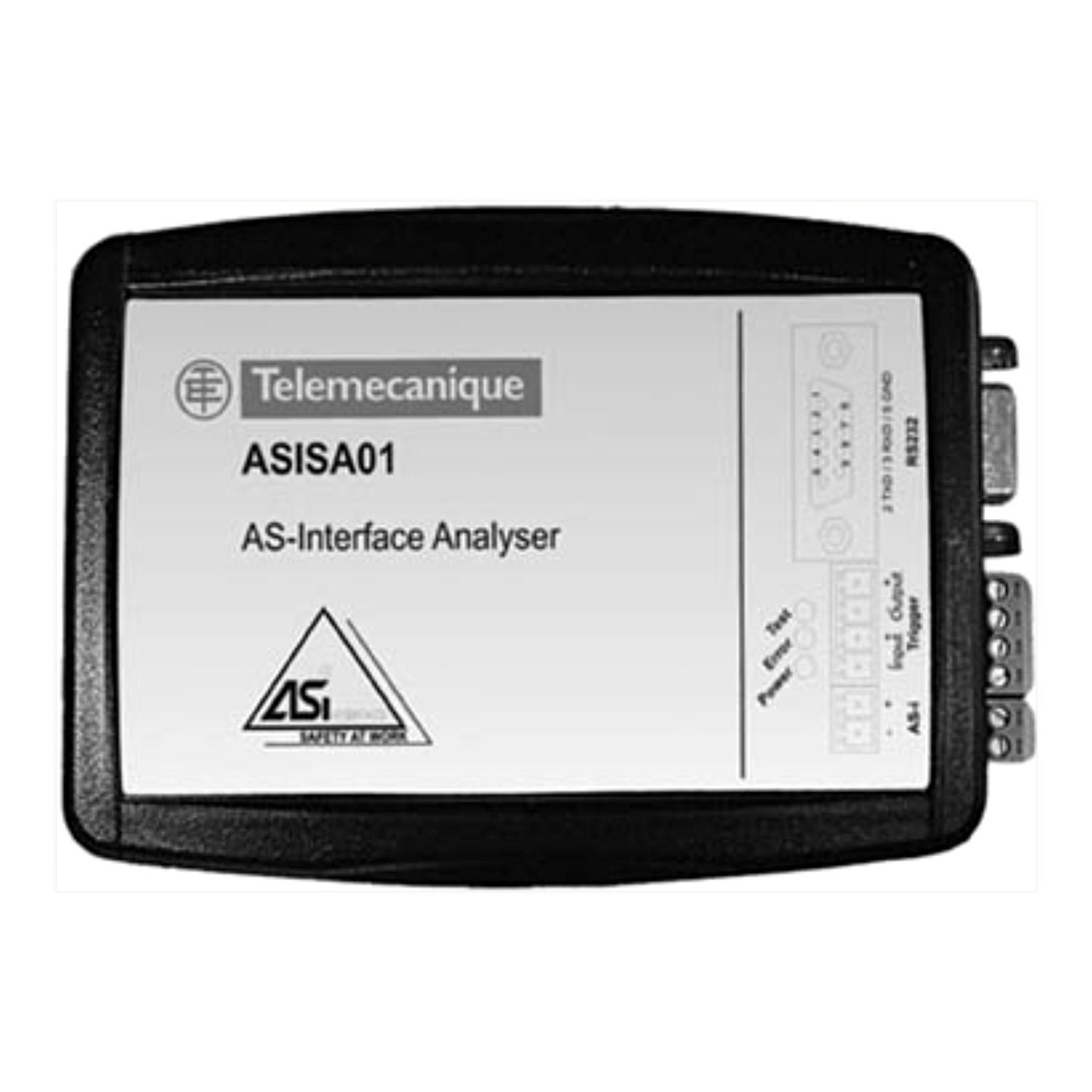

AS Interface line analyser, cabling system, 70mA, Windows OS

$7,890.00
Available for Shipping : 02-Jan-2025
AS Interface line analyser, cabling system, 70mA, Windows OS
  • For AS-Interface network
  • Analyze all data traffic
  • Interoperable
Manufacturer: Telemecanique

Products specifications

Attribute name Attribute value
Main
Memory usage 256000 telegrams
Range compatibility AS-Interface cabling system
Operating system Windows XP, Windows 95/98, Windows 2000, Windows NT 4.0, Windows ME
AS-i version V2.1
Product or component type AS-Interface line analyser
Complementary
Kit composition diagnostic software, SUB-D data cable, AS-Interface line analyser
Depth 28 mm
Width 139 mm
Local signalling 1 LED (yellow) for RS232 link activity, 1 LED (green/red) for test mode, 1 LED (green) for correct supply voltage
Product compatibility IBM compatible PC, processor: 80486 or higher
Net weight 0.16 kg
[Ui] rated insulation voltage 500 V
Electrical connection terminal block (tripping inputs (24 V), tripping outputs (TTL)), terminal block (AS-Interface line), 1 connector SUB-D 9, RS232 (PC connection)
Height 91.5 mm
Current consumption 70 mA
Environment
Ambient air temperature for storage -25-70 °C
Electromagnetic compatibility EN 50081-2, EN 61000-6-2
Ambient air temperature for operation 0-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 17.0 cm
Package 1 Length 27.5 cm
Package 1 Weight 453.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.884 kg
