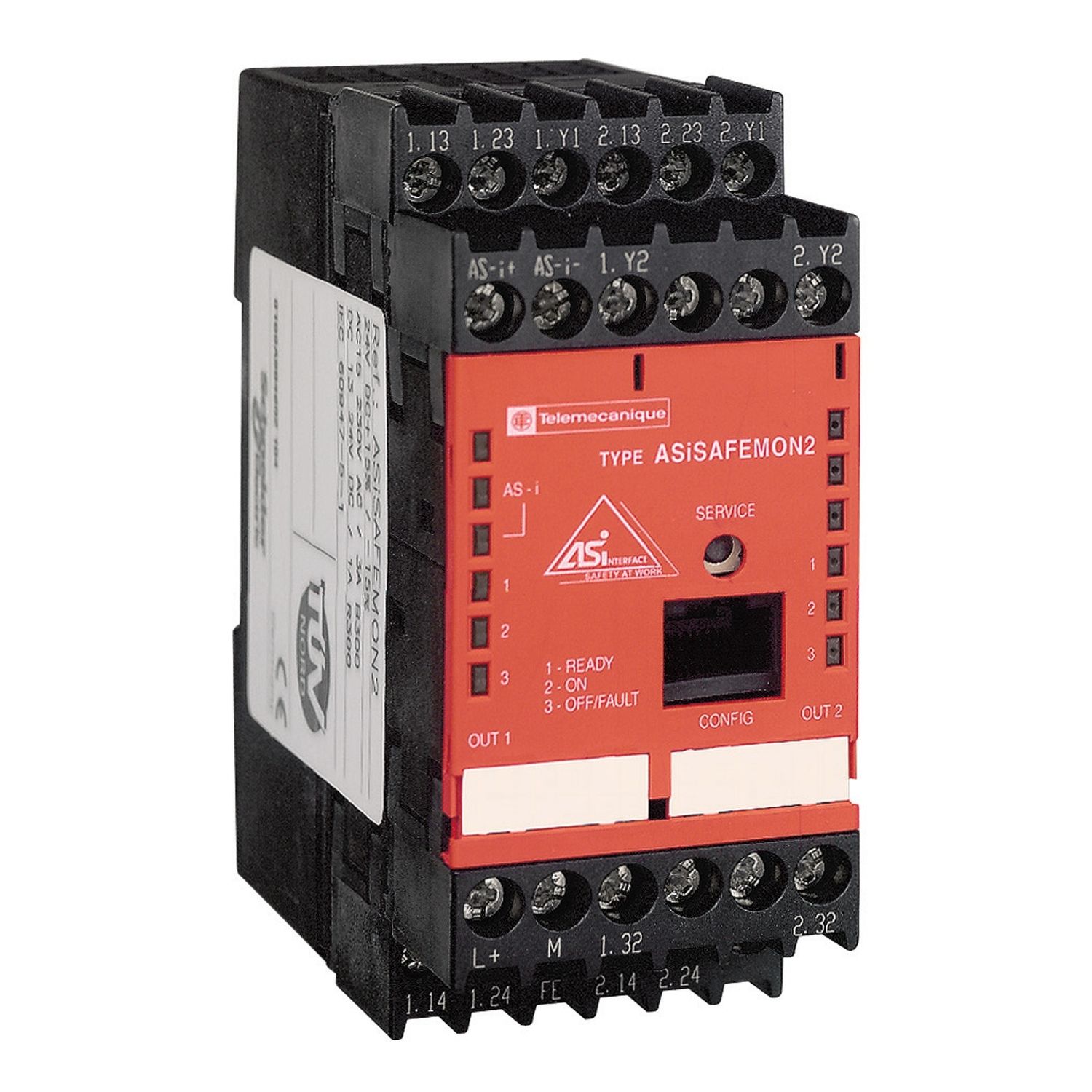

Picture of AS Interface Safety at work monitor, AS Interface, 2NO, solid state output, enhanced monitoring
SKU:

ASISAFEMON1B

AS Interface Safety at work monitor, AS Interface, 2NO, solid state output, enhanced monitoring

$5,101.20
Available for Shipping : 02-Jan-2025
AS Interface Safety at work monitor, AS Interface, 2NO, solid state output, enhanced monitoring
  • For AS-Interface
  • For basic monitoring of safety devices
  • Enhanced version
  • One output circuit
  • Stop with 40ms reaction time
  • 6 A max. for all output switching elements
Be the first to review this product
Manufacturer: Telemecanique
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Actuator sensor interface profile [AS-i] 7.F
Product specific application for enhanced monitoring of safety devices
Discrete output number 1
Number of safety circuits 2 NO
Product or component type AS-Interface Safety at work monitor
Complementary
Protection type external fuse
Input type opto-electronic coupler, 10 mA at 24 V for start function, opto-electronic coupler, 10 mA at 24 V for protection control function
Fixing mode clip-on, mounting on symmetrical DIN rail conforming to EN 50022
Maximum pick up duration 10000 ms
[Us] rated supply voltage 24 V DC +/- 15 %
Discrete output type PNP transistor output(s), 0.2 mA
Output type solid state
Enclosure material polyamide PA66
[Ie] rated operational current 0.15 A
Local signalling 1 LED (yellow) for restart signal, 1 LED (red) for safety outputs open (on steady) or output error (flashing), 1 LED (red) for AS-Interface line fault, 1 LED (green) for safety outputs closed, 1 LED (green) for AS-Interface line supply
Response time < 40 ms
Net weight 0.35 kg
Maximum associated fuse rating 4 A
Current consumption 44 mA for AS-Interface line
Environment
IP degree of protection IP20
Ambient air temperature for storage -30-70 °C
Ambient air temperature for operation -20-60 °C
Standards EN/IEC 60204-1, ISO 13849-1 category 4, IEC 61508, EN 61000-6-2, EN 954-1 category 4, EN/IEC 60947-5-1, ISO 13851, EN/IEC 61496-1, EN 574, EN 50295, EN 50081-2
Product certifications UL, TÜV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.6 cm
Package 1 Width 5.2 cm
Package 1 Length 11.0 cm
Package 1 Weight 347.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.653 kg
