Picture of Altistart 01, Soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW
SKU:

ATS01N109FT

Altistart 01, Soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW

$417.88
Available for Shipping : 24-Nov-2024
Product Selector
Altistart 01, Soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet

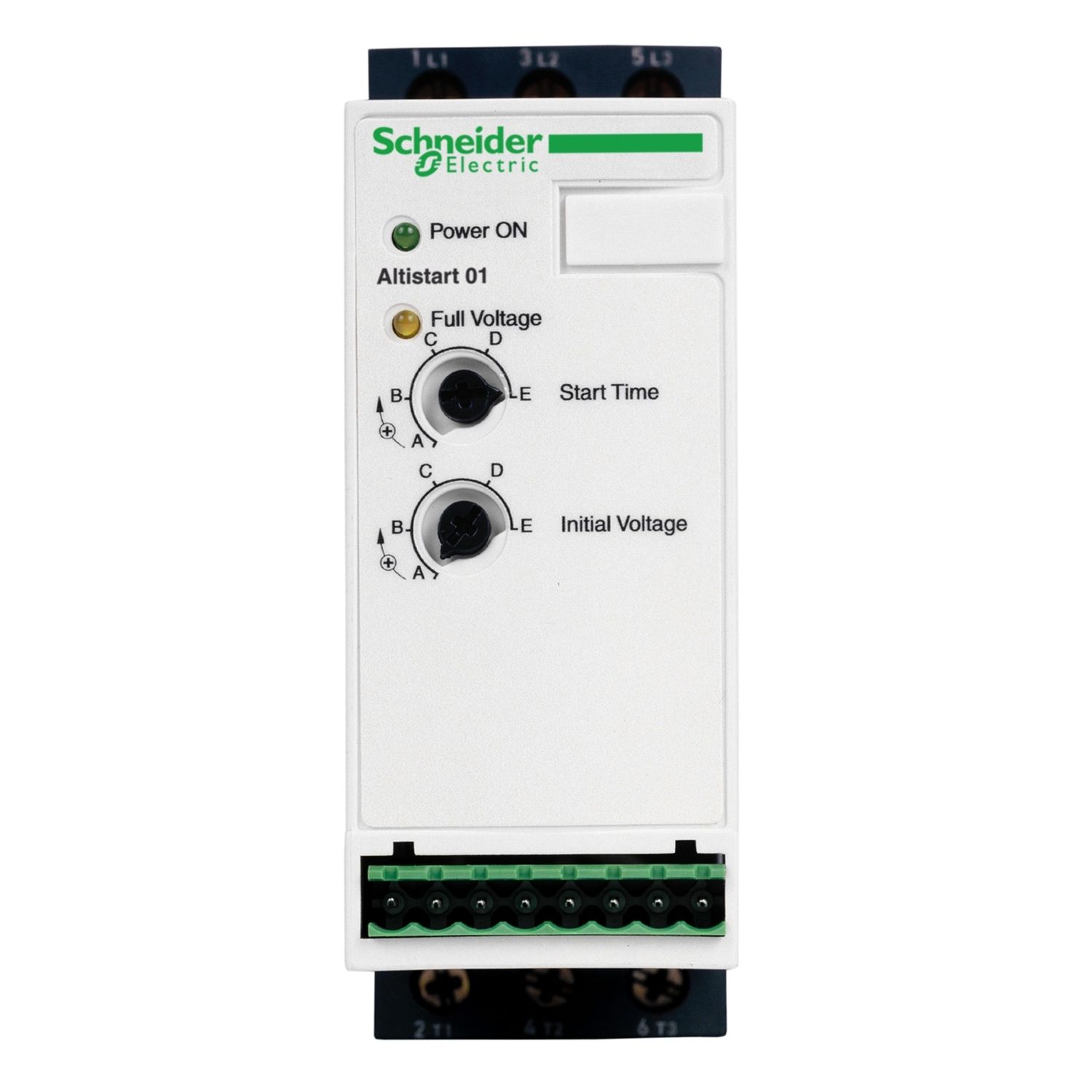

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 4kW or 5hp for 3-phase (110V to 480V AC) and up to 1.1kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Products specifications

Attribute name Attribute value
Main
Device short name ATS01
[Us] rated supply voltage 110...480 V - 10...10 %
Power dissipation in W 46 W in transient state, 1 W at full load and at end of starting
Motor power kW 1.1 kW, 1 phase at 230 V, 1.5 kW, 3 phases at 230 V, 4 kW, 3 phases at 400 V
Range of product Altistart 01
Motor power hp 5 hp, 3 phases at 460 V, 2 hp, 3 phases at 230 V, 1 hp, 3 phases at 210 V
Product specific application simple machine
Type of start start with voltage ramp
IcL starter rating 9 A
Utilisation category AC-53B conforming to EN/IEC 60947-4-2
Network number of phases 1 phase
Product or component type soft starter
Product destination asynchronous motors
Current consumption 45 A at nominal load
Complementary
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Compatibility code ATS01N1
Assembly style with heat sink
Supply voltage limits 99-528 V
Function available integrated bypass
Motor starter type soft starter
Discrete output current 3 A AC-15, 2 A DC-13
Marking CE
Height 124 mm
Electrical connection screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit, screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit, screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit, screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
Supply frequency 50...60 Hz - 5...5 %
Tightening torque 1.9-2.5 N.m, 0.5-0.5 N.m
Starting torque 30...80 % of starting torque of motor connected directly on the line supply
Depth 131 mm
Width 45 mm
Starting time adjustable from 1 to 5 s, 5 s / 20 , 1 s / 100
Net weight 0.28 kg
Power range 4-6 kW at 380-440 V 3 phases, 2.2-3 kW at 200-240 V 3 phases, 1.1-2 kW at 200-240 V 1 phase
[Uc] control circuit voltage 240 V AC +/- 10 % at 80 mA, 24 V AC/DC +/- 10 % at 30 mA, 110 V AC +/- 10 % at 35 mA
Network frequency 47.5...63 Hz
Environment
IP degree of protection IP20
Relative humidity 5-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for storage -25-70 °C conforming to EN/IEC 60947-4-2
Pollution degree 2 conforming to EN/IEC 60947-4-2
Ambient air temperature for operation 40-50 °C (with current derating of 2 % per °C), -10-40 °C (without derating)
Electromagnetic compatibility voltage/current impulse level 3 conforming to IEC 61000-4-5, micro-cuts and voltage fluctuation conforming to IEC 61000-4-11, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, harmonics level 3 conforming to IEC 1000-3-4, harmonics level 3 conforming to IEC 1000-3-2, EMC immunity level B conforming to EN 50082-2, EMC immunity level 3 conforming to EN 50082-1, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level B conforming to IEC 60947-4-2, conducted and radiated emissions level B conforming to CISPR 11
Operating altitude > 1000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Standards EN/IEC 60947-4-2
Product certifications UL, CCC, CSA, GOST, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 17.000 cm
Package 1 Length 15.500 cm
Package 1 Weight 344.000 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.377 kg
Unit Type of Package 3 3
Number of Units in Package 3 112
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 56.620 kg
