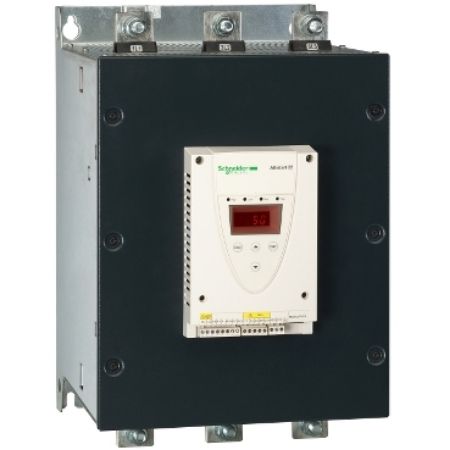

Picture of Altistart 22, Soft starter, ATS22 control 220V power 230V(132kW)/400...440V(250kW)
SKU:

ATS22C48Q

Altistart 22, Soft starter, ATS22 control 220V power 230V(132kW)/400...440V(250kW)

$8,462.29
Available for Shipping : 24-Nov-2024
Product Selector
Altistart 22, Soft starter, ATS22 control 220V power 230V(132kW)/400...440V(250kW)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Catalogue
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 480A and 230V to 440V, a rated power up to 250kW (400V to 440V in supply line) and up to 400kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Products specifications

Attribute name Attribute value
Main
Motor power kW 250 kW 440 V, 250 kW 400 V, 132 kW 230 V
Factory setting current 437 A
IP degree of protection IP00
Product specific application pumps and fans
Utilisation category AC-53A
Type of start start with torque control (current limited to 3.5 In)
IcL starter rating 480 A for connection in the motor supply line for standard applications
Power dissipation in W 218 W for standard applications
Network number of phases 3 phases
Component name ATS22
Product or component type soft starter
Range of product Altistart 22
[Us] rated supply voltage 230...440 V - 15...10 %
Product destination asynchronous motors
Complementary
Supply frequency 50...60 Hz - 10...10 %
Protection type thermal protection: starter, thermal protection: motor, phase failure: line
Discrete input logic positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Depth 339.7 mm
Transmission rate 4800, 9600 or 19200 bps
Width 304 mm
PTC probe input 750 Ohm
Operating position vertical +/- 10 degree
Assembly style with heat sink
Discrete input number 3
Type of cooling forced convection
Physical interface RS485 multidrop
Discrete input type (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Supply voltage limits 195-484 V
Communication port protocol Modbus
Control circuit consumption 20 W
Discrete output number 2
Function available internal bypass
Communication data link serial
Motor starter type soft starter
Connector type 1 RJ45
Installed device 31
Output current 0.4...1 Icl adjustable
Net weight 50 kg
Power range 250-500 kW at 380-440 V 3 phases, 110-220 kW at 200-240 V 3 phases
Marking CE
Discrete input voltage 24 V <= 30 V
Maximum switching current 2 A 30 V DC inductive 7 ms relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 5 A 30 V DC resistive 1 relay outputs, 5 A 250 V AC resistive 1 relay outputs
Discrete output type relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Height 455 mm
[Uc] control circuit voltage 230 V - 15...10 % 50/60 Hz
Minimum switching current 100 mA at 12 V DC (relay outputs)
Network frequency 45...66 Hz
Device connection to the motor delta terminals, in the motor supply line
Environment
Operating altitude > 1000...< 2000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating
Relative humidity 0-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree level 2 conforming to IEC 60664-1
Noise level 56 dB
Vibration resistance 1.5 mm (f= 2-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation 40-60 °C (with current derating 2.2 % per °C), -10-40 °C (without derating)
Electromagnetic compatibility voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level A conforming to IEC 60947-4-2
Standards EN/IEC 60947-4-2
Product certifications CCC, C-Tick, UL, CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 54.5 cm
Package 1 Width 40.0 cm
Package 1 Length 57.5 cm
Package 1 Weight 40.0 kg
