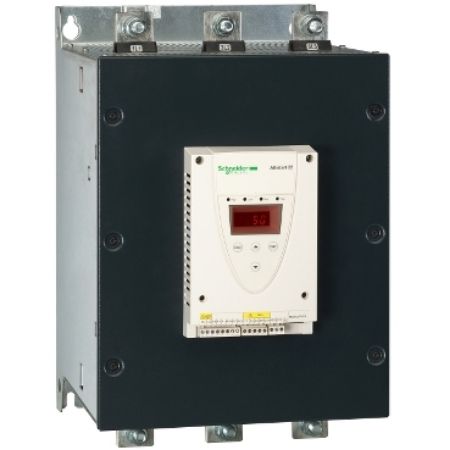

Picture of Altistart 22, Soft starter, ATS22 control 220V power 230V(160kW)/400V(315kW)/440V(355kW)
SKU:

ATS22C59Q

Altistart 22, Soft starter, ATS22 control 220V power 230V(160kW)/400V(315kW)/440V(355kW)

$10,269.22
Product Selector
Altistart 22, Soft starter, ATS22 control 220V power 230V(160kW)/400V(315kW)/440V(355kW)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Instruction sheet
End of life manual
Catalogue
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 590A and 230V to 440V, a rated power up to 355kW (400V to 440V in supply line) and up to 500kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Products specifications

Attribute nameAttribute value
Main
Motor power kW355 kW 440 V, 315 kW 400 V, 160 kW 230 V
Factory setting current560 A
IP degree of protectionIP00
Product specific applicationpumps and fans
Utilisation categoryAC-53A
Type of startstart with torque control (current limited to 3.5 In)
IcL starter rating590 A for connection in the motor supply line for standard applications
Power dissipation in W251 W for standard applications
Network number of phases3 phases
Component nameATS22
Product or component typesoft starter
Range of productAltistart 22
[Us] rated supply voltage230...440 V - 15...10 %
Product destinationasynchronous motors
Complementary
Supply frequency50...60 Hz - 10...10 %
Protection typethermal protection: starter, thermal protection: motor, phase failure: line
Discrete input logicpositive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Depth339.7 mm
Transmission rate4800, 9600 or 19200 bps
Width304 mm
PTC probe input750 Ohm
Operating positionvertical +/- 10 degree
Assembly stylewith heat sink
Discrete input number3
Type of coolingforced convection
Physical interfaceRS485 multidrop
Discrete input type(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Supply voltage limits195-484 V
Communication port protocolModbus
Control circuit consumption20 W
Discrete output number2
Function availableinternal bypass
Communication data linkserial
Motor starter typesoft starter
Connector type1 RJ45
Installed device31
Output current0.4...1 Icl adjustable
Net weight50 kg
Power range250-500 kW at 380-440 V 3 phases, 110-220 kW at 200-240 V 3 phases
MarkingCE
Discrete input voltage24 V <= 30 V
Maximum switching current2 A 30 V DC inductive 7 ms relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 5 A 30 V DC resistive 1 relay outputs, 5 A 250 V AC resistive 1 relay outputs
Discrete output typerelay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Height455 mm
[Uc] control circuit voltage230 V - 15...10 % 50/60 Hz
Minimum switching current100 mA at 12 V DC (relay outputs)
Network frequency45...66 Hz
Device connectionin the motor supply line, to the motor delta terminals
Environment
Operating altitude> 1000...< 2000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating
Relative humidity0-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for storage-25-70 °C
Pollution degreelevel 2 conforming to IEC 60664-1
Noise level56 dB
Vibration resistance1.5 mm (f= 2-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation40-60 °C (with current derating 2.2 % per °C), -10-40 °C (without derating)
Electromagnetic compatibilityvoltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level A conforming to IEC 60947-4-2
StandardsEN/IEC 60947-4-2
Product certificationsGOST, CSA, C-Tick, CCC, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height54.864 cm
Package 1 Width57.15 cm
Package 1 Length40.64 cm
Package 1 Weight37 kg
