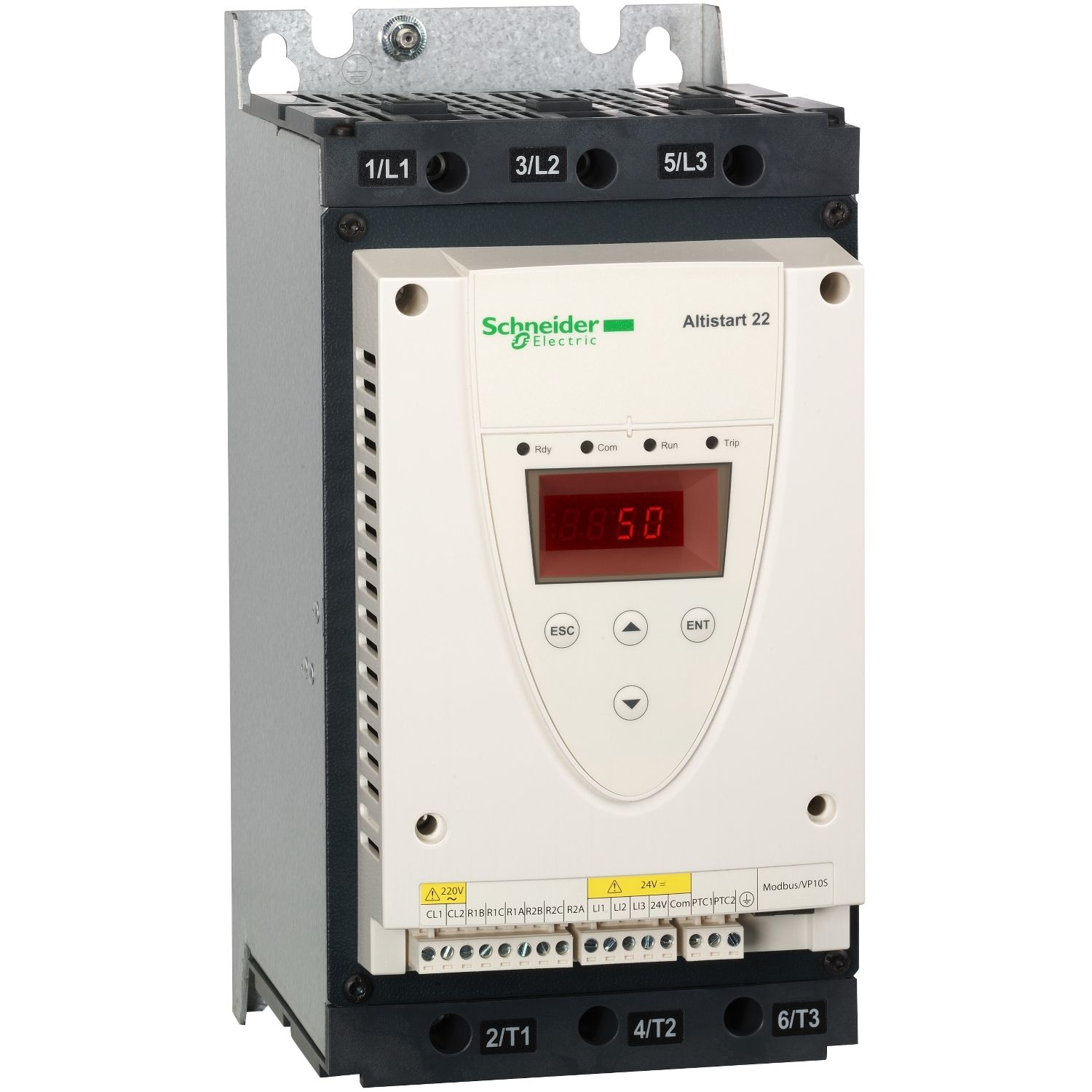

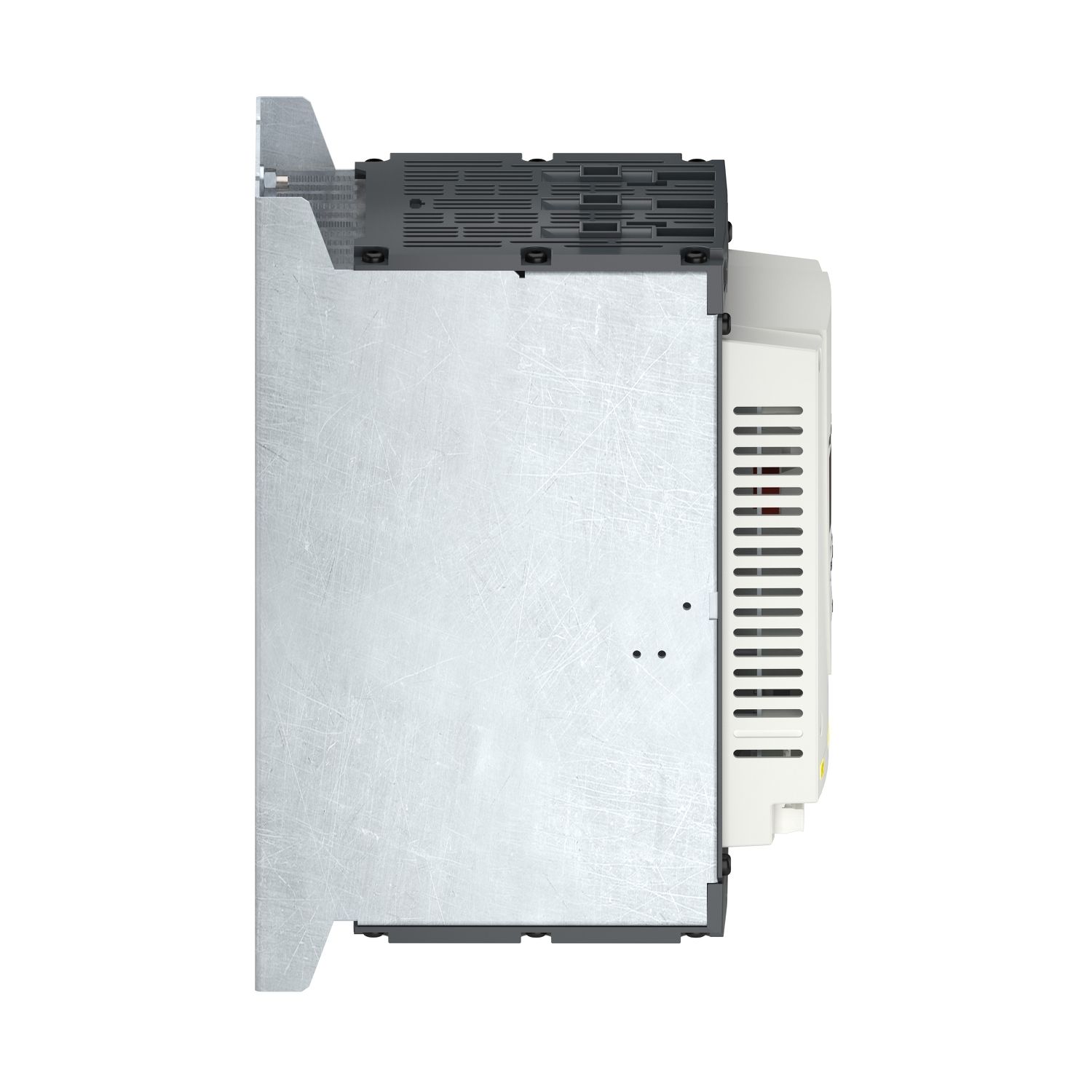

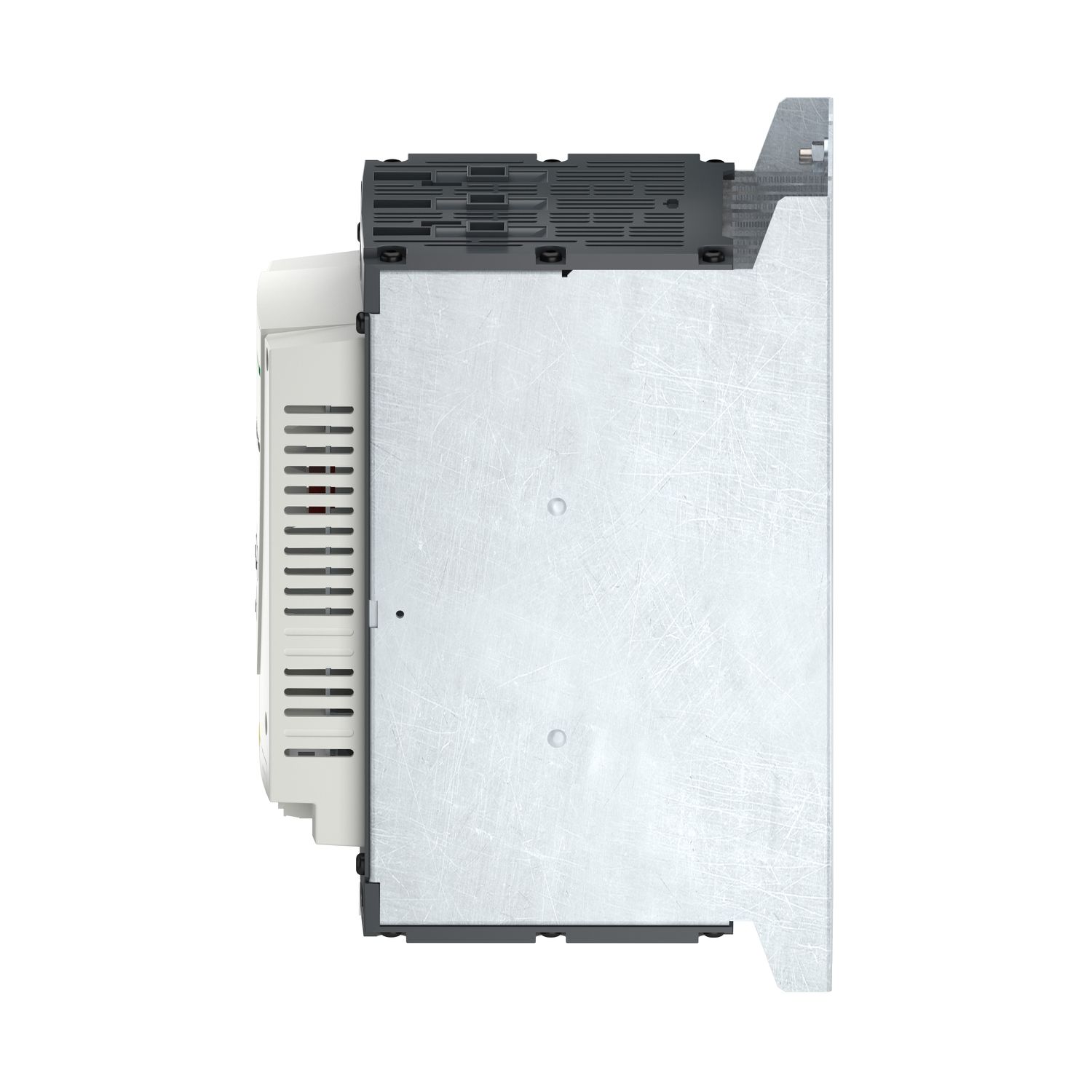

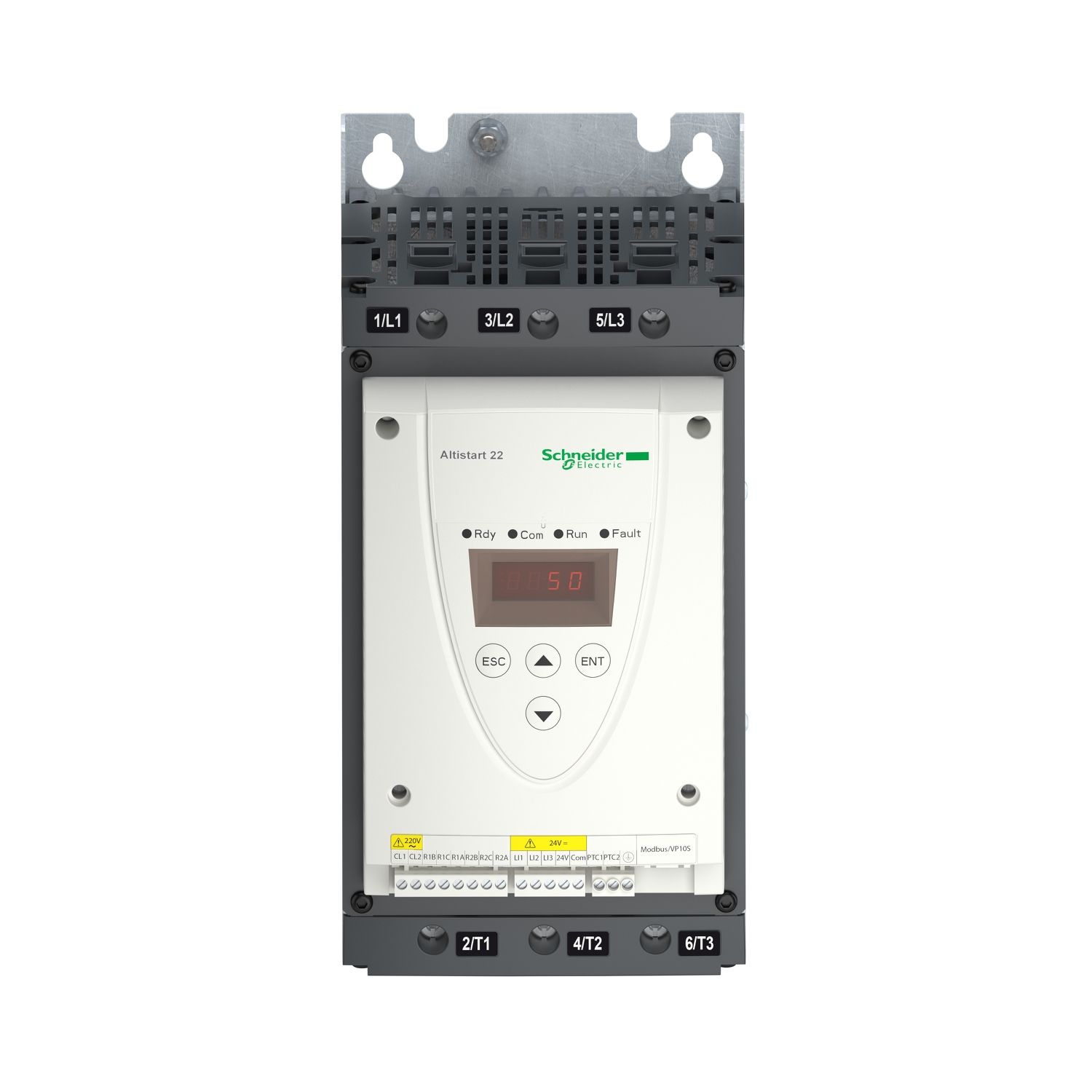

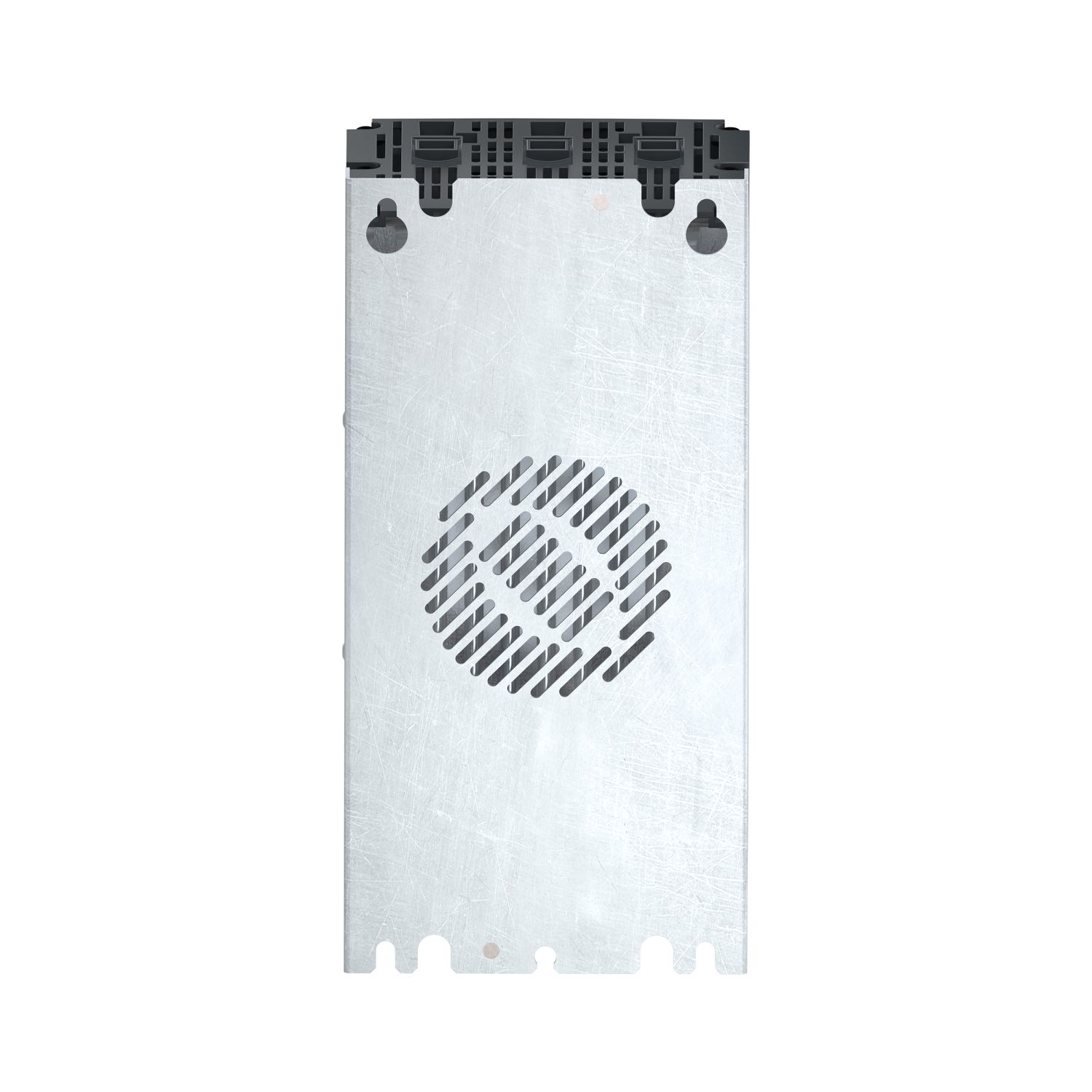

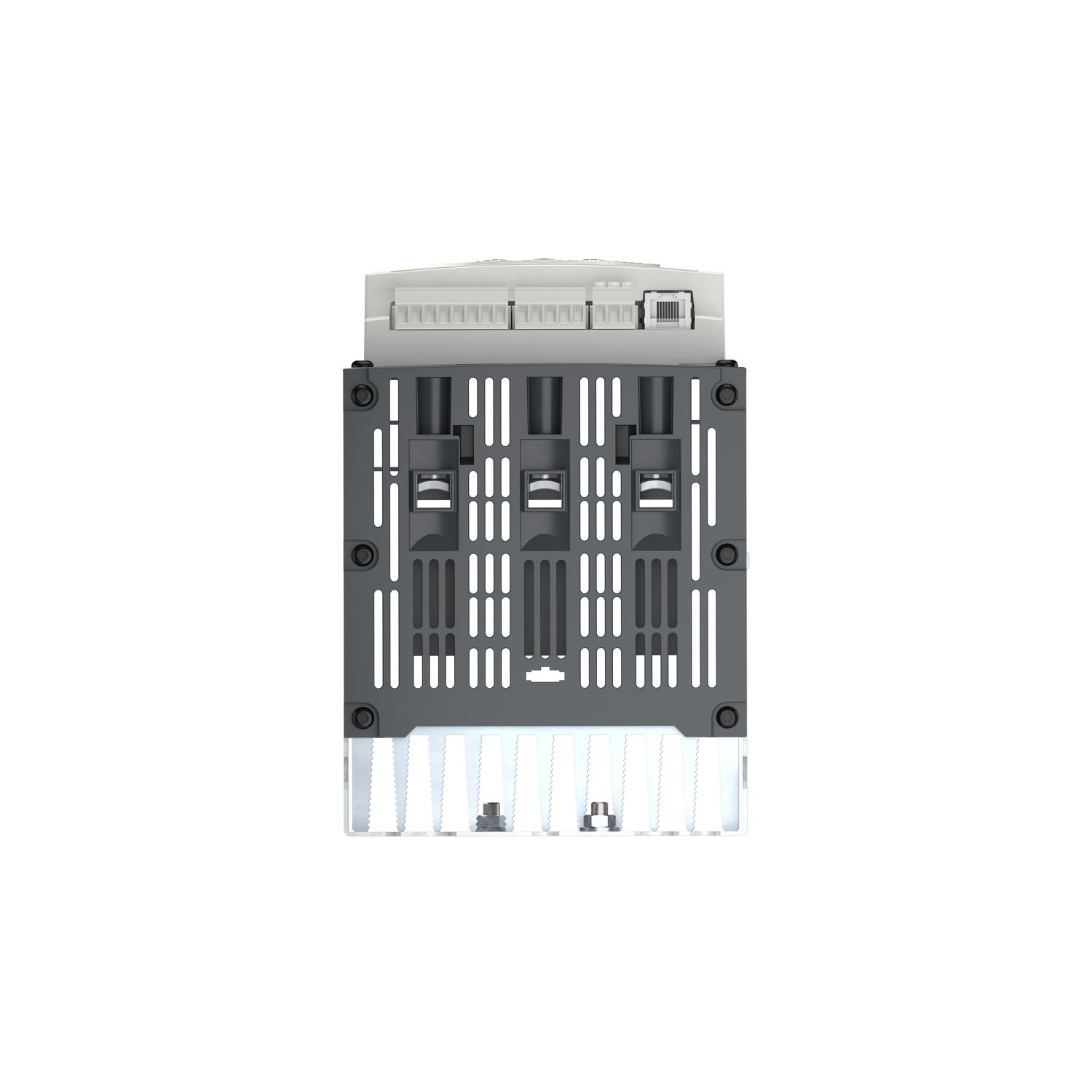

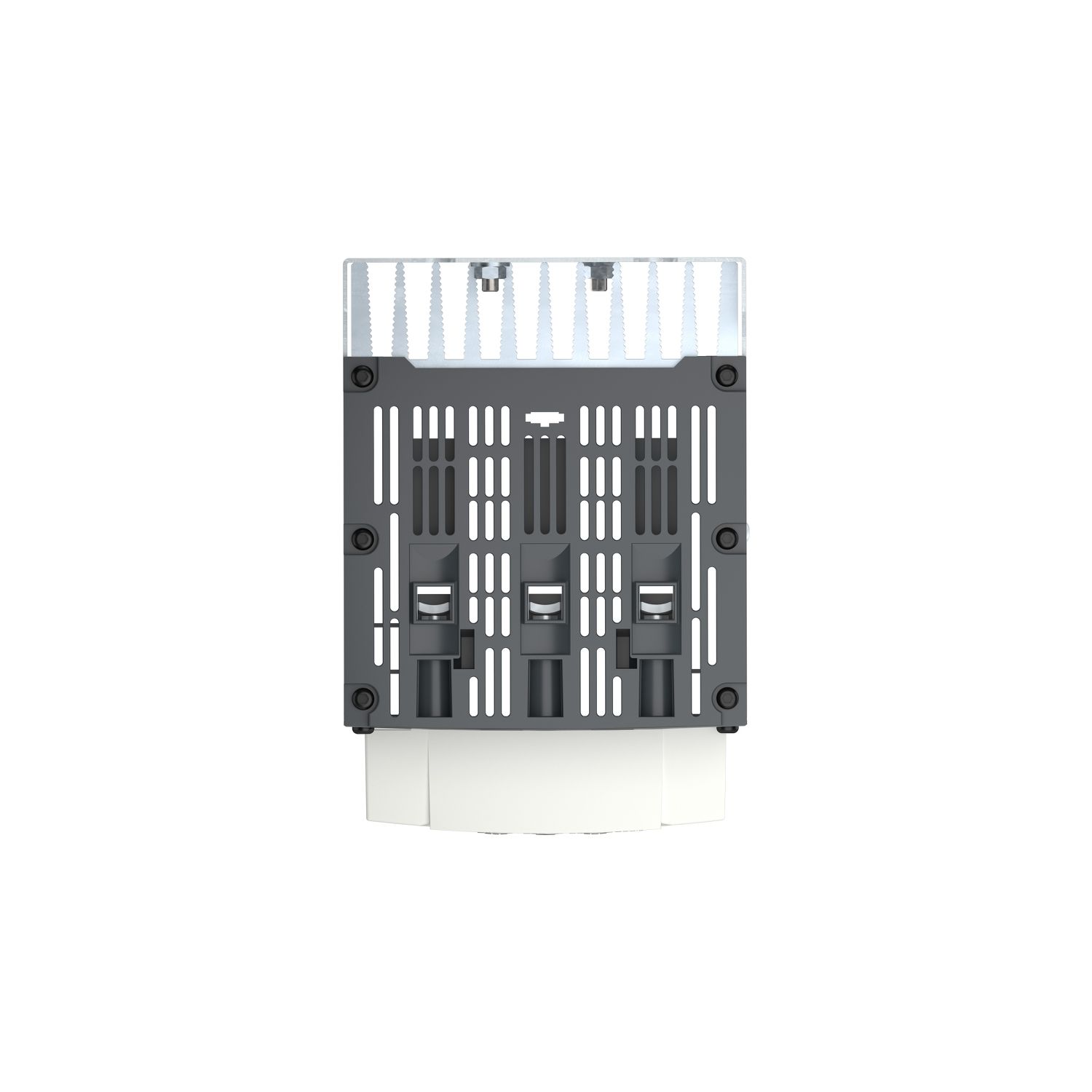

Picture of Altistart 22, Soft starter, ATS22 control 220V power 230V(22kW)/400...440V(45kW)
SKU:

ATS22D88Q

Altistart 22, Soft starter, ATS22 control 220V power 230V(22kW)/400...440V(45kW)

$2,484.64
Product Selector
Altistart 22, Soft starter, ATS22 control 220V power 230V(22kW)/400...440V(45kW)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Catalogue
Declaration of conformity
End of life manual
User guide
Product Page Link
Product Data Sheet
This soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 88A and 230V to 440V, a rated power up to 45kW (400V to 440V in supply line) and up to 75kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Products specifications

Attribute nameAttribute value
Main
Factory setting current81 A
IP degree of protectionIP20
Power dissipation in W66 W for standard applications
Range of productAltistart 22
[Us] rated supply voltage230...440 V - 15...10 %
Motor power kW45 kW 440 V, 45 kW 400 V, 22 kW 230 V
Product specific applicationpumps and fans
Utilisation categoryAC-53A
Type of startstart with torque control (current limited to 3.5 In)
IcL starter rating88 A for connection in the motor supply line for standard applications
Network number of phases3 phases
Component nameATS22
Product or component typesoft starter
Product destinationasynchronous motors
Complementary
Protection typethermal protection: starter, thermal protection: motor, phase failure: line
Operating positionvertical +/- 10 degree
Assembly stylewith heat sink
Type of coolingforced convection
Physical interfaceRS485 multidrop
Discrete input type(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Supply voltage limits195-484 V
Control circuit consumption20 W
Function availableinternal bypass
Motor starter typesoft starter
Connector type1 RJ45
Output current0.4...1 Icl adjustable
MarkingCE
Discrete input voltage24 V <= 30 V
Height295 mm
Supply frequency50...60 Hz - 10...10 %
Discrete input logicpositive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Depth207 mm
Transmission rate4800, 9600 or 19200 bps
Width145 mm
PTC probe input750 Ohm
Discrete input number3
Communication port protocolModbus
Discrete output number2
Communication data linkserial
Installed device31
Net weight12 kg
Power range30-50 kW at 380-440 V 3 phases, 15-25 kW at 200-240 V 3 phases
Maximum switching current2 A 30 V DC inductive 7 ms relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 5 A 30 V DC resistive 1 relay outputs, 5 A 250 V AC resistive 1 relay outputs
Discrete output typerelay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
[Uc] control circuit voltage230 V - 15...10 % 50/60 Hz
Minimum switching current100 mA at 12 V DC (relay outputs)
Network frequency45...66 Hz
Device connectionin the motor supply line, to the motor delta terminals
Environment
Relative humidity0-95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for storage-25-70 °C
Pollution degreelevel 2 conforming to IEC 60664-1
Noise level45 dB
Ambient air temperature for operation40-60 °C (with current derating 2.2 % per °C), -10-40 °C (without derating)
Electromagnetic compatibilityvoltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level A conforming to IEC 60947-4-2
Operating altitude> 1000...< 2000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating
Vibration resistance1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
StandardsIEC 60947-4-2
Product certificationsC-Tick, GOST, UL, CSA, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height23.000 cm
Package 1 Width30.800 cm
Package 1 Length35.800 cm
Package 1 Weight8.170 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight63.184 kg

Related products

Picture of Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54

Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54

VW3G22101
$184.45
View Detail

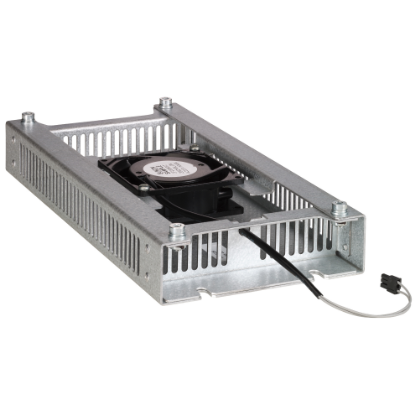

Picture of Altistart 22, Fan option, size B, 220 V
