SKU:

ATS480C11Y

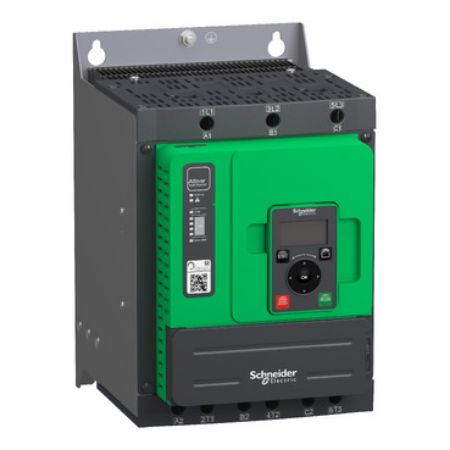

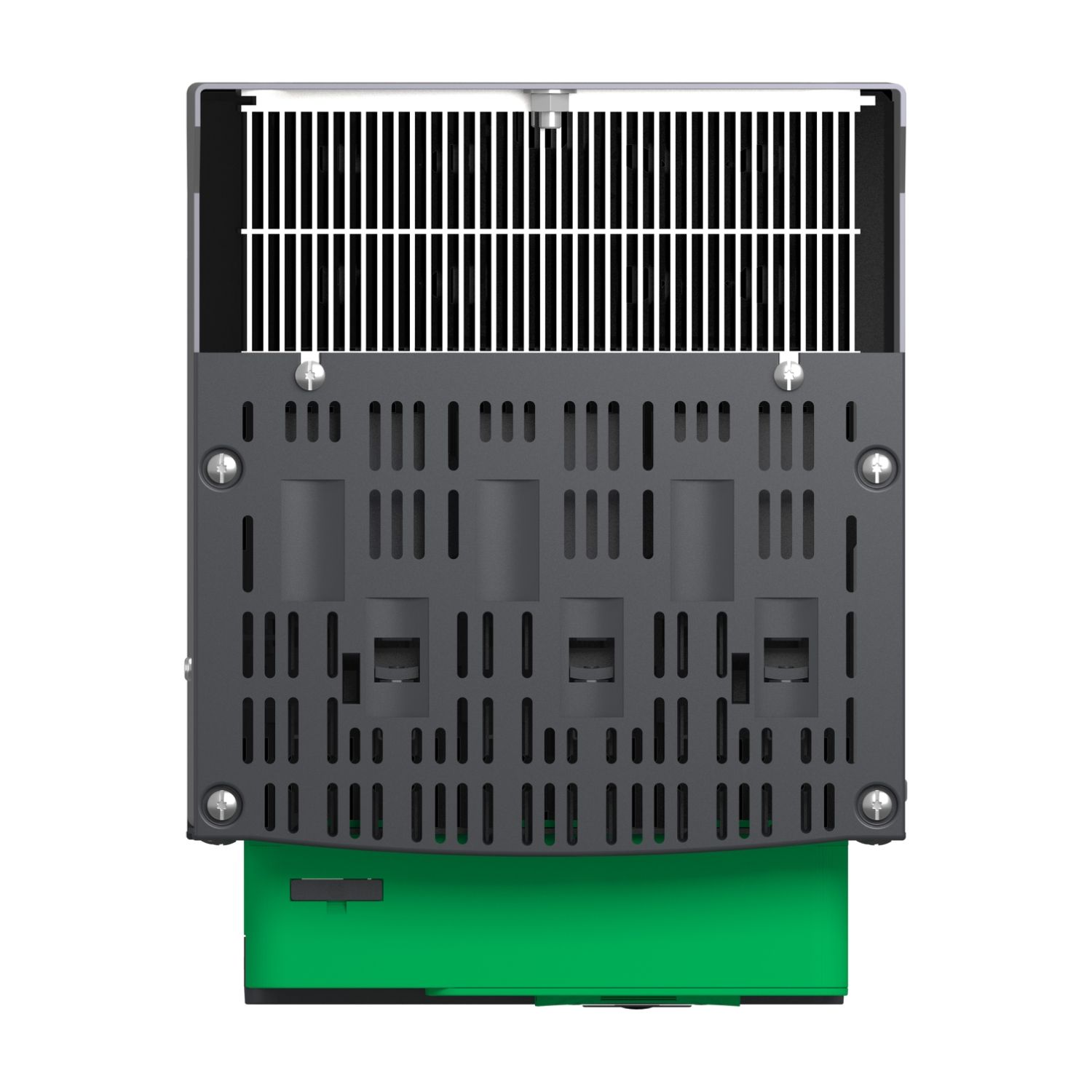

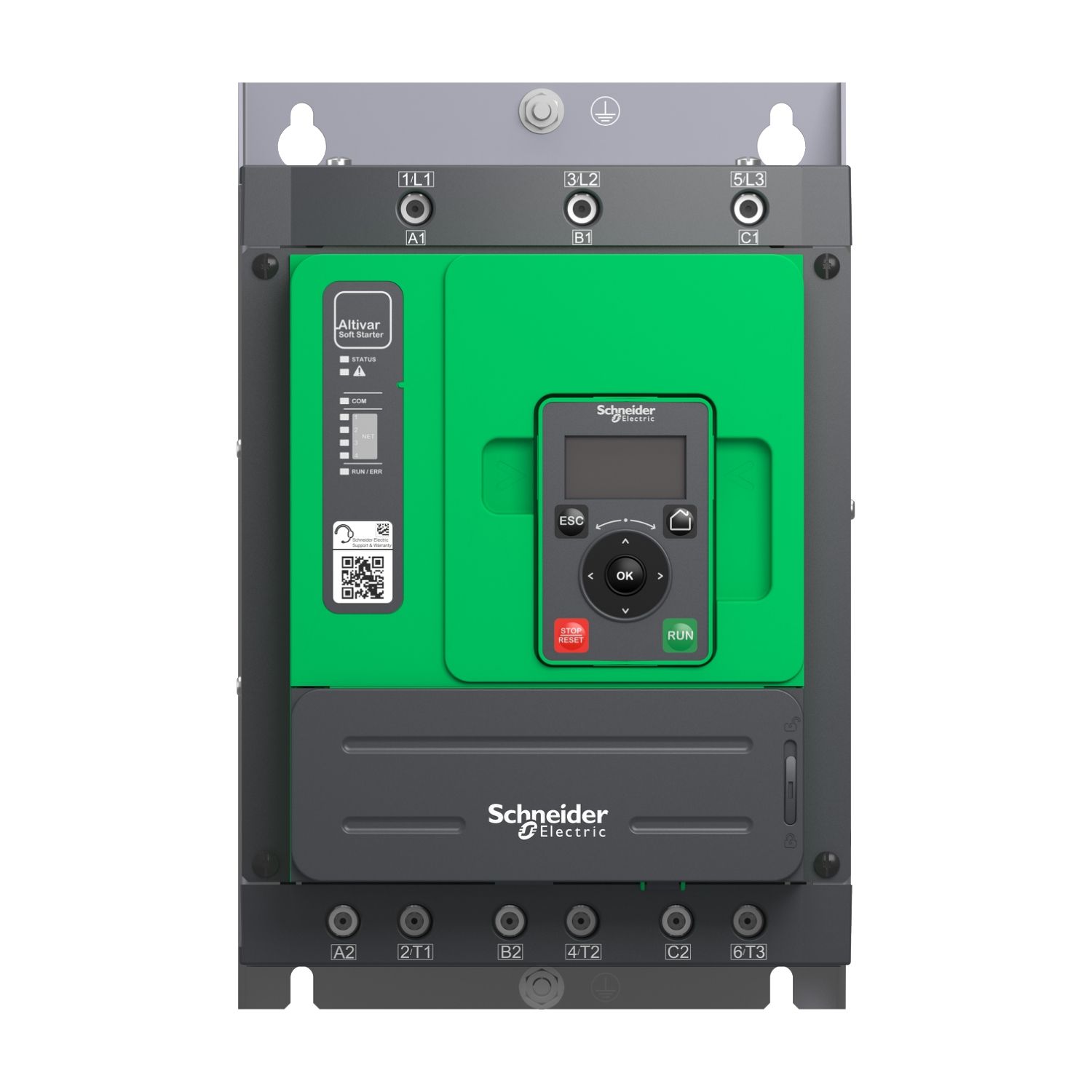

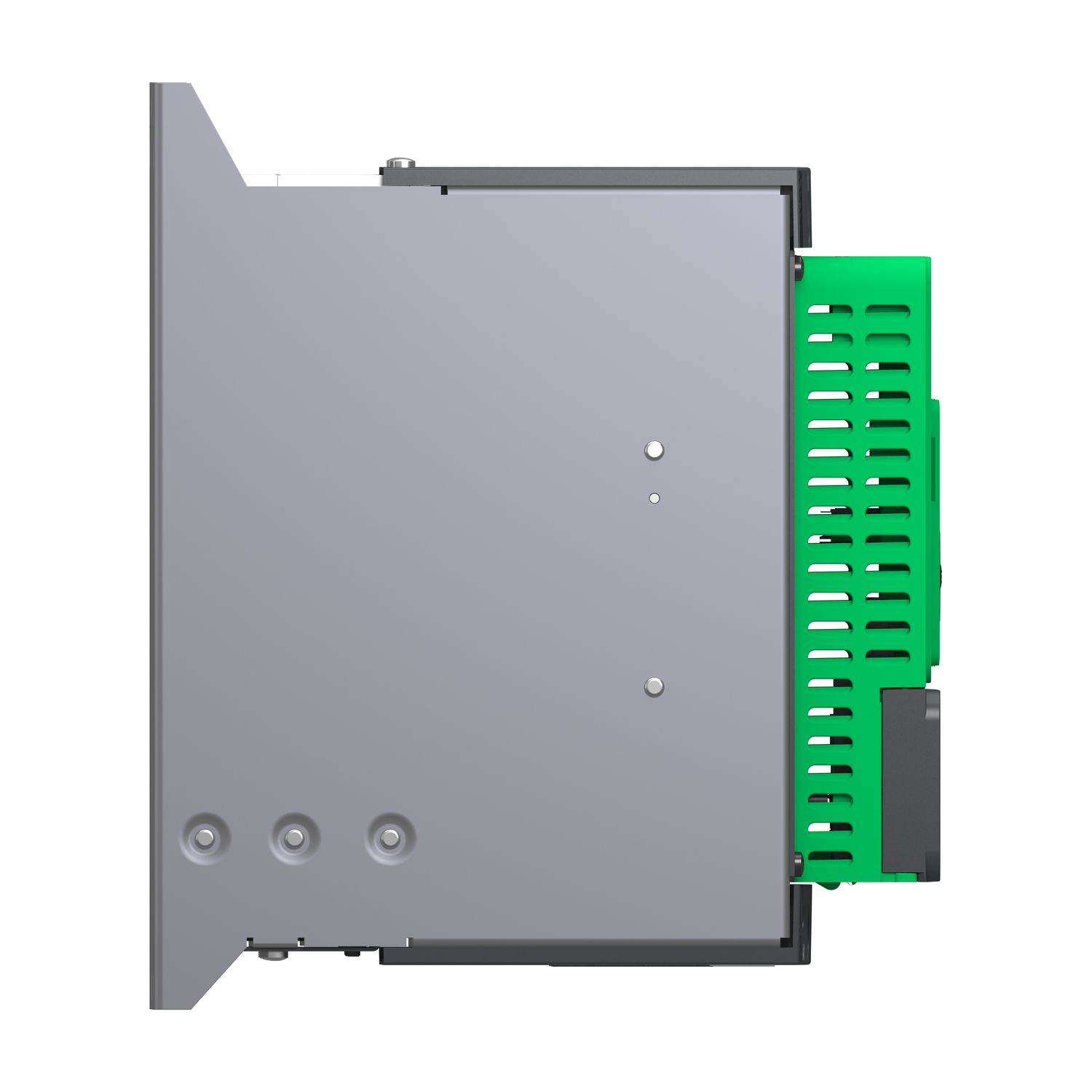

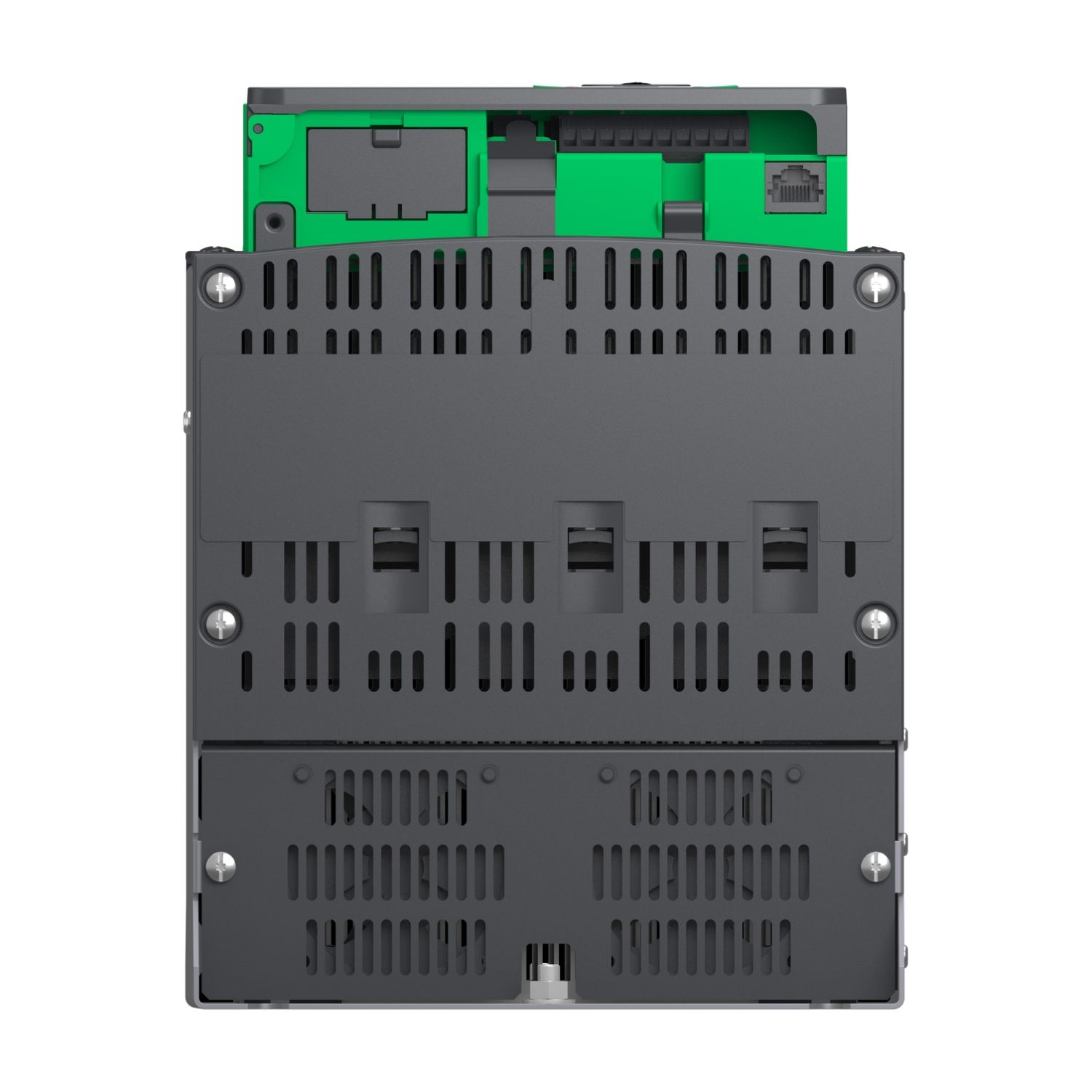

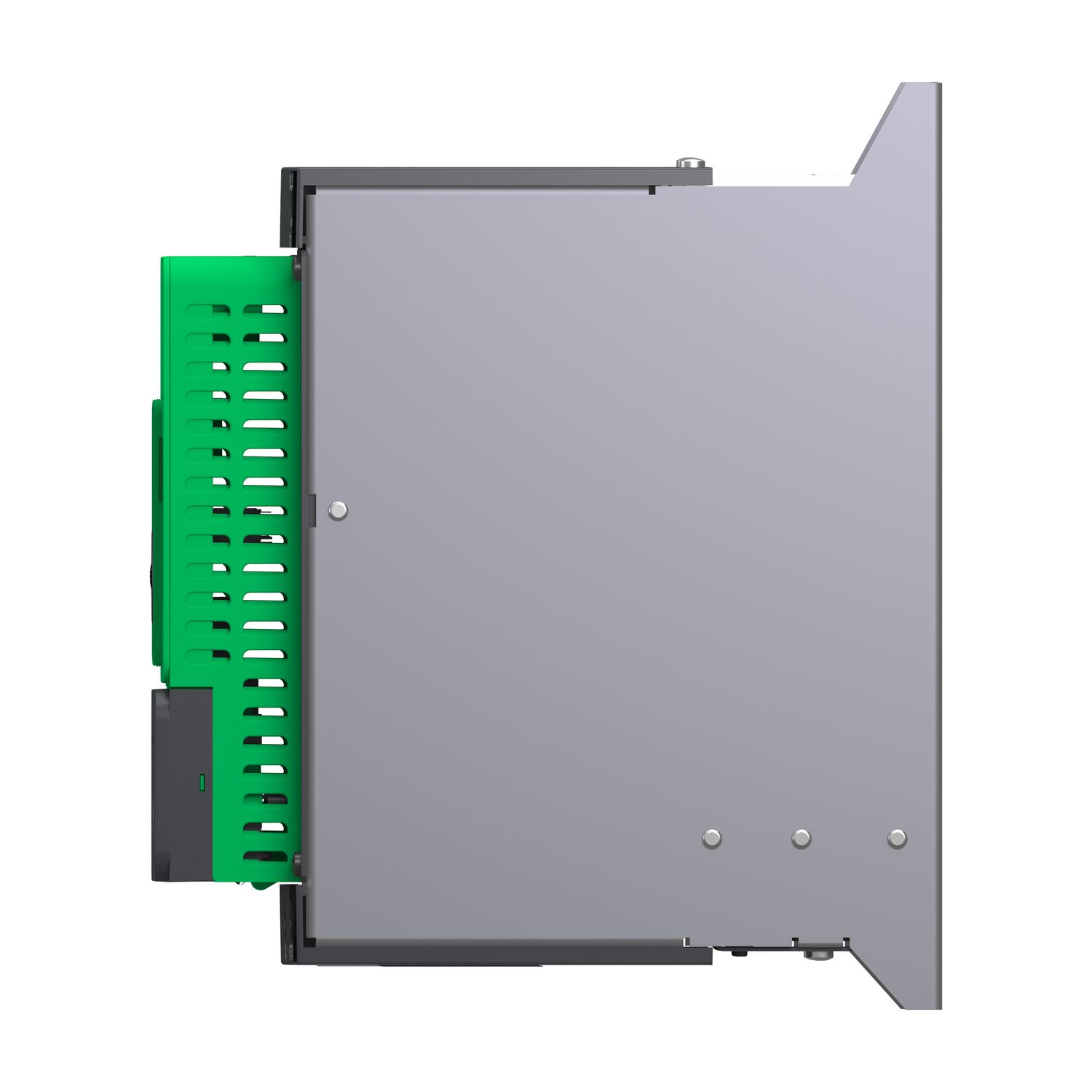

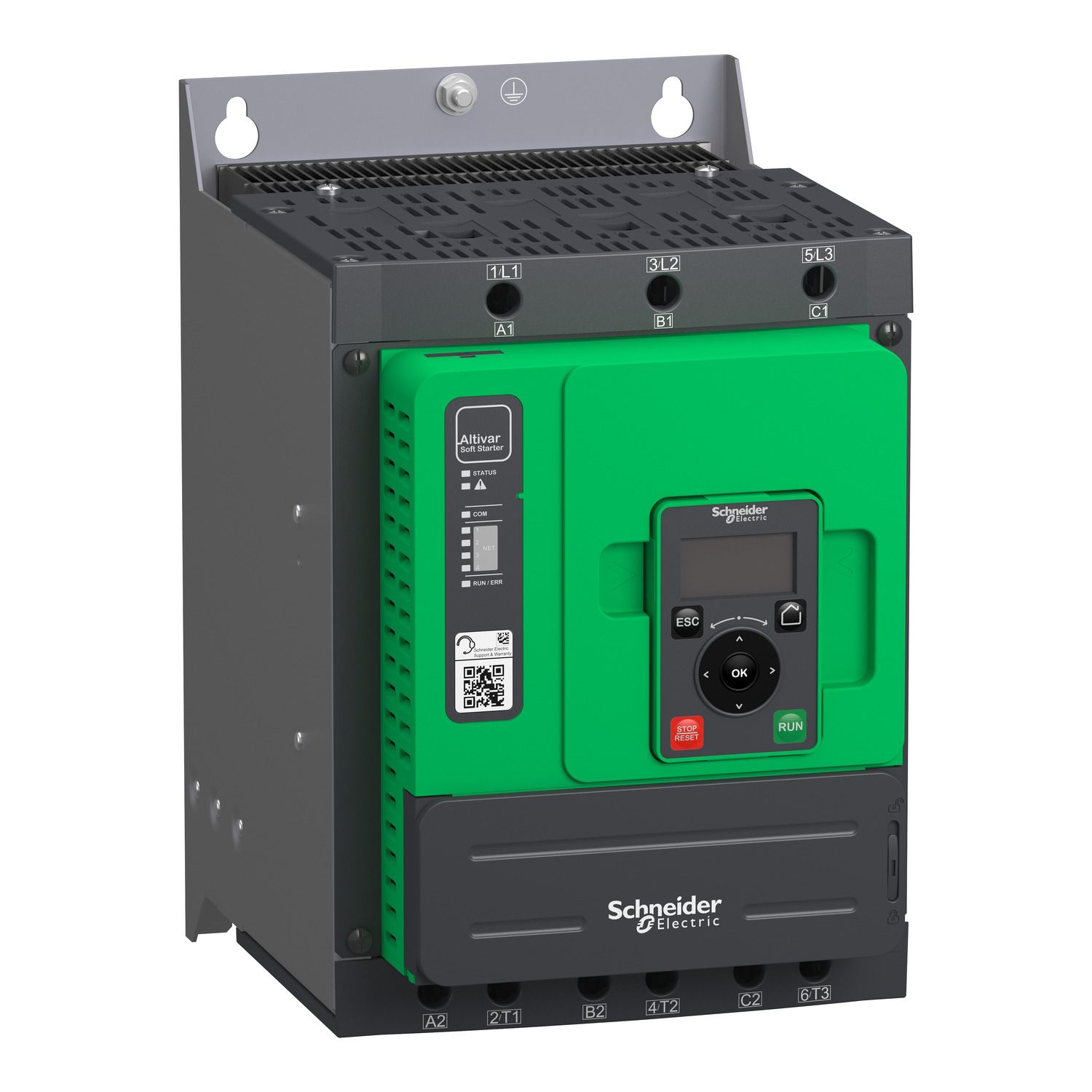

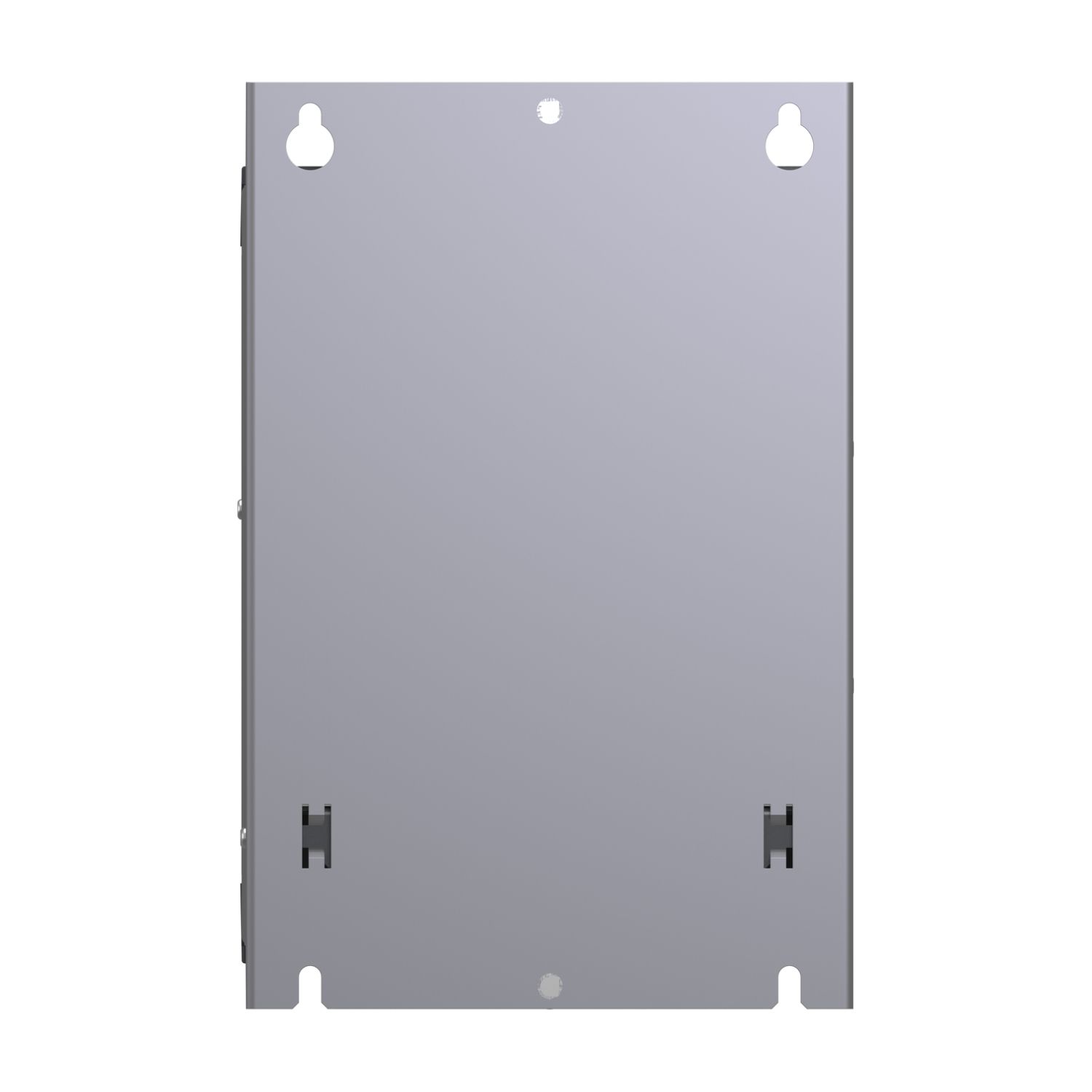

Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC

$3,589.19

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

User guide

End of life manual

Declaration of conformity

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 110A in normal duty, it supplies motor from 30kW to 90kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH. test1

Products specifications

Attribute name	Attribute value
Main
IP degree of protection	IP20
Device short name	ATS480
Torque control	True
[Us] rated supply voltage	208...690 V - 15...10 %
Motor power kW	75.0 kW at 400 V to the motor delta terminals heavy duty, 90.0 kW at 400 V to the motor delta terminals normal duty, 45.0 kW at 230 V to the motor delta terminals heavy duty, 55.0 kW at 230 V to the motor delta terminals normal duty, 75.0 kW at 690 V in the motor supply line heavy duty, 90.0 kW at 690 V in the motor supply line normal duty, 75.0 kW at 660 V in the motor supply line heavy duty, 90.0 kW at 660 V in the motor supply line normal duty, 55.0 kW at 525 V in the motor supply line heavy duty, 75.0 kW at 525 V in the motor supply line normal duty, 55.0 kW at 500 V in the motor supply line heavy duty, 75.0 kW at 500 V in the motor supply line normal duty, 45.0 kW at 440 V in the motor supply line heavy duty, 55.0 kW at 440 V in the motor supply line normal duty, 45.0 kW at 400 V in the motor supply line heavy duty, 55.0 kW at 400 V in the motor supply line normal duty, 22.0 kW at 230 V in the motor supply line heavy duty, 30.0 kW at 230 V in the motor supply line normal duty
Maximum permanent current	88.0 A at 40 °C for heavy duty
Range of product	Altivar Soft Starter ATS480
Option card	communication module for CANopen open style, communication module for CANopen Sub-D, communication module for CANopen daisy chain, communication module for Modbus TCP/EtherNet/IP, communication module for PROFINET, communication module for Profibus DP V1
Supply frequency	50...60 Hz - 20...20 %
Motor power hp	75.0 hp at 575 V heavy duty, 100.0 hp at 575 V normal duty, 60.0 hp at 460 V heavy duty, 75.0 hp at 460 V normal duty, 30.0 hp at 230 V heavy duty, 40.0 hp at 230 V normal duty, 25.0 hp at 208 V heavy duty, 30.0 hp at 208 V normal duty
Product specific application	process and infrastructures
[Ie] rated operational current	normal duty: 110.0 A (at <40 °C)
Utilisation category	AC-53A, AC-3A
Network number of phases	3 phases
Product or component type	soft starter
Product destination	asynchronous motors
Complementary
With safety function Safely Limited Speed (SLS)	False
Protection type	thermal protection: motor, line supply phase loss: motor, line supply phase loss: line, motor phase loss: motor, excessive starting time, locked rotor: motor, underload: motor, current overload: motor, thermal protection: starter, integrated thermal protection: motor, phase failure: line
Type of polarization	no impedance for Modbus serial
Power loss static current independent	25.0 W
Operating position	vertical +/- 10 degree
With safety function Safe programmable logic	False
Rated current pwr loss specification	110.0 A
Physical interface	2-wire RS 485
Minimum switching current	100 mA at 12 V DC for relay outputs
Analogue output number	1
Discrete input type	(DI4) programmable as logic input, 3500 Ohm, (DI3) programmable as logic input, 3500 Ohm, (RUN) logic inputs, 3500 Ohm, (STOP) logic inputs, 3500 Ohm
Noise level	58.0 dB
Function available	single direction, cybersecure firmware update, security event logging, ports and services hardening, user management, second motor set, multi-motor cascade, smoke extraction, pre-heating, external bypass control
Connector type	1 RJ45
Output current drift	150-700 %
Marking	cULus, RCM, EAC, UKCA, CCC, CE
Data format	8 bits, configurable odd, even or no parity
Volume of cooling air	86.0 m3/h
With safety function Safe torque off (STO)	False
Relay output number	3
With safety function Safe Speed Monitor (SSM)	False
Transmission frame	RTU
Height	290.0 mm
With safety function Safe brake management (SBC/SBT)	False
Discrete output type	(DQ2) programmable digital output <= 30 V, (DQ1) programmable digital output <= 30 V
Discrete input logic	programmable digital input at State 0: < 5 V
Depth	247.0 mm
Transmission rate	1200...256000 bit/s
Width	190.0 mm
With safety function Safe Stop 1 (SS1)	False
With sft fct Safe Stop 2 (SS2)	False
Apparent power	0.09 kVA
Number of addresses	0-227 for Modbus serial
Power loss per device current dependent	302.0 W
Accuracy class	class 10E
Discrete input number	4
Suitable for mounting onto standard rails	False
With safety function Safe Operating Stop (SOS)	False
Integrated motor overload protection	True
Method of access	slave Modbus serial
With safety function Safely Limited Position (SLP)	False
With safety function Safe Position (SP)	False
Communication port protocol	Modbus serial
Discrete output number	2
Communication data link	serial
Analogue input number	1
Relay output type	relay outputs RIC NO/NC programmable, relay outputs R1B 1 NO, relay outputs R1A 1 NO
With safety function Safe Direction (SDI)	False
Net weight	8.3 kg
Display screen available	True
Maximum switching current	<LineBreak/>relay outputs, <LineBreak/>relay outputs 2 A at 30 V DC, <LineBreak/>relay outputs 2 A at 250 V AC
[Uc] control circuit voltage	110...250 V AC 50/60 Hz - 15...10 %
Analogue output type	current output AQ1: 0...20 mA or 0...10 V, impedance <500 Ohm
Standards	IEC 60664-1, UL 60947-4-2, IEC 60947-4-2
Network frequency	50/60 Hz
Device connection	to the motor delta terminals, in the motor supply line
Product certifications	CCS, BV, ABS, DNV, EAC, RCM, UKCA, CCC, cULus, CE
Environment
Maximum deflection under vibratory load (during storage)	1.75 mm at 2...9 Hz
Maximum acceleration under shock load (during storage)	100 m/s² at 11 ms
Relative humidity	0-95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for storage	-25-70 °C
Maximum acceleration under vibratory load (during storage)	10 m/s² at 9...200 Hz, 15 m/s² at 200...500 Hz
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Ambient air temperature for operation	-15-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C)
Electromagnetic compatibility	voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-11, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, conducted and radiated emissions level A conforming to IEC 60947-4-2
Pollution degree	level 3
[Uimp] rated impulse withstand voltage	6 kV
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under shock load (during transport)	100 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport)	10 m/s² at 9...200 Hz, 15 m/s² at 200...500 Hz
Environmental class (during operation)	class 3S2 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Operating altitude	> 1000...4000 m with current derating 1 % per 100 m, <= 1000 m without derating
[Ui] rated insulation voltage	690 V
Maximum deflection under vibratory load (during transport)	1.75 mm at 2...9 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	37.000 cm
Package 1 Width	31.000 cm
Package 1 Length	39.000 cm
Package 1 Weight	9.877 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	86.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	87.500 kg
