SKU:

ATV650C11N4F

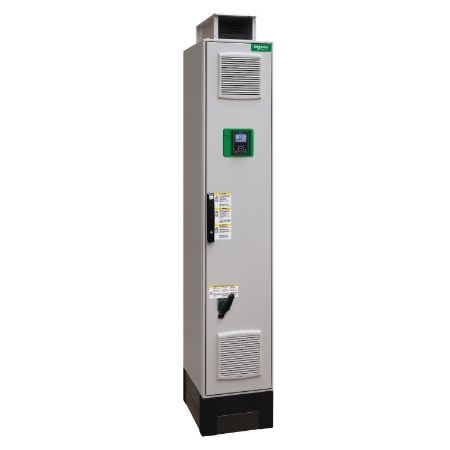

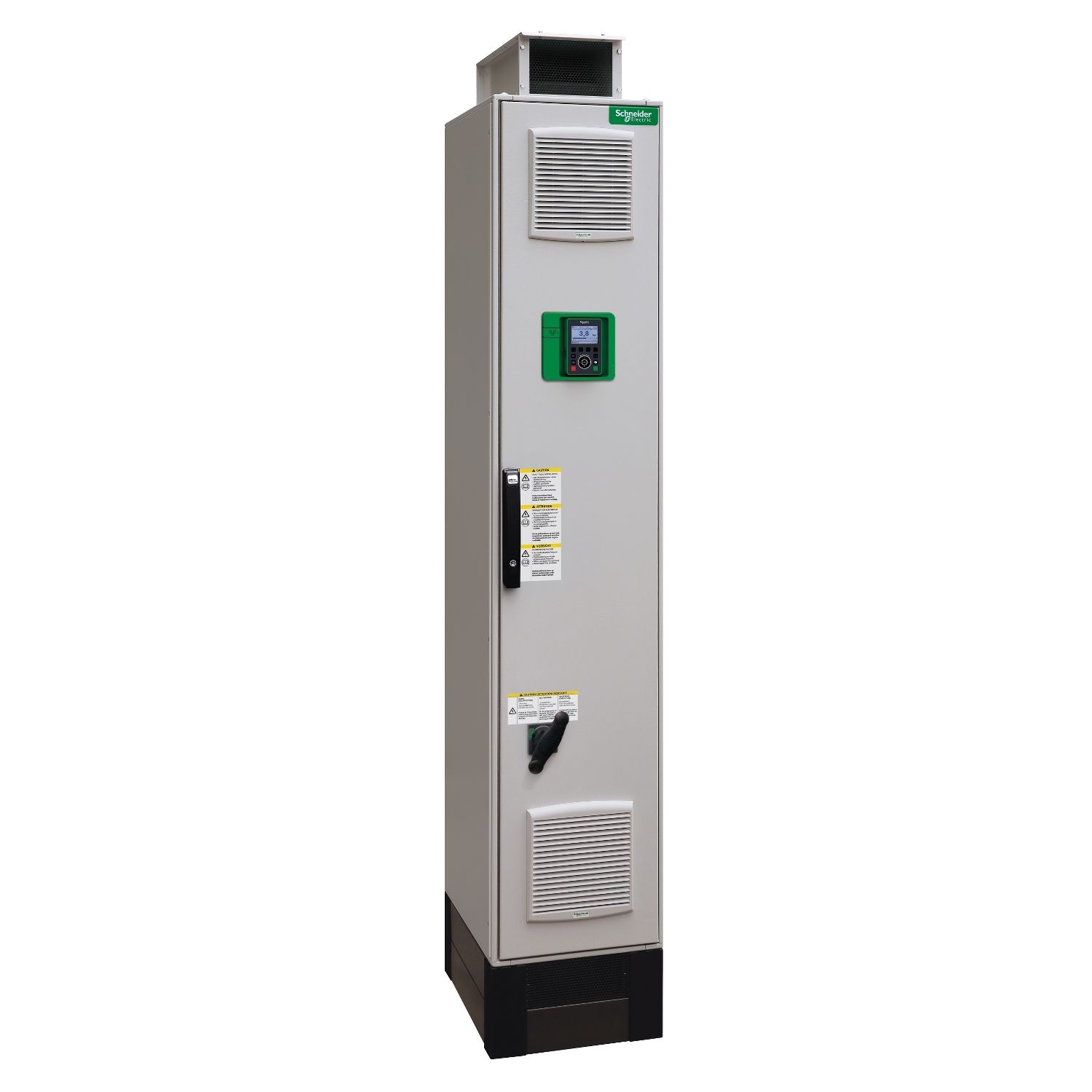

variable speed drive, Altivar Process ATV600, ATV650, 110kW, 380 to 440V, IP54, disconnect switch

$20,074.44

Qty:

Product Selector

variable speed drive, Altivar Process ATV600, ATV650, 110kW, 380 to 440V, IP54, disconnect switch

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

User guide

Catalogue

Product environmental

End of life manual

Brochure

Declaration of conformity

Product Page Link

Product Data Sheet

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 440V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 110kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW for applications requiring significant overload (up to 150%). It weighs 310kg and its dimensions are, 400mm wide, 2350mm high, 669mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on the floor. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Products specifications

Attribute name	Attribute value
Main
Synchronous motor control profile	permanent magnet motor, synchronous reluctance motor
Device short name	ATV650
Nominal switching frequency	2.5 kHz
Continuous output current	173 A at 2.5 kHz for heavy duty, 211 A at 2.5 kHz for normal duty
Type of cooling	forced convection
Discrete input logic	16 preset speeds
[Us] rated supply voltage	380...440 V - 15...10 %, 380...440 V
Motor power kW	90 kW (heavy duty), 110 kW (normal duty)
IP degree of protection	IP54 conforming to IEC 61800-5-1, IP20 (with kit VW3A9705) conforming to IEC 60529, IP20 (with kit VW3A9705) conforming to IEC 61800-5-1, IP00 conforming to IEC 60529
Speed drive output frequency	0.1-500 Hz
Range of product	Altivar Process ATV600
Option card	slot A: communication module, Profibus DP V1, communication module, Ethernet Powerlink, communication module, BACnet MS/TP, slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, slot A/slot B: output relay extension module, slot A/slot B: digital and analog I/O extension module, slot A: communication module, CANopen screw terminals, slot A: communication module, CANopen SUB-D 9, slot A: communication module, CANopen daisy chain RJ45, slot A: communication module, Modbus TCP/EtherNet/IP, slot A: communication module, DeviceNet, slot A: communication module, PROFINET
Supply frequency	50...60 Hz - 5...5 %
Safety function	STO (safe torque off) SIL 3
Product specific application	process and utilities
Communication port protocol	Modbus TCP, Ethernet, Modbus serial
Switching frequency	2.5...8 kHz with derating factor, 4...8 kHz with derating factor
Apparent power	115 kVA at 440 V (heavy duty), 136 kVA at 440 V (normal duty)
Product or component type	variable speed drive
Variant	with disconnect switch
Asynchronous motor control profile	variable torque standard, optimized torque mode
EMC filter	integrated with 150 m conforming to IEC 61800-3 category C3
Line current	174 A at 400 V (normal duty), 207 A at 690 V (heavy duty), 151 A at 500 V (heavy duty), 179 A at 690 V (normal duty)
Product destination	synchronous motors, asynchronous motors
Prospective line Isc	50 kA
Complementary
Maximum deflection under vibratory load (during storage)	1.5 mm at 2...13 Hz
Ambient air transport temperature	-25-70 °C
With safety function Safely Limited Speed (SLS)	False
Number of HW interfaces other	0
Supply	external supply for digital inputs: 24 V DC (19-30 V), <1.25 mA, protection type: overload and short-circuit protection, internal supply for digital inputs and STO: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Number of HW interfaces serial TTY	0
Protection type	thermal protection: motor, break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor
Discrete input type	DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V)
Maximum acceleration under shock load (during storage)	40 m/s² at 11 ms
Braking to standstill	by DC injection
Capacity of DC link	9400.0 µF
Supporting protocol for SUCONET	False
Power loss static current independent	73.0 W
Quantity per set	1
Output voltage	<= power supply voltage
Brake chopper integrated	False
With safety function Safe programmable logic	False
Isolation	between power and control terminals
Number of inputs, bidirectional, not potential-free	0
Number of inputs, potential-free	0
Supporting protocol for EtherNet/IP	True
Enclosure mounting	floor-standing
Supporting protocol for DeviceNet	False
Refresh time	relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Minimum switching current	relay output R1, R2, R3: 5 mA at 24 V DC
Physical interface	2-wire RS 485, Ethernet
Analogue output number	2
Permitted relative humidity (during transport)	class 2K5 according to EN 60721-3
Operating element present	True
Mounting mode	floor-standing
Supporting protocol for PROFINET IO	True
Motor starter type	variable speed drive
Permissible temporary current boost	1.1 x In during 60 s (normal duty), 1.5 x In during 60 s (heavy duty)
Supporting protocol for Data-Highway	False
Input compatibility	DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
Number of HW interfaces serial RS232	0
Connector type	RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP, RJ45 (on the remote graphic terminal) for Modbus serial
Maximum acceleration under vibratory load (during storage)	6 m/s² at 13...200 Hz
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Number of HW interfaces serial RS485	1
Maximum acceleration under vibrational stress (during operation)	6 m/s² at 13...200 Hz
Supporting protocol for PROFINET CBA	True
Base load current at low overload	211.0 A
Supporting protocol for PROFIBUS	True
Supporting protocol for ASI	False
Data format	8 bits, configurable odd, even or no parity
Number of HW interfaces USB	0
Environmental class (during transport)	class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2
With safety function Safe torque off (STO)	True
Relay output number	3
Supporting protocol for SERCOS	False
With safety function Safe Speed Monitor (SSM)	False
Supporting protocol for SafetyBUS P	False
Supporting protocol for AS-Interface Safety at Work	False
Transmission frame	RTU
Base load current at high overload	173.0 A
Maximum output voltage	440.0 V
Maximum acceleration under shock impact (during operation)	40 m/s² at 11 ms
Acceleration and deceleration ramps	linear adjustable separately from 0.01...9999 s, S, U or customized
Height	2350 mm
Maximum acceleration under shock load (during transport)	40 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport)	6 m/s² at 13...200 Hz
With safety function Safe brake management (SBC/SBT)	False
Number of HW interfaces serial RS422	0
Supporting protocol for TCP/IP	True
Optical interface present	False
Maximum output frequency	500 kHz
Electrical connection	control: removable screw terminals 0.5...1.5 mm², line side: screw terminal 4...10 mm²/AWG 12...AWG 8, motor: screw terminal 4...10 mm²/AWG 12...AWG 8
Supporting protocol for other bus systems	False
Supporting protocol for Foundation Fieldbus	False
Sampling duration	2 ms +/- 0.5 ms (DI1...DI4) - discrete input, 10 ms +/- 1 ms (AO1) - analog output, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (DI5, DI6) - discrete input
Environmental class (during operation)	class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Environmental class (during storage)	class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1
Computer port	True
Discrete and process manufacturing	building - HVAC compressor centrifugal
Application in industrial area permitted	True
Supporting protocol for PROFIsafe	False
Number of output phases	3
Analogue input type	AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Depth	669 mm
Supporting protocol for KNX	False
Transmission rate	4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 10, 100 Mbits
Width	400 mm
Number of input phases	3
Design of frequency changer	U converter
With safety function Safe Stop 1 (SS1)	False
With sft fct Safe Stop 2 (SS2)	False
Housing material	sheet steel
Supporting protocol for LON	False
Supporting protocol for BACnet	False
Specific application	utility
Number of addresses	1-247 for Modbus serial
Linearity error	AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AO1, AO2: +/- 0.2 % for analog output
Number of HW interfaces parallel	0
Local signalling	3 LEDs for local diagnostic, 1 LED (red) for presence of voltage, 4 LEDs (dual colour) for communication module status, 3 LEDs (dual colour) for embedded communication status
Power loss per device current dependent	2412.0 W
Nominal output current	211.0 A
Discrete input number	8
Permitted relative humidity (during operation)	class 3K5 according to EN 60721-3
With safety function Safe Operating Stop (SOS)	False
Method of access	slave Modbus TCP
With safety function Safely Limited Position (SLP)	False
With safety function Safe Position (SP)	False
Supporting protocol for DeviceNet Safety	False
Discrete output number	0
Supporting protocol for MODBUS	True
Motor slip compensation	adjustable, can be suppressed, not available in permanent magnet motor law
Analogue input number	3
Application in domestic and commercial area permitted	False
Supporting protocol for CAN	True
Maximum transient current	260 A during 60 s (heavy duty), 232 A during 60 s (normal duty)
Permitted relative humidity (during storage)	class 1K5 according to EN 60721-3
1 phase low current possible	False
Relay output type	configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, configurable relay logic R3: sequence relay NO electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Frequency resolution	display unit: 0.1 Hz, analog input: 0.012/50 Hz
Type of polarization	no impedance
With safety function Safe Direction (SDI)	False
Net weight	330 kg
Network number of phases	3 phases
Power range	110-220 kW at 380-440 V 3 phases
EMC limit value (complied)	True
Nominal output power	110.0 kW
Relative symmetric mains voltage tolerance	10 %
IP degree of protection	IP54
Relative symmetric network frequency tolerance	5 %
Maximum deflection under vibratory load (during transport)	1.5 mm at 2...13 Hz
Supporting protocol for INTERBUS-Safety	False
Supporting protocol for INTERBUS	False
Exchange mode	half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
4 quadrant operation possible	False
Maximum switching current	relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 30 V DC
Number of HW interfaces industrial Ethernet	1
Discrete output type	relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Number of HW interfaces PROFINET	0
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Analogue output type	software-configurable current DQ-, DQ+: 100 mA, software-configurable current DQ-, DQ+: 30 V DC, software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Discrete input logic	negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
Network frequency	50...60 Hz
Environment
Maximum THDI	<48 % full load conforming to IEC 61000-3-12
Operating position	vertical +/- 10 degree
Relative humidity	5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage	-40-70 °C
Pollution degree	2 conforming to IEC 61800-5-1, 3
Noise level	69 dB, 69 dB conforming to 86/188/EEC
Marking	CE
Volume of cooling air	720 m3/h
Ambient air temperature for operation	-15-40 °C (without derating), 50-60 °C (with derating factor), 0-50 °C
Electromagnetic compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Standards	UL 508C, IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, IEC 61800-5-1, environment 2 category C3 IEC 61800-3, IEC 61800-3, IEC 61800-2, IEC 60204-1
Overvoltage category	III
Operating altitude	<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m
Regulation loop	adjustable PID regulator
Vibration resistance	1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Power dissipation in W	2530 W, switching frequency 2.5 kHz (normal duty), forced convection: 136 W at 500 V, switching frequency 4 kHz
Product certifications	C-Tick, EAC, ATEX

Maximum input current	207.0 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	214.5 cm
Package 1 Width	120.0 cm
Package 1 Length	110.5 cm
Package 1 Weight	370.0 kg
