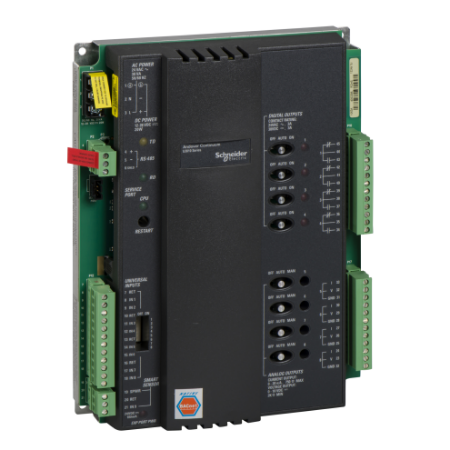

Picture of Andover Continuum b3814 Local Controller, BACnet, 8 Universal Inputs, 4 Digital/Analog Outputs, 1 Smart Sensor Input, Expansion Port
SKU:

B3814

Andover Continuum b3814 Local Controller, BACnet, 8 Universal Inputs, 4 Digital/Analog Outputs, 1 Smart Sensor Input, Expansion Port

Please Contact Sales to buy this Product. click here
Andover Continuum b3814 Local Controller, BACnet, 8 Universal Inputs, 4 Digital/Analog Outputs, 1 Smart Sensor Input, Expansion Port
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 10-Nov-2024
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP10
Device short nameb3814
Display typeLED
Width184 mm
Relative humidity10-95 % non-condensing
Product specific applicationcontrol of roof top unit, control of other mechanical plant equipment, control of air handling unit
Memory type1 MB flash, 128 kB SRAM
Function availablestand alone equipment control
Height227 mm
Depth54 mm
Number of inputs1 smart temperature sensor, 8 universal
Product or component typelocal controller
Ambient air temperature for operation0-49 °C
Number of outputs4 analog output, 8 single pole single throw form C relays
Range of productBACnet
Communication port supportRS485
[Us] rated supply voltage24 V AC, 12...14 V DC
Product certificationsCE, UL/cUL 916, FCC
Complementary
Measurement resolution5 mV input resolution
Battery typelithium 5 years power failure backup of RAM memory
Product compatibilitybCX network controller
Realtime clockwith battery-backed real time clock
Bus length1220 m BACnet
Display typeLED
Processor nameMotorola 32-bit coldfire
Input impedance30.1 kOhm 10 V, 5 MOhm with pull-up resistor disabled
Local signallingLEDs
Accuracy+/- 7.5 mV DC +/- 0.25 °C from - 23...54 °C
Resolution0.1 V 0...10 V
Software packageContinuum CyberStation
Power consumption in VA30 VA 24 V
Communication port protocolBACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices)
StandardsEN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003
Mounting supportpanel
Programming languageEnglish
Electrical connectionscrew terminal
Output voltage0...10 V,50 mA for analog output, 0...10 V, 30 V DC, 24 V AC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height27.9 cm
Package 1 Width27.7 cm
Package 1 Length13.1 cm
Package 1 Weight1.162 kg
Unit Type of Package 22
Number of Units in Package 21
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.595 kg
