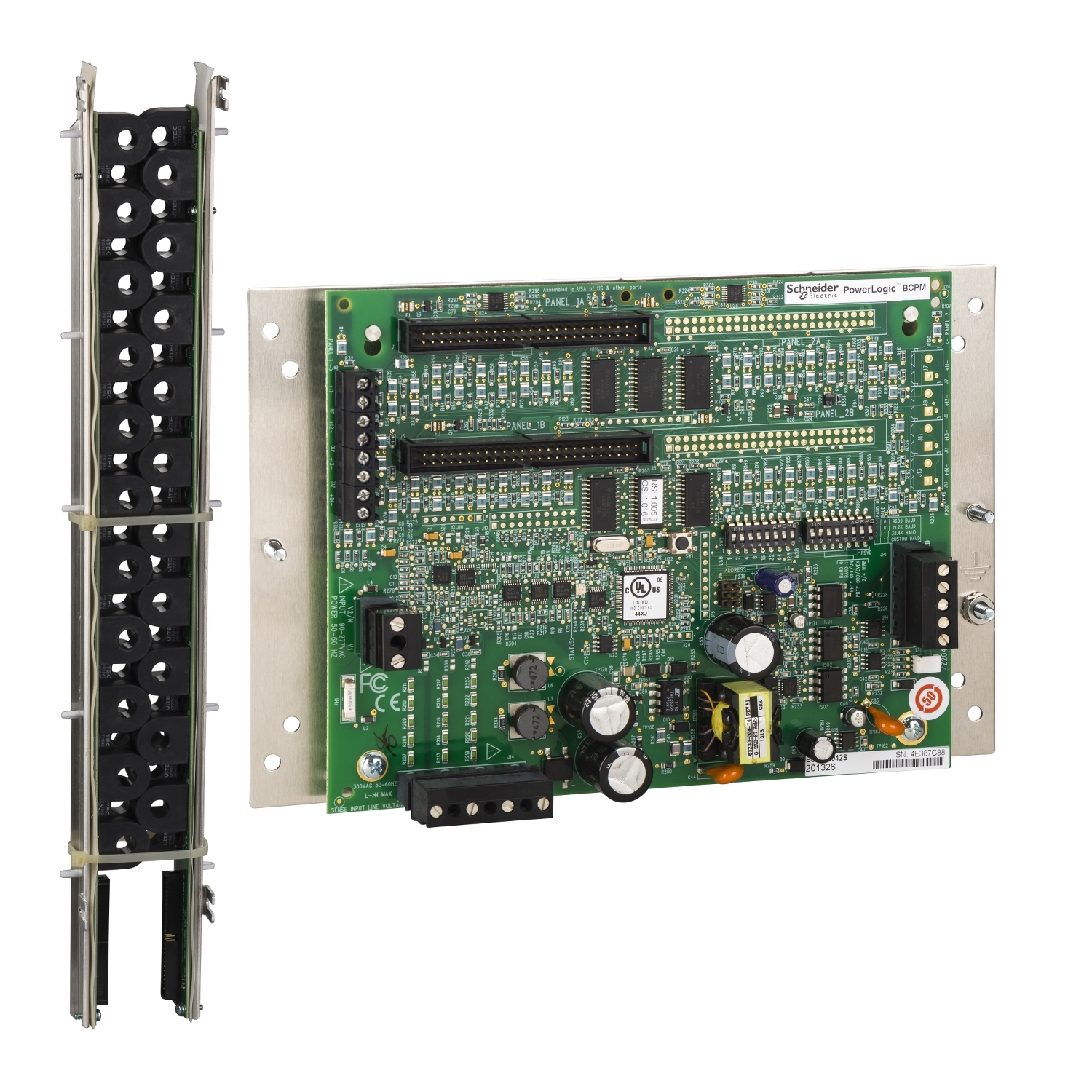

Picture of BCPM power monitoring advanced - 48 solid core 100 A - 18 mm CT spacing
SKU:

BCPMA248S

BCPM power monitoring advanced - 48 solid core 100 A - 18 mm CT spacing

$15,033.07
Available for Shipping : 13-Mar-2025
BCPM power monitoring advanced - 48 solid core 100 A - 18 mm CT spacing
Be the first to review this product
Manufacturer: Veris Industries
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (100A solid core current transformers) on all branch channels. The BCPM monitors both the 48 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 4 18-CTs board strips with 18mm spacing between each CT connectors, for 48 circuits. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.

Products specifications

Attribute name Attribute value
Main
Device short name BCPMA
Device application sub billing
[Us] rated supply voltage 90...277 V AC 50/60 Hz +/- 1 %
Energy management sub billing and cost allocation
Range PowerLogic
Product name PowerLogic BCPM
Market segment healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard
Product or component type multi-circuit energy meter
Power monitoring basic instrumentation
Type of measurement active energy, power factor, active power, frequency, current, voltage
Variant advanced
Range of product PowerLogic
Power quality analysis voltage sag and swell detection
Network frequency 60 Hz, 50 Hz
Complementary
Analogue input type solid core CT 100 A48 x
Update time 1.8 s
Measurement accuracy voltage 1 % 90…277 V, mains current 3 % 2…100 %, mains current 3 % 1…100 %, branch current 1 % 2…100 A, branch current 2 % 0.25…2 A
Provided equipment 48 x current transformer
Number of inputs 0
Communication of data low-low current alarm, high-high current alarm, under voltage alarm, high current alarm, over voltage alarm, low current alarm
Communication port protocol Modbus RTU
Number of outputs 0
Sampling rate 256 samples/cycle
Measurement voltage 150-480 V phase to phase, 90-277 V phase to neutral
Connection pitch 18 mm
Communication port support RS485
Environment
Operating altitude 3000 m
Width 288 mm
Relative humidity 0-95 % at 0-60 °C
Ambient air temperature for storage -40-70 °C
Mounting mode panel-mounted
Net weight 1.5 kg
Product certifications UL
Mounting support panel, enclosure
Standards ANSI C12.1, UL 508, EN 61010, IEC 61036
Height 146 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 30.5 cm
Package 1 Length 50.8 cm
Package 1 Weight 3.659 kg
