Picture of BCPM power monitoring advanced - 72 solid core 100 A - 18 mm CT spacing
SKU:

BCPMA272S

BCPM power monitoring advanced - 72 solid core 100 A - 18 mm CT spacing

Please Contact Sales to buy this Product. click here
BCPM power monitoring advanced - 72 solid core 100 A - 18 mm CT spacing
Be the first to review this product
Manufacturer: Veris Industries
Estimated Delivery Date: 17-Jan-2025
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

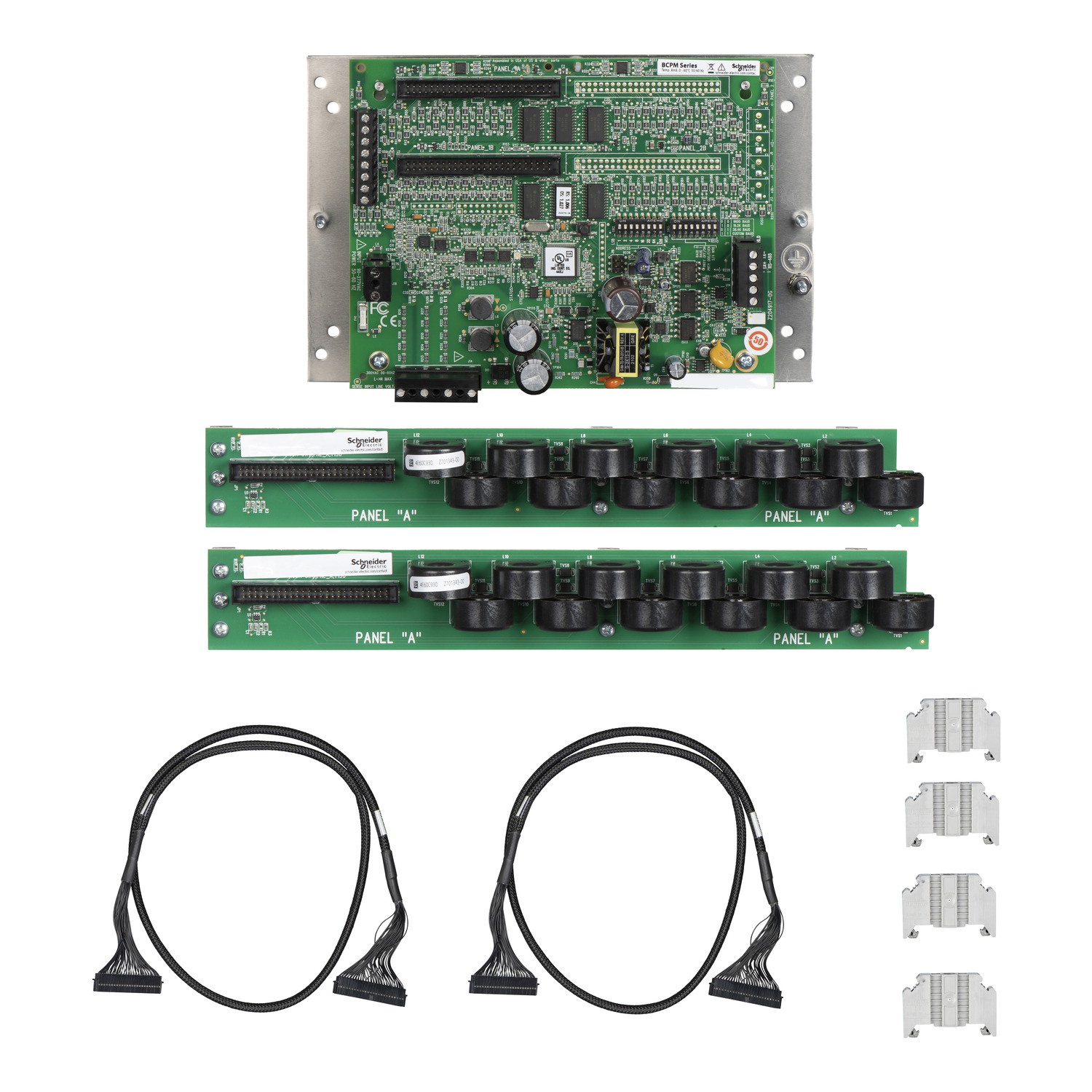

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (100A solid core current transformers) on all branch channels. The BCPM monitors both the 72 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 4 18-CTs board strips with 18mm spacing between each CT connectors, for 72 circuits. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.

Products specifications

Attribute nameAttribute value
Main
Device short nameBCPMA
Device applicationsub billing
[Us] rated supply voltage90...277 V AC 50/60 Hz +/- 1 %
Energy managementsub billing and cost allocation
RangePowerLogic
Product namePowerLogic BCPM
Market segmenthealthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard
Product or component typemulti-circuit energy meter
Power monitoringbasic instrumentation
Type of measurementactive energy, power factor, active power, frequency, current, voltage
Variantadvanced
Range of productPowerLogic
Power quality analysisvoltage sag and swell detection
Network frequency50 Hz, 60 Hz
Complementary
Analogue input typesolid core CT 100 A72 x
Update time1.8 s
Measurement accuracyvoltage 1 % 90…277 V, mains current 3 % 2…100 %, mains current 3 % 1…100 %, branch current 1 % 2…100 A, branch current 2 % 0.25…2 A
Provided equipment72 x current transformer
Number of inputs0
Communication of datahigh-high current alarm, low-low current alarm, low current alarm, under voltage alarm, over voltage alarm, high current alarm
Communication port protocolModbus RTU
Number of outputs0
Sampling rate256 samples/cycle
Measurement voltage150-480 V phase to phase, 90-277 V phase to neutral
Connection pitch18 mm
Communication port supportRS485
Environment
Operating altitude3000 m
Width288 mm
Relative humidity0-95 % at 0-60 °C
Ambient air temperature for storage-40-70 °C
Mounting modepanel-mounted
Net weight1.5 kg
Product certificationsUL
Mounting supportpanel, enclosure
StandardsIEC 61036, ANSI C12.1, UL 508, EN 61010
Height146 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height15.2 cm
Package 1 Width30.5 cm
Package 1 Length50.8 cm
Package 1 Weight4.318 kg
