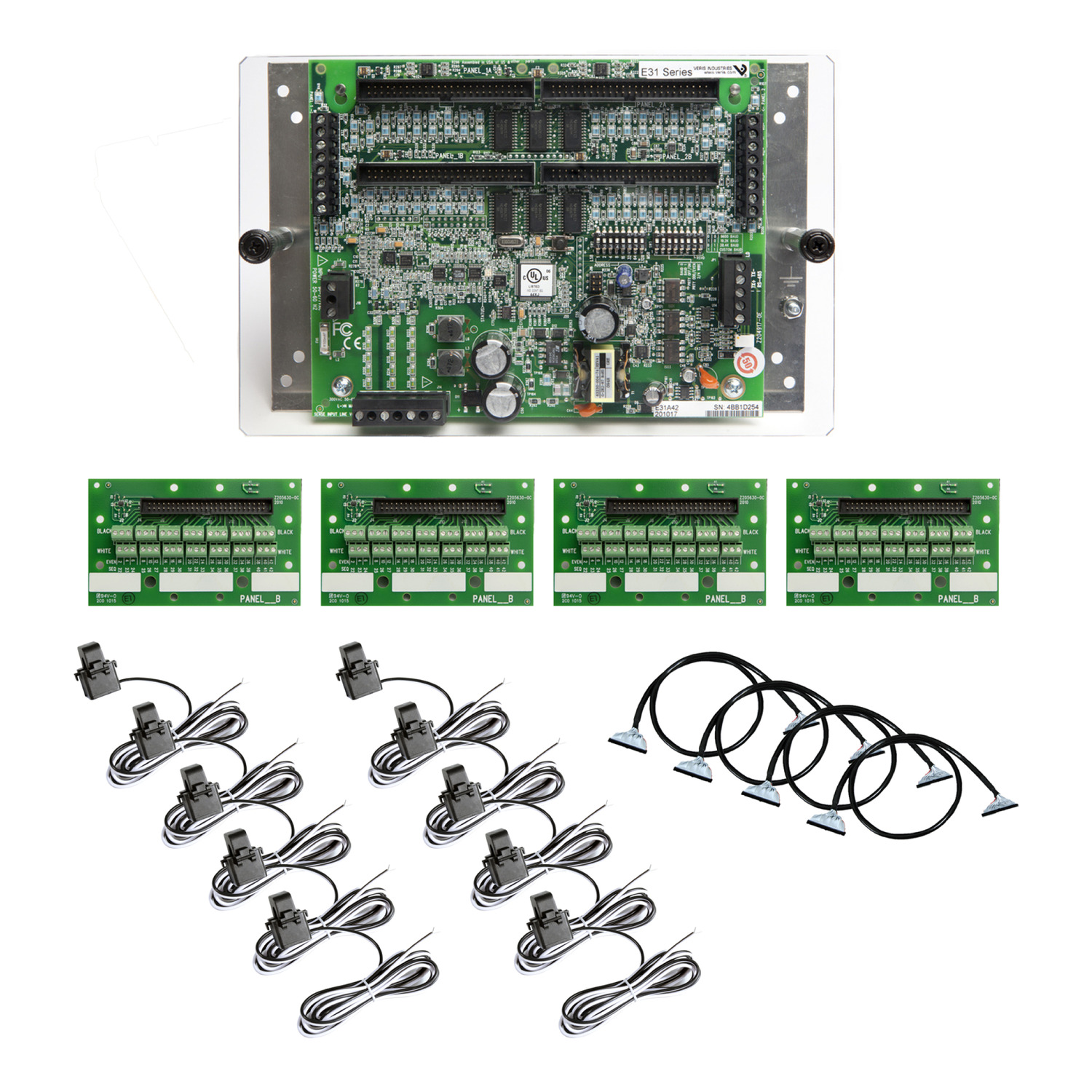

Picture of 4 adapter boards - basic - current on all circuits
SKU:

BCPMSCC2S

4 adapter boards - basic - current on all circuits

$7,162.09
Available for Shipping : 13-Mar-2025
4 adapter boards - basic - current on all circuits
Be the first to review this product
Manufacturer: Veris Industries
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM allow the monitoring of the branch circuits current only, for a maximum of 84 circuits. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. This version is for 84 circuits, but do not include branch current transformers nor ribbon. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.

Products specifications

Attribute name Attribute value
Main
Device short name BCPMSCC
Device application sub billing
[Us] rated supply voltage 90...277 V AC 50/60 Hz +/- 1 %
Energy management sub billing and cost allocation
Range PowerLogic
Product name PowerLogic BCPMSC
Market segment healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard
Product or component type multi-circuit energy meter
Power monitoring basic instrumentation
Type of measurement current
Variant basic
Range of product PowerLogic
Network frequency 50 Hz, 60 Hz
Complementary
Analogue input type current 0.333 V84 x , current 1 V
Update time 1.8 s
Measurement accuracy current 1 % 2…100 A, current 2 % 0.25…2 A
Provided equipment 0 x current transformer, 4 x adapter board
Number of inputs 0
Communication of data low current alarm, high current alarm, low-low current alarm, high-high current alarm
Communication port protocol Modbus RTU
Number of outputs 0
Sampling rate 256 samples/cycle
Measurement voltage 150-480 V phase to phase, 90-277 V phase to neutral
Communication port support RS485
Environment
Operating altitude 3000 m
Width 288 mm
Relative humidity 95-95 %
Ambient air temperature for storage -40-70 °C
Mounting mode clip-on
Net weight 1.5 kg
Product certifications UL 508
Mounting support board
Standards IEC 61010-1, EN 61010
Ambient air temperature for operation 0-60 °C
Height 146 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.4 cm
Package 1 Width 31.0 cm
Package 1 Length 38.7 cm
Package 1 Weight 1.273 kg
