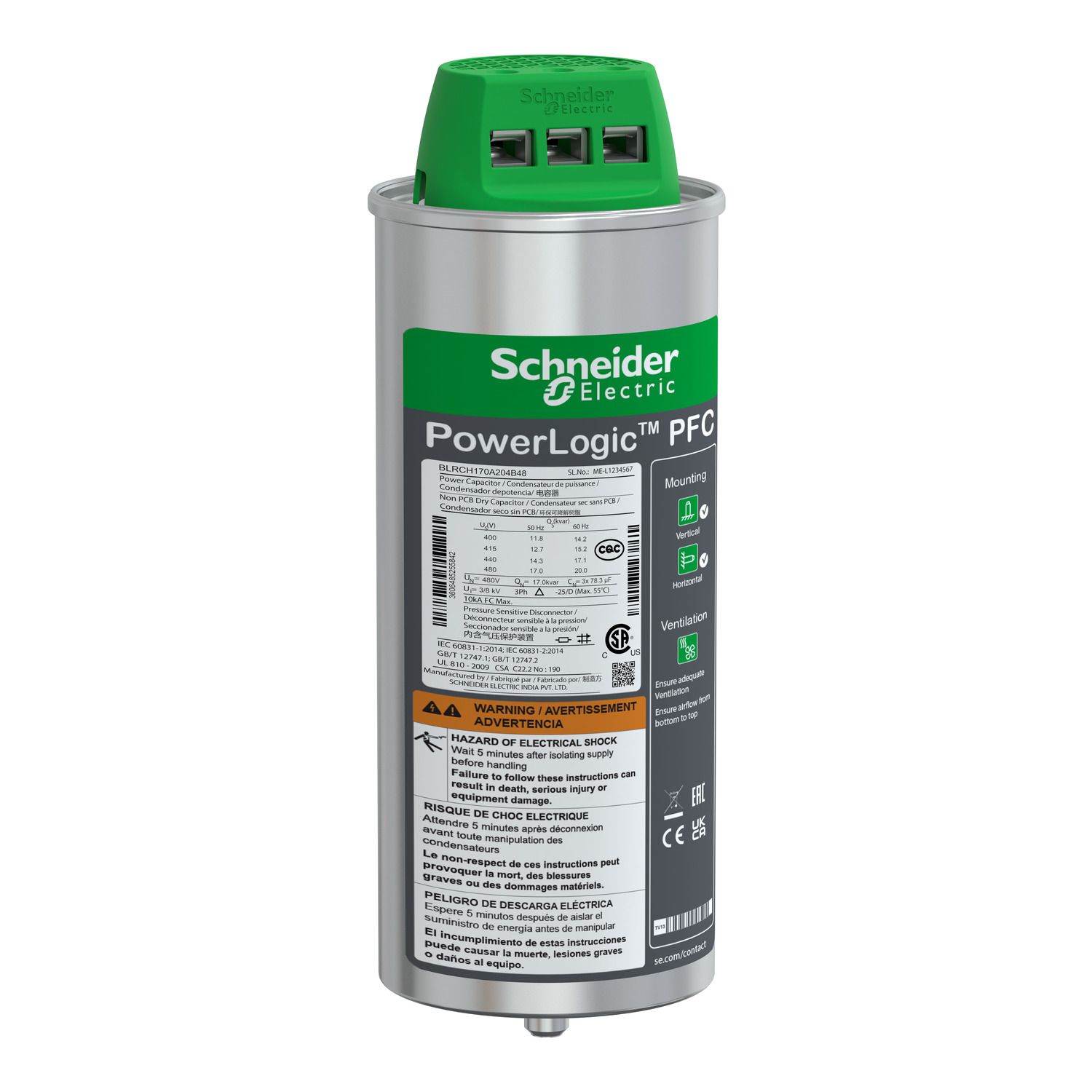

Picture of heavy duty PowerLogic PFC Capacitor, 17/20.4 kvar - 480 V - 50/60Hz
SKU:

BLRCH170A204B48

heavy duty PowerLogic PFC Capacitor, 17/20.4 kvar - 480 V - 50/60Hz

$497.54 INC GST
Available for Shipping : 29-Jan-2025
heavy duty PowerLogic PFC Capacitor, 17/20.4 kvar - 480 V - 50/60Hz
  • Low voltage PFC Capacitor for stringent operating conditions
  • Heavy Duty application with higher non-linear loads
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 17 kVar at 480V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 1.6 kg.

Products specifications

Attribute name Attribute value
Main
Rated voltage 480-480 V AC 50/60 Hz
[Imp] maximum permanent current 1.8 x In
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
Network harmonic content <= 20 %
Series name HDuty
Range PowerLogic
Product name PowerLogic PFC Capacitor
Product or component type heavy duty capacitor
Range of product PowerLogic
Reactive power rating 20.4 kvar 480 V 60 Hz, 17 kvar 480 V 50 Hz
Network frequency 50/60 Hz
Complementary
Service life in hours 130000 h
Mounting mode upright/horizontal
Power losses < 0.5 W/kVAr
Connections - terminals ClampTite terminal
Type of installation indoor installation
Net weight 1.6 kg
Dielectric losses < 0.2 W/kvar
Voltage test >= 660 V - 6 kV AC between terminal and container for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, 2.15 x Un AC between terminals for 10 s
Impregnation material biodegradable, non-PCB dry PUR resin
Maximum switching operation per year 7000
Capacitance tolerance - 5 % to 10 %
Dielectric material metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Inrush current 250 x In
Diameter 90 mm
Height 242 mm
Environment
Operating altitude 2000 m
Relative humidity 95-95 %
IP degree of protection IP20
Temperature class D
Ambient air temperature for operation -25-55 °C
Standards IEC 60831-1, IEC 60831-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 28.5 cm
Package 1 Width 11 cm
Package 1 Length 11.8 cm
Package 1 Weight 1.7 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 29 cm
Package 2 Width 29 cm
Package 2 Length 39 cm
Package 2 Weight 7.5 kg
Unit Type of Package 3 3
Number of Units in Package 3 6
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 12.6 kg
Unit Type of Package 4 4
Number of Units in Package 4 48
Package 4 Height 90 cm
Package 4 Width 80 cm
Package 4 Length 60 cm
Package 4 Weight 90 kg
