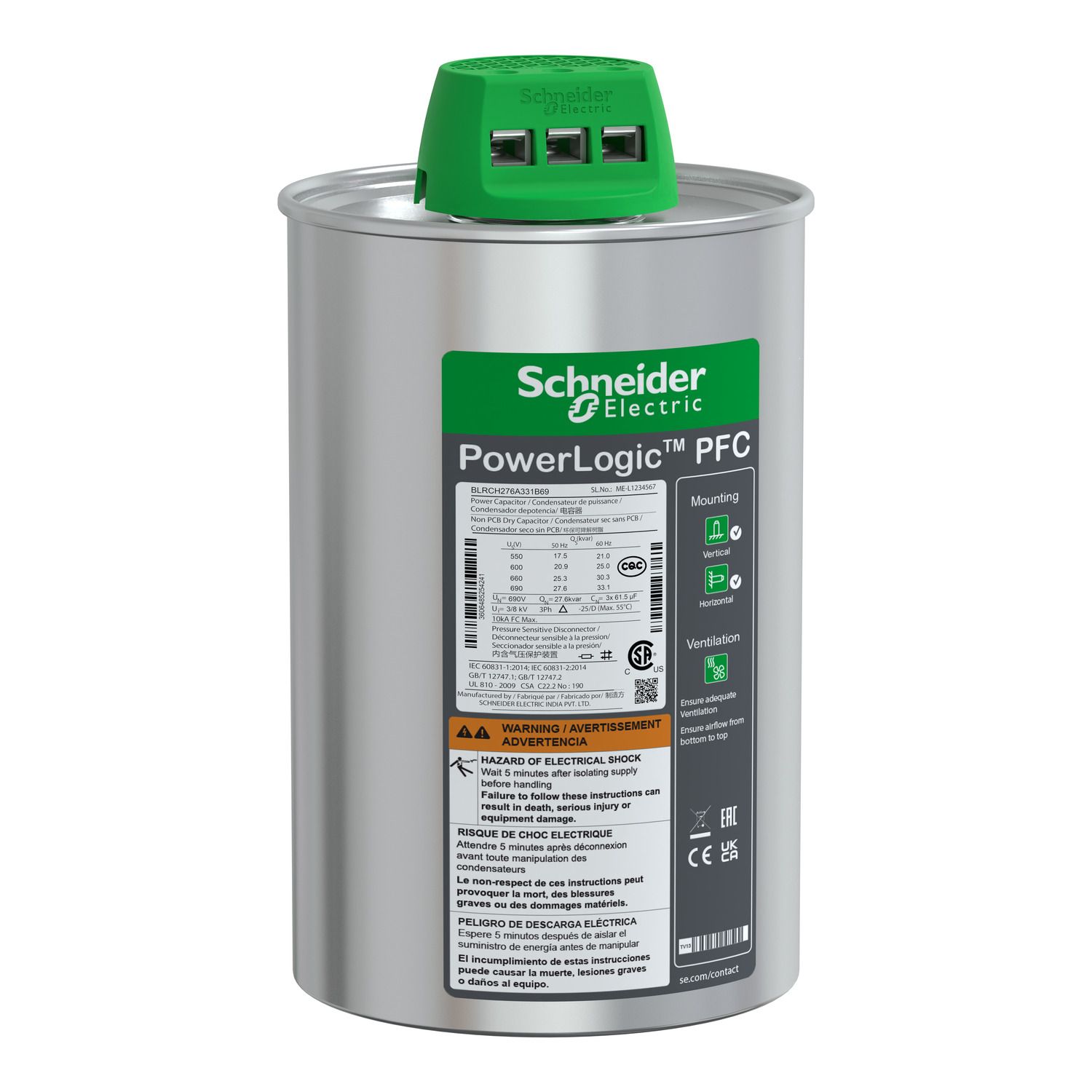

Picture of heavy duty PowerLogic PFC Capacitor, 27.6/33.1 kvar - 690 V - 50/60Hz

SKU:

BLRCH276A331B69

heavy duty PowerLogic PFC Capacitor, 27.6/33.1 kvar - 690 V - 50/60Hz

$982.34

Qty:

Available for Shipping : 02-Feb-2025

heavy duty PowerLogic PFC Capacitor, 27.6/33.1 kvar - 690 V - 50/60Hz

Low voltage PFC Capacitor for stringent operating conditions

Heavy Duty application with higher non-linear loads

Best in class performance, safety and reliability

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

End of life manual

Instruction sheet

Product environmental

Declaration of conformity

Product Page Link

Product Data Sheet

VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 27.6 kVar at 690V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 3.2 kg.
