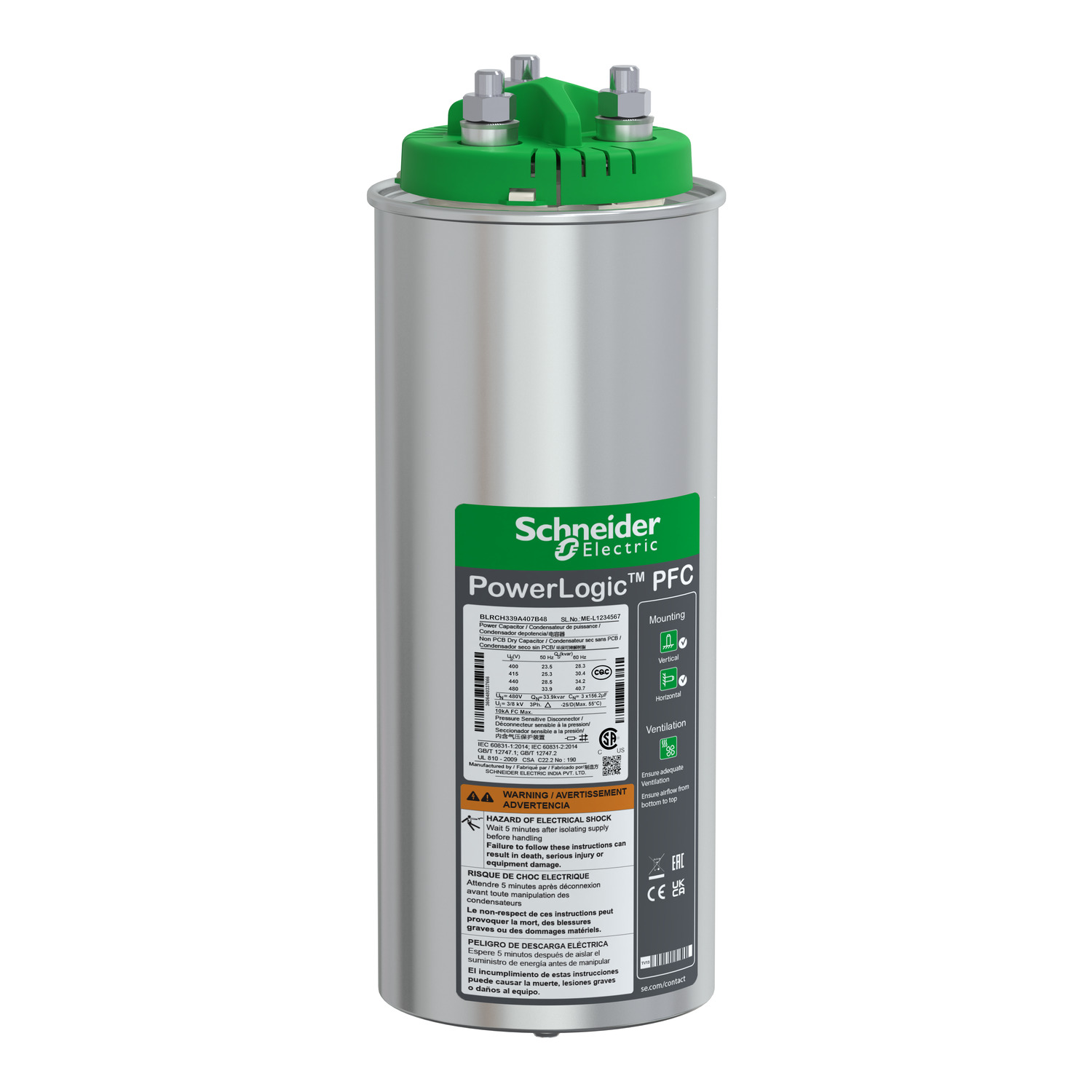

Picture of heavy duty PowerLogic PFC Capacitor, 33.9/40.7 kvar - 480 V - 50/60Hz
SKU:

BLRCH339A407B48

heavy duty PowerLogic PFC Capacitor, 33.9/40.7 kvar - 480 V - 50/60Hz

$910.68
heavy duty PowerLogic PFC Capacitor, 33.9/40.7 kvar - 480 V - 50/60Hz
  • Low voltage PFC Capacitor for stringent operating conditions
  • Heavy Duty application with higher non-linear loads
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
End of life manual
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 33.9 kVar at 480V AC,50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 4.1 kg.

Products specifications

Attribute nameAttribute value
Main
Rated voltage480-480 V AC 50/60 Hz
[Imp] maximum permanent current1.8 x In
Maximum permissible voltage1.1 x Un (8 hours over 24 hours)
Network harmonic content<= 20 %
Series nameHDuty
RangePowerLogic
Product namePowerLogic PFC Capacitor
Product or component typeheavy duty capacitor
Range of productPowerLogic
Reactive power rating40.7 kvar 480 V 60 Hz, 33.9 kvar 480 V 50 Hz
Network frequency50/60 Hz
Complementary
Service life in hours130000 h
Mounting modeupright/horizontal
Power losses< 0.5 W/kVAr
Connections - terminalsstud terminals
Type of installationindoor installation
Net weight4.1 kg
Dielectric losses< 0.2 W/kvar
Voltage test>= 660 V - 6 kV AC between terminal and container for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, 2.15 x Un AC between terminals for 10 s
Impregnation materialbiodegradable, non-PCB dry PUR resin
Maximum switching operation per year7000
Capacitance tolerance- 5 % to 10 %
Dielectric materialmetallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Inrush current250 x In
Diameter116 mm
Height321 mm
Environment
Operating altitude2000 m
Relative humidity95-95 %
IP degree of protectionIP00
Temperature classD
Ambient air temperature for operation-25-55 °C
StandardsIEC 60831-2, IEC 60831-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height17.573 cm
Package 1 Width18.092 cm
Package 1 Length38.2 cm
Package 1 Weight4.111 kg
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height73.5 cm
Package 2 Width60.0 cm
Package 2 Length80.0 cm
Package 2 Weight60.0 kg

Related products

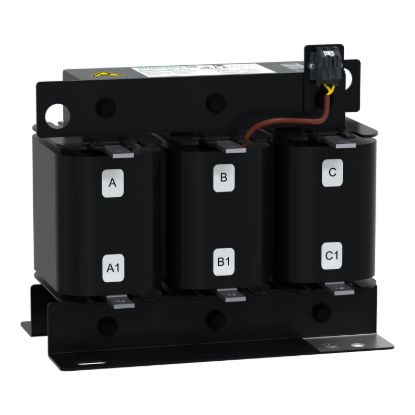

Picture of Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 210Hz (4.2) 5.7% 50Hz 400V
