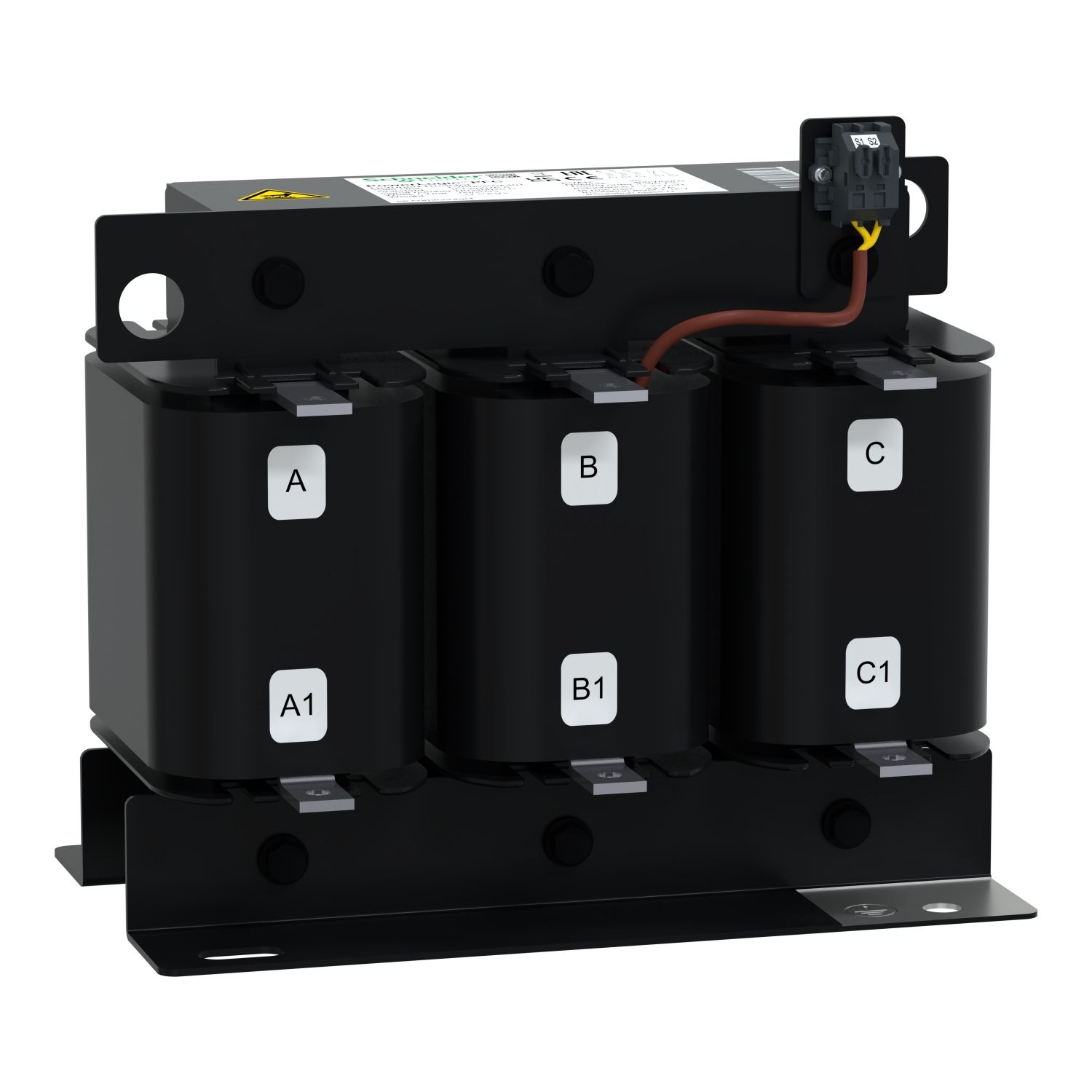

Picture of Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 210Hz (4.2) 5.7% 50Hz 400V
SKU:

LVR05250A40T

Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 210Hz (4.2) 5.7% 50Hz 400V

$3,342.16
Available for Shipping : 10-Dec-2024
Product Selector
Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 210Hz (4.2) 5.7% 50Hz 400V
  • Low voltage PFC Detuned Reactor for stringent operating condition
  • Detuned reactor for harmonic attenuation
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 4.2/210 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 5.7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 17.5 kg.

Products specifications

Attribute name Attribute value
Main
Device short name DR
Tuning order 4.2 - 210 Hz - 5.7 % - 50 Hz
Network rated voltage 400 V AC 50 Hz
Range PowerLogic
Product or component type detuned reactor
Reactive power rating 25 kvar for 400 V AC 50 Hz
Network frequency 50 Hz
Complementary
[Imp] maximum permanent current 1.3 x I1
Depth 160 mm
Width 240 mm
Inductance tolerance - 5 % to 5 % per phase
Type of cooling forced convection
Fundamental current rating 36.1 A
Harmonic current spectrum 6.2 % x I11, 18.6 % x I7, 67.8 % x I5, 2.9 % x I3
[Ui] rated insulation voltage 1.1 kV
Dynamic withstand current 2.2 x Isc
Electrical insulation class class H
Value of inductance 1.227 mH
Maximum current Irms 44 A
Power losses 200 W
Connections - terminals pad terminal
Type of installation indoor installation
Net weight 17.5 kg
Fixing center 200 x 125 mm
[Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz
Dielectric test voltage 4 kV 50 Hz 1 minute
Height 220 mm
Environment
Operating altitude <= 2000 m
IP degree of protection IP00
Average ambient air temperature for operation 35 °C at > 1000...2000 m (average over 1 year) , 45 °C at > 1000...2000 m (average over 24 hours) , 40 °C at <= 1000 m (average over 1 year) , 50 °C at <= 1000 m (average over 24 hours)
Ambient air temperature for operation 0-50 °C at > 1000...2000 m, 0-55 °C at <= 1000 m
Climatic withstand salt mist (400 V/50 Hz) : 250 hours, relative humidity: 20...80 %
Standards IEC 60068
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.600 cm
Package 1 Width 30.000 cm
Package 1 Length 31.400 cm
Package 1 Weight 16.807 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 50.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 213.684 kg

Related products

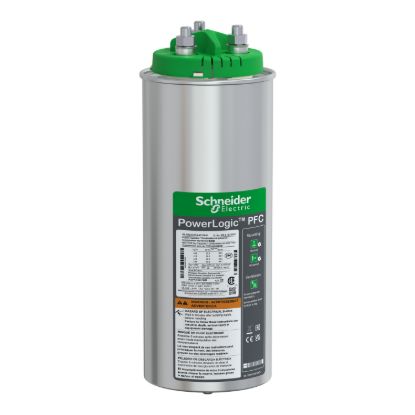

Picture of heavy duty PowerLogic PFC Capacitor, 33.9/40.7 kvar - 480 V - 50/60Hz

heavy duty PowerLogic PFC Capacitor, 33.9/40.7 kvar - 480 V - 50/60Hz

BLRCH339A407B48
$910.68
View Detail

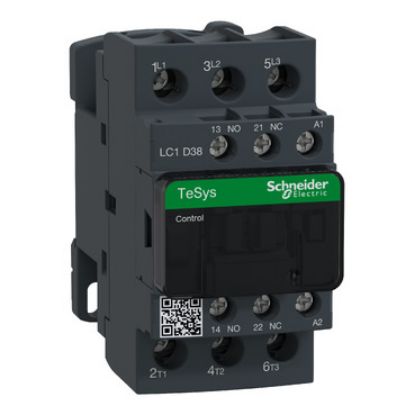

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 415VAC 50/60Hz coil
