SKU:

BMEXBP1002

rack, Modicon X80, 10 slots, Redundant PS, Ethernet backplane

$1,715.69 INC GST

Qty:

Available for Shipping : 22-May-2025

Product Selector

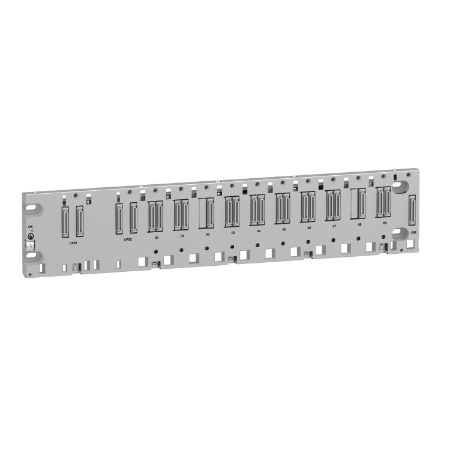

Modicon X80 Rack (BMEXBP1002)

10-slot capacity for modular configurations

Redundant power supply support for enhanced reliability

Ethernet backplane for seamless network integration

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

User guide

Catalogue

Declaration of conformity

End of life manual

Product Page Link

Product Data Sheet

This product comes from the Modicon X80 series, which offers a unified platform of modules designed for Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack accessory for programmable automation controllers. The 10-slot dual Ethernet and X-bus backplane features 10 slots, including 8 Ethernet and X-bus connectors for mixed modules, along with 2 X-bus connectors for X-bus modules.

Built with high-quality materials and innovative technology, this Ethernet backplane rack operates at 162mA current at 24V DC and 76mA at 3.3V DC. It includes a single XBE expansion module connector for electrical connections and has an impressive MTBF of 1,770,000 hours. The product is rated IP20, weighs 1.37 kg, and is ideal for medium to large-scale process applications.

It complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. The Ethernet backplane rack works well with specific application modules like, I/O modules, BMXCPS4002, BMX processors and BME processors. The Modicon X80 platform provides a shared set of modules, making maintenance easier with common spare parts. It also simplifies training by using a unified approach for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Accessory / separate part type	rack
Complementary
Product compatibility	BME processor, BMX processor, BMXCPS4002, I/O module, specific application module
Power consumption in W	3.9 W 24 V DC, 251 mW 3.3 V DC
Fixing mode	by 4 screws - diameter: 4.32-6.35 mm, mounting on panel, by 4 M6 screws, mounting on plate
MTBF reliability	1184170 H
Net weight	1.37 kg
Current consumption	76 mA at 3.3 V DC, 162 mA at 24 V DC
Number of slots	2 bus X, 8 bus X + Ethernet
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Relative humidity	5-95 % without condensation
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.900 cm
Package 1 Width	15.800 cm
Package 1 Length	56.900 cm
Package 1 Weight	1.355 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.480 kg
